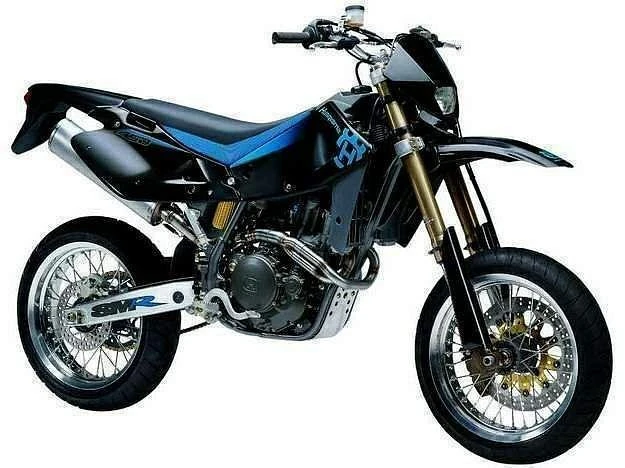

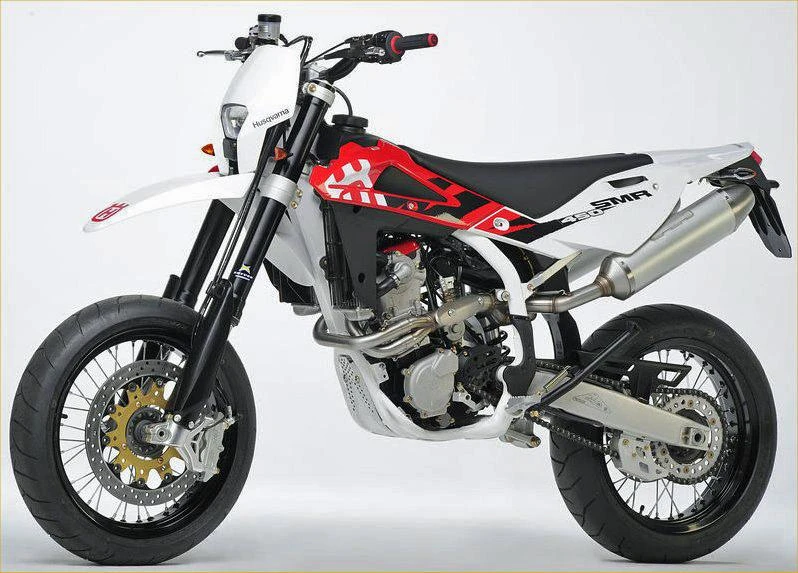

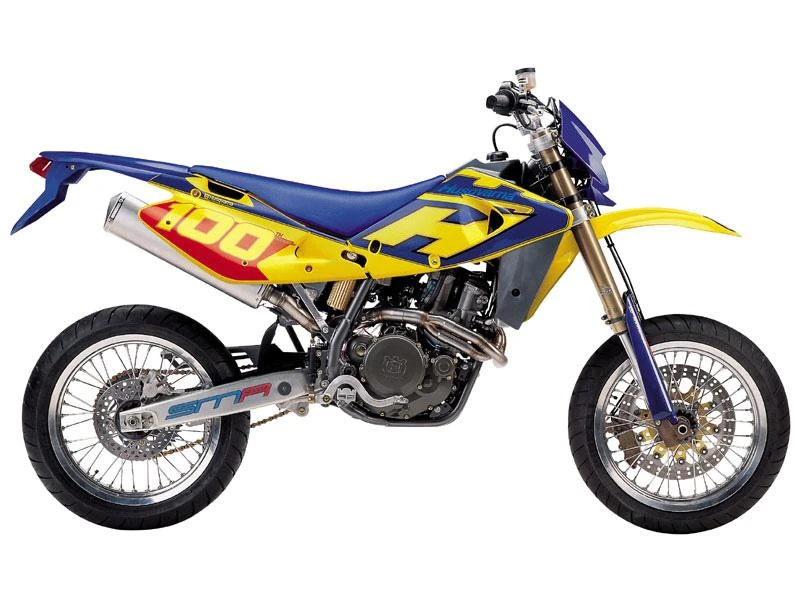

Husqvarna SM 450R (2004 – 2005)

Husqvarna SM 450R (2004 - 2005)

The Husqvarna SM 450R is a testament to the brand’s commitment to producing high-performance motorcycles with a focus on agility and control. Its steel single tube cradle frame provides the perfect balance of strength and lightness, allowing the rider to carve through corners with ease. The rear frame, crafted from lightweight alloy, complements the front end’s stability, while the Marzocchi “Upside-Down” fork delivers exceptional suspension performance with its advanced compression and rebound stroke adjustment.

This setup enables the SM 450R to excel in a variety of riding scenarios, from tight urban streets to sweeping mountain roads. Its potent 450cc engine, with its distinctive character and snappy throttle response, is a true delight to ride.

With its impressive handling and exhilarating power delivery, the Husqvarna SM 450R is a must-ride for anyone seeking an unforgettable motorcycle experience.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 4 vlave
Engine Capacity27.4 cubic inches / 449 cc
Max Power46.9hp/ 34.5 kW@8500rpm
Max Torque30.6 ft-lb / 41.5 nm
Fuel Tank Capacity2.4 US gallons / 9.2 L
Seat Height33.5 inches / 850 mm
Husqvarna SM 450R (2004 - 2005)

All Specifications

Make & Model

ModelHusqvarna SM 450R
Year2004 – 2005

Engine

Engine TypeFour stroke, single cylinder, DOHC, 4 vlave
Displacement27.4 cubic inches / 449 cc
Bore x Stroke97 X 60.7 mm
Compression Ratio12.0;1
Max Horsepower46.9hp/ 34.5 kW@8500rpm
Max Torque30.6 ft-lb / 41.5 nm
Engine Management System41mm Mikuni TMRCarburettor
Lubrication SystemWet sump
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet, multiple discs, cable operated
Gearbox6 Speed
Gear Ratios1st 2.000 (28/14), 2rd 1.611 (29/18), 3th 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Final DriveChain

Electrical & Electronics System

StarterElectric & kick

Chassis & Suspension

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Front SuspensionMarzocchi “Upside-Down” telescopic hydraulic fork with advanced axle. compressionand rebound stroke adjustment
Front Suspension Travel9.8 inches / 250 mm
Rear SuspensionSachs progressive “Soft Damp” type with single hydraulic shock absorber, springpreload adjustment, compression and rebound adjustment
Rear Suspension Travel11.4 inches / 290 mm

Wheels & Brakes

Front Tire Size120/70 -17
Rear Tire Size150/60 -17
Front BrakesSingle 320mm disc
Rear BrakesSingle 220mm disc

Dimension & Weights

Seat Height33.5 inches / 850 mm
Wheelbase58.9 inches / 1495 mm
Ground Clearance270 mm / 10.6 in
Fuel Tank Capacity2.4 US gallons / 9.2 L
Dry Weight120 kg /262.8 lbs

Features

  • Steel single tube cradle
  • Rear frame in light alloy
  • Marzocchi “Upside-Down” telescopic hydraulic fork
  • Compression stroke adjustment
  • Rebound stroke adjustment
  • Advanced axle
