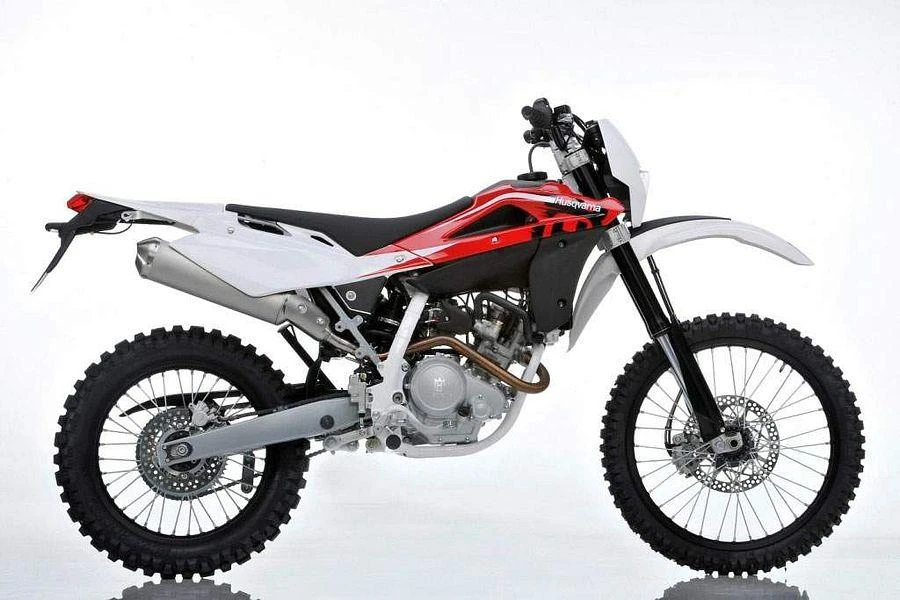

The Husqvarna SM 125 is a sleek and sophisticated motocross machine that exudes the perfect blend of style and performance. Available in two distinctive color schemes, the red and white or the more understated black, this two-stroke beauty boasts an engine that has been fine-tuned to deliver exceptional pick-up and mid-range power.
At its heart lies the highly successful 125cc two-stroke engine, which has been tweaked to meet Euro 3 standards while retaining the characteristic advantages of two-stroke engines: lightness, performance, and low running costs. The engine is equipped with the advanced ECS (Electronic Carburetion System), a collaboration between Husqvarna and DellOrto, which ensures precise fuel delivery and ignition control.
On the handling front, the SM 125 features specially designed Paioli forks, which work in harmony with the rear shock absorber to provide a responsive and agile riding experience. The new digital instrumentation is a welcome addition, providing a wealth of information at a glance, including speed, time, mileage, and rpm, as well as a trip-meter and essential warning lights.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
124.8 / 7.6 cu-in
Max Power
15 hp / 10 kW @ 9500 RPM
Fuel Tank Capacity
2.5 US gallons / 9.5 L
Seat Height
34.3 inches / 870 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Husqvarna SM 125
Year
2010 – 2011
Engine
Engine Type
Two stroke, single cylinder
Displacement
124.8 / 7.6 cu-in
Bore x Stroke
54 x 54.5 mm
Compression Ratio
8.8:1
Max Horsepower
15 hp / 10 kW @ 9500 RPM
Engine Management System
Dell’Orto PHBH 28
Cooling System
Liquid coked
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multiplate type, mechanic control
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
40mmPaioliUpside down forks
Front Suspension Travel
10.2 inches / 260 mm
Rear Suspension
Paioliprogressive Softail hydraulic shock
Rear Suspension Travel
8.7 inches / 220 mm
Wheels & Brakes
Front Tire Size
120/70 -17
Rear Tire Size
150/60 -17
Front Brakes
Single 260mm disc
Rear Brakes
Single 220mm disc
Dimension & Weights
Seat Height
34.3 inches / 870 mm
Wheelbase
57.9 inches / 1470 mm
Ground Clearance
265 mm / 10.4 in
Fuel Tank Capacity
2.5 US gallons / 9.5 L
Dry Weight
113.5 kg /250.2 lbs
Features
Red and white or black colour scheme options
White frame
Black anodised wheels
Two-stroke 125 engine with improved pick-up and low to mid range power output
Integrated ECS (Electronic Carburetion System) with DellOrto collaboration
Electronic ignition system control
Euro 3 compliant
Low running costs
Lightness
Performance
PaioIi forks for enhanced suspension performance
Specially designed shock absorber
Digital instrumentation
Display of speed, time, mileage, and rpm
Trip-meter
Warning lights for indicators, full beam, dipped beam, and service due
Oil mix administration in ECS system
