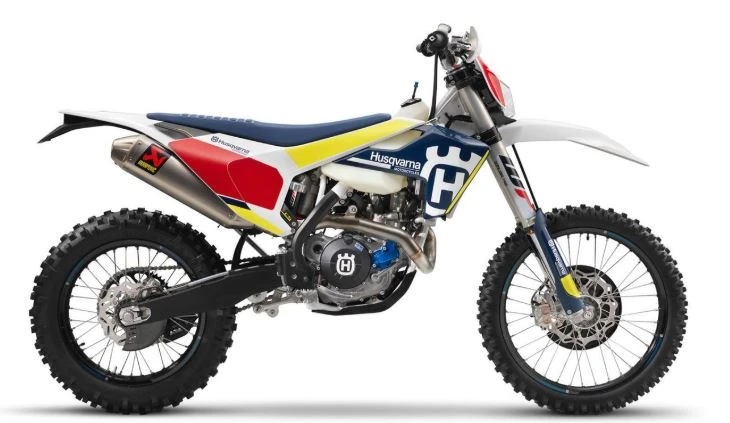

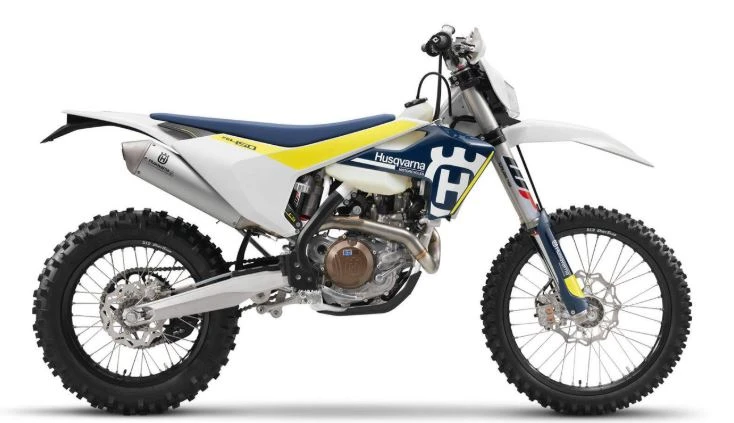

Husqvarna FE 450 (2016 - 2017)

The 2017 Husqvarna FE 450 is a force to be reckoned with, boasting a significantly improved engine that unleashes a broader spread of power and more torque.

Its newfound ferocity is matched by a substantial weight reduction and more compact design, making it even more agile and responsive on the trails.

The FE 450’s new map-switch activates Traction Control, providing riders with the confidence to tackle even the most treacherous terrain.

As part of its comprehensive enduro package, the FE 450 features an electric starter, a compact Li-Ion battery, and a redesigned wiring harness that allows for easy rear sub-frame removal.

Class-leading BREMBO brakes bring the 2017 Husqvarna FE 450 to a stop with authority, setting a new standard for enduro motorcycles.

The result is a machine that’s not only faster and more agile, but also more intuitive and enjoyable to ride, delivering a truly next-level enduro experience.

Key Specifications

Engine Type	Four stroke, single cylinder, SOHC, 4 valve
Engine Capacity	27.4 cubic inches / 449 cc
Max Power	NA
Max Torque	NA
Fuel Tank Capacity	2.3 US gallons / 8.5 L
Seat Height	38.2 inches / 970 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna FE 450
Year	2016 – 2017

Engine

Engine Type	Four stroke, single cylinder, SOHC, 4 valve
Displacement	27.4 cubic inches / 449 cc
Bore x Stroke	95 x 63.4 mm
Compression Ratio	11.8:1
Max Horsepower	NA
Max Torque	NA
Engine Management System	Fuel Injection
Lubrication System	Forced oil lubrication with 2 Eaton pumps
Cooling System	Liquid cooling system, continuous circulation of cooling liquid with water pump

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, DDS multi-disc clutch, Magura hydraulics
Gearbox	6 speed, claw shifted
Primary Drive Ratio	24:73
Secondary Drive Ratio	14:52 (13:52)
Final Drive	Chain X-Ring 5/8 x 1/4 in

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	25CrMo4 steel central-tube frame
Front Suspension	48mm WP-USD Xplor with preload adjuster
Front Suspension Travel	11.8 inches / 300 mm
Rear Suspension	WP Monoshock with linkage
Rear Suspension Travel	13.0 inches / 330 mm
Trail	107 mm / 4.2 in

Wheels & Brakes

Front Tire Size	90/90-21
Rear Tire Size	140/90-18
Front Brakes	Single 260 mm Magura two-piston floating calliper
Rear Brakes	Single 220 mm Magura single-piston floating calliper

Dimension & Weights

Seat Height	38.2 inches / 970 mm
Wheelbase	58.3 inches / 148210 mm
Ground Clearance	370 mm / 14.5 in
Fuel Tank Capacity	2.3 US gallons / 8.5 L
Dry Weight	110.4 kg / 243 lbs

Features

Increased performance over previous engine
Broader spread and more torque
Lighter and more compact engine
Optimised new map-switch with traction control
Electric starter as standard
Compact Li-Ion battery
1 kg lighter than conventional batteries
Redesigned wiring harness for easy removal of rear sub-frame
Brembo brakes
Completely new design
Reduced weight
Best-in-class handling
Dynamic ergonomics
Unique traction control system as standard on 4-stroke range
Class-leading performance
Next-level enduro riding experience
Increased rider comfort and confidence
20% higher torsional rigidity in new frames
30% reduced longitudinal stiffness in new frames
Composite subframe with 30% carbon fibre
1 kg lighter than previous subframe
CNC machined triple clamps with 22 mm offset
Specifically machined rear axle for chain adjuster markings
All-new WP Xplor 48 front forks with open cartridge layout and split damping functions
