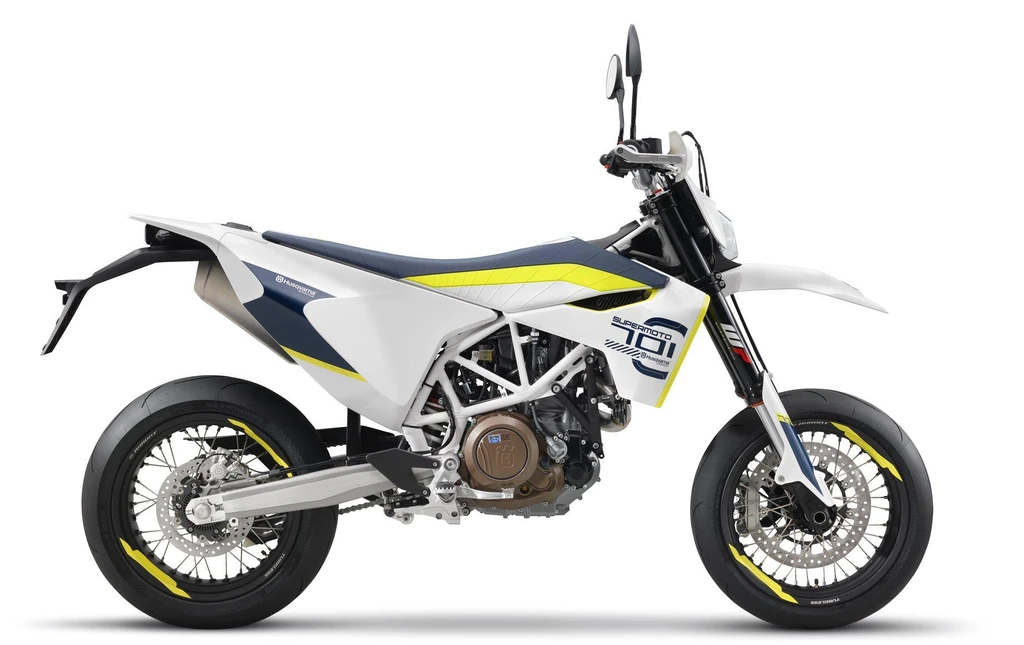

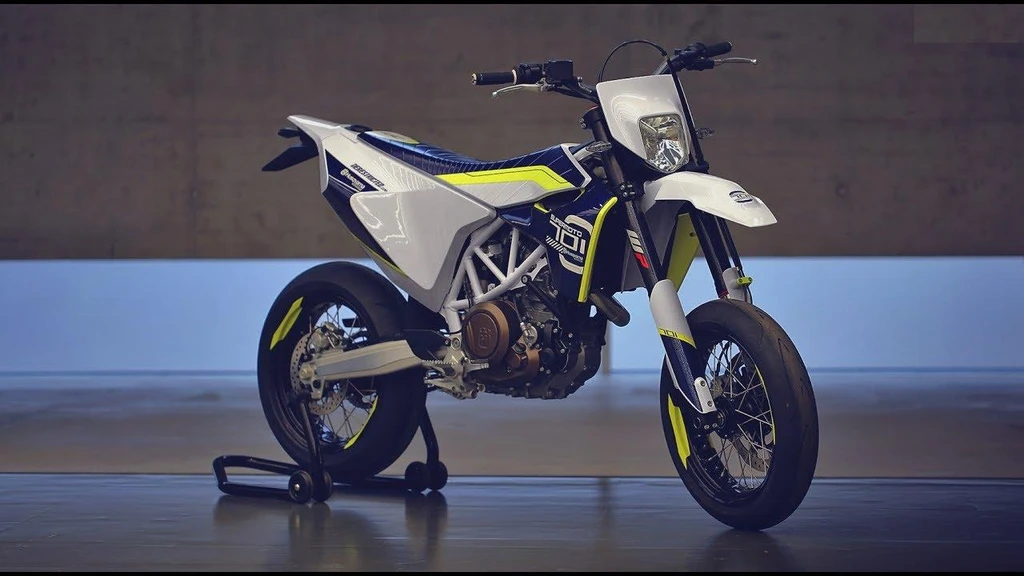

Husqvarna 701 Supermoto (2017 - 2018)

The Husqvarna 701 Supermoto is a formidable machine, boasting the most powerful single-cylinder engine ever developed by Husqvarna.

Its 692.7cc powerplant unleashes a whopping 74hp at 8,000rpm and 71.0Nm of torque at 6,750rpm, making it a class leader in performance.

Riding the 701 Supermoto is an exhilarating experience, with smooth power delivery courtesy of a state-of-the-art four-valve cylinder head and twin spark ignition.

The result is a bike that’s perfectly suited for both daily commuting and adrenaline-fueled on or off-road adventures, providing an unparalleled riding experience.

Key Specifications

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Engine Capacity	692.7 cc / 42.27 cu in
Max Power	55 kw / 74 hp
Max Torque	71Nm / 52.4 ft-lb @ 6750 rpm
Fuel Tank Capacity	3.4 US gallons / 13.0 L
Seat Height	35.0 inches / 890 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Husqvarna 701 Supermoto
Year	2017 – 2018

Engine

Engine Type	Four stroke, single cylinder, SOHC, 4 valves
Displacement	692.7 cc / 42.27 cu in
Bore x Stroke	105 x 80 mm
Compression Ratio	12.7:1
Max Horsepower	55 kw / 74 hp
Max Torque	71Nm / 52.4 ft-lb @ 6750 rpm
Engine Management System	Keihin EMS with RBW
Lubrication System	Pressure lubrication with 2 oil pumps
Cooling System	Liquid cooling
Exhaust	Stainless steel silencer with regulated catalytic converter

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	APTC slipper clutch, hydraulically operated
Gearbox	6 Speed
Primary Drive Ratio	36:79
Final Drive	Chain X-Ring 5/8 x 1/4

Electrical & Electronics System

Battery	12V 8.6Ah
Starter	Electric
ABS	ABS Bosch 9M+ Two Channel (disengageable, supermoto mode)

Chassis & Suspension

Frame Type	Chromium-Molybdenum-Steel trellis frame, powder coated, Subframe Self-supporting polyamide tank
Front Suspension	48 mm WP-USD split function fork
Front Suspension Travel	8.4 inches / 215 mm
Rear Suspension	WP-Monoshock with Pro-Lever linkage
Rear Suspension Travel	9.8 inches / 250 mm
Trail	112 mm / 4.4 in
Handlebar	Aluminium, tapered, 28/22 mm

Wheels & Brakes

Front Wheel/Rim Size	Spoked wheels with aluminium tubeless rims 3.50 x 17
Front Tire Size	120/70 ZR 17
Rear Wheel/Rim Size	Spoked wheels with aluminium tubeless rims 5.00 x 17
Rear Tire Size	160/60 ZR 17
Front Brakes	Single 320 mm disc, Brembo four piston, radially bolted caliper
Rear Brakes	Single 240 mm disc, Brembo single piston, floating caliper
ABS	ABS Bosch 9M+ Two Channel (disengageable, supermoto mode)

Dimension & Weights

Seat Height	35.0 inches / 890 mm
Wheelbase	58.2 inches / 15 mm
Ground Clearance	270 mm / 10.6 in
Fuel Tank Capacity	3.4 US gallons / 13.0 L
Dry Weight	145 kg / 319.6 lbs

Features

692.7cc single cylinder engine
Euro IV compliant engine
74 hp (55kW) at 8,000 rpm
71.0 Nm at 6,750 rpm
Active evacuation of crankcase
Forced lubrication of crankcase
10,000 km service intervals
State-of-the-art four-valve cylinder head
Twin spark ignition
Single overhead camshaft technology
Second counter balancer shaft for reduced vibrations
Keihin electronic fuel injection
50 mm throttle body
No mechanical linkage to throttle grip
Better throttle response and ride-ability
Reduced oscillating masses for lower vibrations
New intake resonator for improved response at low rpm
Long service intervals and low fuel consumption
Perfectly mixing craftsmanship with single cylinder performance
Updated graphics with white, blue, and yellow colors
Maximum power output of 74 hp
Maximum torque of 71.0 Nm
