Key Specifications Engine Type Liquid-cooled parallel-twin four-stroke Engine Capacity 471 cc / 29 cubic inches Max Power 34 kw / 45.6 hp @ 8,500 rpm Max Torque 32 lb-ft / 43.3 nm @ 6,000 rpm Top Speed n/a Fuel Tank Capacity 11.3 L / 3 US gallons Weight (Wet/Kerb) 419 lbs / 190 kg Seat Height 691 mm / 27.2 inches
*n/a – information not provided by manufacturer

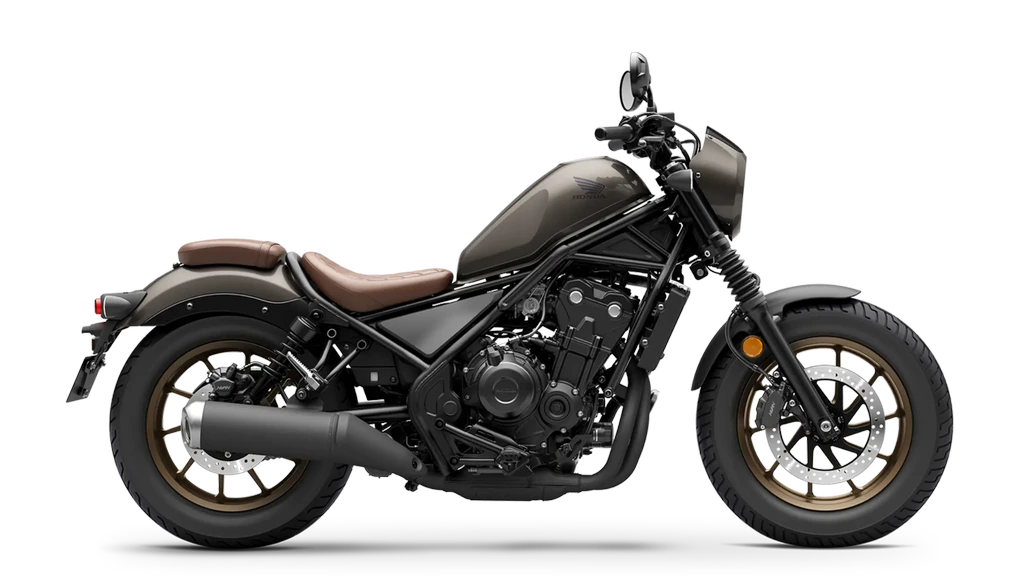

All Specifications Make & Model Model Honda Rebel 500 (CMX500) Year 2023
Engine Engine Type Liquid-cooled parallel-twin four-stroke Displacement 471 cc / 29 cubic inches Bore x Stroke 67 x 66.8 mm Compression Ratio 10.7 : 1 Number of Cylinders 2 Max Horsepower 34 kw / 45.6 hp @ 8,500 rpm Max Torque 32 lb-ft / 43.3 nm @ 6,000 rpm Valve Train DOHC; four valves per cylinder Valves per Cylinder 4 Engine Management System Programmed Fuel Injection system (PGM-FI); 34.0mm throttle body Cooling System Liquid Cooled Emissions Compliance Euro 5
Performance *n/a – information not provided by manufacturer
Transmission Clutch Wet, multiplate Hydraulic Gearbox Six-speed manual Final Drive O-ring-sealed chain; 15T/40T
Electrical & Electronics System Headlight Type LED Taillight Type LED Instrumentation Digital
Chassis & Suspension Frame Type Semi Double Cradle, Steel Front Suspension 41.0 mm telescopic fork with adjustable spring preload Front Suspension Travel 140 mm / 5.5 inches Rear Suspension Show with Pro-Link suspension Rear Suspension Travel 94 mm / 3.7 inches Rake 28 ° Trail 110 mm / 4.3 inches
Wheels & Brakes Wheels Cast Aluminum wheels Front Tire Size 130/90-16 Rear Tire Size 150/80-16 Front Brakes Single 296.0mm disc Rear Brakes Single 240.0mm disc
Dimension & Weights Overall Length 2188 mm / 86 inches Overall Width 820 mm / 32.3 inches Overall Height 1094 mm / 43 inches Seat Height 691 mm / 27.2 inches Wheelbase 1488 mm / 58.5 inches Ground Clearance 136 mm / 5.3 inches Fuel Tank Capacity 11.3 L / 3 US gallons Wet (kerb/curb) Weight 419 lbs / 190 kg
Honda Rebel 500 Special Edition (2023) Color Options *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
