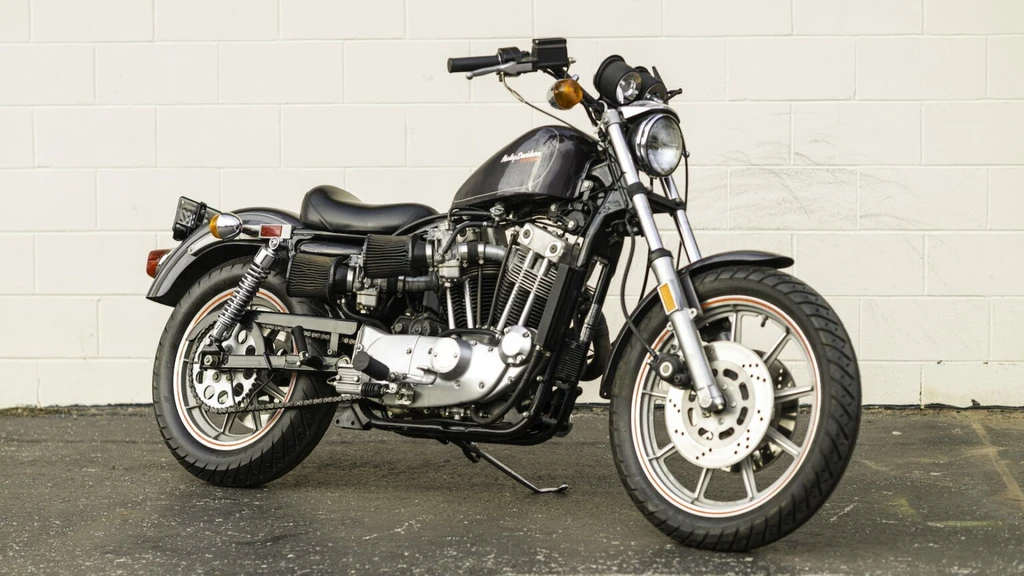

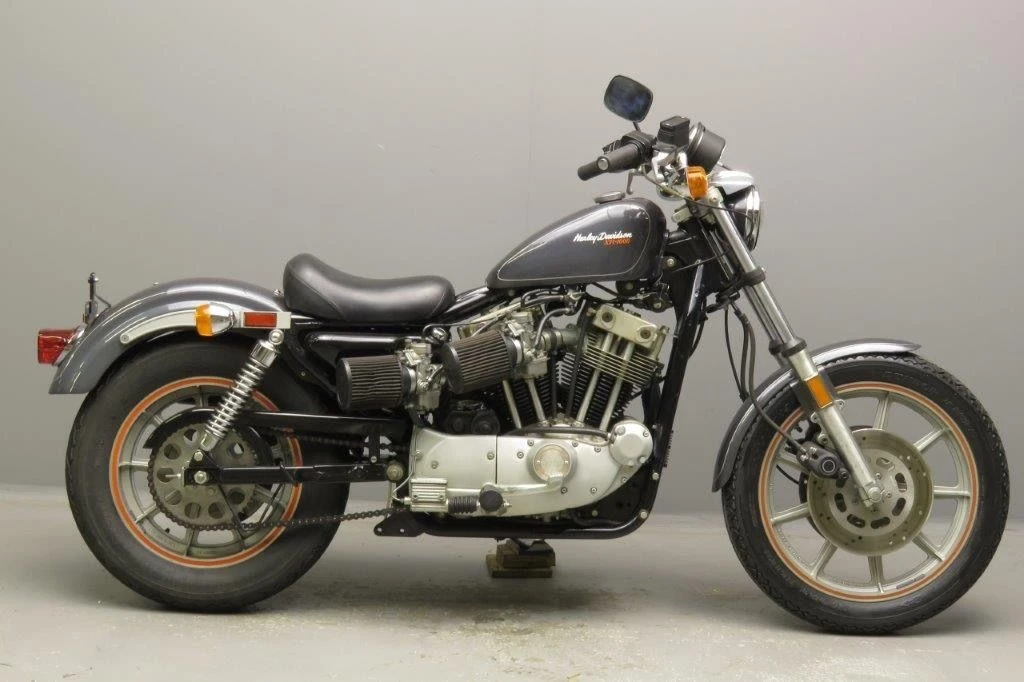

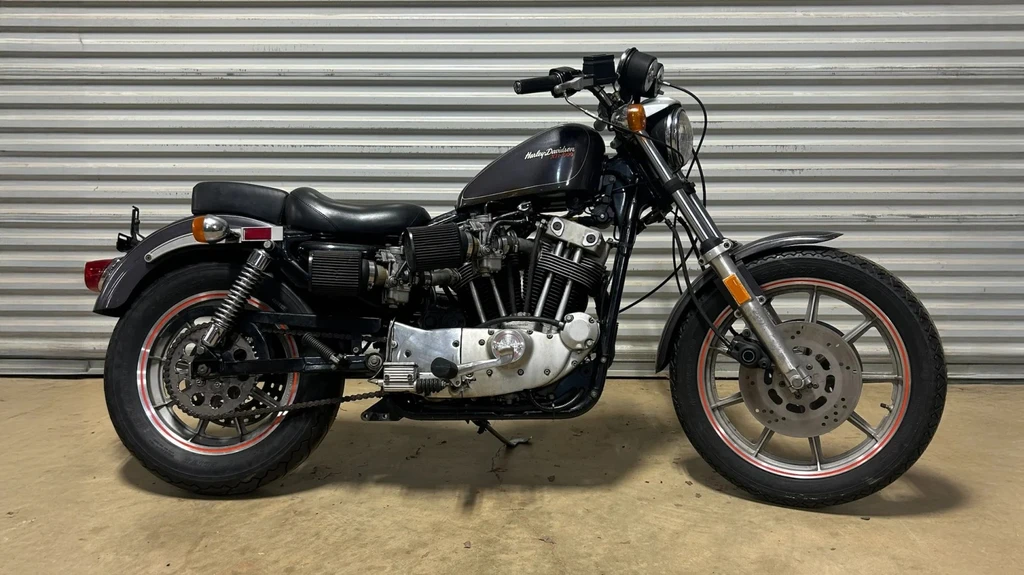

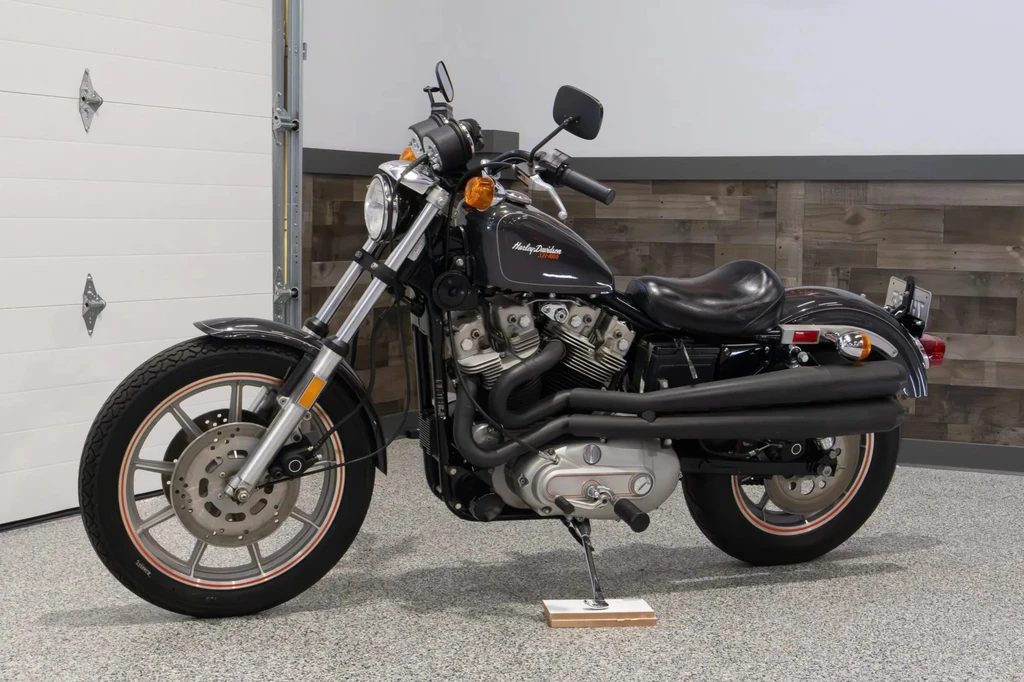

The Harley-Davidson XR 1000, a rebellious offspring born from the XL family tree. Its potent combination of 36mm Dell’Orto pumper carbs and K&N filters unleashes an extra 10 horsepower over its stock sibling, propelling it down the quarter-mile in a respectable 12.77 seconds at 102 mph.
However, beneath this promising façade lies a complex web of compromises and shortcomings. The asymmetrical weight distribution and soft suspension conspire against stable handling, while the transmission’s stiffness and non-existent damping exacerbate the XR 1000’s notorious vibration and power delivery issues.
But for those seeking an authentic, no-holds-barred riding experience, the XR 1000 remains an intriguing enigma – a rough-around-the-edges motorcycle that embodies the spirit of its predecessors. And as such, it still holds a certain allure today.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Engine Capacity
60.8 cubic inches / 998 cc
Max Power
70 hp / 52.6 kW @ 5600 rpm
Max Torque
48 lb-ft / 65 Nm @ 4400 rpm
Fuel Tank Capacity
2.5 US gallons / 9.5 L
Weight (Wet/Kerb)
509.3 lbs / 231.0 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XR 1000
Year
1983
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Displacement
60.8 cubic inches / 998 cc
Bore x Stroke
81 x 96.8 mm
Compression Ratio
9.0;1
Max Horsepower
70 hp / 52.6 kW @ 5600 rpm
Max Torque
48 lb-ft / 65 Nm @ 4400 rpm
Engine Management System
2X 36mm Dell’Orto carburetor
Cooling System
Air cooled
Performance
Top Speed
185 km/h / 115 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Front Suspension Travel
6.8 inches / 175 mm
Rear Suspension
Dual shocks, Swing arm
Rear Suspension Travel
3.9 inches / 100 mm
Wheels & Brakes
Front Tire Size
100/90 V19
Rear Tire Size
130/90 V16
Front Brakes
2X 292mm discs
Rear Brakes
Single 292mm disc
Dimension & Weights
Fuel Tank Capacity
2.5 US gallons / 9.5 L
Wet (kerb/curb) Weight
509.3 lbs / 231.0 kg
Dry Weight
228 kg / 502.6 lbs
Features
36mm Dell’Orto pumper carbs
K&N filters
Mufflers masquerading as a dirt-track exhaust system
11-inch rotors
More powerful calipers
Soft springs
Non-existent damping
Asymmetrical weight distribution
Stiff transmission
Balky clutch
Fragile internal cogs
Linear power delivery
Heinous vibration near 6200-rpm rev limit
Original asking price of $6995
Limited production: about 1000 bikes in ’83, followed by about 750 in ’84
