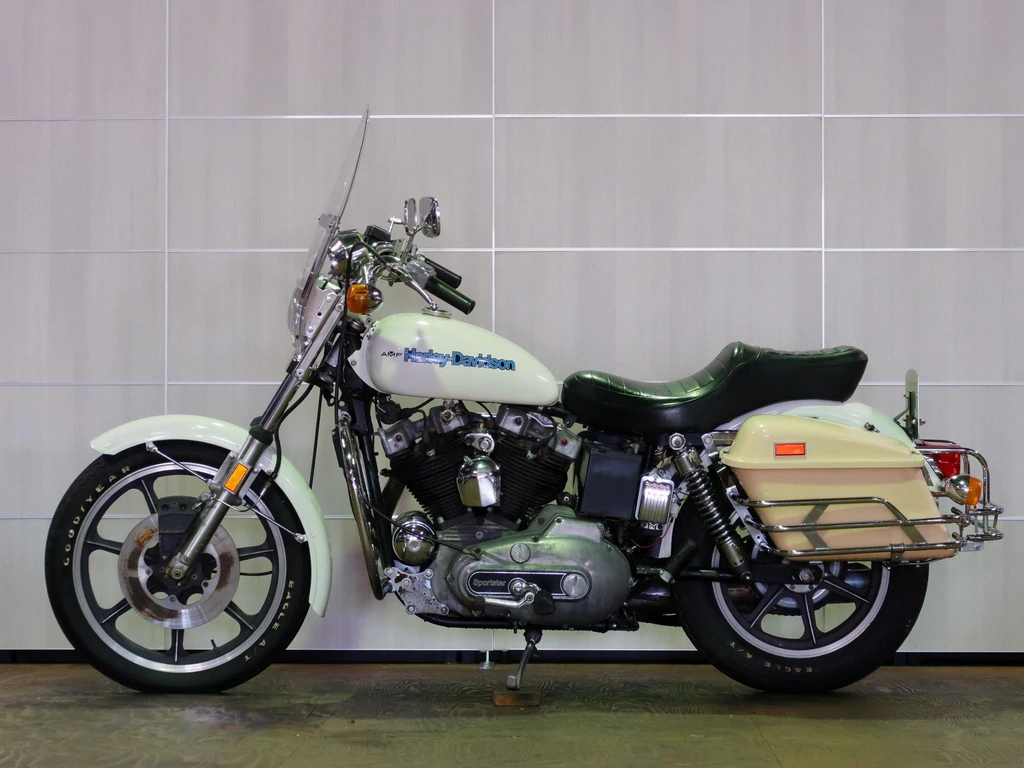

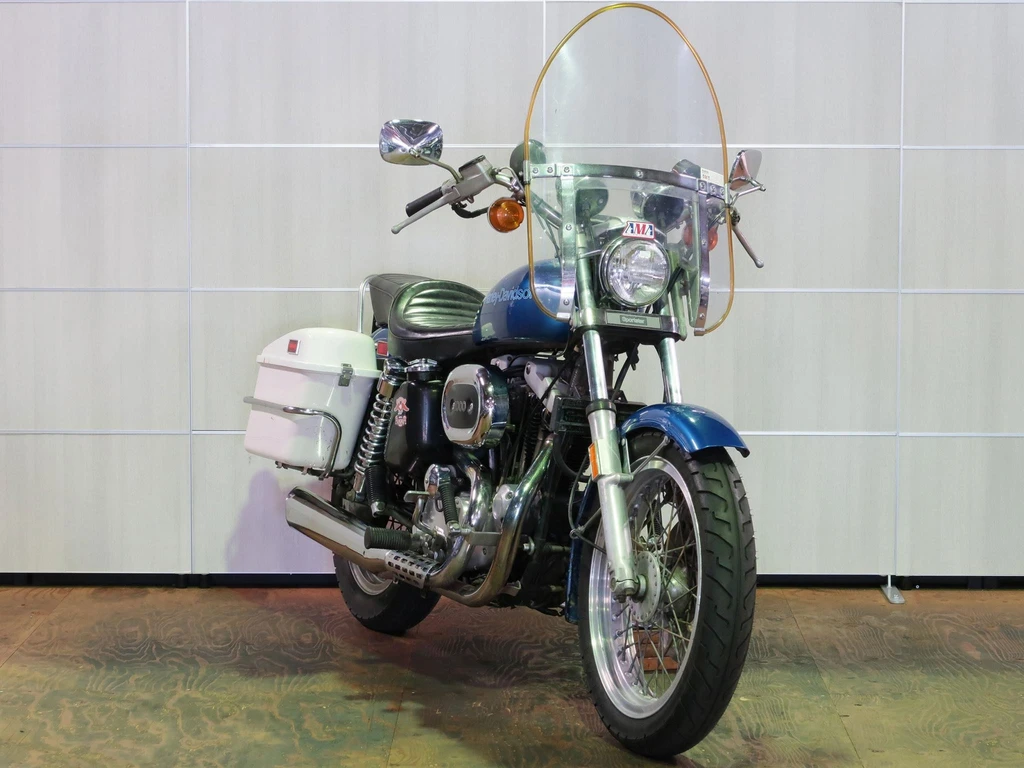

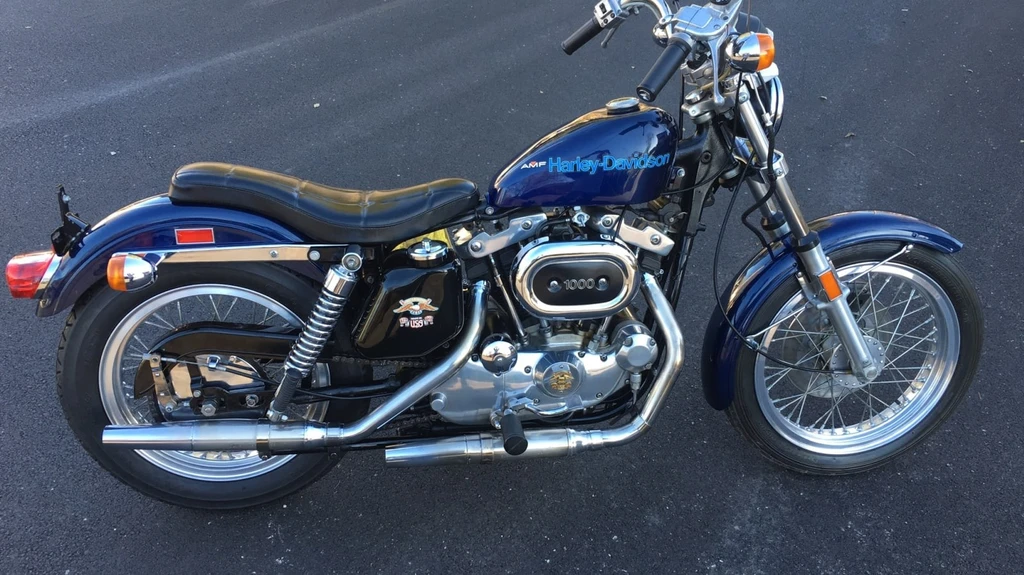

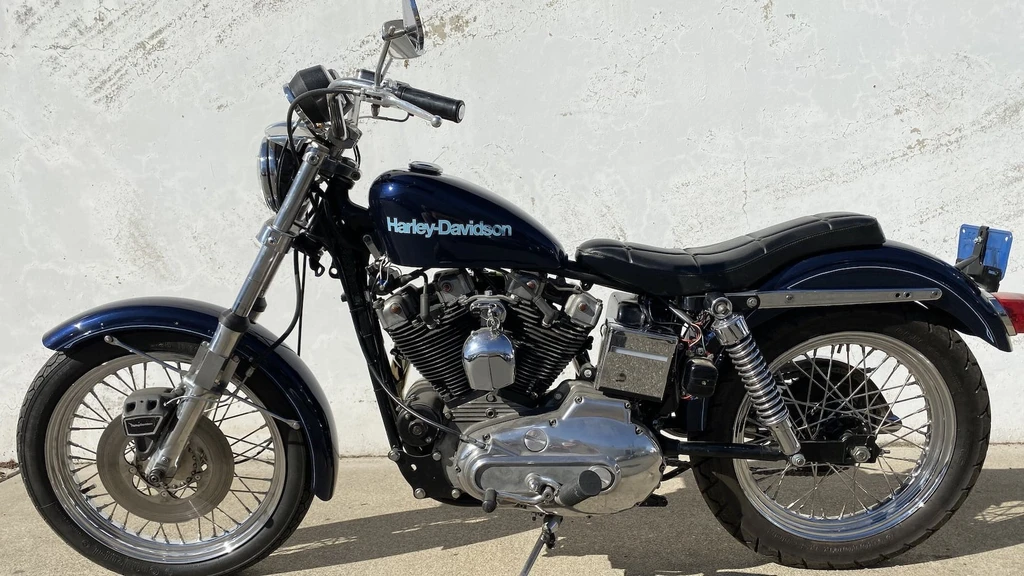

Harley Davidson XLT 1000 Touring Sportster “Baby Dresser”. (1977)

Harley Davidson XLT 1000 Touring Sportster "Baby Dresser". (1977)

The Harley-Davidson XLT 1000 Touring Sportster “Baby Dresser” – a rare gem in the 1977 lineup. With only 1,099 units built, this enigmatic bike has sparked numerous theories about its origins and purpose. One thing is certain, however: the XLT boasts a unique blend of touring and sportster DNA, complete with a Super Glide gas tank, compact windshield, and larger seat than its standard Sportster counterpart.

As you fire up the XLT’s 1000cc engine, you’ll be greeted by a distinctive growl that hints at its potent performance capabilities. This is no gentle cruiser; the XLT is built for the open road, with a commanding presence and agile handling that will leave even the most seasoned riders grinning from ear to ear.

As you settle into the saddle, the XLT’s ergonomics prove surprisingly comfortable, with ample legroom and support for long-distance touring. And yet, its compact windshield and sporty styling also whisper sweet nothings of a more adventurous spirit – one that’s eager to devour twisties and carve up the asphalt.

The Harley-Davidson XLT 1000 Touring Sportster “Baby Dresser” is a true unicorn in the world of motorcycles, offering an unparalleled blend of touring prowess and sporty flair.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder
Engine Capacity60.8 cubic inches / 998 cc
Max Power57 hp / 41.7 kW @ 6000 rpm
Max Torque55 ft-lb / 74 Nm @ 4000 rpm
Fuel Tank Capacity13.5 Litres / 3.5 gal
Weight (Wet/Kerb)578 lbs / 262 kg
Harley Davidson XLT 1000 Touring Sportster

All Specifications

Make & Model

ModelHarley Davidson XLT 1000 Touring Sportster “Baby Dresser”.
Year1977

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder
Displacement60.8 cubic inches / 998 cc
Bore x Stroke81 x 96.8 mm
Compression Ratio8.8;1
Max Horsepower57 hp / 41.7 kW @ 6000 rpm
Max Torque55 ft-lb / 74 Nm @ 4000 rpm
Engine Management System38mm Keihin carburetor
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox4 Speed
Gear Ratios1st: 10.63; 2nd: 7.70;rd: 5.87; 4th: 4.22
Final DriveChain

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionTelehydraulic forks
Rear SuspensionDual shocks swinging arm fork
Trail114 mm / 4.5 in

Wheels & Brakes

Front Tire Size3.75-19
Rear Tire Size4.25-18
Front Brakes2x 292mm discs
Rear Brakes200mm Drum

Dimension & Weights

Wheelbase58.5 inches / 1486 mm
Fuel Tank Capacity13.5 Litres / 3.5 gal
Wet (kerb/curb) Weight578 lbs / 262 kg

Features

  • Super Glide gas tank
  • Compact windshield
  • Larger seat than a regular Sportster
  • Same tank logos as other 1977 models
  • Produced in only 1,099 units in 1977
  • Featured in factory repair manual
  • May have been intended as a police model
  • Competitor to the Kawasaki KZ100
  • First touring Sportster produced by Harley-Davidson
  • Unique model that was not advertised or documented
  • Only a few pictures of the XLT exist in archives
  • Road test performed on a 1977 XLT by Motor Cycle Mechanic magazine
