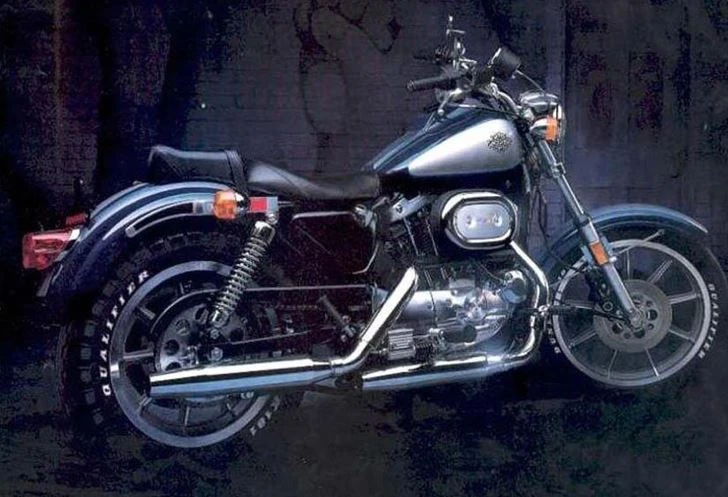

The Harley-Davidson XLS 1000 Roadster: an enigmatic machine that defies conventional motorcycle standards. With its 1-liter engine, it boasts a unique blend of acceleration akin to a 250cc and top-end performance reminiscent of a 500cc bike. Yet, it’s plagued by excessive vibration and lacks even the most basic tooling, such as a plug spanner.
Its handling is unrefined, braking capabilities are suspect, and value for money is questionable. And yet, despite these criticisms, the XLS Roadster retains an inexplicable allure that captivates a devoted following.
To truly appreciate this Harley-Davidson, one must separate its rugged, rough-around-the-edges persona from its undeniable charm. Once astride, even the most skeptical rider may find themselves won over by the XLS’s aura and image – a potent mix of American brawn and rebellious spirit that refuses to be ignored.
For those who can look beyond its rough edges, the Harley-Davidson XLS 1000 Roadster is an experience unlike any other.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Engine Capacity
60.8 cubic inches / 998 cc
Max Power
57 hp / 41.7 kW @ 6000 rpm
Max Torque
55 ft-lb / 74 Nm @ 4000 rpm
Fuel Tank Capacity
3.9 US gallons / 15.0 L
Weight (Wet/Kerb)
542 lbs / 249 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XLS 1000 Roadster
Year
1983 –
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Displacement
60.8 cubic inches / 998 cc
Bore x Stroke
81 x 96.8 mm
Compression Ratio
8.8;1
Max Horsepower
57 hp / 41.7 kW @ 6000 rpm
Max Torque
55 ft-lb / 74 Nm @ 4000 rpm
Engine Management System
38mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Single down tube cradle
Front Suspension
Telehydraulic forks
Rear Suspension
Dual shocks swinging arm fork
Wheels & Brakes
Front Tire Size
MJ 90-19
Rear Tire Size
MT90-16
Front Brakes
2x 254mm discs
Rear Brakes
Single 292mm disc
Dimension & Weights
Fuel Tank Capacity
3.9 US gallons / 15.0 L
Wet (kerb/curb) Weight
542 lbs / 249 kg
Features
Bucket-type seat
Forward-mounted highway rests
Horizontally-bowed handlebars
Distinctive motor
Top speed of 112 mph
Acceleration of a 250cc machine
Performance of a 500cc machine
One-litre engine
Plug spanner not provided as standard equipment
Shocking vibration
Dreadful brakes
Bucket seat position
Low center of gravity
Braking capabilities
Value for money
