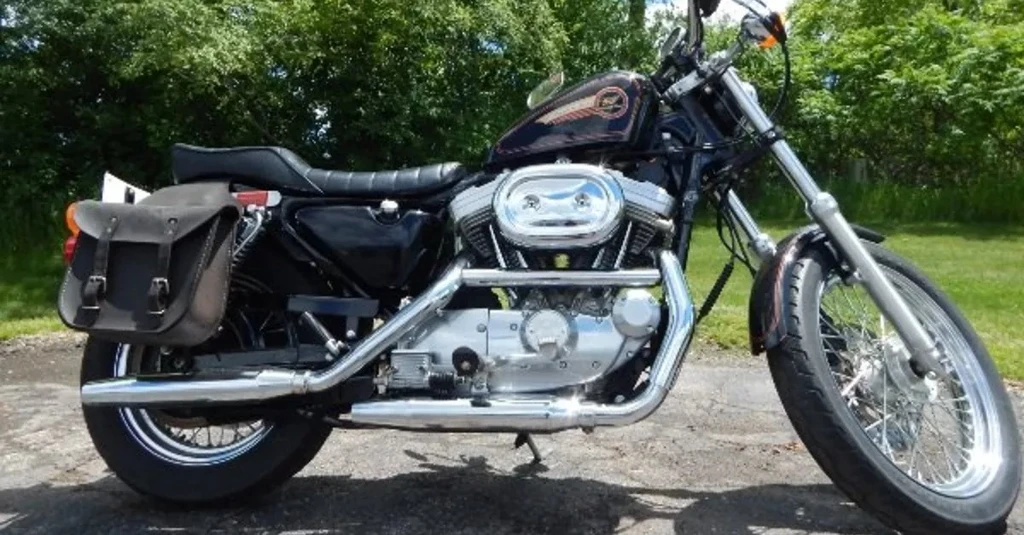

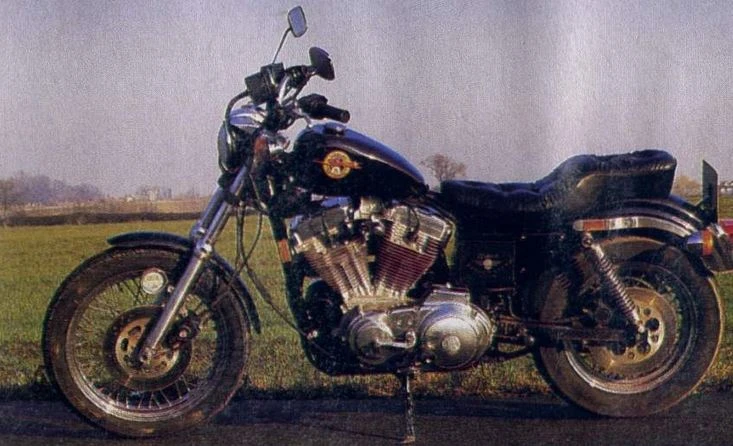

The Harley-Davidson XLH 883 Sportster – a machine that embodies the spirit of unbridled freedom and raw power. Its muscular 45-degree aircooled vee-twin engine, producing an impressive 53 horsepower, is the epitome of American muscle.
At first glance, the 883 may seem like a compact bike, but with its substantial 883cc displacement, it’s clear that this is no lightweight machine. Yet, as the “entry level” model in Harley-Davidson’s lineup, it’s designed to be accessible and addictive – perfect for those seeking an introduction to the Harley experience.
The 1991 Sportster boasts a redesigned gearbox, boasting five gears instead of four, which may seem excessive but is actually a testament to Harley-Davidson’s commitment to innovation.
With its distinctive engine character and riding dynamics that are both agile and responsive, the XLH 883 Sportster is an unforgettable riding experience. Whether you’re a seasoned motorcyclist or just starting out, this iconic American bike is sure to leave a lasting impression – one that will stay with you for a lifetime of thrilling rides.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
883 cc / 53.9 cub in.
Max Power
48 hp /35.0kW @ 5000 rpm
Max Torque
85 Nm / 63 ft-lb @ 4000 rpm
Fuel Tank Capacity
2.2 US gallons / 8.5 L
Weight (Wet/Kerb)
499.4 lbs / 221 kg
Seat Height
25.8 in
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XLH 883 Sportster
Year
1991 – 95
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
883 cc / 53.9 cub in.
Bore x Stroke
76.2 x 96.8 mm
Compression Ratio
9.0:1
Max Horsepower
48 hp /35.0kW @ 5000 rpm
Max Torque
85 Nm / 63 ft-lb @ 4000 rpm
Engine Management System
34mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
35mm Showa telescopic forks.
Rear Suspension
Dual shocks with adjustable damping.
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
130/90-16
Front Brakes
Single 292mm discs 4 piston calipers
Rear Brakes
Single 292mm disc 4 piston calipers
Dimension & Weights
Seat Height
25.8 in
Fuel Tank Capacity
2.2 US gallons / 8.5 L
Wet (kerb/curb) Weight
499.4 lbs / 221 kg
Dry Weight
214 kg / 472 lb
Features
883cc 45-degree aircooled vee-twin engine
Five-speed gearbox (increased from four gears)
Completely redesigned gearbox with improved capabilities and ratios
