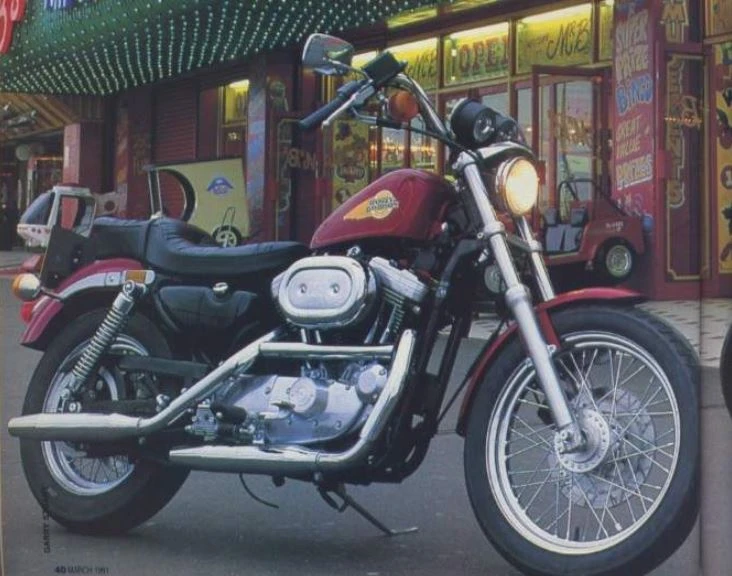

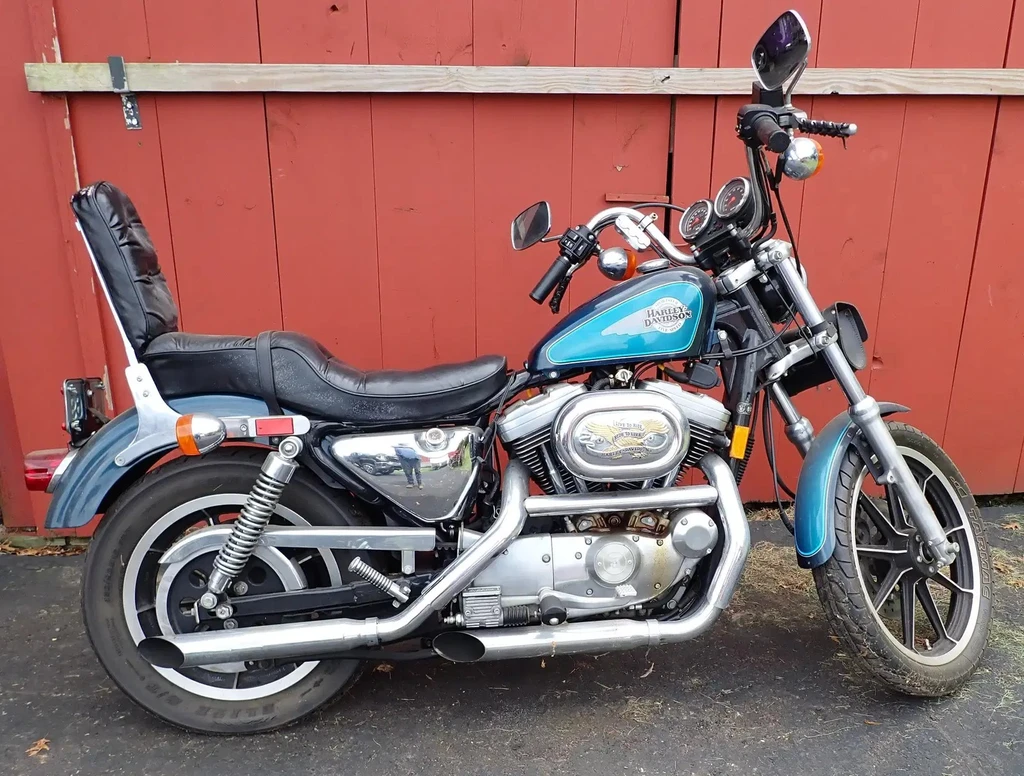

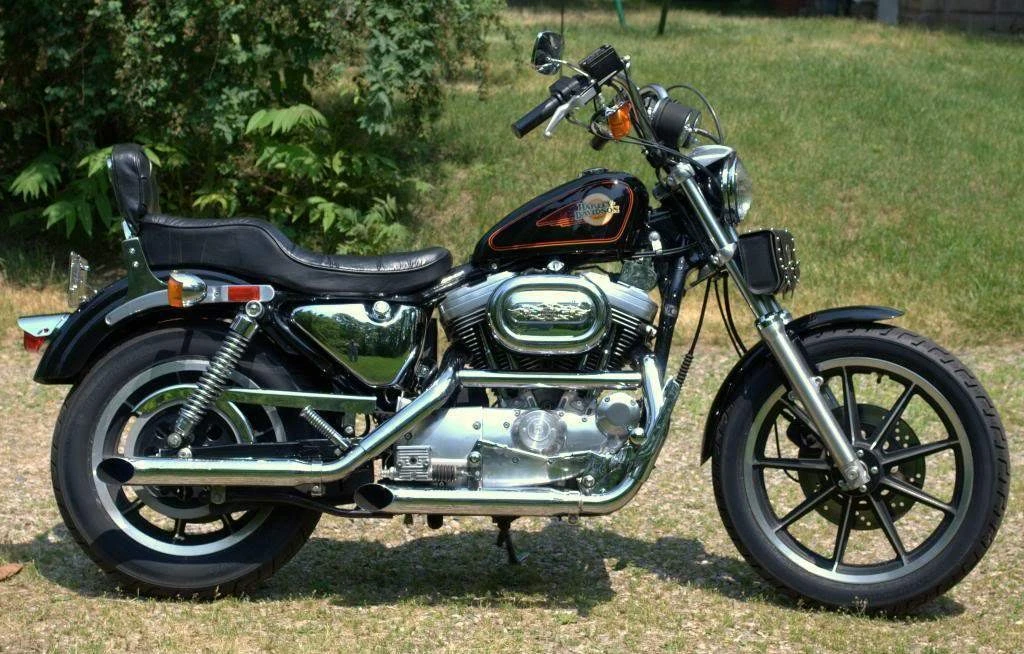

Harley Davidson XLH 1200 Sportster (1991 – 94)

Harley Davidson XLH 1200 Sportster (1991 - 94)

The Harley-Davidson XLH 1200 Sportster – the epitome of American motorcycling style and swagger. With its distinctive V-twin engine rumble, this bike exudes an air of rebellious freedom that’s impossible to resist. Whether you’re a seasoned biker or just looking for a unique riding experience, the Sportster delivers a raw, unbridled thrill that’s unmatched by more “refined” machines.

Its 1200cc engine may not be the most powerful on the market, but it’s a masterclass in torque and character. The way it pulls from low RPMs, with its distinctive growl and vibration, is nothing short of intoxicating. And yet, beneath its rough-around-the-edges exterior lies a surprising level of refinement and comfort.

For those who crave something more than just speed, the Sportster offers an unbeatable combination of style, character, and riding experience. Whether you’re cruising down the highway or carving up twisties, this bike is sure to leave a lasting impression – one that’s equal parts cool, rebellious, and utterly American. In short, the Harley-Davidson XLH 1200 Sportster is the perfect antidote to the soulless, high-tech machines that dominate modern motorcycling.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1199 cc / 73.2 cub in.
Max Power50.4 hp / 37.5 kW @ 6000 rpm
Max Torque62 ft-lb / 84 nm
Fuel Tank Capacity1.8 US gallons / 7.0 L
Weight (Wet/Kerb)498.2 lbs / 226.0 kg
Harley Davidson XLH 1200 Sportster (1991 - 94)

All Specifications

Make & Model

ModelHarley Davidson XLH 1200 Sportster
Year1991 – 94

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement1199 cc / 73.2 cub in.
Bore x Stroke88.8 x 96.8 mm
Compression Ratio9.0:1
Max Horsepower50.4 hp / 37.5 kW @ 6000 rpm
Max Torque62 ft-lb / 84 nm
Engine Management SystemSingle 40mm CV Keihin semi-flat slide
Cooling SystemAir cooled,

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeDouble cradle steel, box section steel swingarm.
Front Suspension39mm Telescopic forks, 175mm (6.9in) wheel travel
Rear SuspensionDual shocks, preload adjustable, 91mm (3.6in) wheel travel.

Wheels & Brakes

Front Tire Size100/90-19
Rear Tire Size130/90-16
Front BrakesSingle 292mm disc 2 piston caliper
Rear BrakesSingle 292mm disc 1 piston caliper

Dimension & Weights

Fuel Tank Capacity1.8 US gallons / 7.0 L
Wet (kerb/curb) Weight498.2 lbs / 226.0 kg

Features

  • New XLH1200 Sportster model
  • Improved reliability compared to previous models
  • Low maintenance requirements
  • Easy starting and minimal owner attention required
  • Entry-level Harley for new riders
  • Iconic American design and image
  • Perceived as a macho and cool thing to ride
  • Suitable for city riding without worrying about mechanical issues
  • New features compared to old Sportster model
