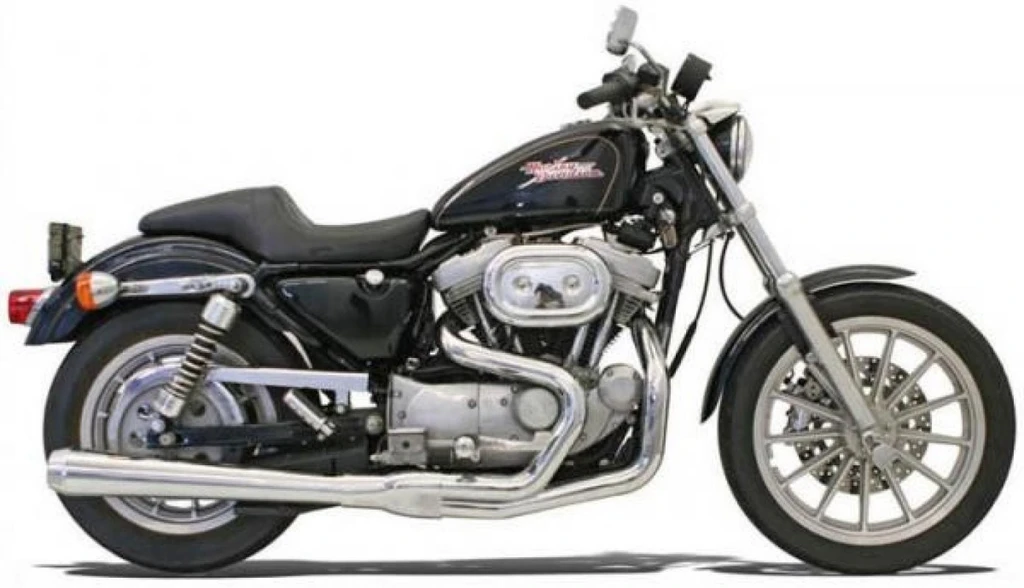

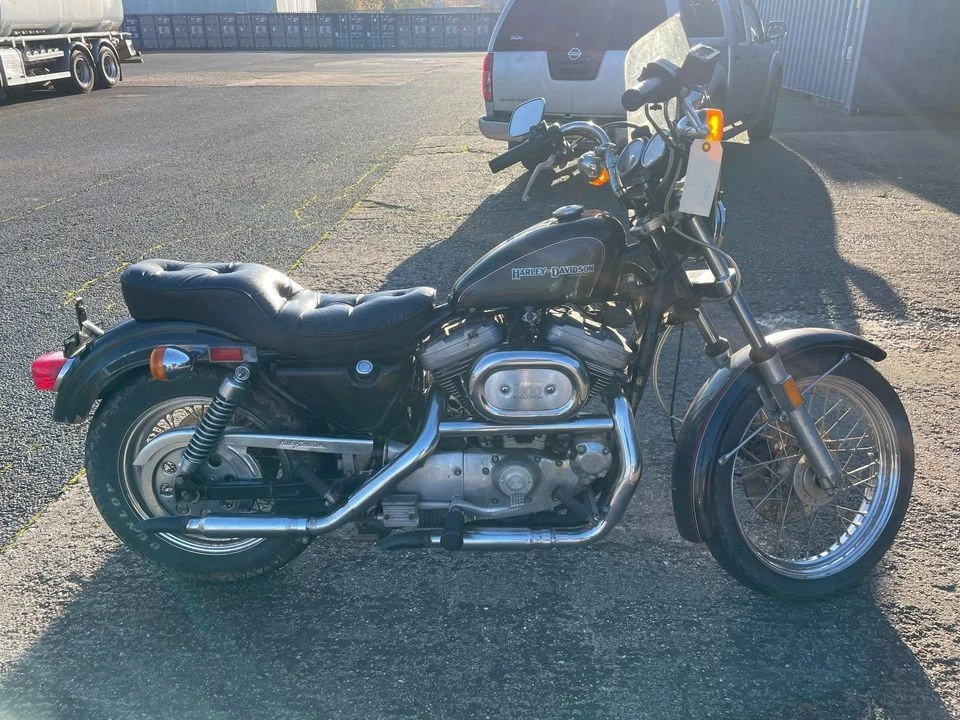

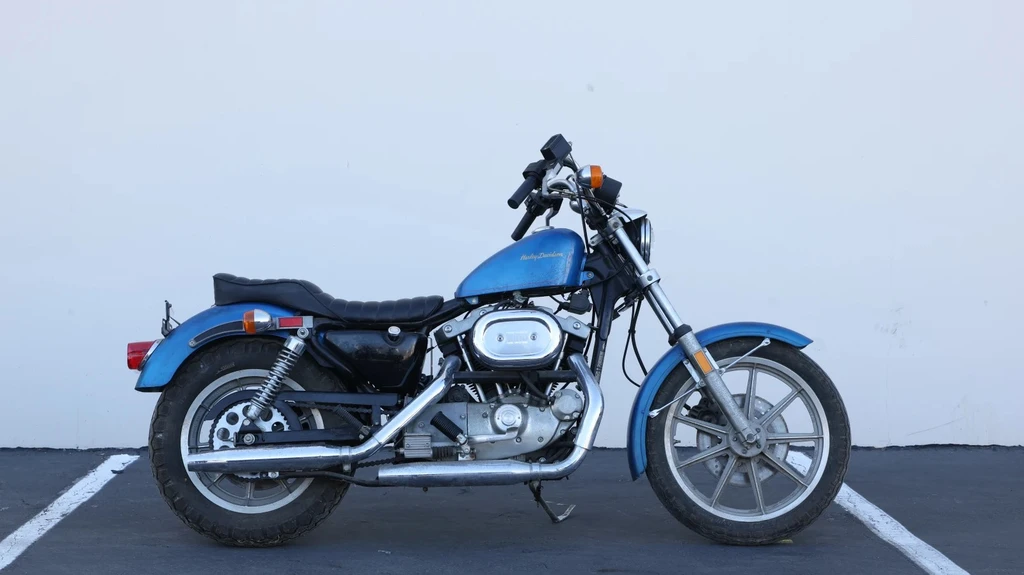

The Harley-Davidson XLH 1100 Sportster Evolution marks a significant milestone in the evolution of the iconic Sportster lineup. For 1986, the XL model introduced two displacement options, catering to both smaller and beginning riders with the 883 or 1100cc V2 motor.
This potent engine produces 53 and 63 horsepower respectively, mated to a four-speed gearbox that provides a seamless riding experience. The XLH-1100’s price point of around $5,200 in 1986 positioned it as a premium offering within the Sportster range.
The bike’s character is defined by its powerful V-Twin engine, with a subtle emphasis on tradition and heritage. The addition of two instruments and buckhorn bars serves to differentiate the XLH-1100 from its smaller sibling, the XLH-883. With its blend of performance, style, and reliability, the Harley-Davidson XLH 1100 Sportster Evolution stands as an exemplary example of a well-crafted motorcycle that embodies the essence of Harley-Davidson’s rich history and tradition.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
67.1 cubic inches / 1101 cc
Max Power
63 hp / 46.9 kW @ 6000 rpm
Max Torque
64 lb-ft / 86.7 Nm @ 4000 rpm
Fuel Tank Capacity
2.2 US gallons / 8.5 L
Weight (Wet/Kerb)
498.4 lbs / 222 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XLH 1100 Sportster Evolution
Year
1986
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
67.1 cubic inches / 1101 cc
Bore x Stroke
85.1 x 96.8 mm
Compression Ratio
9.0:1
Max Horsepower
63 hp / 46.9 kW @ 6000 rpm
Max Torque
64 lb-ft / 86.7 Nm @ 4000 rpm
Engine Management System
Single 34mm Keihin carb
Cooling System
Air cooled
Performance
Top Speed
104 mph
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
35mm Showa tubs diameter 193mm wheel travel.
Rear Suspension
Dual Showa shocks spring preload adjustable, 76mm wheel travel.
Wheels & Brakes
Front Tire Size
MJ 90-19
Rear Tire Size
MT 90-16
Front Brakes
Single 285mm disc
Rear Brakes
Single 285mm disc
Dimension & Weights
Fuel Tank Capacity
2.2 US gallons / 8.5 L
Wet (kerb/curb) Weight
498.4 lbs / 222 kg
Features
45-degree V-Twin engine
Largest-displacement Sportster ever built
1100cc displacement
Larger bore (85.1mm)
Slightly larger valves
Alloy cylinders and cylinder heads
Narrower valve angles
More-efficient port shapes
Three-piece crankshaft
Hydraulic valve tappets
Four-speed gearbox
Buckhorn bars
Two instruments
53 horsepower for the 883 model
63 horsepower for the 1100 model
Primary cover redesign
