The Harley-Davidson XLH Sportster – a motorcycle that embodies the spirit of rebellion and nonconformity. With its distinctive styling, robust engine, and unmistakable sound, it’s an experience like no other.
As you slip into the saddle, you’re immediately struck by the Sportster’s unique character. Its riding position is upright and relaxed, inviting you to take a leisurely cruise rather than a frantic dash for speed.
Under the hood lies a 1000cc V-twin engine, producing a throaty rumble that’s as much a part of its charm as its performance. With a weight of just 236 kg, the Sportster is agile and responsive, making it an absolute joy to ride.
Built on the principles of durability and character, the Harley-Davidson XLH Sportster is the perfect choice for those who crave something more than just raw speed – it’s an experience that will leave you feeling alive.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
60.8 cubic inches / 997 cc
Max Power
57 hp /41.6kW @ 5800 rpm
Max Torque
NA
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Weight (Wet/Kerb)
240 kg / 529 lba
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

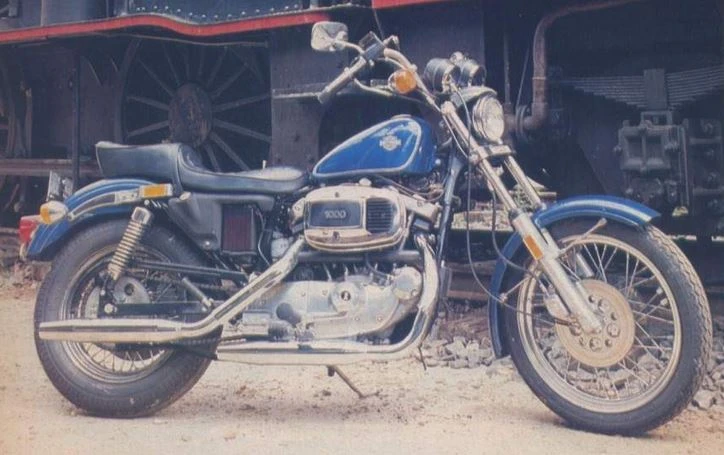

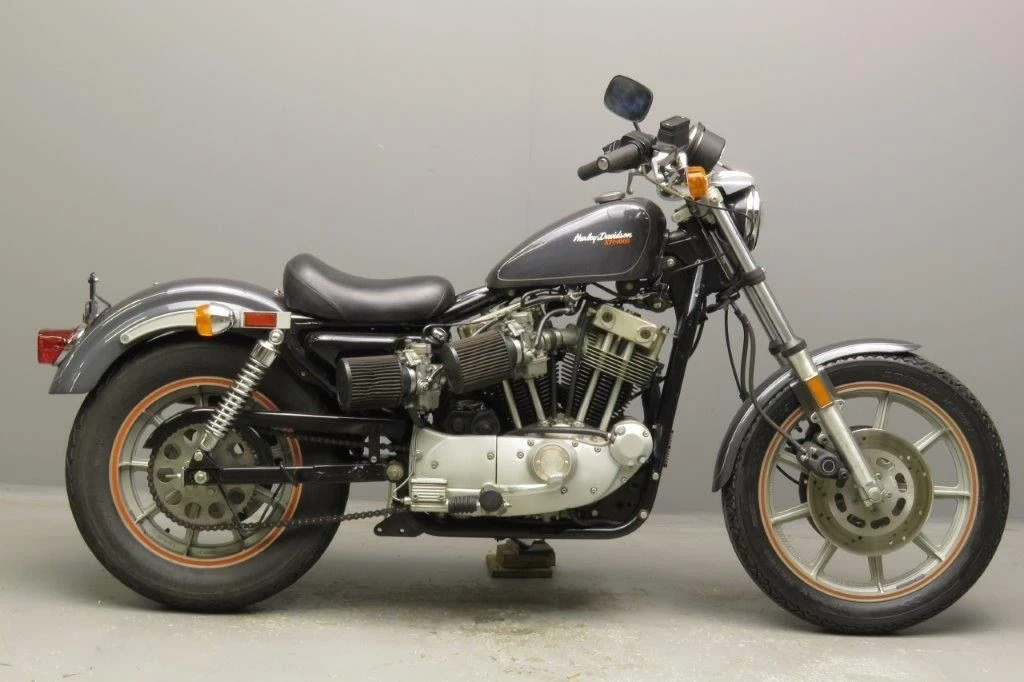

Harley Davidson XLH 1000 Sportster
Year
1983 – 85
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
60.8 cubic inches / 997 cc
Bore x Stroke
81.0 x 96.8 mm
Compression Ratio
9.0:1
Max Horsepower
57 hp /41.6kW @ 5800 rpm
Max Torque
NA
Engine Management System
Single 34mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
35mm Showa tubs diameter 193mm wheel travel.
Rear Suspension
Dual Showa shocks spring preload adjustable, 76mm wheel travel.
Wheels & Brakes
Front Tire Size
MJ 90-19
Rear Tire Size
MT 90-19
Front Brakes
Single 285mm disc
Rear Brakes
Single 285mm disc
Dimension & Weights
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Wet (kerb/curb) Weight
240 kg / 529 lba
Features
1000cc air-cooled V-twin engine
236 kg dry weight
Battery and starter motor instead of kickstarter
Hefty but efficient clutch
Overhead valve design
Hemi-combustion chambers
Domed pistons
Circulating oil system
Air-cooled cylinders
Dual exhaust pipes
Unique styling and image
Weight comparable to Suzuki GSX750
Price range of $5000-$9000
30 new Harleys distributed in NSW each month
Available in various trim levels for different markets
