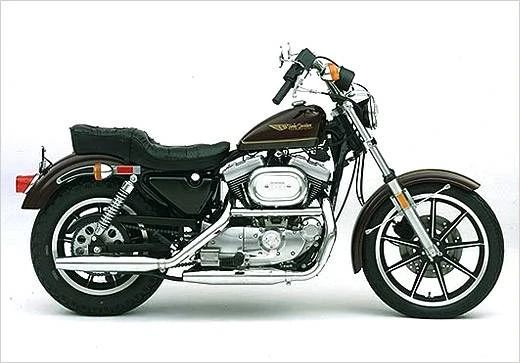

The Harley-Davidson XLH 1000 Sportster – a motorcycle that defies categorization with its unmistakable style and rugged character.
Rumors had circulated about the clutch’s heavy pull, but our tester found it manageable, if not effortless. The starter motor proved to be a sleek and efficient solution, eliminating the need for a kickstarter. Weighing in at 236 kg dry, the Sportster is comparable in weight to its Japanese counterparts.
Riding the Sportster is an immersive experience that sets it apart from other motorcycles. Its unique styling, combined with its mechanicals, creates an aura of distinction that’s hard to ignore. As you glide through the streets, the Sportster’s exhaust note echoes through the air, commanding attention and respect from onlookers.
Riding a Harley-Davidson is not about speed or agility; it’s about embracing a lifestyle that celebrates individuality and style.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
60.8 cubic inches / 997 cc
Max Power
57 hp /41.6kW @ 5800 rpm
Max Torque
NA
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Weight (Wet/Kerb)
240 kg / 529 lba
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XLH 1000 Sportster
Year
1980 – 82
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
60.8 cubic inches / 997 cc
Bore x Stroke
81.0 x 96.8 mm
Compression Ratio
9.0:1
Max Horsepower
57 hp /41.6kW @ 5800 rpm
Max Torque
NA
Engine Management System
Single 34mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
35mm Showa tubs diameter 193mm wheel travel.
Rear Suspension
Dual Showa shocks spring preload adjustable, 76mm wheel travel.
Wheels & Brakes
Front Tire Size
MJ 90-19
Rear Tire Size
MT 90-19
Front Brakes
Single 285mm disc
Rear Brakes
Single 285mm disc
Dimension & Weights
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Wet (kerb/curb) Weight
240 kg / 529 lba
Features
Brand new Harley Davidson XLH Sportster
Dry weight of 236 kg
1000cc engine
Heavy but efficient battery and starter motor
No kickstarter, just electric start
Heavy clutch but not as bad as some competitors
Riding position unique to Harley Davidson
Styling distinct from other motorcycles
Mechanicals designed for durability and character
Not built for speed, but for image and feel
Available in various trim levels with prices from $5000 to $9000
