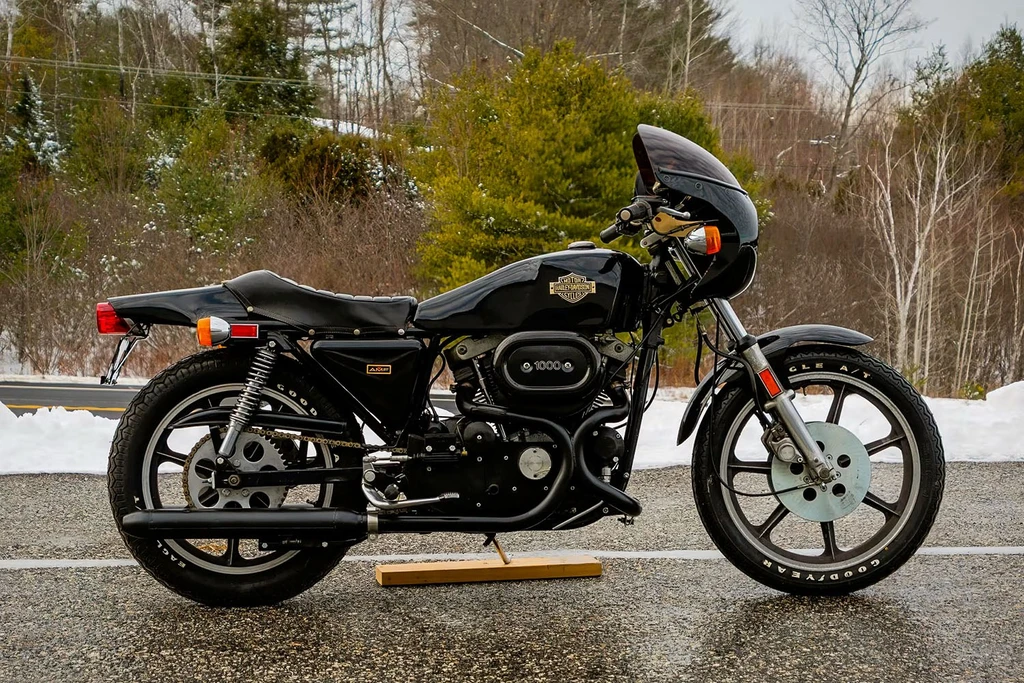

The Harley-Davidson XLCR 1000 Caf Racer is an anomaly in the iconic Milwaukee brand’s lineup. Born from a collaboration between Bob Modero, Jim Haubert, and Willie G. Davidson, this bike was designed to be a radical departure from the laid-back tourers that defined the era.
With its aggressive styling cues, including a “bikini” fairing and unique exhaust system, the XLCR is unmistakably a Caf Racer. But beneath its bold exterior lies a familiar heartbeat: the same V-twin engine found in Harley’s touring bikes, boasting 68 bhp at 6200 rpm.
The XLCR’s engine character is uncomplicated yet unyielding, with a simple pushrod-operated valve train and a single Keihin carburetor. Its performance may be unsophisticated, but it’s no less formidable – capable of pulling down a house with its sheer brute force.
Despite being largely ignored by consumers when launched in the 1970s, the Harley-Davidson XLCR 1000 has since become a highly sought-after collector’s item, prized for its unique blend of style and raw power.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
60.8 cubic inches / 997 cc
Max Power
68hp / 50.7 kW @6200 rpm
Max Torque
60 lb ft / 81 Nm @ 3500 rpm
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Weight (Wet/Kerb)
485 lbs / 220 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XLCR 1000 Caf Racer
Year
1977 – 79
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
60.8 cubic inches / 997 cc
Bore x Stroke
81 x 96.8 mm
Compression Ratio
9.0:1
Max Horsepower
68hp / 50.7 kW @6200 rpm
Max Torque
60 lb ft / 81 Nm @ 3500 rpm
Engine Management System
38mm Keihin carburetor
Lubrication System
Dry sump
Cooling System
Air cooled
Performance
Top Speed
115 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiple discs, cable operated
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Dual shocks swinging fork.
Wheels & Brakes
Front Tire Size
3.75-19
Rear Tire Size
4.25-18
Front Brakes
2x 254mm disc
Rear Brakes
Single 254mm disc
Dimension & Weights
Fuel Tank Capacity
2.3 US gallons / 9.0 L
Wet (kerb/curb) Weight
485 lbs / 220 kg
Features
V-twin engine
997.5cc displacement
45-degree unit
9:1 compression ratio
Pushrod operated valves
Single 38mm Keihin carburetor
Electric start
Four gears
Wet-multi-plate clutch
Kelsey Hayes disc brakes all around
Alloy wheels by Morris
Showa springing
Duplex frame
Rear end similar to long-track Harley racers
Bikini fairing
Slim front fender
