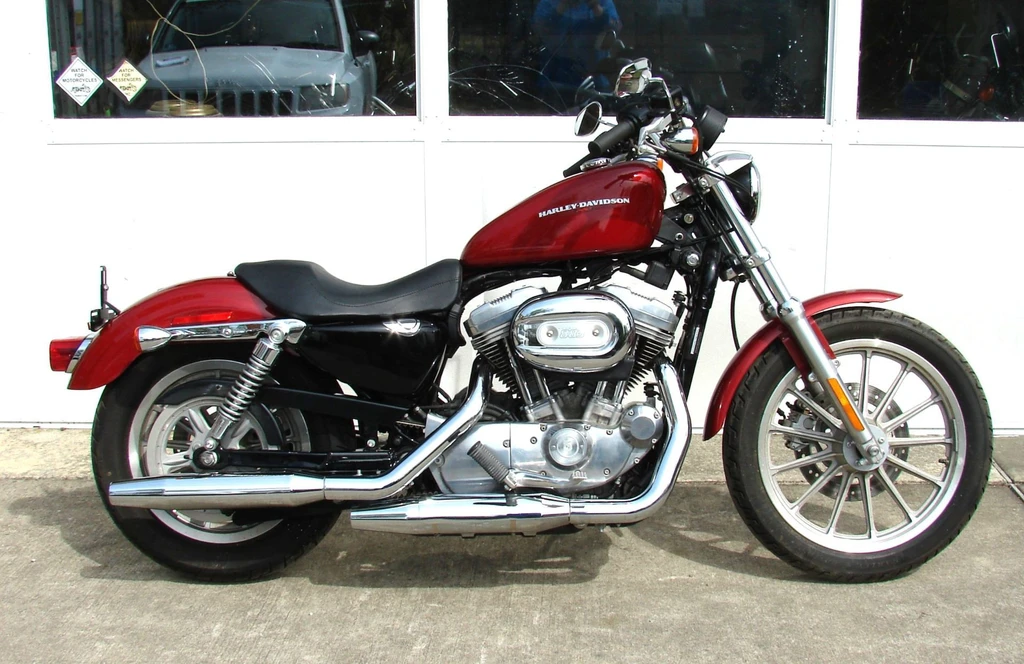

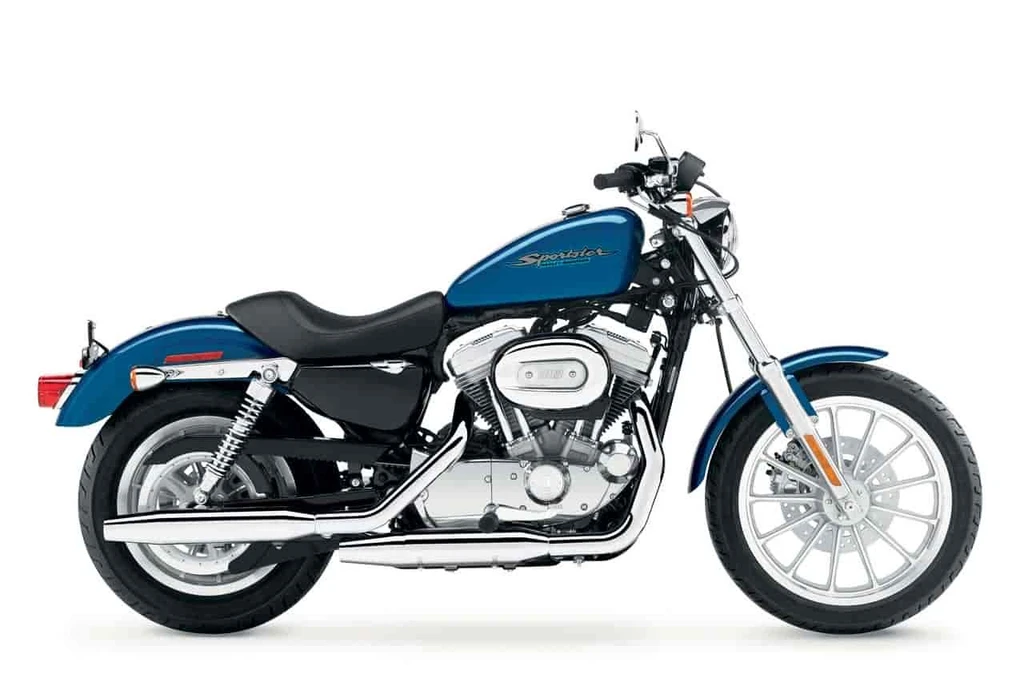

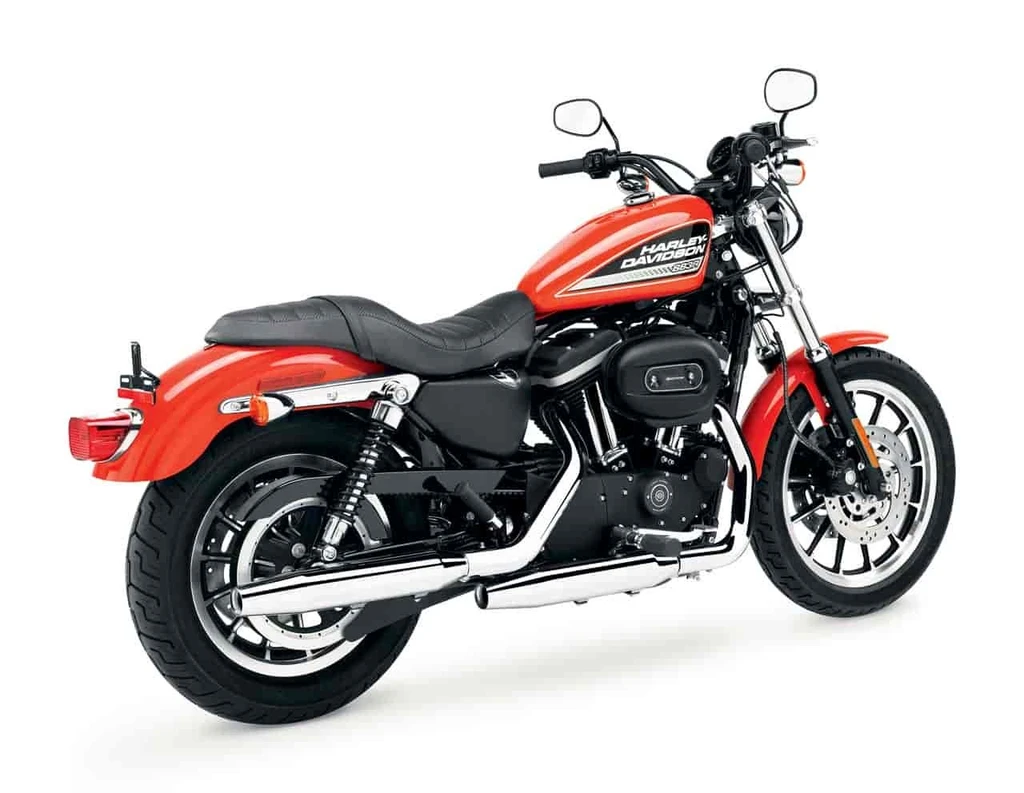

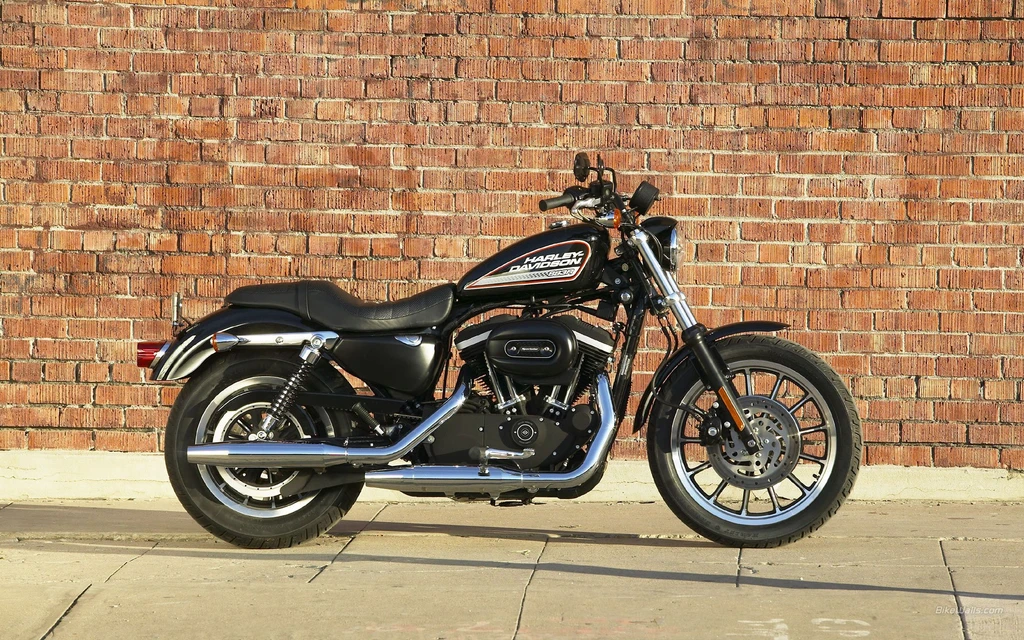

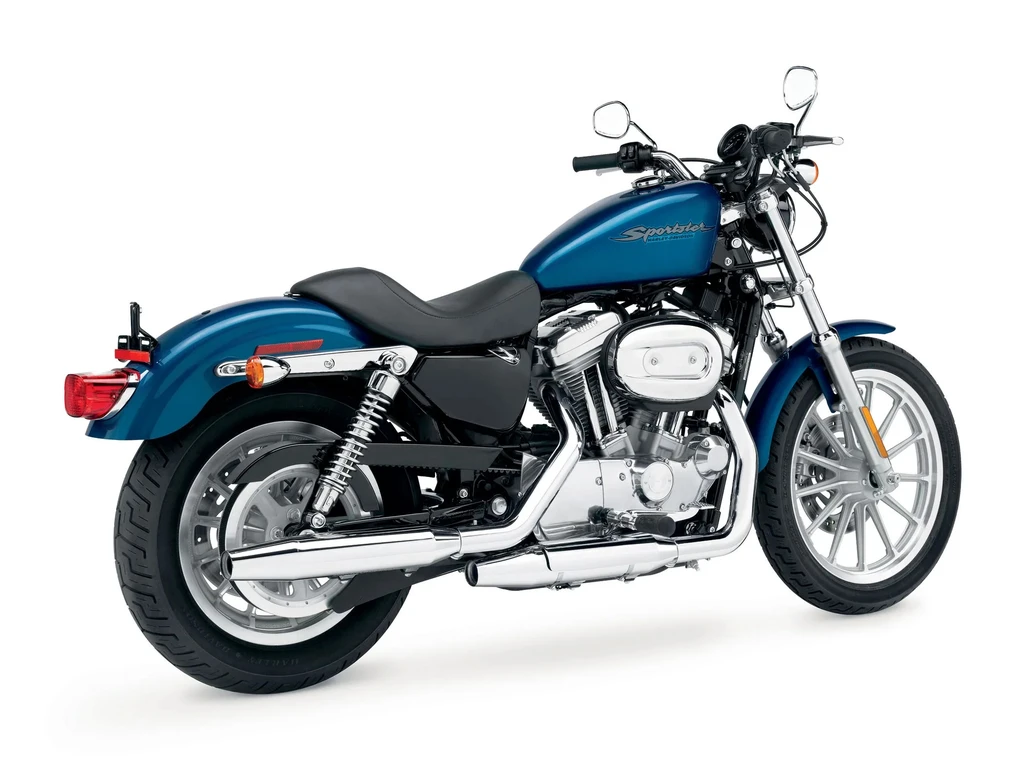

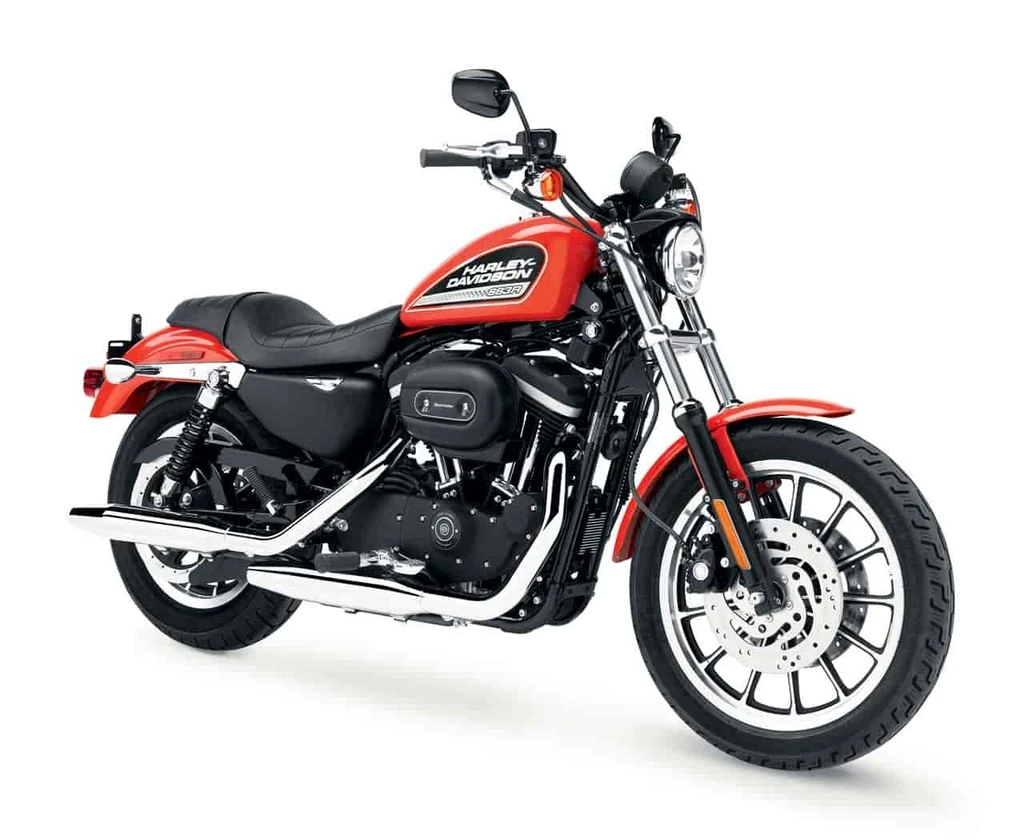

Harley Davidson XL 883R Sportster (2006 - 2007)

The Harley-Davidson XL883R Sportster – an iconic bike that embodies the spirit of rebellion and freedom.

Its V-Twin engine, with its characteristic kick starter, is the heartbeat of this machine. A torquey powerplant that wants to be unleashed, providing an exhilarating riding experience for those who dare to push their limits.

As you sink into the saddle, the Sportster’s low seat height invites you to take control, its lightweight frame and responsive handling making it an extension of your body. The ride is a symphony of raw power, precise steering, and unbridled excitement, as every twist of the throttle unleashes a new level of energy.

Whether carving through twisties or cruising down the highway, the XL883R Sportster is a bike that demands to be ridden with passion and abandon – and rewards you with an unforgettable experience.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Evolution Valve Train Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder
Engine Capacity	53.8 cubic inches / 883 cc
Max Torque	55 ft-lb / 74.6 nm
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Weight (Wet/Kerb)	588 lbs / 267 kg
Seat Height	28.1 inches / 713.7 mm

*n/a – information not provided by manufacturer

Harley Davidson XL 883R Sportster (2006 - 2007)

All Specifications

Make & Model

Model	Harley Davidson XL 883R Sportster
Year	2006 – 2007

Engine

Engine Type	Four stroke, 45 V-Twin,Evolution Valve Train Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder
Displacement	53.8 cubic inches / 883 cc
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.9:1
Max Torque	55 ft-lb / 74.6 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Dry sump
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	5 Speed
Gear Ratios	1st 10.782 10.782 10.7822nd 7.702 7.702 7.7025.728 5.728 5.7284th 3rd 4.748 4.748 4.7485th .071 4.071 4.071
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel tubular frame; circular sections; cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Suspension	39mm Telescopic forks
Rear Suspension	Coil-over; preload dual-adjustable
Rake	29
Trail	117 mm / 4.6 in

Wheels & Brakes

Front Tire Size	100/90-19 57H
Rear Tire Size	150/80B16 71H
Front Brakes	Single 292mm discs 2 piston calipers
Rear Brakes	Single 292mm disc 1 piston calipers

Dimension & Weights

Seat Height	28.1 inches / 713.7 mm
Wheelbase	60.0 inches / 1524 mm
Ground Clearance	141 mm / 5.6 in
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Wet (kerb/curb) Weight	588 lbs / 267 kg
Dry Weight	258.0 kg / 568 lbs

Features

Longest continuously produced motorcycle in the Harley-Davidson contingent
Available in various models, including 883
Unmistakable styling cues
Evolved from a right-side drive, four-speed 55 cubic-inch bike to an electronically fuel-injected motorcycle
Electronic Sequential Port Fuel Injection (ESPFI) as standard equipment on 2007 883s
ESPFI system “learns” and adjusts to changing conditions
Oxygen feedback acts independently on each cylinder
Available in various engine displacements, including over 900cc
Chopped-out front end and custom bars available
Sportster models have been responsible for numerous fond memories
Long production run has resulted in various iterations of the model
Model maintains its top-selling status by evolving while keeping its styling cues
Available with H-D’s Electronic Sequential Port Fuel Injection system
