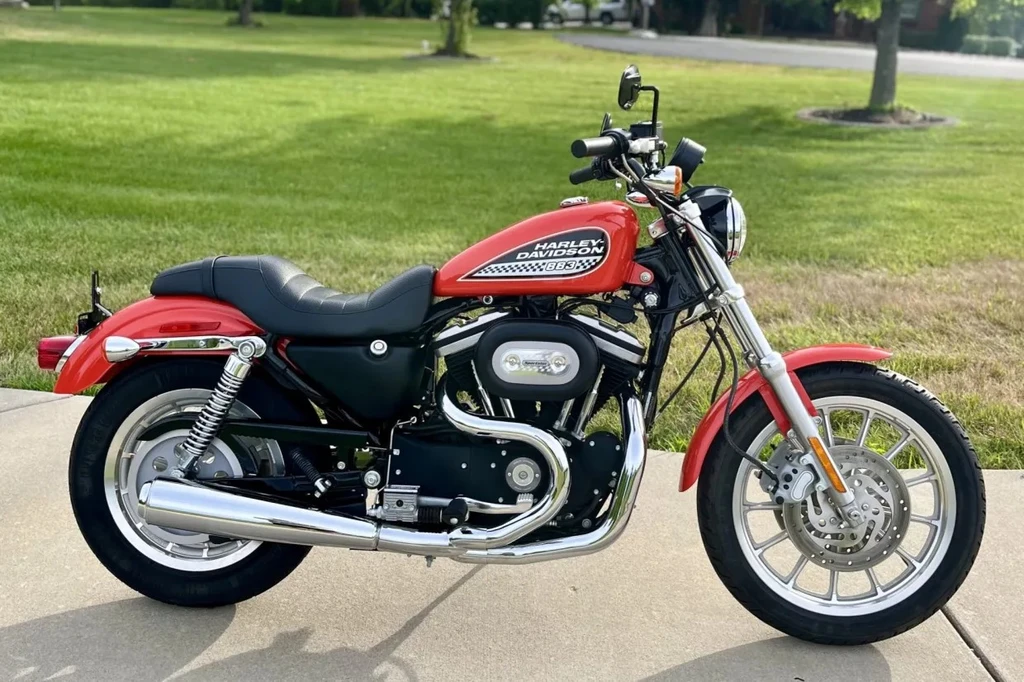

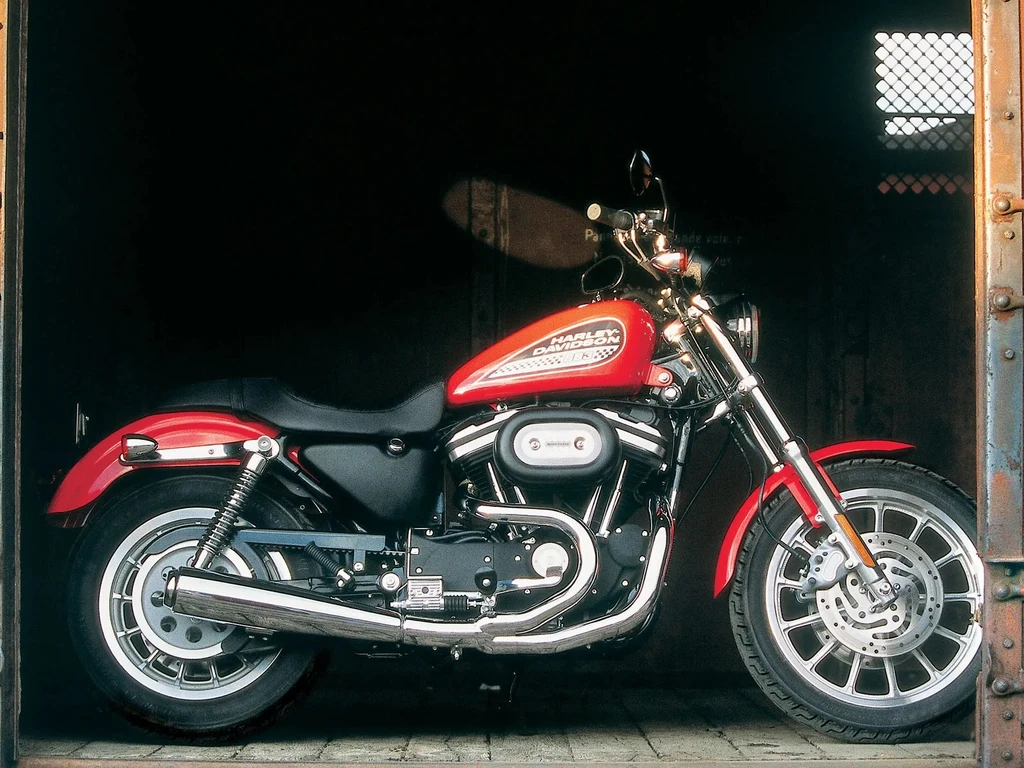

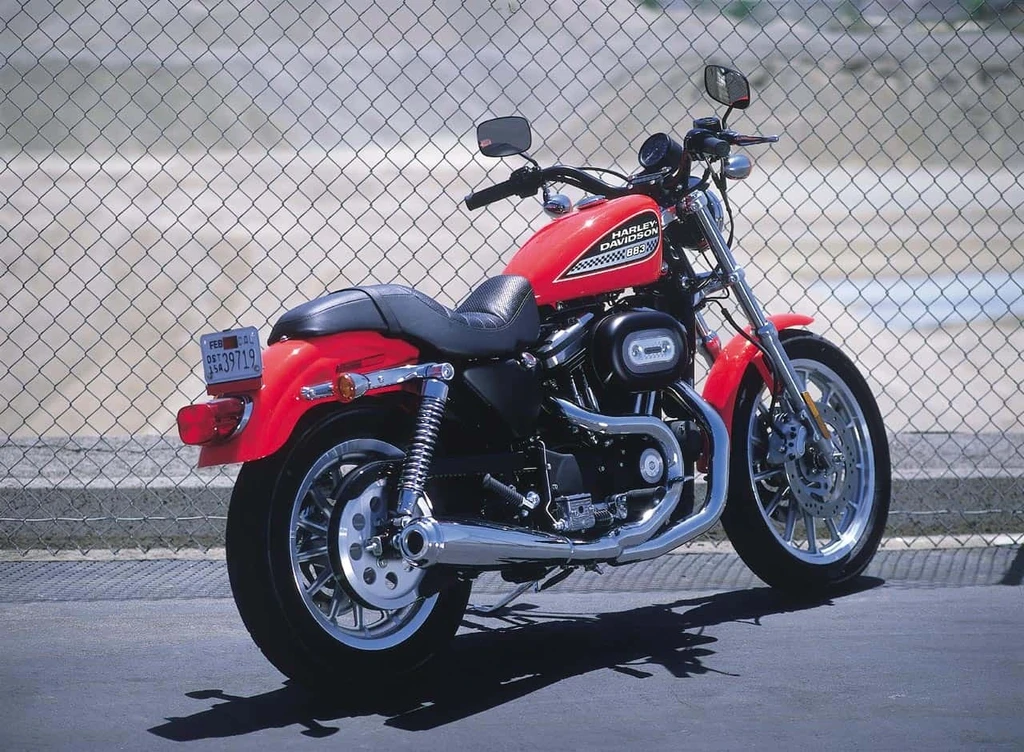

The 2002 Harley-Davidson XL 883R Sportster is the perfect solution for riders seeking a smaller bike that still packs a performance punch. Under the bonnet, a range of subtle modifications and a specially tuned exhaust system unleash enhanced speed and agility.
The rubber-mounted Evolution 883 engine is the heartbeat of this Sportster, its blacked-out finish adding to its menacing appeal. Meanwhile, the sleek orange and black paint scheme pays homage to the legendary XR-750, while the generous use of silver accents on wheels and hardware adds a touch of sophistication.
With its revised frame and stiffer swingarm, this 883R delivers uncompromised comfort and handling, making it an absolute blast to ride. Whether carving up twisties or cruising down the highway, the XL 883R Sportster is the ultimate riding experience that’s simply impossible to resist.
Key Specifications
Engine Type
Four stroke, 45 V-Twin,Evolution Valve Train Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder
Engine Capacity
53.8 cubic inches / 883 cc
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Fuel Tank Capacity
3.3 US gallons / 12.5 L
Seat Height
28.1 inches / 713.7 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XL 883R Sportster
Year
2002 – 2003
Engine
Engine Type
Four stroke, 45 V-Twin,Evolution Valve Train Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder
Displacement
53.8 cubic inches / 883 cc
Bore x Stroke
76.2 x 96.8 mm
Compression Ratio
8.9:1
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Engine Management System
Carburetion (40 mm constant velocity with enrichener and accelerator pump) Air Cleaner/Filter Oval racetrack;
Lubrication System
Dry sump
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Mild steel, twin cradleSwing Arm Mild steel, rectangular section
Front Suspension
Conventional cartridge forks
Rear Suspension
Dual hydraulic shock absorbers adjustable for preload
Rake
29
Trail
117 mm / 4.6 in
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
130/90-16
Front Brakes
Single 292mm disc 4 piston calipers
Rear Brakes
Single 292mm disc 4 piston calipers
Dimension & Weights
Seat Height
28.1 inches / 713.7 mm
Wheelbase
60.0 inches / 1524 mm
Ground Clearance
141 mm / 5.6 in
Fuel Tank Capacity
3.3 US gallons / 12.5 L
Dry Weight
228.4 kg / 503.0 lbs
Features
Rubber-mounted XL Evolution 883 engine
Blacked out engine, calipers, fork sliders, air cleaner cover, handlebars, and rear springs
Silver 13 spoke wheels
Race checkered tank
New 1-inch diameter rear axle
Stiffer swingarm
Wide dirt-track inspired handlebars
Two up seat
Passenger footpegs
Staggered shorty dual exhaust
Mid-mount foot controls
Dual front disk brakes
Classic 3.3-gallon fuel tank
