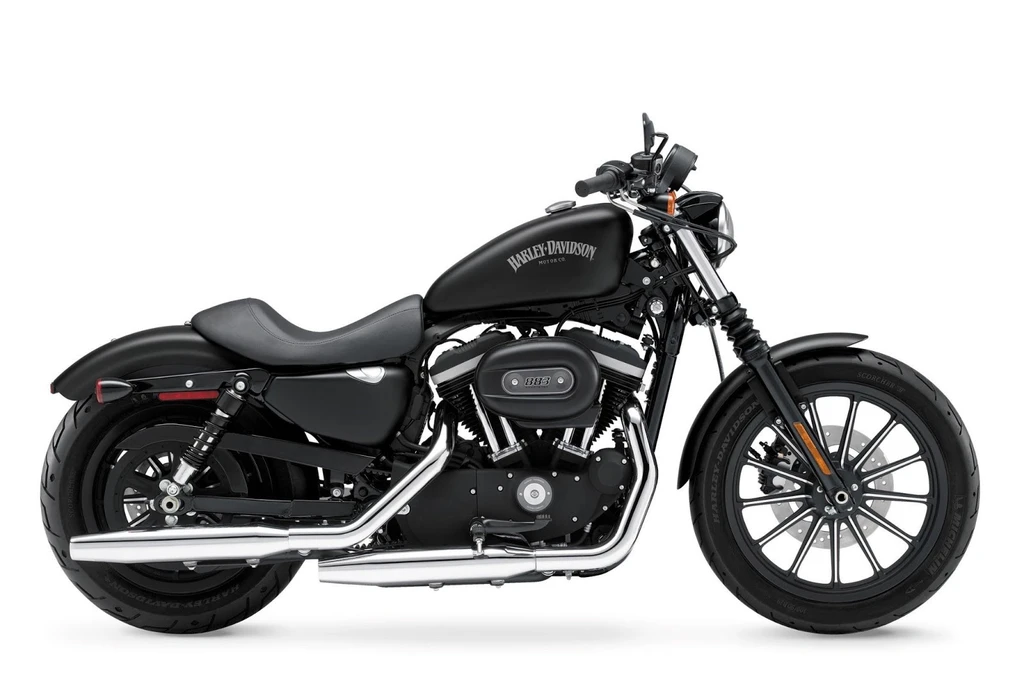

Harley Davidson XL 883NIron Special Edition (2013)

The Harley-Davidson Sportster Iron Special Edition is a dark horse that embodies the spirit of its namesake. With a black powder-coated engine, this bike exudes an air of mystery and sophistication.

Its aggressive stance is further accentuated by the addition of new accessories from Genuine Harley Parts & Accessories 2012. Drag bars, upside-down mirrors, and braided brake hoses give it a menacing edge, while revised foot controls and lowered rear shocks enhance its sporty character.

But what truly sets this bike apart is its unique air filter cover, adorned with the Special Edition logo and flag. Whether cruising or carving through twisties, the Iron’s 883cc engine delivers a raw, unbridled rush of power that’s impossible to resist.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity	883 cc / 50.8cu in/
Max Torque	73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Weight (Wet/Kerb)	565 lbs / 256.3 kg
Seat Height	25.7 inches / 653 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 883NIron Special Edition
Year	2013

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement	883 cc / 50.8cu in/
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.8:1
Max Torque	73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm
Cooling System	Air cooled
Exhaust	Chrome, staggered, shorty exhaust with dual mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch with diaphragm spring in oil bath
Gearbox	5 Speed
Gear Ratios	1st 10.407 / 2nd 7.436 / 3rd 5.53 / 4th 4.583 / 5th 3.93
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame, circular sections, cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension	∅39mm Fork
Front Suspension Travel	3.62 inches / 92 mm
Rear Suspension	Coil-over, dual-adjustable preload
Rear Suspension Travel	1.6 inches / 41 mm
Rake	31.1
Trail	117 mm / 4.6 in

Wheels & Brakes

Front Wheel/Rim Size	Black, 13-spoke cast aluminium
Front Tire Size	100/90B19 57H
Rear Wheel/Rim Size	Black, 13-spoke cast auminium
Rear Tire Size	130/90-16
Front Brakes	Single ∅300mm disc, 2 x ∅38mm piston calipers
Rear Brakes	Single ∅260mm disc, 2 x ∅38mm piston calipers

Dimension & Weights

Seat Height	25.7 inches / 653 mm
Wheelbase	59.5 inches / 1519 mm
Ground Clearance	120 mm / 4.7 in
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Wet (kerb/curb) Weight	565 lbs / 256.3 kg

Features

Dark look with engine black powder-coated
Drag bar handlebars
Upside-down mirrors
Aeronautical braided brake hose
Advanced foot controls
Slightly advanced Asys saddle
Lowered rear shocks
Special Edition logo on air filter cover
Flag on air filter cover
Black tint and style bodywork
