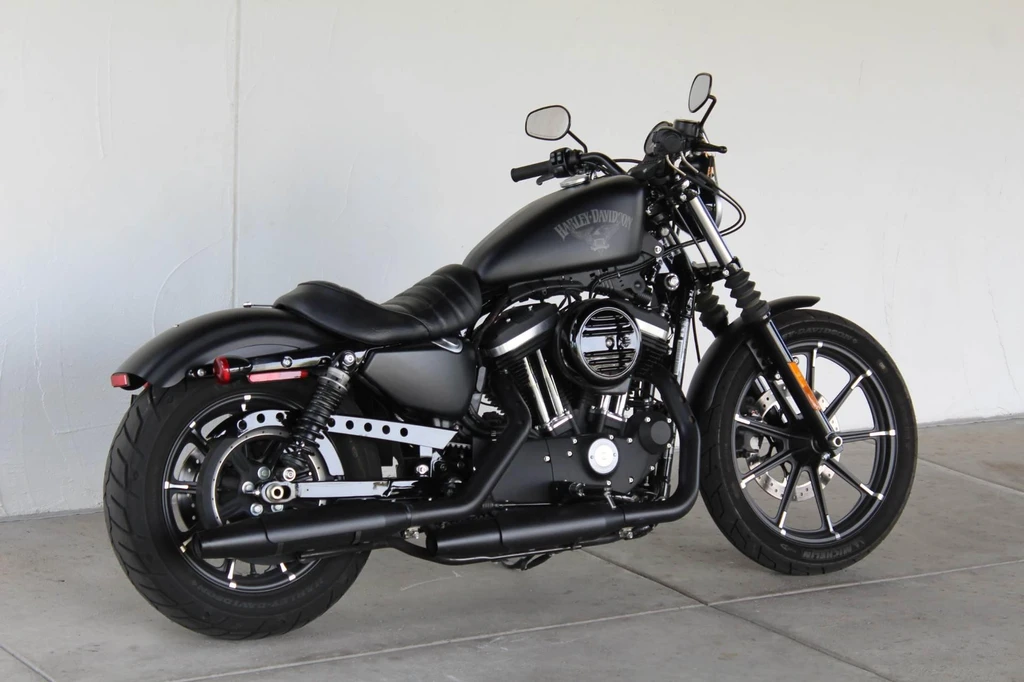

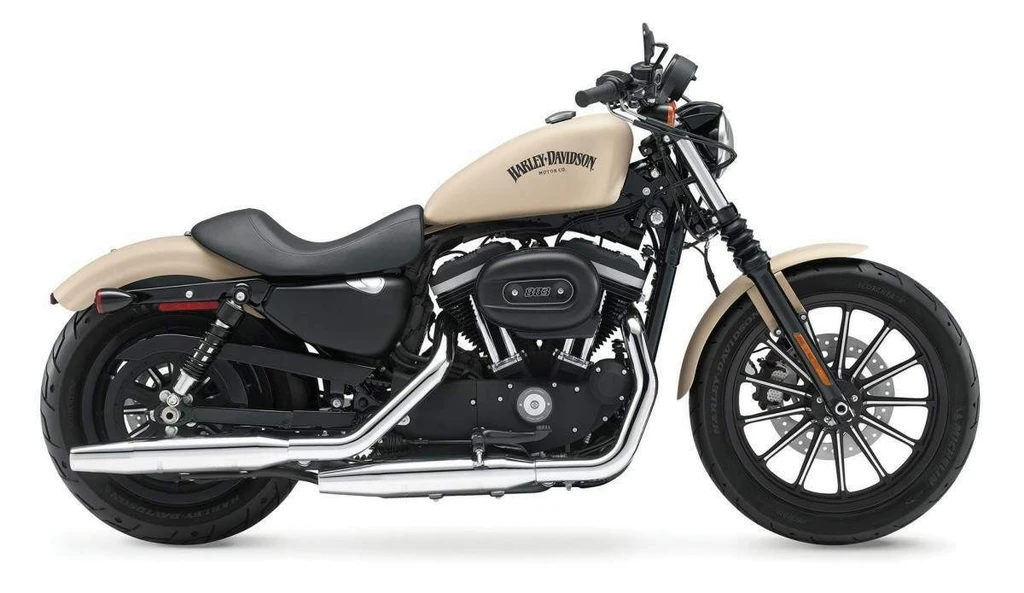

Harley Davidson XL 883NIron (2016 – 2017)

The Harley-Davidson XL883N Iron 883 is a rebellious, no-nonsense motorcycle that embodies the spirit of riders who crave raw power and unbridled attitude. With its menacing blacked-out aesthetic and stripped-down design, this bike promises an authentic, throwback riding experience.

Its Evolution V-Twin engine roars to life with Electronic Sequential Port Fuel Injection (ESPFI), delivering a unique blend of power and finesse that’s sure to leave you breathless. The Iron 883’s raw aggression is matched only by its versatility, making it the perfect gateway into the world of Dark Custom motorcycles.

Ride the Iron 883 with abandon, tearing up asphalt and backroads with reckless abandon. Its responsive handling and aggressive stance make every twist and turn a thrilling adventure, while its optional ABS system ensures that you can push your limits without compromising safety.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Engine Capacity	53.9 cubic inches / 883 cc
Max Torque	53.8 ft-lb / 73 nm
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Weight (Wet/Kerb)	565 lbs / 256.3 kg
Seat Height	25.7 inches / 653 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 883NIron
Year	2016 – 2017

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder
Displacement	53.9 cubic inches / 883 cc
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.8:1
Max Torque	53.8 ft-lb / 73 nm
Cooling System	Air cooled
Exhaust	Chrome, staggered, shorty exhaust with dual mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch with diaphragm spring in oil bath
Gearbox	5 Speed
Gear Ratios	1st 10.407 / 2nd 7.436 / 3rd 5.53 / 4th 4.583 / 5th 3.93
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame, circular sections, cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension	39mm Fork
Front Suspension Travel	3.62 inches / 92 mm
Rear Suspension	Coil-over, dual-adjustable preload
Rear Suspension Travel	1.6 inches / 41 mm
Rake	30
Trail	117 mm / 4.6 in

Wheels & Brakes

Wheels	Black, 13-spoke cast aluminium
Front Tire Size	100/90B19 57H
Rear Tire Size	130/90-16
Front Brakes	Single 300mm disc, 2 piston caliper
Rear Brakes	Single 260mm disc, 2 piston caliper

Dimension & Weights

Seat Height	25.7 inches / 653 mm
Wheelbase	59.5 inches / 1519 mm
Ground Clearance	120 mm / 4.7 in
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Wet (kerb/curb) Weight	565 lbs / 256.3 kg

Features

NEW Paint color options
Front and rear brakes with larger front rotor, more-rigid calipers, and braided stainless steel brake lines
Optional ABS (Anti-lock Braking System)
Trip switch function to display gear indicator and rpm on odometer
Optional keyless H-D Factory Security System
Integrated electrical system with new hand controls, speedometer, and wire harness
Blacked-out side covers
Michelin Scorcher front and rear tires
Black powder-coated engine and covers
Chrome exhaust with dual straight-cut mufflers
Low front and rear suspension
Classic 3.3-gallon fuel tank
Black, 13-spoke Cast Aluminum wheels
Chopped rear fender with black supports
Black belt guard
Black fork sliders and fork gaiters
Sportster Classic solo seat
Black hand and foot controls
Evolution V-Twin powertrain with Electronic Sequential Port Fuel Injection (ESPFI)
Rubber-mounted powertrain to reduce vibration
5-speed transmission
Dual staggered exhaust
Handlebar-mounted electronic speedometer
