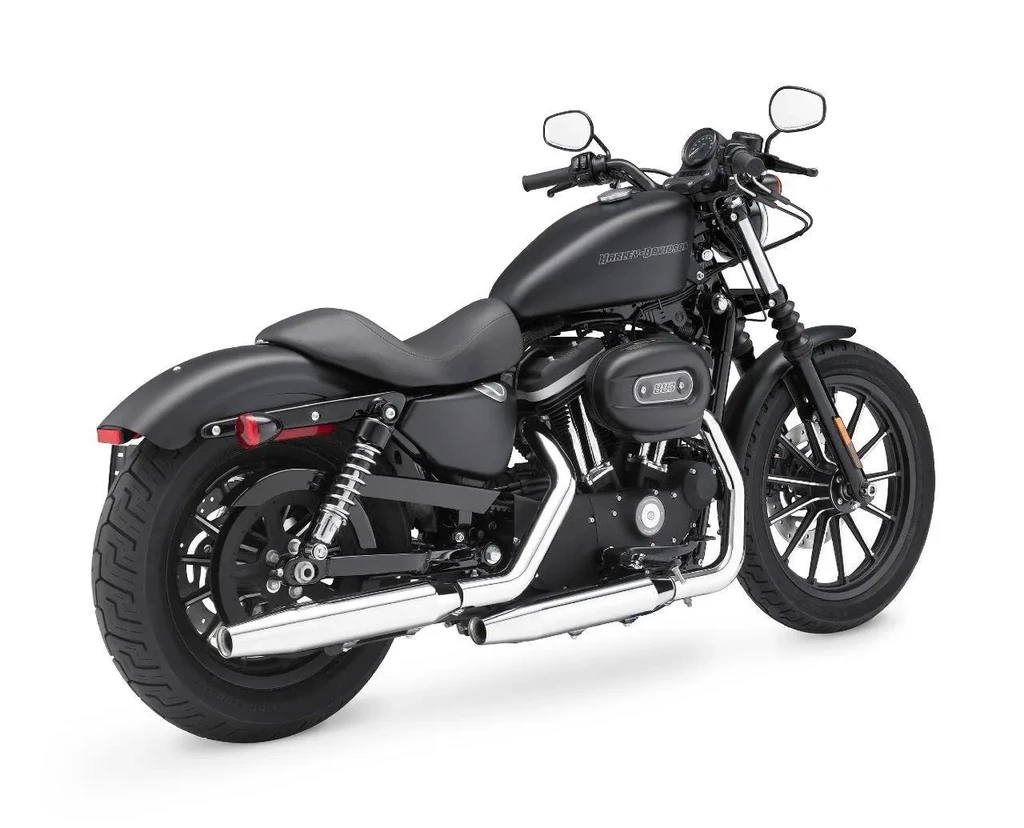

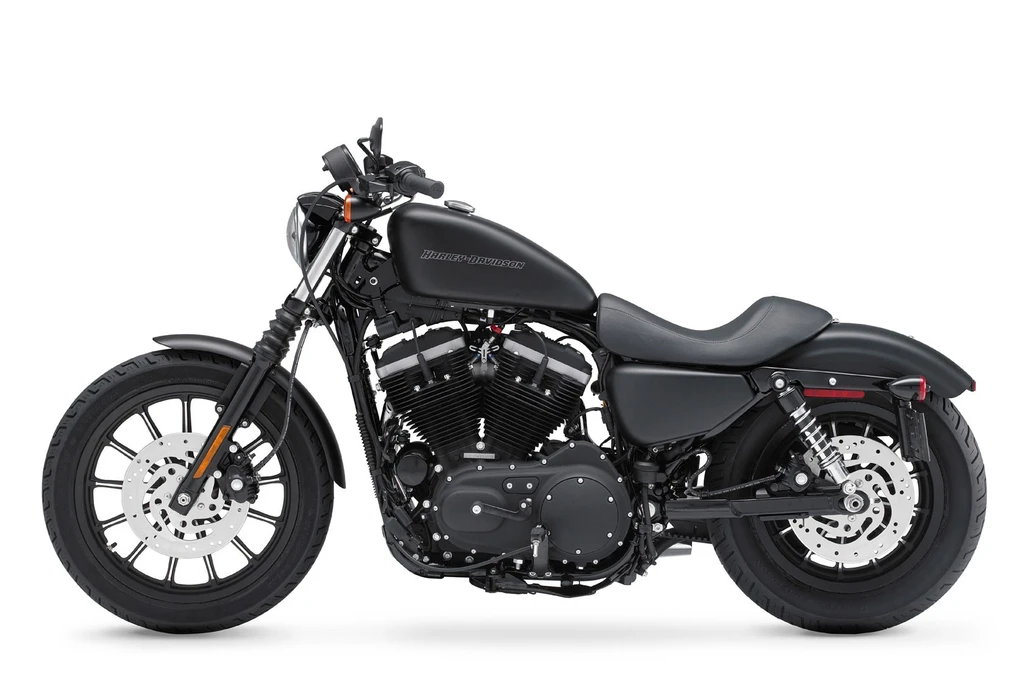

Harley Davidson XL 883NIron (2009)

The Harley-Davidson XL 883Iron is the latest iteration in a long line of Dark Custom motorcycles that embody the rebellious spirit of motorcycling. Since their introduction in 1957, Sportster motorcycles like the Iron 883 have been the starting point for countless legendary choppers and racing machines.

With its blacked-out aesthetic from fender to fender, this bike is a true minimalist statement piece. The Iron 883 is powered by an 883cc Evolution engine, complete with Electronic Sequential Port Fuel Injection (ESPFI) and performance tuning that delivers a broad torque curve for effortless city riding.

The distinctive Harley-Davidson V-Twin sound emanates from the straight cut shorty dual exhaust pipes, while the chopped rear fender showcases the bike’s rugged, stripped-down design. With its responsive handling, smooth clutch effort, and durable components, the Iron 883 is a true thrill machine that defies conventions and invites customization.

And with an MSRP starting at just $7,899, this black beauty provides the perfect platform for riders to unleash their creativity and make it truly one-of-a-kind.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity	883 cc / 50.8cu in/
Max Torque	73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Weight (Wet/Kerb)	565 lbs / 256.3 kg
Seat Height	25.7 inches / 653 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 883NIron
Year	2009

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement	883 cc / 50.8cu in/
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.8:1
Max Torque	73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm
Cooling System	Air cooled
Exhaust	Chrome, staggered, shorty exhaust with dual mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch with diaphragm spring in oil bath
Gearbox	5 Speed
Gear Ratios	1st 10.407 / 2nd 7.436 / 3rd 5.53 / 4th 4.583 / 5th 3.93
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame, circular sections, cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension	∅39mm Fork
Front Suspension Travel	3.62 inches / 92 mm
Rear Suspension	Coil-over, dual-adjustable preload
Rear Suspension Travel	1.6 inches / 41 mm
Rake	31.1
Trail	117 mm / 4.6 in

Wheels & Brakes

Front Wheel/Rim Size	Black, 13-spoke cast aluminium
Front Tire Size	100/90B19 57H
Rear Wheel/Rim Size	Black, 13-spoke cast auminium
Rear Tire Size	130/90-16
Front Brakes	Single ∅300mm disc, 2 x ∅38mm piston calipers
Rear Brakes	Single ∅260mm disc, 2 x ∅38mm piston calipers

Dimension & Weights

Seat Height	25.7 inches / 653 mm
Wheelbase	59.5 inches / 1519 mm
Ground Clearance	120 mm / 4.7 in
Fuel Tank Capacity	3.3 US gallons / 12.5 L
Wet (kerb/curb) Weight	565 lbs / 256.3 kg

Features

Black powder-coated 883cc Evolution powertrain
Electronic Sequential Port Fuel Injection (ESPFI)
Performance tuning with broad torque curve
Distinctive Harley-Davidson V-Twin sound
Shorty dual exhaust flow
Black chopped rear fender
Combination stop/turn/tail lights
150 mm rear tire
Black, 13-spoke cast aluminum wheel
Black front forks and fender supports
Fuel tank in black with unique graphics
Oil tank cover in black
Belt guard in black
Drag style handlebar
Mid mount foot controls
One-piece, solo classic seat (25.3 inches high)
Passenger seat and backrest available as accessories
