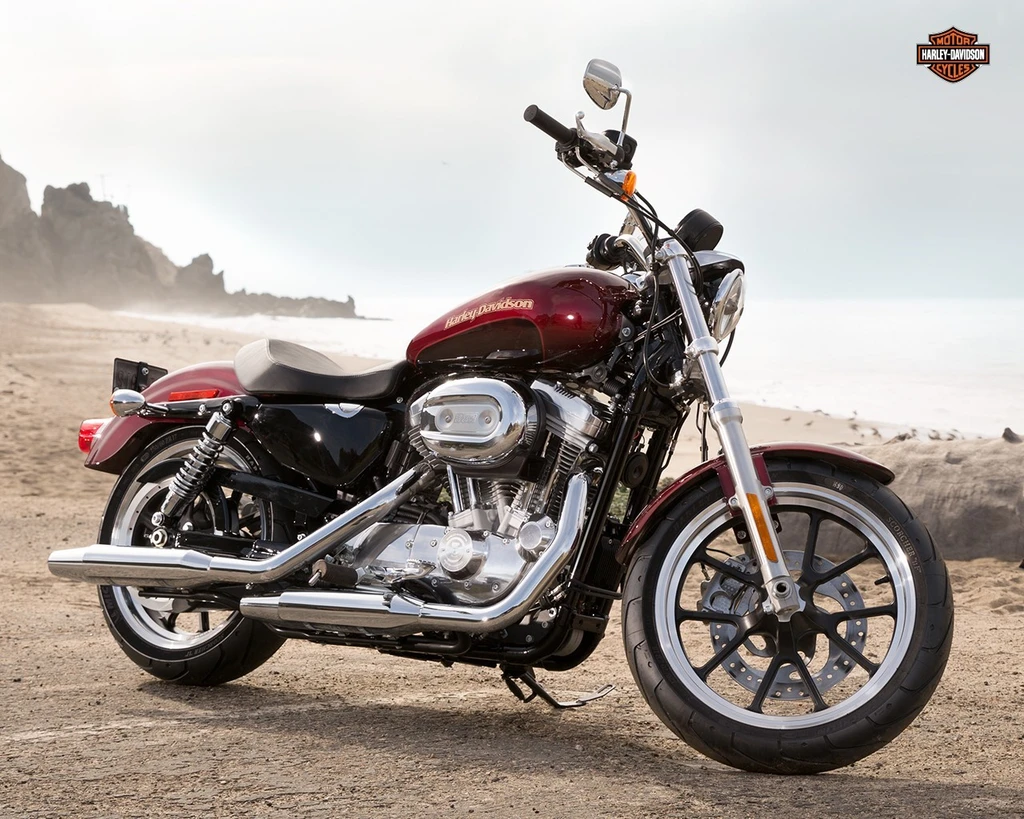

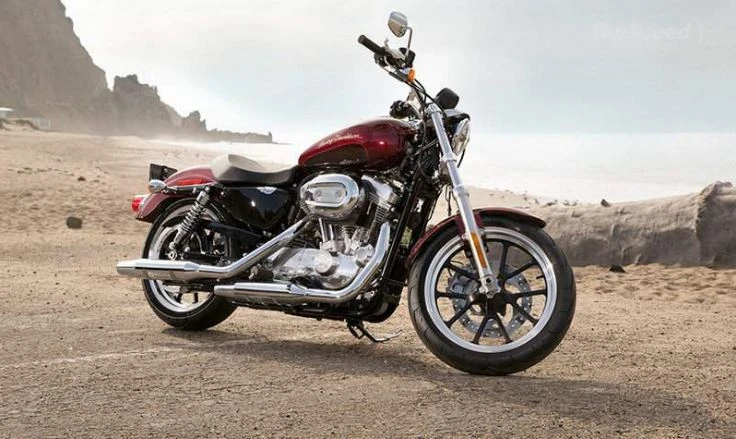

Harley Davidson XL 883L SportsterSuperLow (2015)

Harley Davidson XL 883L SportsterSuperLow (2015)

The Harley-Davidson XL 883L Sportster SuperLow is a riding experience like no other. Its balanced and responsive handling allows riders to glide through corners with confidence, while its outstanding maneuverability makes navigating twisties a breeze.

A low seat height, combined with the broad V-Twin powerband and clean styling, make this bike an attractive option for new and seasoned riders alike. The addition of new paint color options and graphics adds a touch of personality to this already-stylish machine.

But it’s not just about looks – the SuperLow also boasts impressive performance features, including a 68/29 final drive ratio for smooth acceleration and Michelin Scorcher 11 radial tires for exceptional grip. With its generous rear-suspension travel, deeply cushioned seat, and easy-reach handlebar, this bike is designed to deliver all-day comfort on the open road.

The result is an unbeatable combination of style, performance, and practicality that makes the Harley-Davidson XL 883L Sportster SuperLow a truly compelling choice for any rider.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity883 cc / 53.9 cub in.
Max Power50.2 kw / 68 hp
Max Torque73 Nm / 7.4 kgf-m / 53.8 ft/lb @ 3750 rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)565 lbs / 256 kg
Seat Height25.5 inches / 648 mm
Harley Davidson XL 883L SportsterSuperLow (2015)

All Specifications

Make & Model

ModelHarley Davidson XL 883L SportsterSuperLow
Year2015

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement883 cc / 53.9 cub in.
Bore x Stroke76.2 x 96.8 mm
Compression Ratio9.0:1
Max Horsepower50.2 kw / 68 hp
Max Torque73 Nm / 7.4 kgf-m / 53.8 ft/lb @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection
Cooling SystemAir cooled
ExhaustChrome, staggered, shorty exhaust with dual mufflers

Performance

Top Speedn/a

Transmission

ClutchMulti-plate clutch with diaphragm spring in oil bath
Gearbox5 Speed
Gear Ratios1st 10.407 / 2nd 7.436 / 3rd 5.53 / 4th 4.583 / 5th 3.93:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame, circular sections, cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension39 mm Telescopic forks
Front Suspension Travel4.09 inches / 104 mm
Rear SuspensionCoil-over, dual-adjustable preload
Rear Suspension Travel2.5 inches / 64 mm
Rake31.1
Trail145 mm / 5.7 in

Wheels & Brakes

Front Wheel/Rim SizeBlack, Split 5-Spoke with Machined Rim
Front Tire Size120/70 ZR-18 59W
Rear Wheel/Rim SizeBlack, Split 5-Spoke with Machined Rim
Rear Tire Size150/60 ZR-17 66W
Front BrakesSingle 300 mm disc, 2 x 38mm piston calipers
Rear BrakesSingle 260 mm disc, 2 x 38mm piston calipers

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase59.1 inches / 1500 mm
Ground Clearance99 mm / 3.9 in
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight565 lbs / 256 kg
Dry Weight244 kg / 537 lbs

Features

  • Low seat height: 25.5 inches
  • Easy-reach handlebar
  • Generous rear-suspension travel: 2.5 inches
  • Deeply cushioned solo seat
  • 4.5-gallon fuel tank
  • Michelin Scorcher 11 radial tires
  • Front tire size: 120/70ZR18
  • Rear tire size: 150/60ZR17
  • Black side covers to match bodywork finish
  • Split 5-Spoke wheels with machined rims
  • Silver, powder-coated engine with polished covers
  • Chrome exhaust with dual staggered shorty mufflers
  • Full-coverage rear fender with painted supports
  • Sport front fender
  • Polished headlamp visor
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Rubber-mounted powertrain to reduce vibration
  • 5-speed Transmission
  • Mid-mounted foot controls
  • Handlebar-mounted electronic speedometer
