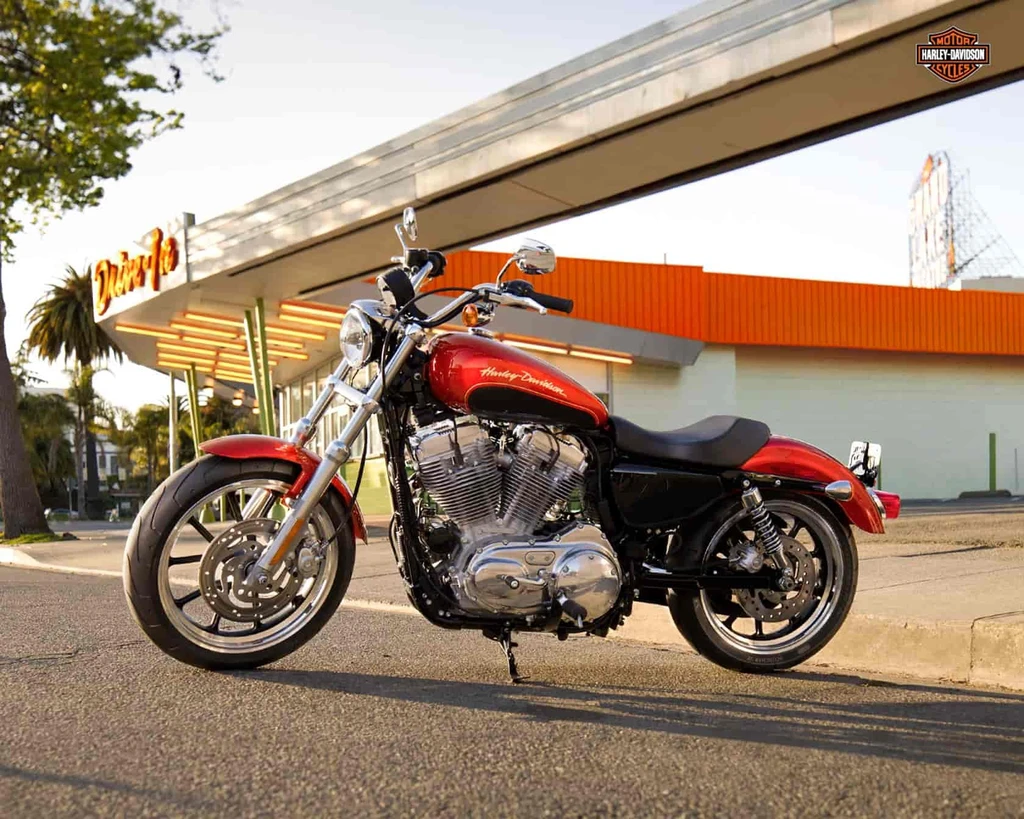

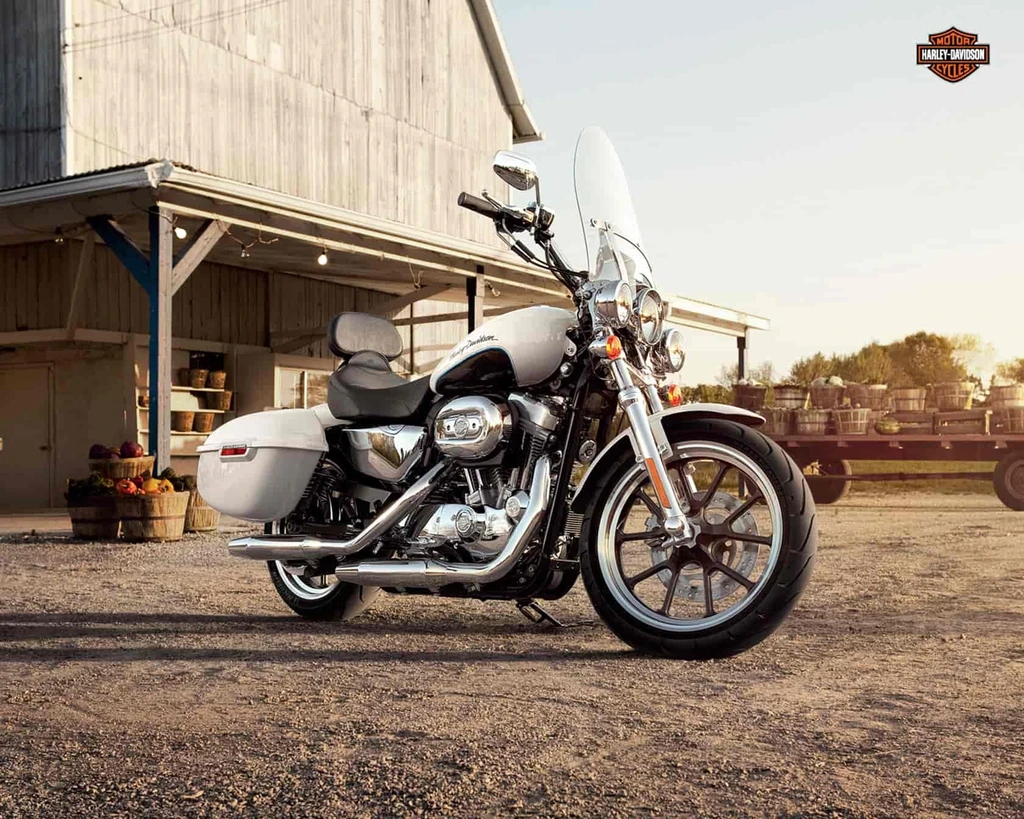

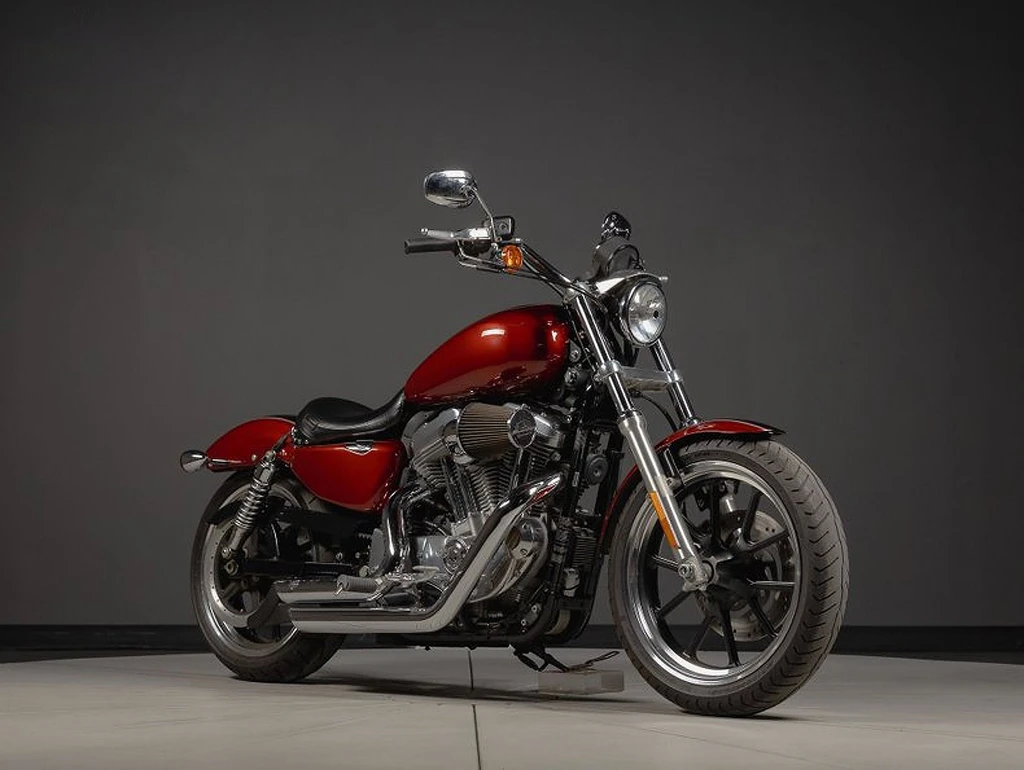

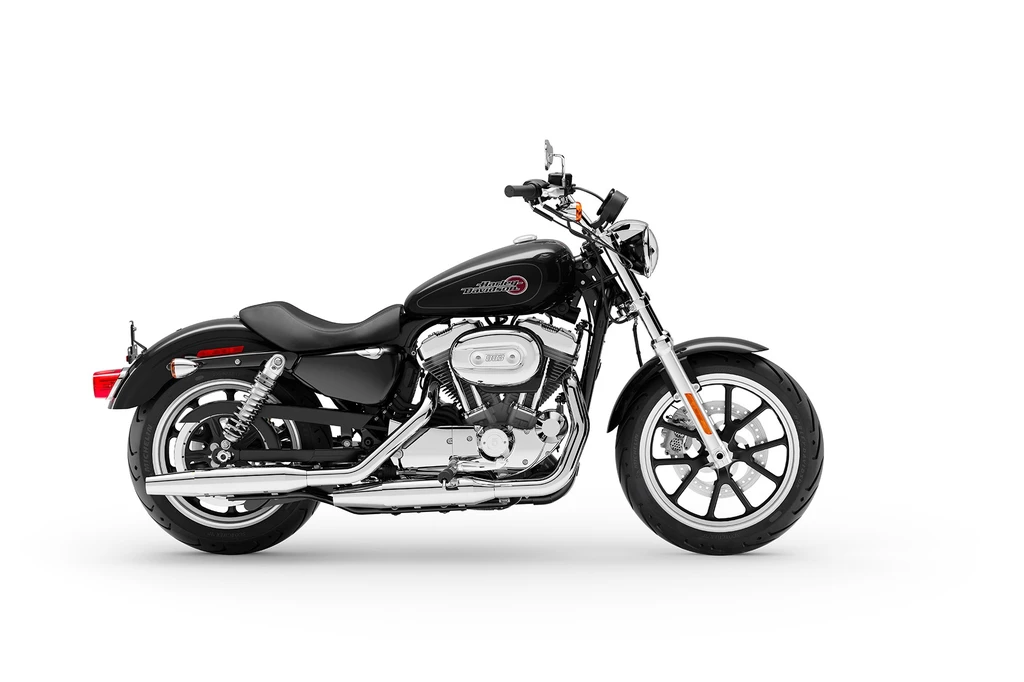

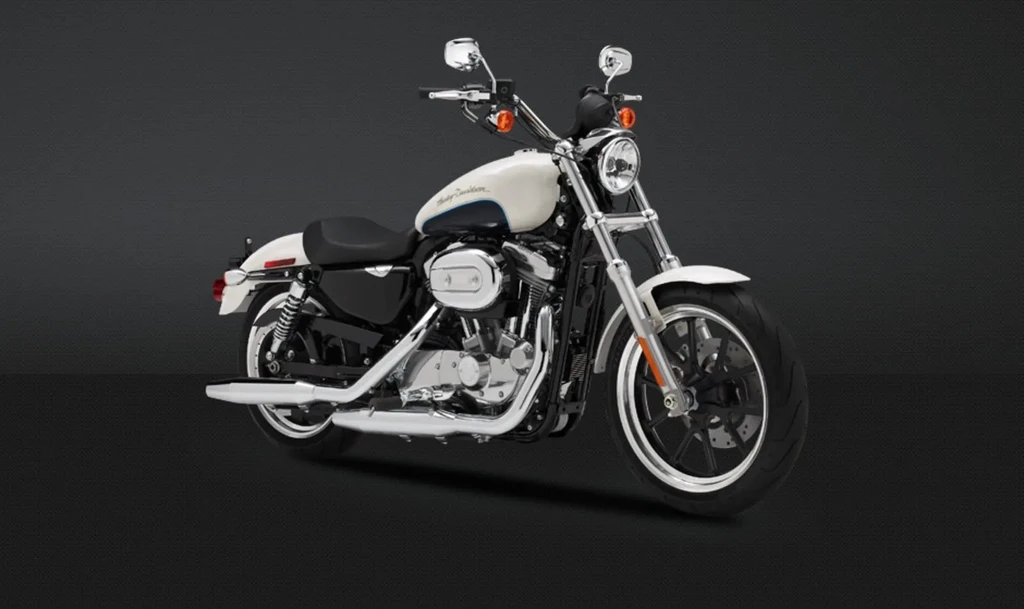

Harley Davidson XL 883L SportsterSuperLow (2013)

The Harley-Davidson XL 883L Sportster SuperLow is an exhilarating ride that embodies the perfect blend of ease, comfort, and thrilling performance.

Its responsive handling and exceptional maneuverability make it a joy to navigate through corners, while its generous rear-suspension travel and deeply cushioned seat ensure rider comfort throughout the journey.

At the heart of this bike lies a powerful Evolution V-Twin engine, delivering a broad powerband that’s both smooth and exhilarating. Paired with its clean styling and low center of gravity, the SuperLow is an absolute delight to ride, making it an ideal choice for new riders and seasoned enthusiasts alike.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity	883 cc / 53.9 cub in.
Max Power	68 hp / 50.2 kW @ 4400 rpm
Max Torque	73 Nm / 53.8 ft/lb @ 4100 rpm
Fuel Tank Capacity	17 Litres / 4.5 gal
Weight (Wet/Kerb)	573 lbs / 260 kg
Seat Height	25.5 inches / 648 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 883L SportsterSuperLow
Year	2013

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement	883 cc / 53.9 cub in.
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.8:1
Max Horsepower	68 hp / 50.2 kW @ 4400 rpm
Max Torque	73 Nm / 53.8 ft/lb @ 4100 rpm
Cooling System	Air cooled
Exhaust	Chrome, staggered, shorty exhaust with dual mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch with diaphragm spring in oil bath
Gearbox	5 Speed
Gear Ratios	1st 10.407 2nd 7.436 3rd 5.53 4th 4.583 5th 3.93
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame, circular sections, cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension	39mm Forks
Front Suspension Travel	4.09 inches / 104 mm
Rear Suspension	Coil-over, dual-adjustable preload
Rear Suspension Travel	2.5 inches / 64 mm
Rake	31.1
Trail	145 mm / 5.7 in

Wheels & Brakes

Front Wheel/Rim Size	Black, Split 5-Spoke with Machined Rim
Front Tire Size	120/70 ZR-18 59W
Rear Wheel/Rim Size	Black, Split 5-Spoke with Machined Rim
Rear Tire Size	150/60 ZR-17 66W
Front Brakes	Single 300mm disc 2 38mm piston calipers
Rear Brakes	Single 260mm disc 2 38mm piston calipers

Dimension & Weights

Seat Height	25.5 inches / 648 mm
Wheelbase	59.1 inches / 1500 mm
Fuel Tank Capacity	17 Litres / 4.5 gal
Wet (kerb/curb) Weight	573 lbs / 260 kg
Dry Weight	234 kg / 536 lbs

Features

Balanced and responsive handling
Radial tires: Front 120/70ZR18; rear 150/60ZR17
Michelin Scorcher 11 radial tires
Black side covers to match bodywork finish
Split 5-spoke cast wheels with machined rims
Wheel size: front 18 x 3.5 inches, rear 17 x 4.5 inches
Front end geometry contributes to confident handling
68/29 (2.34:1) final drive ratio for smooth acceleration
4.5-gallon fuel tank for extended range
Solo seat with deep bucket shape is easy to straddle
Seat height is 25.5 inches
Easy-reach handlebar
Revised rear suspension with 2.5 inches wheel travel for added comfort
Silver, powder-coated engine with polished covers
Chrome exhaust with dual staggered shorty mufflers
Full-coverage rear fender with painted supports
Sport front fender
Polished headlamp visor
