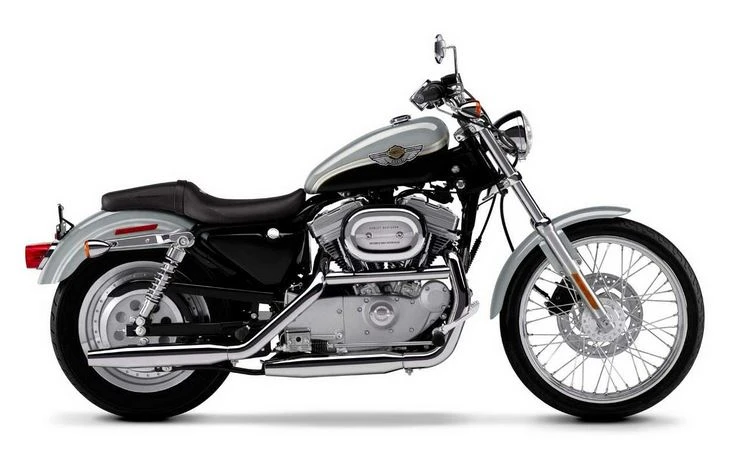

The Harley-Davidson XL 883C Sportster Custom is a radical reinterpretation of the iconic Sportster design, bursting onto the scene in 2002 with an unparalleled style that sets it apart from its predecessors.
With its low seat height and forward foot controls, this bike exudes a rebellious attitude, while the drag bars, chrome speedo, and bullet headlight evoke the spirit of a street-racer. The Sportster Custom’s custom wheel treatment adds to its edgy persona, featuring a 21-inch laced-up front wheel and solid 16-inch disc rear.
Underneath its bold exterior lies a rigid mount 883cc Evolution engine, boasting a silver powdercoated finish and tall, chromed riser with drag-style handlebar. This potent powerplant is further refined by new high-contact ratio cam gears and a high-efficiency oil pump for quieter operation and reduced oil carryover.
As you take the reins of this Harley-Davidson XL 883C Sportster Custom, you’ll experience the thrilling combination of raw power, responsive handling, and flat torque curve that has defined the Sportster family since its inception in 1957.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
883 cc / 53.9 cub in.
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Fuel Tank Capacity
4.5 US gallons / 17.0 L
Weight (Wet/Kerb)
579 lbs / 263 kg
Seat Height
26.5 inches / 673.1 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XL 883C Sportster Custom
Year
2002 – 2003
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
883 cc / 53.9 cub in.
Bore x Stroke
76.2 x 96.8 mm
Compression Ratio
8.8:1
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Engine Management System
Carburetion (40 mm constant velocity with enrichener and accelerator pump) Air Cleaner/Filter Oval racetrack;
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi-plate clutch with diaphragm spring in oil bath
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
