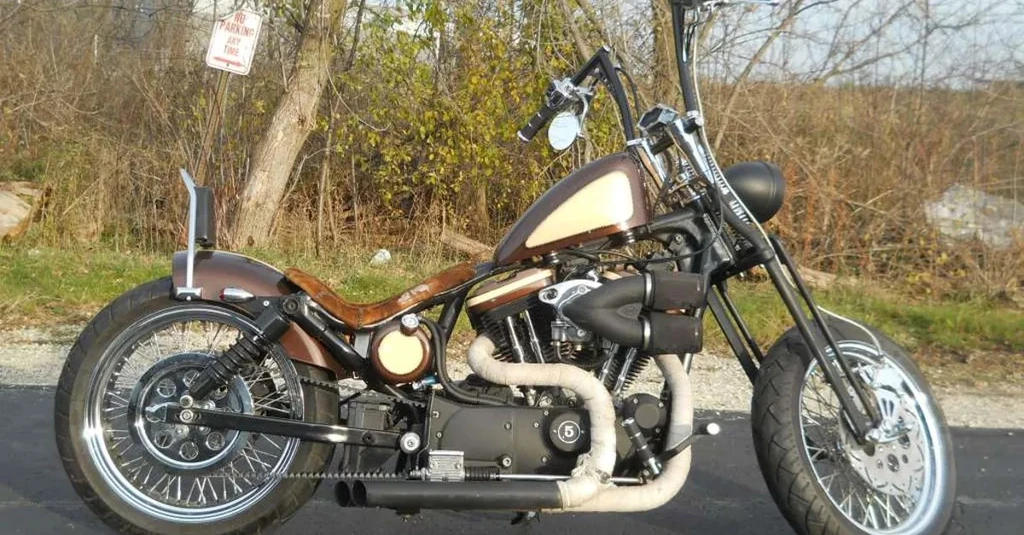

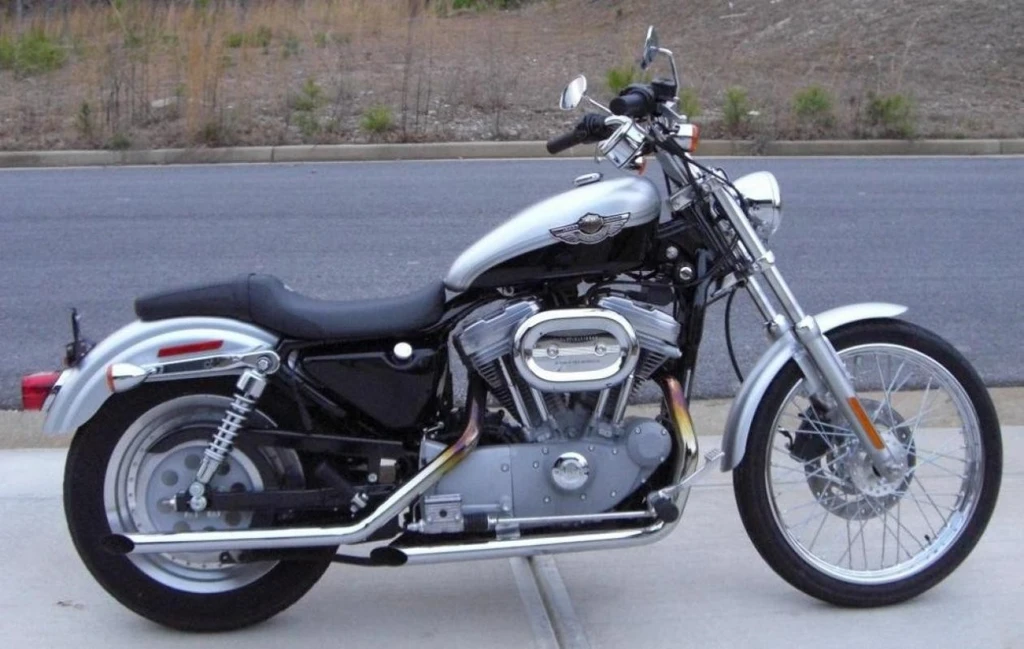

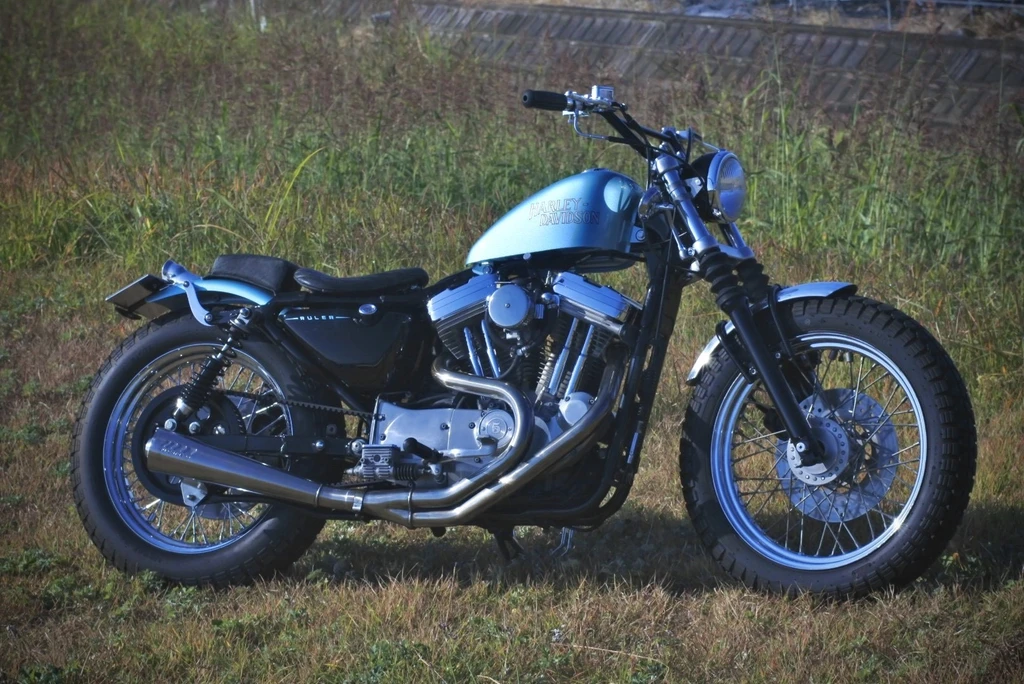

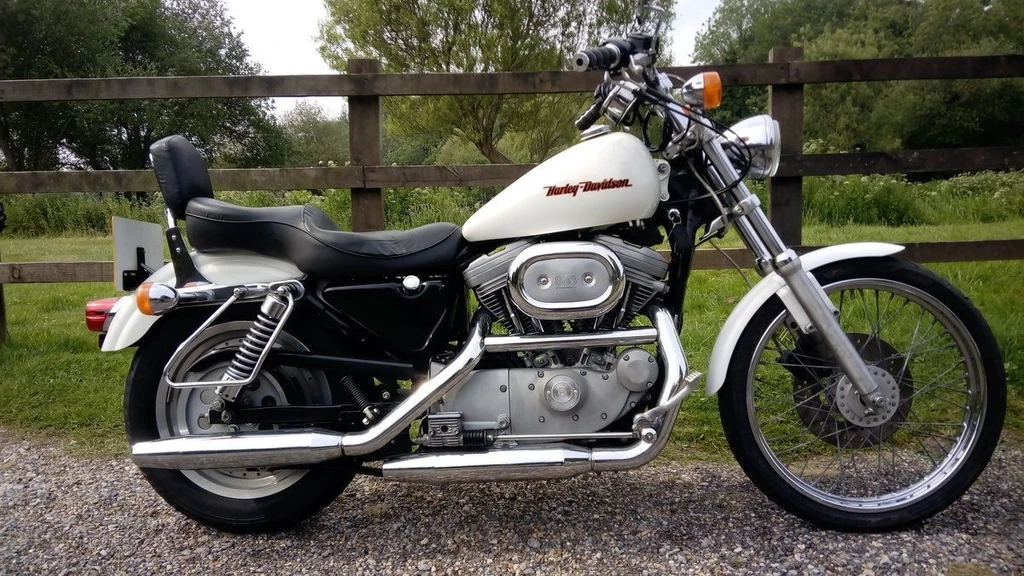

Harley Davidson XL 883C Sportster Custom (1998 – 99)

The Harley-Davidson Sportster name has been synonymous with freedom and rebellion since its introduction in 1957. By the late 1990s, the lineup had grown to include several models, including the new XL883C Sportster Custom.

This bike is a torquey, about-town ride that embodies the essence of the Harley-Davidson experience. The 883cc-powered engine roars to life with a distinctive exhaust note that will leave you craving more.

With its custom styling features, longer front end and forward controls, this motorcycle offers tremendous value for riders seeking an authentic Harley-Davidson experience. Borrowing cues from its Sportster 1200 Custom cousin, the XL883C boasts radical riding dynamics, sleek drag bars, and a sporty two-up seat that exudes street-racer style.

The result is a bike that not only looks great but also provides unparalleled comfort and riding pleasure.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity	883 cc / 53.9 cub in.
Max Torque	69Nm 52 lb-ft @ 4300 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	579 lbs / 263 kg
Seat Height	26.5 inches / 673.1 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 883C Sportster Custom
Year	1998 – 99

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement	883 cc / 53.9 cub in.
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.8:1
Max Torque	69Nm 52 lb-ft @ 4300 rpm
Engine Management System	Carburetion (40 mm constant velocity with enrichener and accelerator pump) Air Cleaner/Filter Oval racetrack;
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch with diaphragm spring in oil bath
Gearbox	5 Speed
Gear Ratios	1st 10.944 9.792 9.4672nd 7.542 6.732 6.6633rd 5.834 5.220 5.1434th 4.806 4.301 4.2785th 4.071 3.643 3.643
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; circularsections; cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Suspension	39mm Conventional cartridge forks
Rear Suspension	Dualshocks Coil-over; preload dual-adjustable
Rake	30.1
Trail	120 mm / 4.7 in

Wheels & Brakes

Front Tire Size	D402F MH90-21 54H
Rear Tire Size	D401 150/80B16 71H
Front Brakes	Single 292mm disc 2 piston calipers
Rear Brakes	Single 292mm disc 1 piston calipers

Dimension & Weights

Seat Height	26.5 inches / 673.1 mm
Wheelbase	60.4 inches / 1534.1 mm
Ground Clearance	112 mm / 4.4 om
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	579 lbs / 263 kg
Dry Weight	253 kg /558 lbs

Features

Longer front end
Forward controls
883cc-powered Harley-Davidson engine
Custom styling features
Chrome bullet headlight with quartz halogen low beam and high beam
Sporty two-up seat
Self-canceling turn signal lights
Seat height: 27.56 inches (70.0cm)
Ground clearance: 6.7 inches (17.02cm)
Recalibrated XL883 Hugger rear suspension for two-up riding
Solid disc 16-inch (40.6cm) rear wheel
Laced 21-inch (53.3cm) front wheel
Chrome speedometer
Sealed tail light unit to prevent condensation and malfunction
Accessory-ready hookup
Circuit board instead of hard wiring for easier servicing
Torquey ride around town
