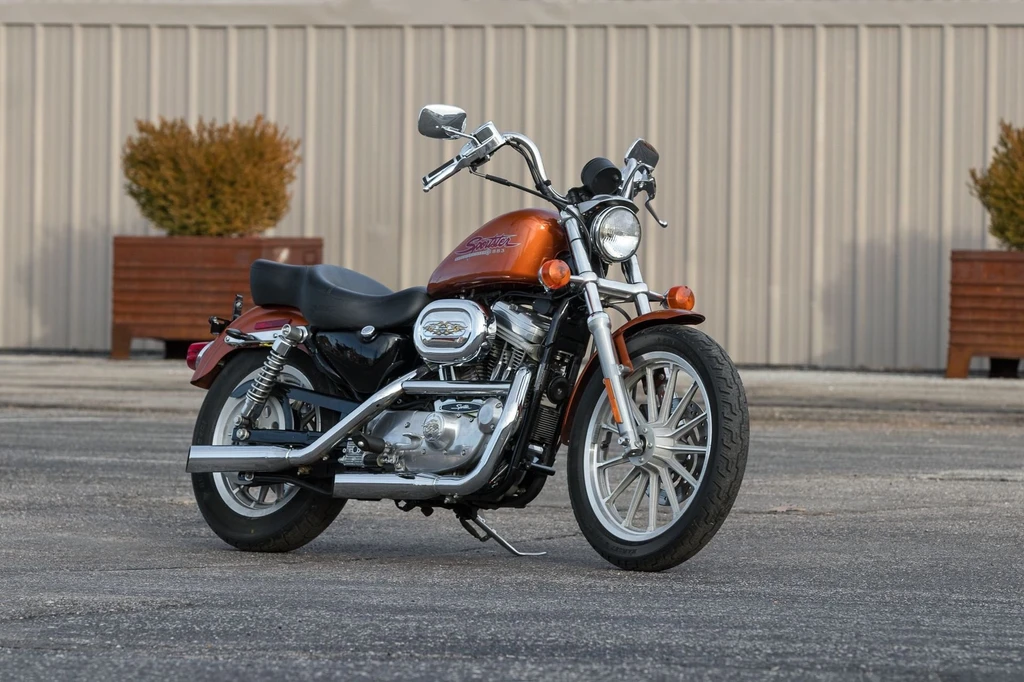

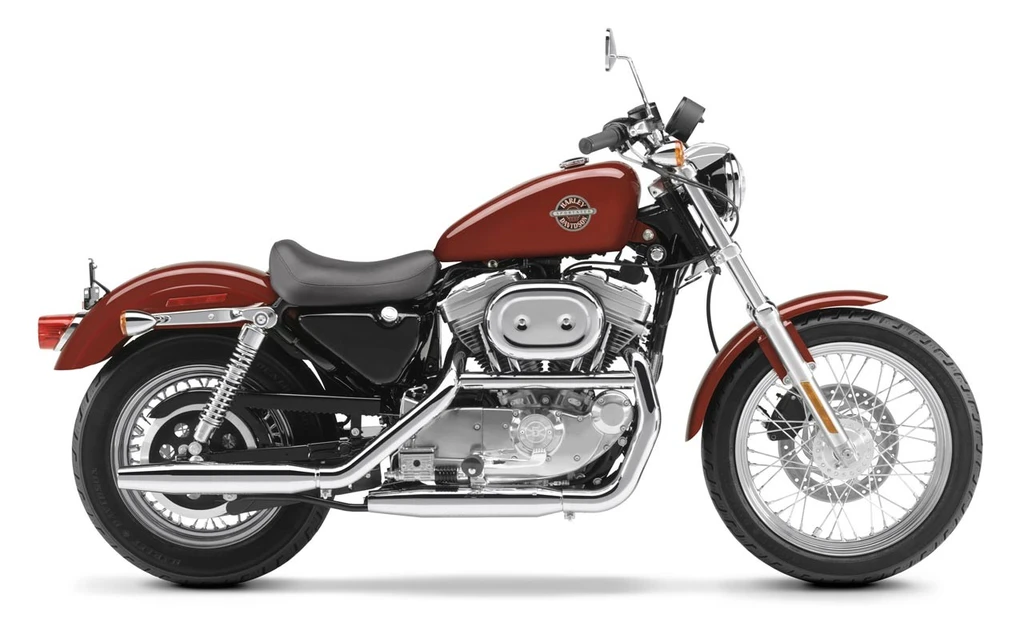

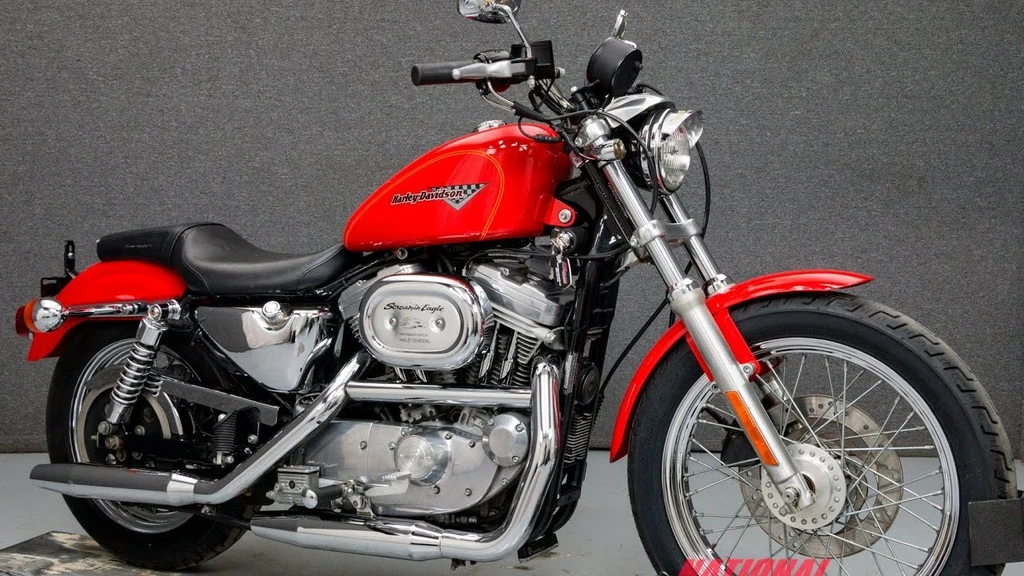

The Harley-Davidson XL 883 Sportster Hugger is the ultimate urban cruiser, engineered for riders who crave a more intimate connection with their machine. By lowering the seat height to just over 27 inches off the ground, you’re perfectly positioned to appreciate the raw power of the 883cc Evolution V-Twin engine.
Its rigid mount and short-stroke front forks and rear shocks deliver a responsive ride that’s as much about feel as it is about function. The Hugger’s compact dimensions and mid-mount foot controls make it effortlessly manageable, while its distinctive styling turns heads wherever you go.
The Sportster Hugger embodies the perfect blend of style, performance, and practicality – a bike that’s as at home in the city streets as it is on the open road.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
883 cc / 53.9 cub in.
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Fuel Tank Capacity
3.3 US gallons / 12.5 L
Weight (Wet/Kerb)
518.1 lbs / 235 kg
Seat Height
28.3 inches / 720 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XL 883 Sportster Hugger
Year
2001 – 2002
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
883 cc / 53.9 cub in.
Bore x Stroke
76.2 x 96.8 mm
Compression Ratio
8.8:1
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Engine Management System
Carburetion (40 mm constant velocity with enrichener and accelerator pump) Air Cleaner/Filter Oval racetrack;
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi-plate clutch with diaphragm spring in oil bath
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
