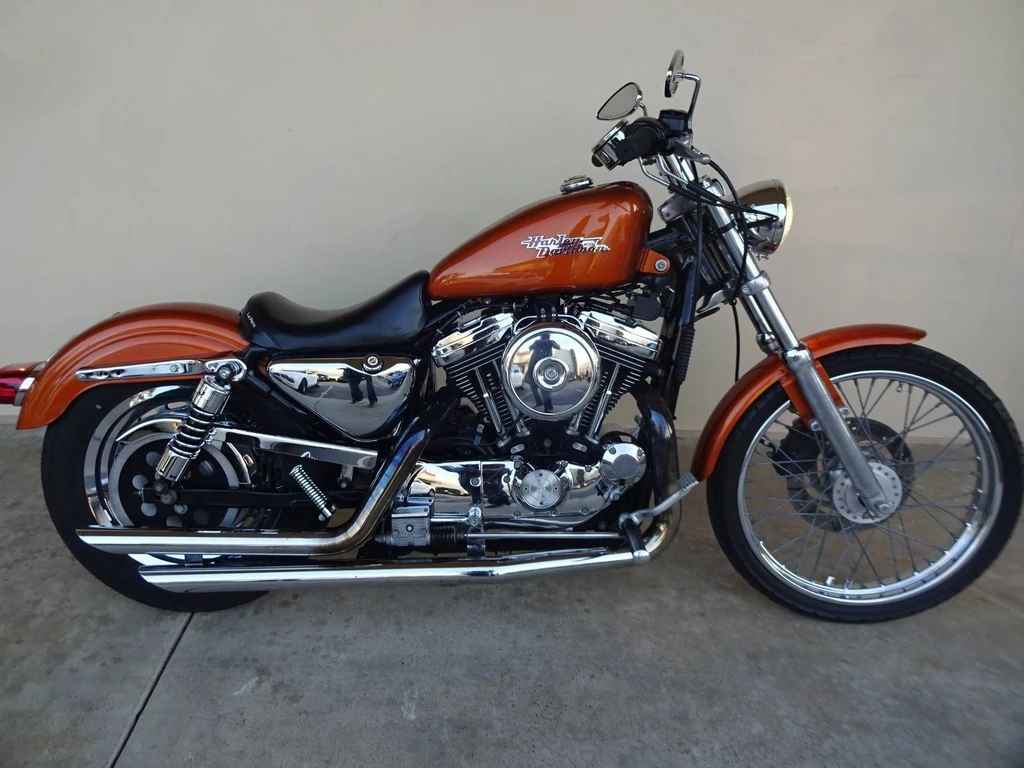

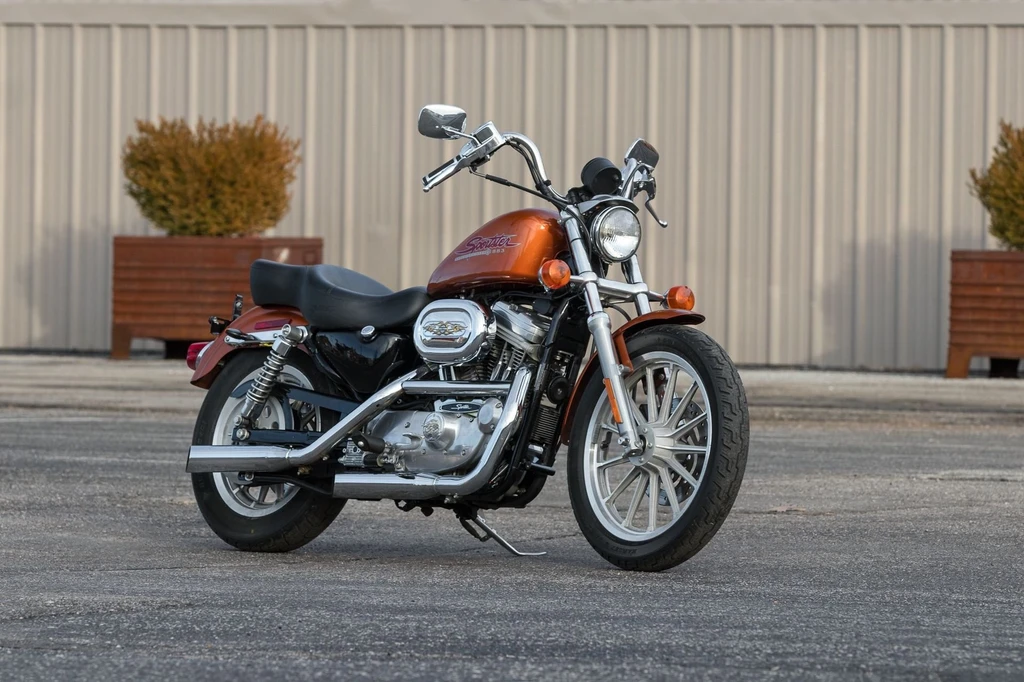

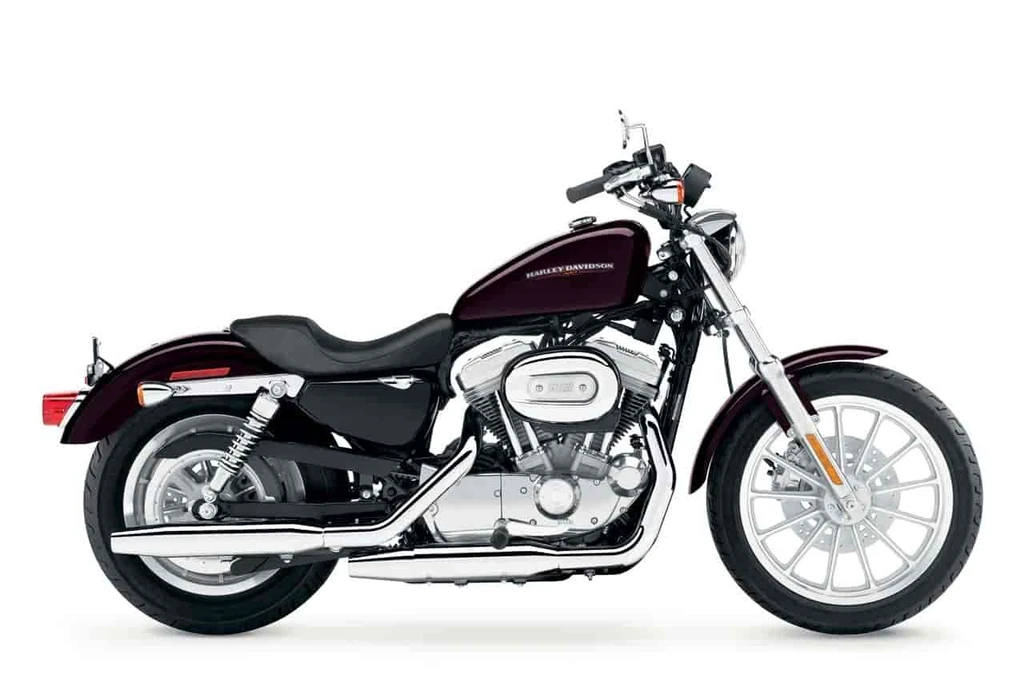

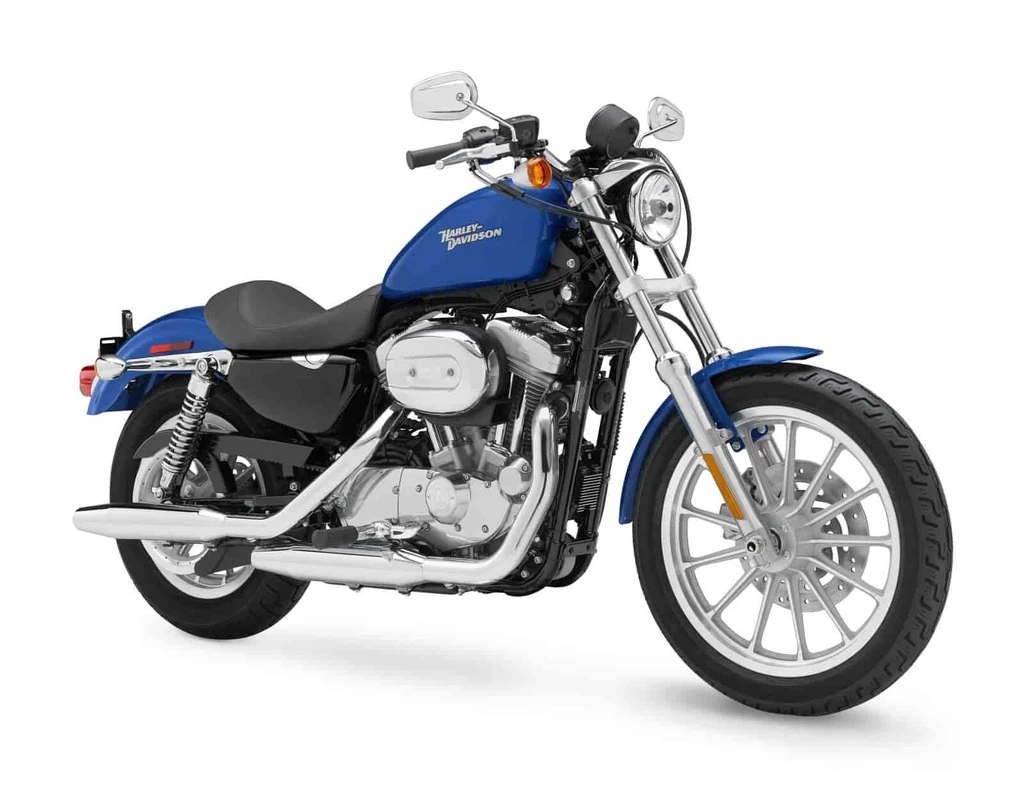

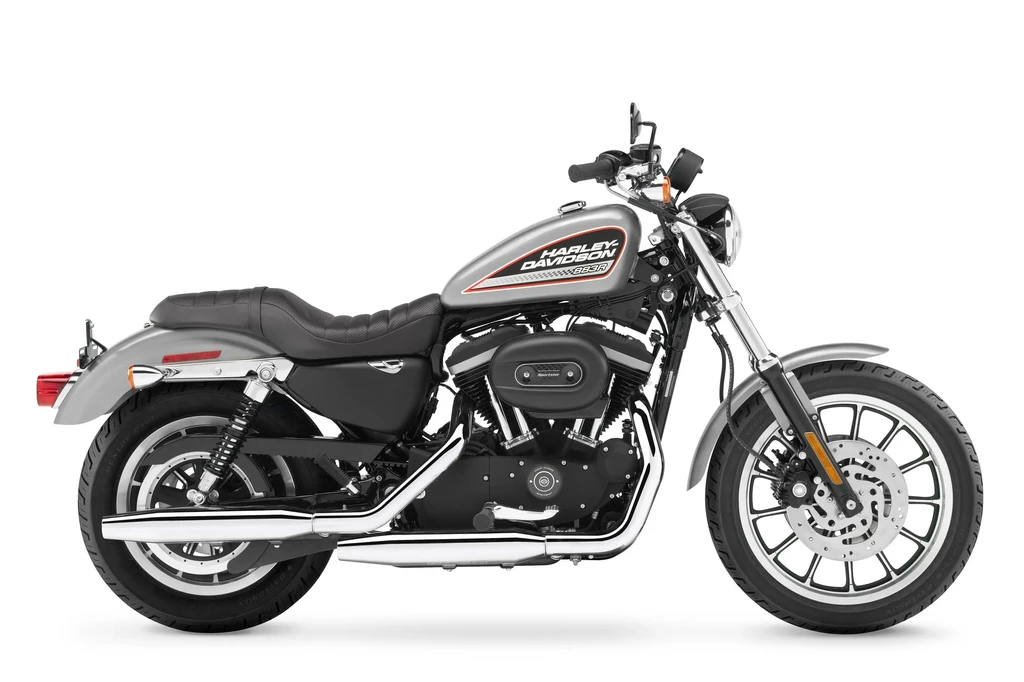

Harley Davidson XL 883 Sportster (2000 – 2001)

The Harley-Davidson XL 883 Sportster: a bike that’s often overlooked in favor of its more exotic siblings.

But beneath its unassuming exterior lies a rugged and capable machine that’s just as at home on the open road as any other Harley. Its air-cooled V-twin engine is a masterclass in simplicity, producing a raw and unbridled character that’s impossible to ignore.

Take it for a spin and you’ll discover a bike that’s both familiar and refreshing, with a riding experience that’s equal parts nostalgic and exhilarating. The Sportster may not be the flashiest or most powerful bike on the block, but it’s certainly one of the most rewarding – especially when it comes to price.

The result is a bike that’s more than just a bargain basement beauty; it’s a true motorcycle enthusiast’s delight.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity	883 cc / 53.9 cub in.
Max Torque	69Nm 52 lb-ft @ 4300 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	579 lbs / 263 kg
Seat Height	28 inches / 711.2 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 883 Sportster
Year	2000 – 2001

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement	883 cc / 53.9 cub in.
Bore x Stroke	76.2 x 96.8 mm
Compression Ratio	8.8:1
Max Torque	69Nm 52 lb-ft @ 4300 rpm
Engine Management System	Carburetion (40 mm constant velocity with enrichener and accelerator pump) Air Cleaner/Filter Oval racetrack;
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate clutch with diaphragm spring in oil bath
Gearbox	5 Speed
Gear Ratios	1st 10.944 9.792 9.4672nd 7.542 6.732 6.6633rd 5.834 5.220 5.1434th 4.806 4.301 4.2785th 4.071 3.643 3.643
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; circularsections; cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Suspension	39mm Conventional cartridge forks
Rear Suspension	Dualshocks Coil-over; preload dual-adjustable
Rake	29.6
Trail	117 mm / 4.6 in

Wheels & Brakes

Front Tire Size	100/90-19
Rear Tire Size	130/90HB16
Front Brakes	Single 292mm disc 2 piston calipers
Rear Brakes	Single 292mm disc 1 piston calipers

Dimension & Weights

Seat Height	28 inches / 711.2 mm
Wheelbase	60 inches / 1522 mm
Ground Clearance	112 mm / 4.4 om
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	579 lbs / 263 kg
Dry Weight	222 kg /489.0 lbs

Features

Subtle design changes over five decades have resulted in a brutal looking bike.
Back-to-basics design.
Fine standard of finish.
Sophistication.
New style 12.5 litre petrol tank.
Redesigned single seat is more comfortable.
Wire wheels strike a chord with motorbike enthusiasts.
Flattish, narrow bars are dead comfy to use.
Mirrors become unusable at speeds over 45mph.
Overall finish is well designed, made, and put together.
No unnecessary features or design elements.
The motor is the dominant feature of the bike.
883 II engine.
Huge and impressive motor.
