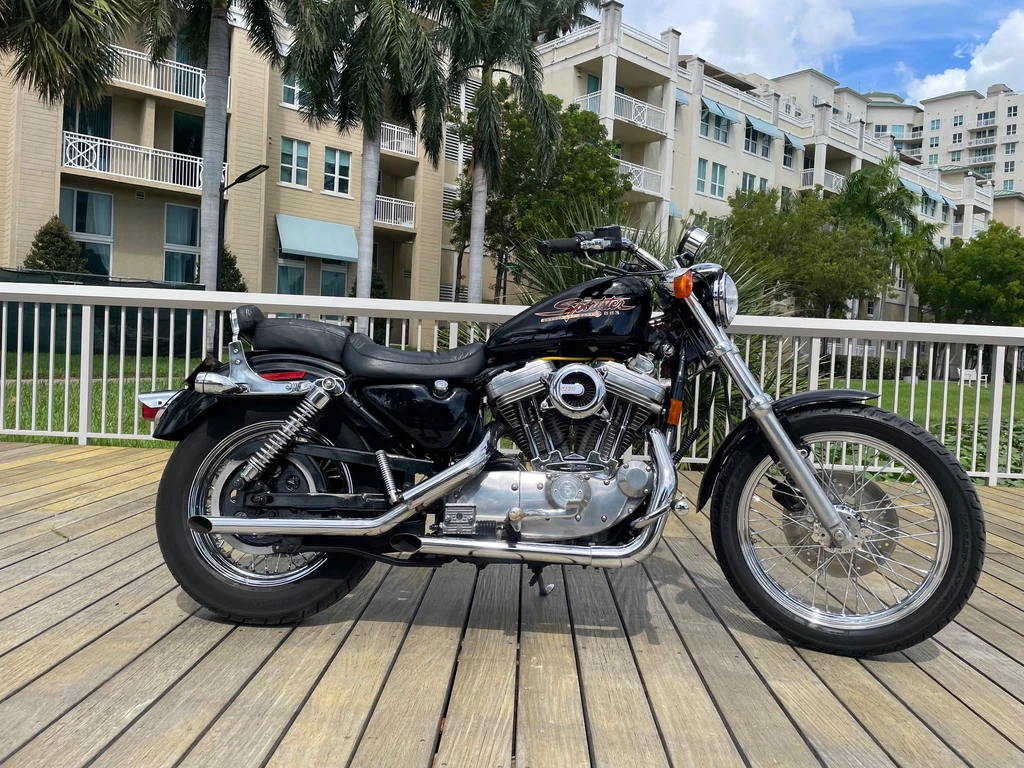

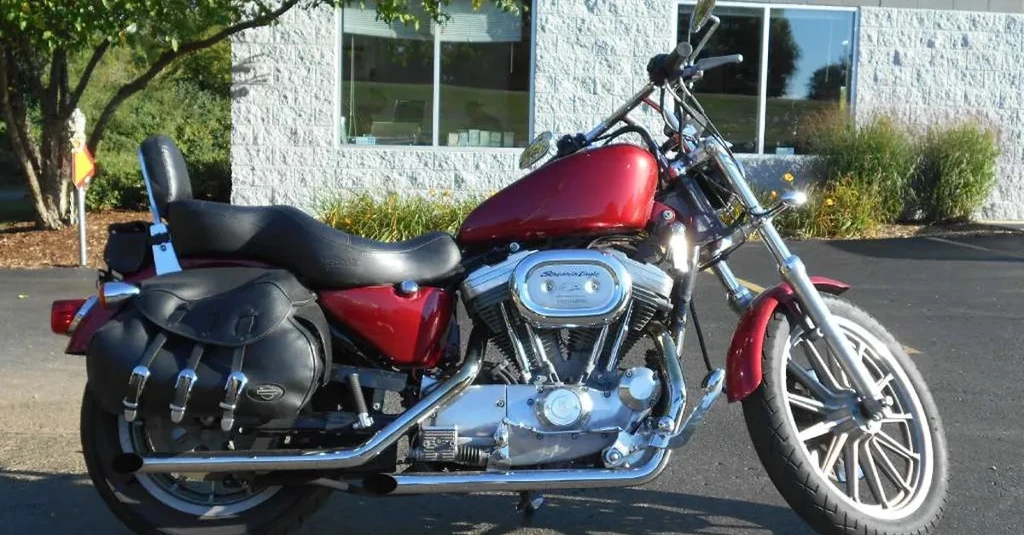

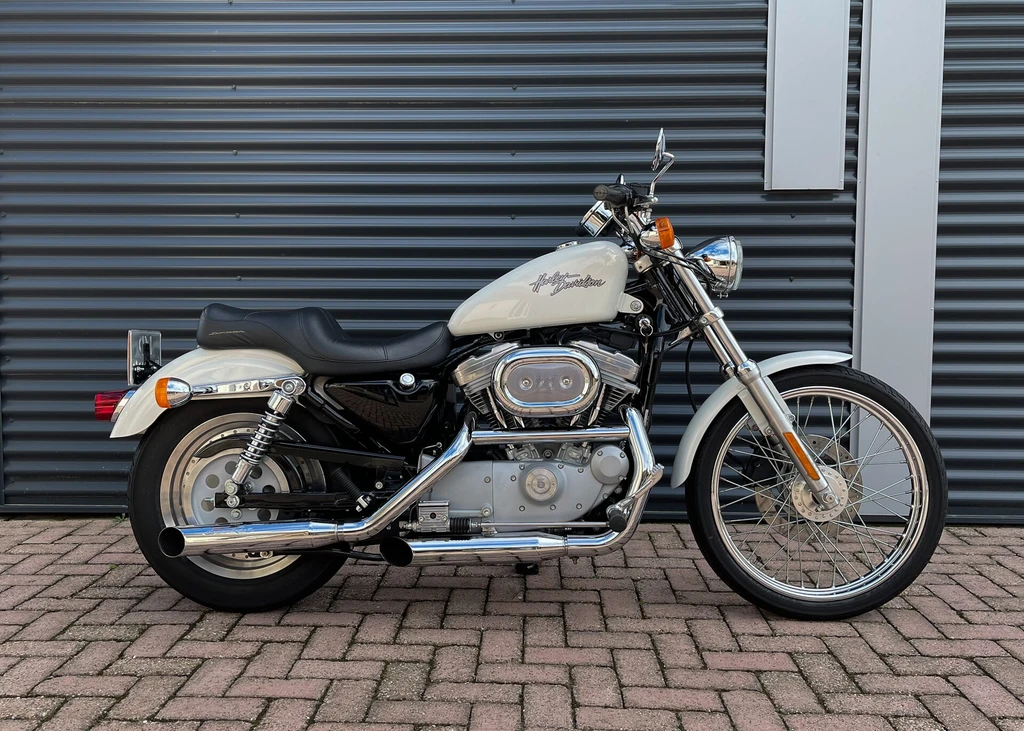

The 883 Sportster is Harley’s entry-level machine, a stripped-down roadster that embodies the brand’s minimalist ethos. Its lean, narrow profile sets it apart from its larger siblings, thanks to its straightforward design.
Underpinning this agile bike is a pushrod overhead valve V-twin engine, first introduced in 1986. While underpowered and restricted as standard, performance parts are readily available to boost power and torque.
The Sportster’s chassis has limited sporting ability, but reasonable ground clearance and upgradable suspension and brake components allow owners to customize its performance.
With its raw, uncomplicated character, the Harley-Davidson XL 883 Sportster offers an unbridled riding experience that’s as authentic as it is exhilarating – a true gateway to the world of American motorcycle heritage.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
883 cc / 53.9 cub in.
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Fuel Tank Capacity
4.5 US gallons / 17.0 L
Weight (Wet/Kerb)
579 lbs / 263 kg
Seat Height
28 inches / 711.2 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XL 883 Sportster
Year
1997 – 98
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
883 cc / 53.9 cub in.
Bore x Stroke
76.2 x 96.8 mm
Compression Ratio
8.8:1
Max Torque
69Nm 52 lb-ft @ 4300 rpm
Engine Management System
Carburetion (40 mm constant velocity with enrichener and accelerator pump) Air Cleaner/Filter Oval racetrack;
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi-plate clutch with diaphragm spring in oil bath
