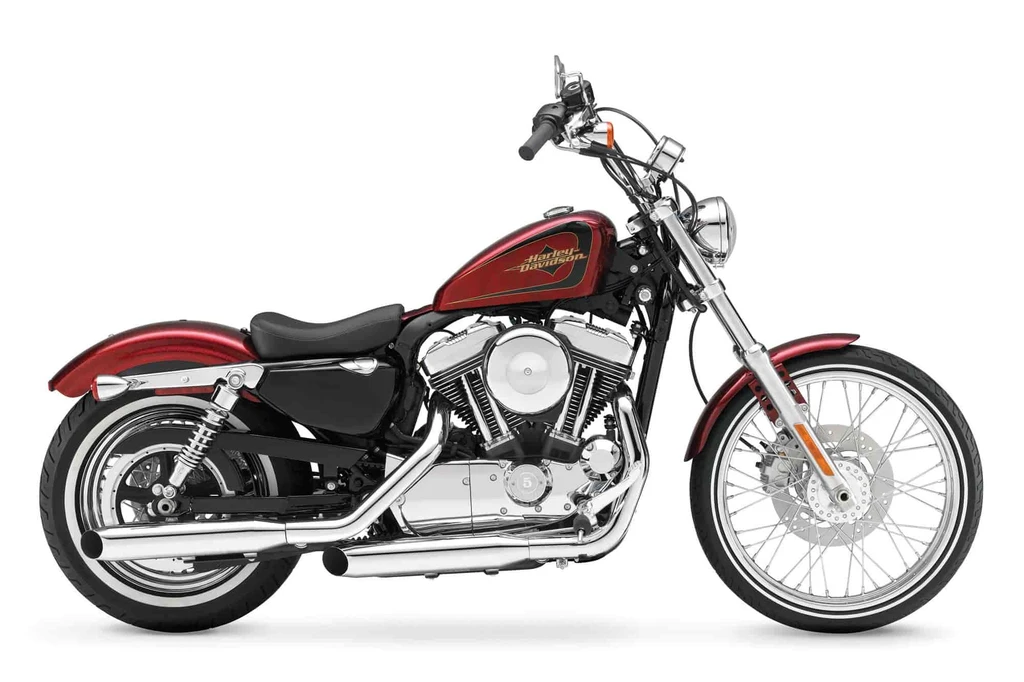

Harley Davidson XL 1200V Seventy Two (2012 – 2013)

Harley Davidson XL 1200V Seventy Two (2012 - 2013)

The Harley-Davidson XL 1200V Seventy Two is a tribute to the iconic choppers of the 1970s, reimagined for the modern era.

Its sleek, lowrider-inspired design features a Sportster powerplant that’s been refined to deliver a potent blend of performance and character. The engine’s smooth, effortless power delivery is perfectly suited to the bike’s laid-back riding style, making it an ideal choice for those who crave a more relaxed, cruisy experience.

As you sit astride this radical custom, you’ll be surrounded by premium H-D styling and attention to detail that’s unparalleled in its class. From the gleaming chrome accents to the narrow whitewall tires, every aspect of the Seventy-Two has been carefully crafted to evoke the essence of a bygone era.

The result is a bike that not only looks stunning but also delivers an unforgettable riding experience – one that will leave you grinning from ear to ear and eager for more. With its unique blend of retro flair and modern muscle, the Harley-Davidson XL 1200V Seventy Two is an absolute thrill ride that’s sure to leave a lasting impression.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1199 cc / 73.2 cub in.
Max Torque79 ft/lbs / 107 Nm @ 3500 rpm
Fuel Tank Capacity2.1 US gallons / 13.7 L
Weight (Wet/Kerb)555 lbs / 251.7 kg
Seat Height26.6 inches / 675 mm
Harley Davidson XL 1200V Seventy Two (2012 - 2013)

All Specifications

Make & Model

ModelHarley Davidson XL 1200V Seventy Two
Year2012 – 2013

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement1199 cc / 73.2 cub in.
Bore x Stroke88.8 x 96.8 mm
Compression Ratio9.7:1
Max Torque79 ft/lbs / 107 Nm @ 3500 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled,
ExhaustChrome, staggered shorty exhaust with dual slash-cut mufflers

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; circular sections; cast junctionsSwingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Suspension39mm Forks
Rear SuspensionCoil-over, dual-adjustable preload
Rake30
Trail125 mm / 4.9 in

Wheels & Brakes

Front Wheel/Rim SizeSteel Laced
Front Tire SizeD402F MH90-21 54H
Rear Wheel/Rim SizeSteel Laced
Rear Tire SizeD401 150/80B16 71H
Front BrakesSingle 292mm disc 2 piston caliper
Rear BrakesSingle 292mm disc 1 piston calipers

Dimension & Weights

Seat Height26.6 inches / 675 mm
Wheelbase1525 / 60.0 in
Ground Clearance135 mm / 5.3 in
Fuel Tank Capacity2.1 US gallons / 13.7 L
Wet (kerb/curb) Weight555 lbs / 251.7 kg

Features

  • Authentic ’70s chopper attitude meets modern power and premium H-D styling
  • Metal flake dream machine with Hard Candy Big Red Flake paint
  • Long and lean design inspired by classic customs
  • Narrow whitewall tires for a vintage look
  • Ape bars add to the custom vibe
  • Classic Sportster 2.2-gallon “peanut” fuel tank
  • Grey powdercoat powertrain with chrome covers
  • New round air cleaner with a dished cover
  • Solo seat shows off more of the paint
  • Side-mount license plate bracket for a retro look
  • Based on the Harley-Davidson Sportster platform
  • Sportster motorcycle with modern power and premium styling
  • Hard Candy Big Red Flake, a sparkling metal flake color option
  • Iconic design element of the 70s revived on the Seventy-Two
