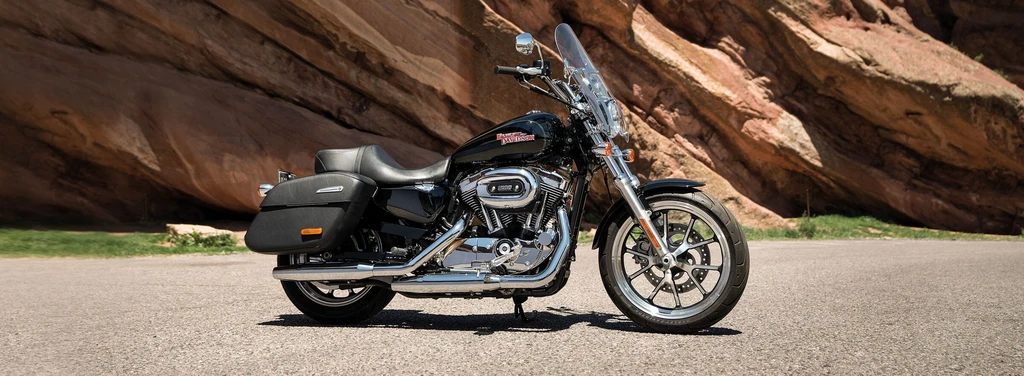

Harley Davidson XL 1200T Superlow (2017)

Harley Davidson XL 1200T Superlow (2017)

The Harley-Davidson XL 1200T Superlow is the ultimate expression of American motorcycle design and engineering. Since its inception in 1957, the Sportster family has been defining the boundaries of style and performance on the open road.

With a commanding presence that’s impossible to ignore, the XL 1200T boasts an unmistakable styling that’s equal parts nostalgic and modern. At its heart lies a potent 45-degree Evolution V-Twin engine, delivering a flat torque curve and responsive handling that makes every ride an exhilarating experience.

Ride the XL 1200T Superlow and discover a motorcycling experience like no other – one that’s as much about style and attitude as it is about power and performance. The perfect blend of muscle and finesse, this bike embodies the very essence of American motorcycle culture.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1202 cc / 73.4 cub in.
Max Torque96 Nm / 9.8 kgf-m / 70.8 ft/lbs @ 3750 rpm
Fuel Tank Capacity17 Litres / US 4.5 gal
Weight (Wet/Kerb)274 kg / 604 lb.s
Seat Height26.1 inches / 663.7 mm
Harley Davidson XL 1200T Superlow (2017)

All Specifications

Make & Model

ModelHarley Davidson XL 1200T Superlow
Year2017

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement1202 cc / 73.4 cub in.
Bore x Stroke88.9 x 96.8 mm
Compression Ratio10.0:1
Max Torque96 Nm / 9.8 kgf-m / 70.8 ft/lbs @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustClosed loop exhaust system

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 9.004 / 2nd 6.432 / 3rd 4.783 / 4th 3.965 / 5th 3.400:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; circular sections; cast junctionsSwingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Suspension39 mm Forks
Rear SuspensionCoil-over, dual-adjustable preload
Rake31.1
Trail145 mm / 5.7 in

Wheels & Brakes

Front Wheel/Rim SizeBlack/Silver, split 5-spoke castaluminum
Front Tire Size120/70 ZR-18 59W
Rear Wheel/Rim SizeBlack/Silver, split 5-spoke castaluminum
Rear Tire Size150/70 ZR-17 69W
Front BrakesSingle 292 mm disc, 2 piston caliper
Rear BrakesSingle 292mm disc, 1 piston caliper

Dimension & Weights

Seat Height26.1 inches / 663.7 mm
Wheelbase1500 / 59.0 in
Ground Clearance95mm / 3.7 in
Fuel Tank Capacity17 Litres / US 4.5 gal
Wet (kerb/curb) Weight274 kg / 604 lb.s
Dry Weight263 kg / 580 lb.s

Features

  • 45-degree Evolution V-Twin engine design
  • 883cc or 1200 cc displacements
  • 5-speed transmission with belt final drive
  • ABS optional on all models
  • Black/Silver 5-Spoke Cast Aluminum wheels
  • Fork-mounted chrome turn signals
  • Premium glass filled cloisonn
  • Black and chrome timer cover
  • Chrome saddlebag badges feature Bar & Shield
  • Cowbell horn
  • Chrome visor
  • Chrome speedometer
  • Black and chrome powertrain
  • Chrome air cleaner features black and chrome statement
  • Chrome, staggered shorty exhaust with dual mufflers
  • Mid-mounted foot control position, 3 inches forward of other Sportster models
  • Rider mini footboard function
  • 54 mm dial-adjustable emulsion shock and twin tube system
  • Quick Release 14-inch windshield
  • Front and rear Touring tires
  • Rear detachable docking hardware to enable P&A options
  • Lockable saddlebags
  • Integrated electrical system with trip switch, start switch
