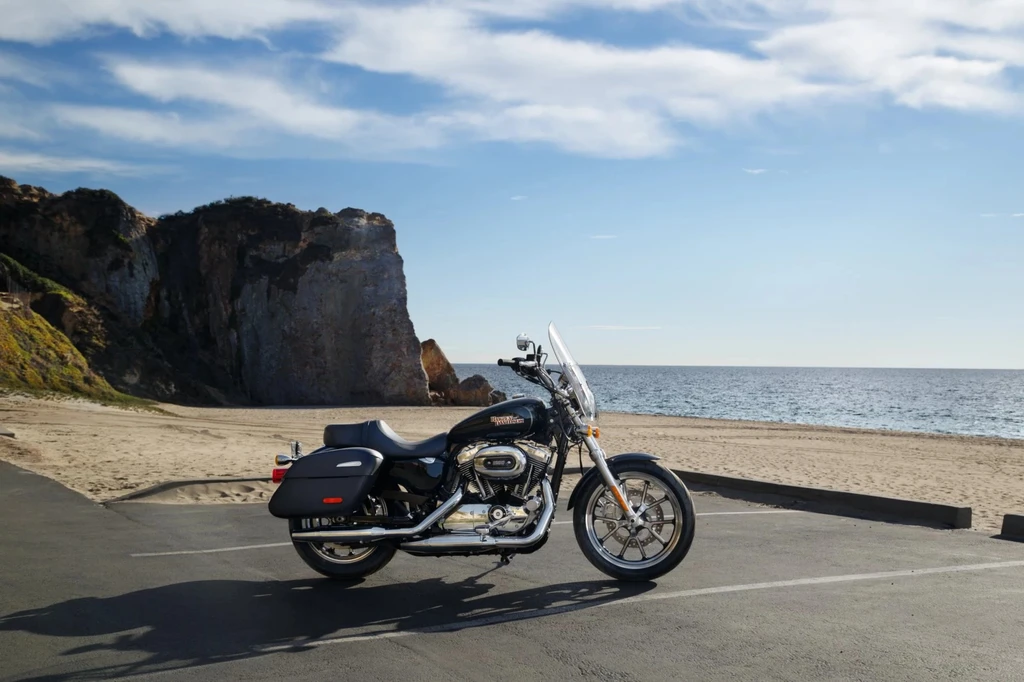

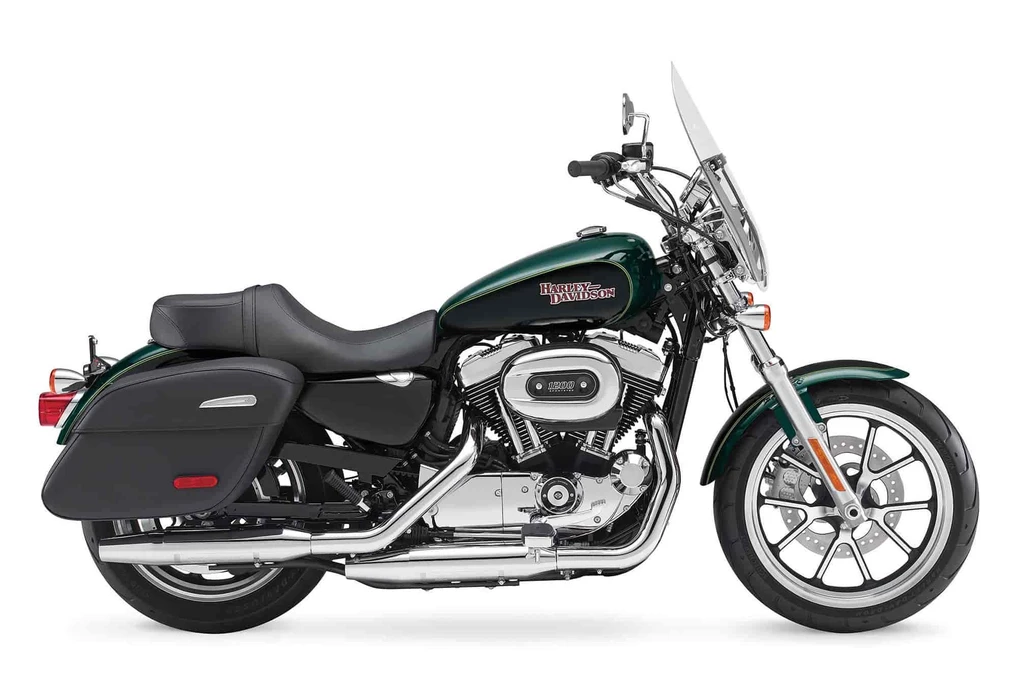

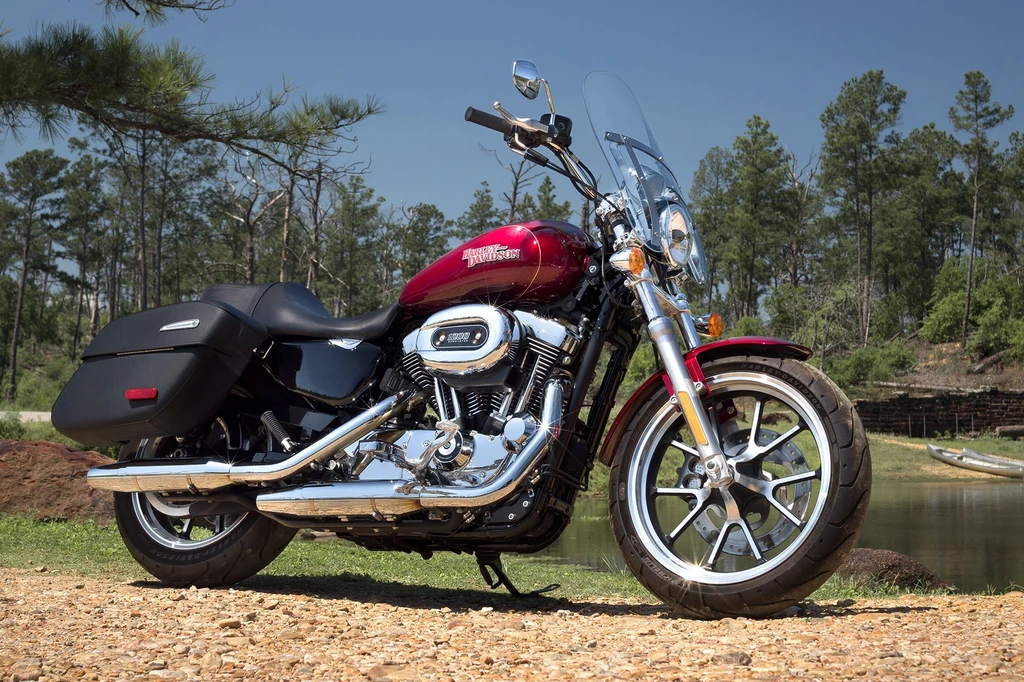

Harley Davidson XL 1200T Superlow (2015)

Harley Davidson XL 1200T Superlow (2015)

The Harley-Davidson XL 1200T SuperLow is a masterful blend of Sportster agility and touring prowess, offering riders an unparalleled riding experience. Powered by the potent Evolution 1200 V-Twin engine, this bike delivers thrilling performance and effortless cruising.

With its ergonomically optimized design, riders from 5’1″ to 5’7″ can easily reach the ground, handlebars, and foot controls, ensuring a comfortable and confident ride. The SuperLow’s agile handling and responsive steering make navigating twisties an absolute joy.

A range of thoughtful features enhance the touring experience, including a detachable windshield, locking saddlebags, and Michelin Scorcher 11T tires for exceptional grip and stability. Whether on short hops or long hauls, the XL 1200T SuperLow is the ultimate companion for riders seeking adventure and freedom.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1202 cc / 73.4 cub in.
Max Torque96 Nm / 9.8 kgf-m / 70.8 ft/lbs @ 3750 rpm
Fuel Tank Capacity17 Litres / US 4.5 gal
Weight (Wet/Kerb)274 kg / 604 lb.s
Seat Height26.1 inches / 663.7 mm
Harley Davidson XL 1200T Superlow (2015)

All Specifications

Make & Model

ModelHarley Davidson XL 1200T Superlow
Year2015

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement1202 cc / 73.4 cub in.
Bore x Stroke88.9 x 96.8 mm
Compression Ratio10.0:1
Max Torque96 Nm / 9.8 kgf-m / 70.8 ft/lbs @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled
ExhaustClosed loop exhaust system

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 9.004 / 2nd 6.432 / 3rd 4.783 / 4th 3.965 / 5th 3.400:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; circular sections; cast junctionsSwingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Suspension39 mm Forks
Rear SuspensionCoil-over, dual-adjustable preload
Rake31.1
Trail145 mm / 5.7 in

Wheels & Brakes

Front Wheel/Rim SizeBlack/Silver, split 5-spoke castaluminum
Front Tire Size120/70 ZR-18 59W
Rear Wheel/Rim SizeBlack/Silver, split 5-spoke castaluminum
Rear Tire Size150/70 ZR-17 69W
Front BrakesSingle 292 mm disc, 2 piston caliper
Rear BrakesSingle 292mm disc, 1 piston caliper

Dimension & Weights

Seat Height26.1 inches / 663.7 mm
Wheelbase1500 / 59.0 in
Ground Clearance95mm / 3.7 in
Fuel Tank Capacity17 Litres / US 4.5 gal
Wet (kerb/curb) Weight274 kg / 604 lb.s
Dry Weight263 kg / 580 lb.s

Features

  • Detachable windshield
  • Locking saddlebags
  • Michelin Scorcher 11T touring tires
  • Rear suspension with dial-adjustable pre-load
  • Ergonomics for riders from 5’1″ to 5’7″
  • Reduced Reach two-up touring seat
  • Rubber-mounted powertrain
  • 5-speed transmission
  • Detachable 14-inch clear polycarbonate windshield
  • Optimized rider foot location
  • Mid-mounted mini footboards
  • Black/Silver, Split 5-Spoke Cast Aluminum wheels
  • Rear docking hardware for optional luggage rack and sissy bar
  • Premium glass-filled chrome cloisonn tank badge
  • Chrome-plated headlamp visor, turn signal housings, and instrument housing
  • 4.5-gallon fuel tank
  • Full-coverage rear fender with painted supports
  • Dual staggered exhaust
  • Premium performance brakes
  • ABS (Anti-lock Braking System)
  • Keyless Smart Security System
Harley Davidson XL 1200T Superlow (2015)
Harley Davidson XL 1200T Superlow (2015)
Harley Davidson XL 1200T Superlow (2015)
Harley Davidson XL 1200T Superlow (2015)
