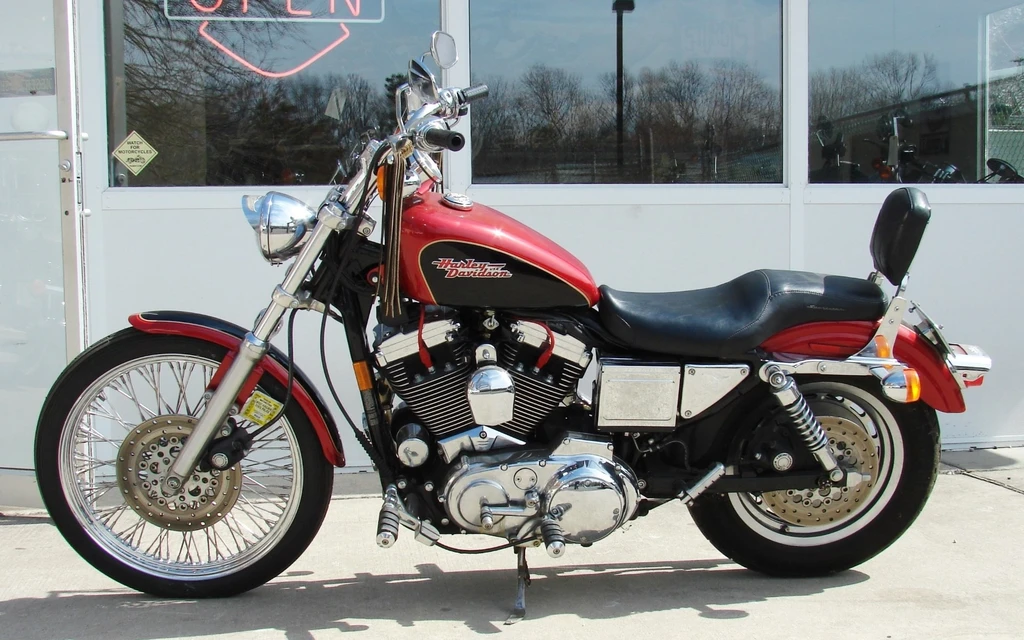

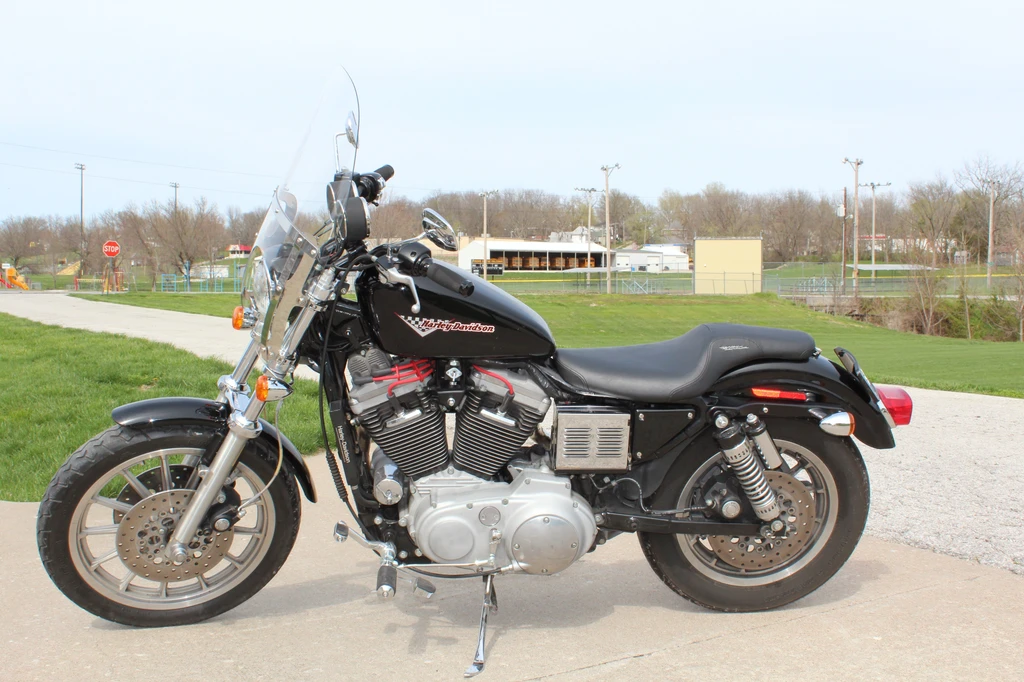

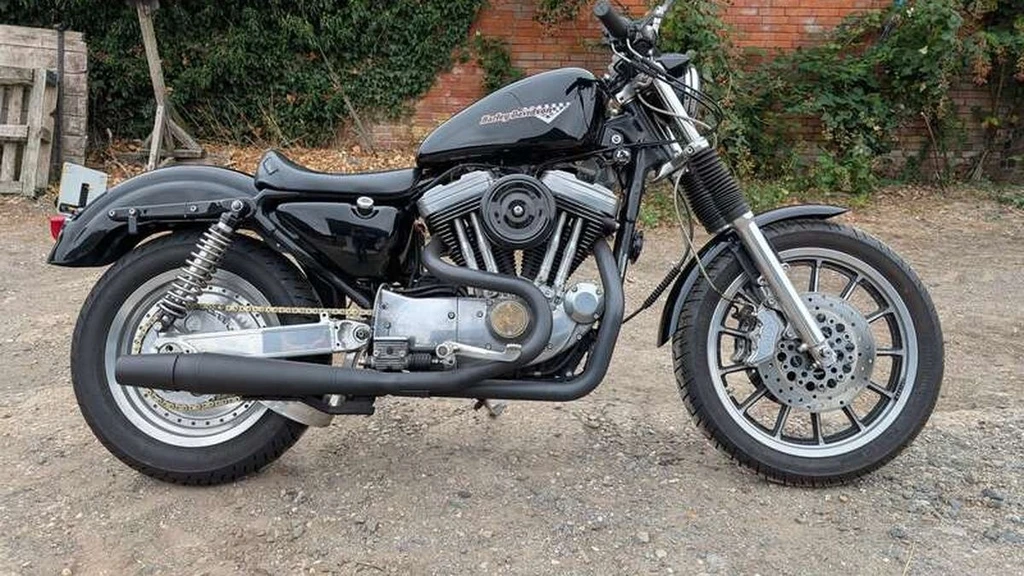

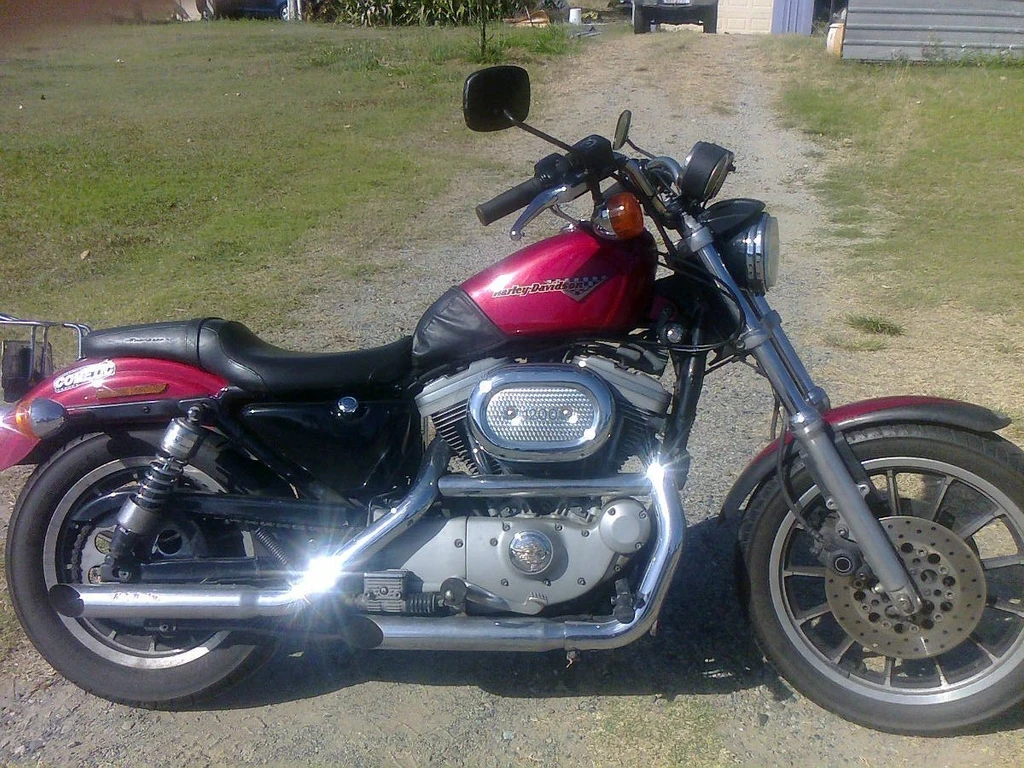

The Harley-Davidson Sportster XL 1200S, a machine that embodies the spirit of American freedom and rebellion. With its potent 1199cc V-Twin engine, this Sportster delivers a thrilling riding experience, combining raw power with effortless ease.
Ride it out on open roads or tackle the urban jungle, the XL 1200S Sportster’s single-fire design and precision-timed fuel injection provide seamless acceleration at any speed. Its potent torque band is always ready to unleash its fury, making every ride an exhilarating experience.
Its sleek, black-and-silver styling exudes a sense of style and sophistication, while its custom seat and chequered flag emblems proudly declare its racing heritage. With the XL 1200S Sportster, you’re not just buying a bike – you’re joining a legendary lineage of freedom and adventure.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
73.1 cubic inches / 1199 cc
Max Power
58.5 hp / 42.6 kW @ 5200 rpm
Max Torque
64.1 ft-lb / 87 nm
Fuel Tank Capacity
3.3 US gallons / 12.5 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson XL 1200S Sportster
Year
1998 – 2000
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
73.1 cubic inches / 1199 cc
Bore x Stroke
88.8 x 96.8 mm
Compression Ratio
9.0:1
Max Horsepower
58.5 hp / 42.6 kW @ 5200 rpm
Max Torque
64.1 ft-lb / 87 nm
Engine Management System
40mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
39mm Telescopic Showa forks, preload , compression and rebound adjustable.
Rear Suspension
Dual Showa shocks, preload , compression and rebound adjustable.
Wheels & Brakes
Front Tire Size
80/90-19
Rear Tire Size
130/90-16
Front Brakes
Single 292mm disc 2 piston caliper
Rear Brakes
Single 292mm disc 1 piston caliper
Dimension & Weights
Fuel Tank Capacity
3.3 US gallons / 12.5 L
Dry Weight
240 kg / 529 lbs
Features
61NM @ 2500RPM torque output
1199cc engine in XL 1200s Sportster Sport

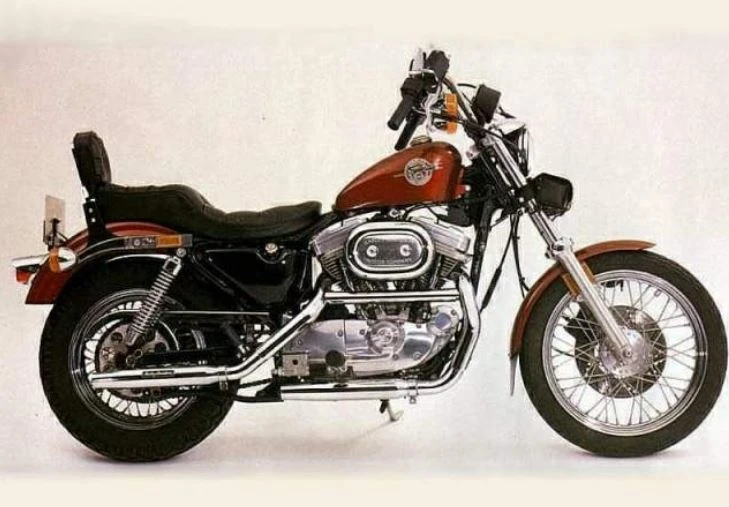

883cc engine in XLH Spotster 883
Single fire design engine
Engine load and RPM sensors for precise timing
Sticky performance-compound Dunlop tires
Custom seat with black and silver design
Black frame with matching colors on components
Silver powder coat on select parts
Harley Davidson logo and name displayed in custom font
Chequered flag design on bike
Transmission suitable for racing and high-speed riding
Comfortable cruising speed capabilities
Full fuel tank included as standard equipment
12 months HOG membership included as standard equipment
