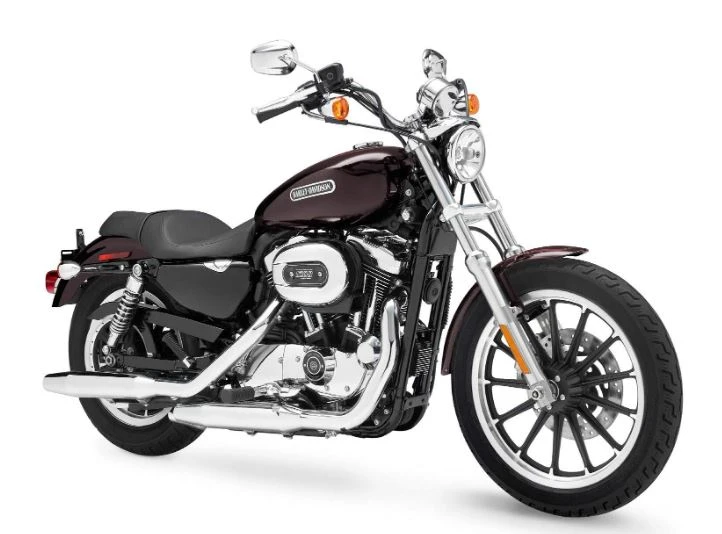

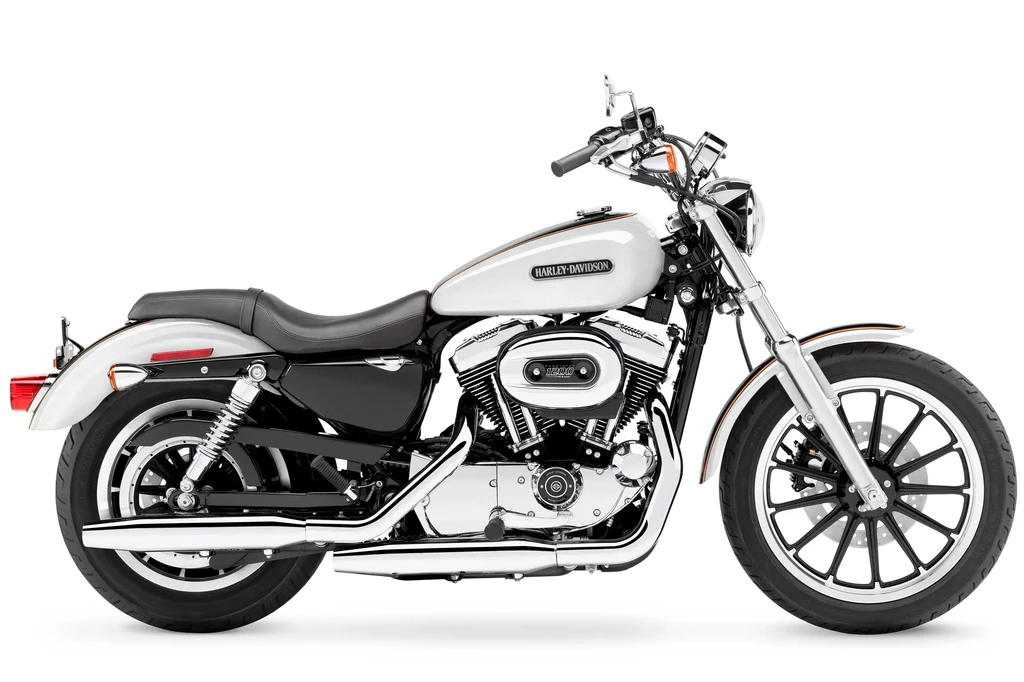

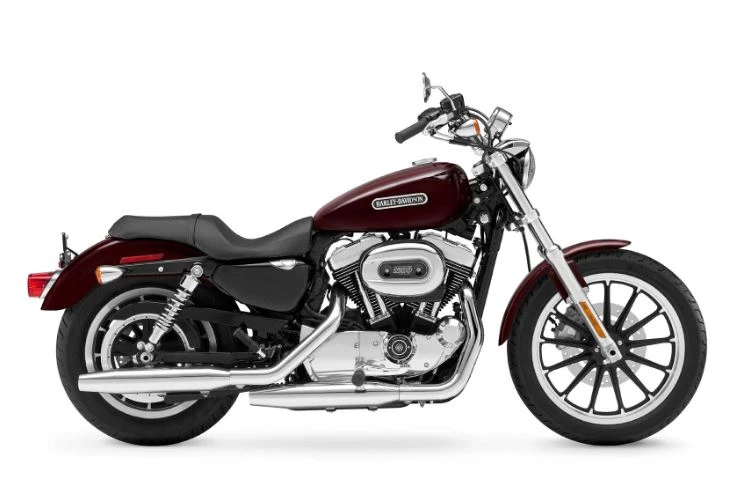

Harley Davidson XL 1200L Sportster Low (2010 – 2011)

Harley Davidson XL 1200L Sportster Low (2010 - 2011)

The Harley-Davidson Sportster 1200 Low is a premium cruiser that embodies the raw power and agility of its 1950s roots. Born on dirt tracks and drag strips, this bike represents the uninhibited essence of motorcycling.

Coupled with the unmistakable sound and torque delivery of an American V-Twin engine, the Sportster 1200 Low offers a unique riding experience that combines performance, agility, and easy-to-handle ergonomics in a long, premium package.

The bike boasts an impressive array of features, including a stretched fuel tank, black powder-coated engine with chrome covers, and full-coverage rear fender. The comfortable seat and smooth clutch effort make it accessible to riders of all skill levels.

Whether you’re carving through twisties or cruising down the highway, the Sportster 1200 Low is ready for whatever adventure comes its way, delivering a thrilling experience that’s as timeless as the American classic itself.

Key Specifications

Engine TypeFur stroke, 45 V-TwinEvolution Valve Train Pushrod-operated, OHV, 2 valves per cylinder
Engine Capacity73.2 cubic inches / 1199 cc
Max Torque79 ft-lb / 107.3 nm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)581 lbs / 263.5 kg
Seat Height26.30 inches / 668. mm
Harley Davidson XL 1200L Sportster Low (2010 - 2011)

All Specifications

Make & Model

ModelHarley Davidson XL 1200L Sportster Low
Year2010 – 2011

Engine

Engine TypeFur stroke, 45 V-TwinEvolution Valve Train Pushrod-operated, OHV, 2 valves per cylinder
Displacement73.2 cubic inches / 1199 cc
Bore x Stroke88.8 x 96.8 mm
Compression Ratio9.7:1
Max Torque79 ft-lb / 107.3 nm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemDry-sump
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet 9-plate
Gearbox5 Speed
Gear Ratios1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame, circular sections,cast junctions
Rear SuspensionCoil-over, dual-adjustable preload chocs
Rake29.6
Trail120 mm / 4.7 in

Wheels & Brakes

Front Tire Size100/90-19 57H
Rear Tire Size150/80B16 71H
Front BrakesSingle 292mm disc 2 piston calipers
Rear BrakesSingle 260mm disc 1 piston caliper

Dimension & Weights

Seat Height26.30 inches / 668. mm
Wheelbase59.7 inches / 1516 mm
Ground Clearance112 mm / 4.1 in
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight581 lbs / 263.5 kg
Dry Weight257 kg / 557 lbs

Features

  • Evolution V-Twin powertrain
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Rubber-mounted powertrain
  • 5-speed transmission
  • Dual staggered exhaust
  • Disc brakes
  • Mid-mounted foot controls and passenger footpegs
  • Handlebar-mounted electronic speedometer
  • New Paint color schemes
  • Black powder-coated engine with chrome covers
  • Chrome exhaust with dual staggered shorty mufflers
  • Stretched 4.5-gallon Sportster fuel tank
  • Black, 13-spoke cast aluminum wheels
  • Full-coverage rear fender with black supports
  • One-piece, two-up Sportster classic seat
  • Stainless steel, pull-back handlebar on chrome one-inch riser
