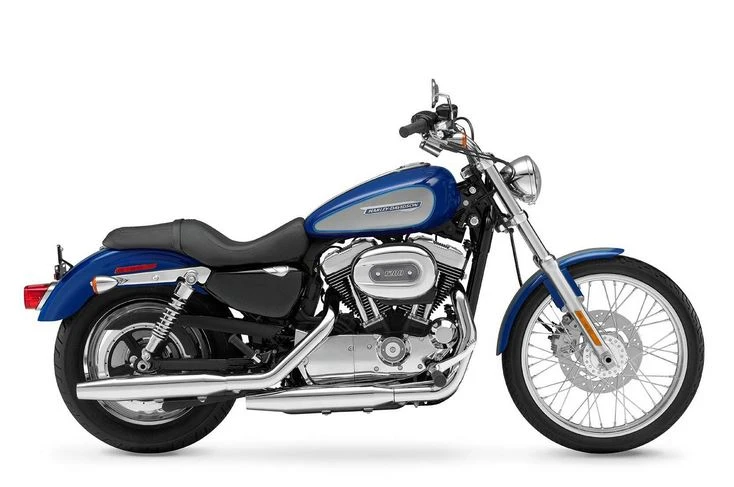

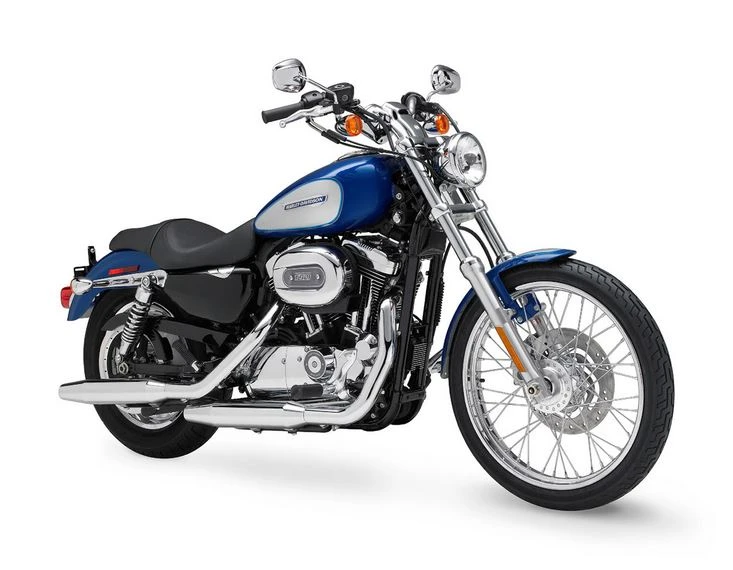

Harley Davidson XL 1200C Sportster Custom (2009 – 2010)

The Harley-Davidson XL 1200C Sportster Custom is a masterclass in understated elegance and raw power. Its chrome-slotted disc cast aluminum rear wheel and polished fuel tank console exude style, while its forward controls and pull-back handlebar riser put the rider in a comfortable cruising position.

With a lighter weight and refined engine highlights, this American V-Twin is a true showstopper. The Electronic Sequential Port Fuel Injection (ESPFI) powertrain delivers flat torque curve performance, while the rubber-mounted frame reduces vibration for a smooth ride.

The Sportster Custom’s responsive handling and classic styling cues make it an unbeatable combination of style and substance. Whether you’re carving up twisties or cruising down the highway, this bike is sure to leave a lasting impression that will leave you saying “I’ve never felt so free on two wheels.

Key Specifications

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity	1199 cc / 73.2 cub in.
Max Torque	79 ft/lbs./ 107 Nm @ 3500 rpm
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Weight (Wet/Kerb)	582 lbs / 264 kg
Seat Height	Laden2 26.6 in / 675.64 mmUnladen 28.5 in / 723.9 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson XL 1200C Sportster Custom
Year	2009 – 2010

Engine

Engine Type	Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement	1199 cc / 73.2 cub in.
Bore x Stroke	88.8 x 96.8 mm
Compression Ratio	9.7:1
Max Torque	79 ft/lbs./ 107 Nm @ 3500 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled,

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	5 Speed
Gear Ratios	1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; circular sections; cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Suspension	39mm Fork,
Front Suspension Travel	5.6 inches / 144 mm
Rear Suspension	Coil-over; preload dual-adjustable,
Rear Suspension Travel	2.1 inches / 54 mm
Rake	30
Trail	107 mm / 4.2 in

Wheels & Brakes

Front Wheel/Rim Size	Chrome, 5-Spoke Cast Aluminum
Front Tire Size	D402F MH90-21 54H
Rear Wheel/Rim Size	Chrome, 5-Spoke Cast Aluminum
Rear Tire Size	D401 150/80B16 71H
Front Brakes	Single 300mm discs 2 38mm piston caliper
Rear Brakes	Single 300mm discs 2 38mm piston caliper

Dimension & Weights

Seat Height	Laden2 26.6 in / 675.64 mmUnladen 28.5 in / 723.9 mm
Wheelbase	1520 / 59.8 in
Ground Clearance	110 mm / 4.3 in
Fuel Tank Capacity	4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight	582 lbs / 264 kg

Features

Electronic Sequential Port Fuel Injection (ESPFI) XL Evolution V-Twin powertrain
Rubber-mounted engine to reduce vibration
Flat torque curve for responsive performance
Low, comfortable seat
Smooth clutch effort
Durable carbon fiber reinforced final drive belt
New lighter Chrome Slotted Disc Cast Aluminum 16-inch rear wheel
Chrome Laced Steel 21-inch front wheel
Forward foot controls
Pull-back handlebar risers
Polished fuel tank console
Four-gallon (actually a 4.5-gallon) fuel tank
One-piece, two-up Sportster Classic seat
New low profile front fender
Chrome Staggered Shorty Dual exhaust
Black powder-coated engine with chrome covers
