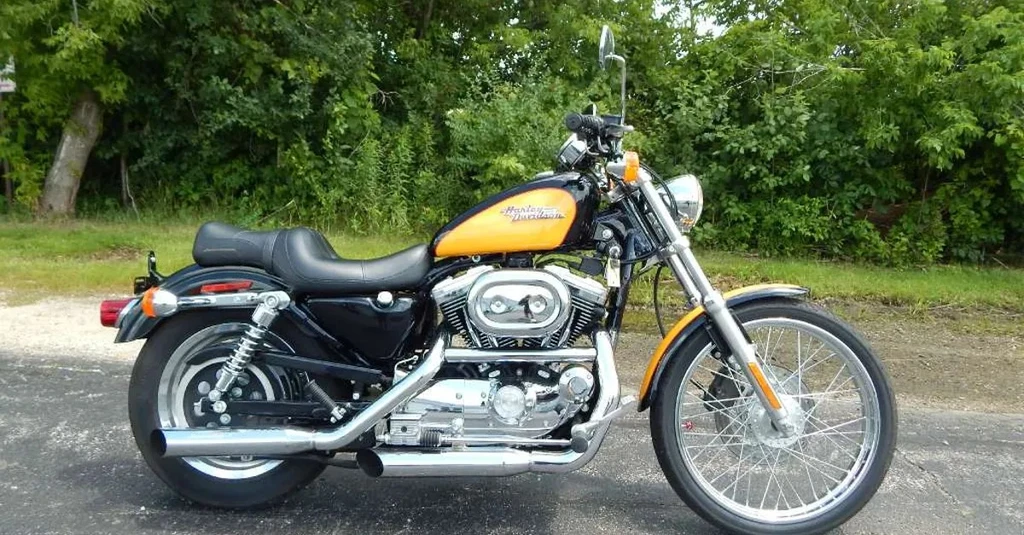

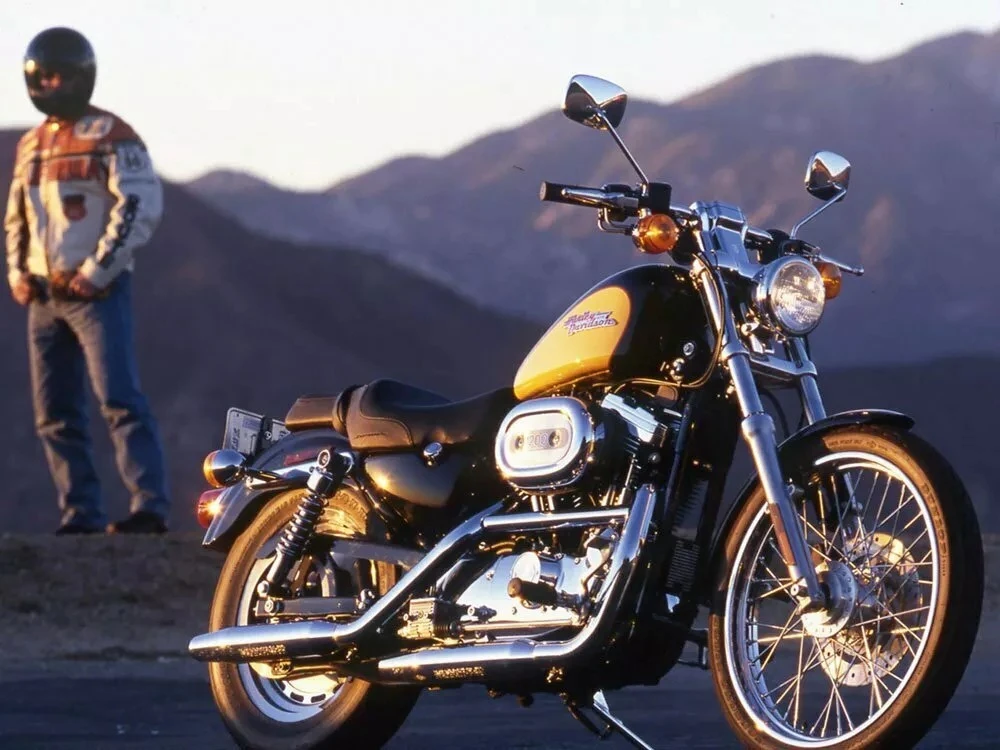

Harley Davidson XL 1200C Sportster Custom (2000 – 2001)

Harley Davidson XL 1200C Sportster Custom (2000 - 2001)

The Sportster legacy continues with the introduction of the XL 1200C Custom, the latest iteration of Harley-Davidson’s iconic “original hooligan.”

Over four decades of refinement have transformed this once-brawny bike into a finely-tuned machine, boasting improved performance and handling.

The air-cooled Evolution engine remains the heart of this Sportster, delivering its signature V-twin growl and distinctive character. Its 1,200cc displacement pumps out 56 horsepower at 5,000 rpm, providing plenty of muscle for spirited riding.

Through twisty country roads, the XL 1200C Custom proves itself a capable and engaging companion, its suspension and braking systems working in harmony to deliver exceptional stability and control.

With its classic styling and rugged character, this Sportster is poised to win over even the most discerning riders, challenging preconceptions of what it means to ride a “chick bike.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1199 cc / 73.2 cub in.
Max Power58.5 hp / 42.6 kW @ 5200 rpm
Max Torque64 ft-lb / 87 nm
Fuel Tank Capacity17 Litres / 4.5 gal
Weight (Wet/Kerb)589 lbs / 267 kg
Seat Height28.0 inches / 710.0 mm
Harley Davidson XL 1200C Sportster Custom (2000 - 2001)

All Specifications

Make & Model

ModelHarley Davidson XL 1200C Sportster Custom
Year2000 – 2001

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement1199 cc / 73.2 cub in.
Bore x Stroke88.8 x 96.8 mm
Compression Ratio9.7:1
Max Horsepower58.5 hp / 42.6 kW @ 5200 rpm
Max Torque64 ft-lb / 87 nm
Engine Management SystemCarburetor
Cooling SystemAir cooled,

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 9.647 9.315 9.004 2nd 6.891 6.653 6.432 3rd 5.125 4.948 4.783 4th 4.248 4.102 3.9655th 3.643 3.517 3.400
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension39mm Forks
Rear SuspensionCoil-over, dual-adjustable preload
Rake30
Trail107 mm / 4.2 in

Wheels & Brakes

Front Tire SizeD402F MH90-21 54H
Rear Tire SizeD401 150/80B16 71H
Front BrakesSingle 292mm discs 2 piston caliper
Rear BrakesSingle 292mm disc 1 piston caliper

Dimension & Weights

Seat Height28.0 inches / 710.0 mm
Wheelbase1534 / 60.4 in
Ground Clearance110 mm / 4.3 in
Fuel Tank Capacity17 Litres / 4.5 gal
Wet (kerb/curb) Weight589 lbs / 267 kg
Dry Weight251 kg / 554 lbs

Features

  • Air-cooled, 45-degree V-twin engine
  • 1200cc displacement
  • Dual floating disc brakes
  • Piggy-back gas-charged shocks
  • Two cables for the clutch and brake systems
  • Rear suspension with air-adjustable preload and spring pre-load
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Five-gallon fuel tank
  • Black cast-aluminum wheels
  • Leather saddlebags with Harley-Davidson Badges
  • Chrome-plated pipes
