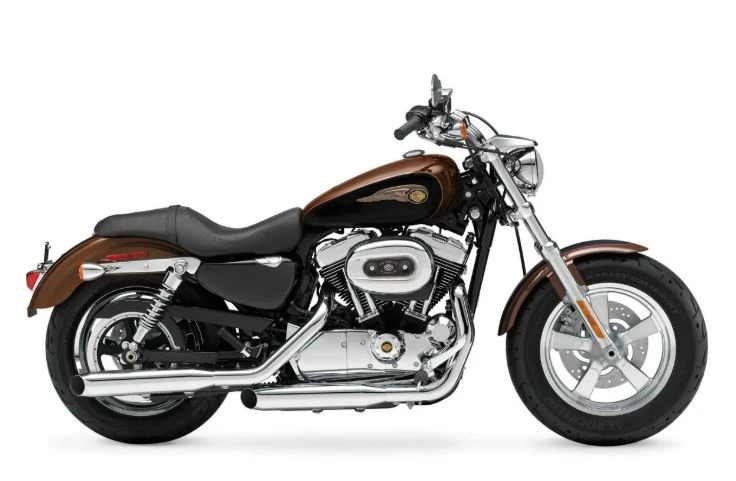

Harley Davidson XL 1200C Sportster Custom 110th Anniversary Edition (2013)

Harley Davidson XL 1200C Sportster Custom 110th Anniversary Edition (2013)

The Harley-Davidson XL 1200C Sportster Custom 110th Anniversary Edition is a limited-edition masterpiece, one of only 1,500 produced worldwide. This stunning motorcycle boasts a wide front end and chunky 16-inch tire, giving it a strong and contemporary stance.

At its heart lies the iconic American V-Twin engine, delivering irresistible performance that’s quintessentially Sportster. The sound, feel, and character of this legendary powerplant are unmistakable – a true highlight for any rider who craves raw, unbridled energy.

Riding the 1200C Sportster Custom is an immersive experience, with bold styling and nimble handling making it perfect for both city streets and twisty roads. The addition of premium features like Michelin Scorcher 31 tires, chrome-plated derby cover, and solid bronze fuel tank badges elevates this motorcycle to a new level of sophistication.

With its exclusive Anniversary Vintage Bronze/Anniversary Vintage Black paint scheme and unique badging, each bike is truly one-of-a-kind – a testament to the art of Harley-Davidson craftsmanship.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1199 cc / 73.2 cub in.
Max Torque79 ft/lbs./ 107 Nm @ 3500 rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)582 lbs / 264 kg
Seat HeightLaden2 26.6 in / 675.64 mmUnladen 28.5 in / 723.9 mm
Harley Davidson XL 1200C Sportster Custom 110th Anniversary Edition (2013)

All Specifications

Make & Model

ModelHarley Davidson XL 1200C Sportster Custom 110th Anniversary Edition
Year2013

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement1199 cc / 73.2 cub in.
Bore x Stroke88.8 x 96.8 mm
Compression Ratio9.7:1
Max Torque79 ft/lbs./ 107 Nm @ 3500 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled,

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; circular sections; cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Suspension39mm Fork,
Front Suspension Travel5.6 inches / 144 mm
Rear SuspensionCoil-over; preload dual-adjustable,
Rear Suspension Travel2.1 inches / 54 mm
Rake30
Trail107 mm / 4.2 in

Wheels & Brakes

Front Wheel/Rim SizeChrome, 5-Spoke Cast Aluminum
Front Tire SizeD402F MH90-21 54H
Rear Wheel/Rim SizeChrome, 5-Spoke Cast Aluminum
Rear Tire SizeD401 150/80B16 71H
Front BrakesSingle 300mm discs 2 38mm piston caliper
Rear BrakesSingle 300mm discs 2 38mm piston caliper

Dimension & Weights

Seat HeightLaden2 26.6 in / 675.64 mmUnladen 28.5 in / 723.9 mm
Wheelbase1520 / 59.8 in
Ground Clearance110 mm / 4.3 in
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight582 lbs / 264 kg

Features

  • Solid bronze fuel tank badges
  • Black nickel-plated solid bronze badges
  • Bright gold-tone Bar and Shield cloisonn insert in the single wing badge
  • Anniversary badging
  • Serialization badge
  • Exclusive Anniversary Vintage Bronze/Anniversary Vintage Black paint scheme
  • Solid bronze 110th Anniversary tank medallions
  • Solid bronze air cleaner cover trim ring
  • Chrome-plated timer cover with cloisonn insert
  • Chrome-plated derby cover with forged solid bronze trim ring
  • H-D Smart Security System
  • Black side covers to match bodywork finish
  • 5-spoke cast aluminum wheels
  • Michelin Scorcher 31 tires
  • Wider fork spacing
  • Polished triple clamps
  • Reshaped classic Sportster eyebrow over the headlamp
  • LED taillight with low-maintenance element
  • Retuned front suspension rates for new tire/wheel combination
  • 39 mm front fork with 30 degrees rake
  • Pull-back handlebar mounted on a curved riser with LED warning light display
  • Polished forward foot controls
  • Two-up seat with 26.5 inch laden seat height
