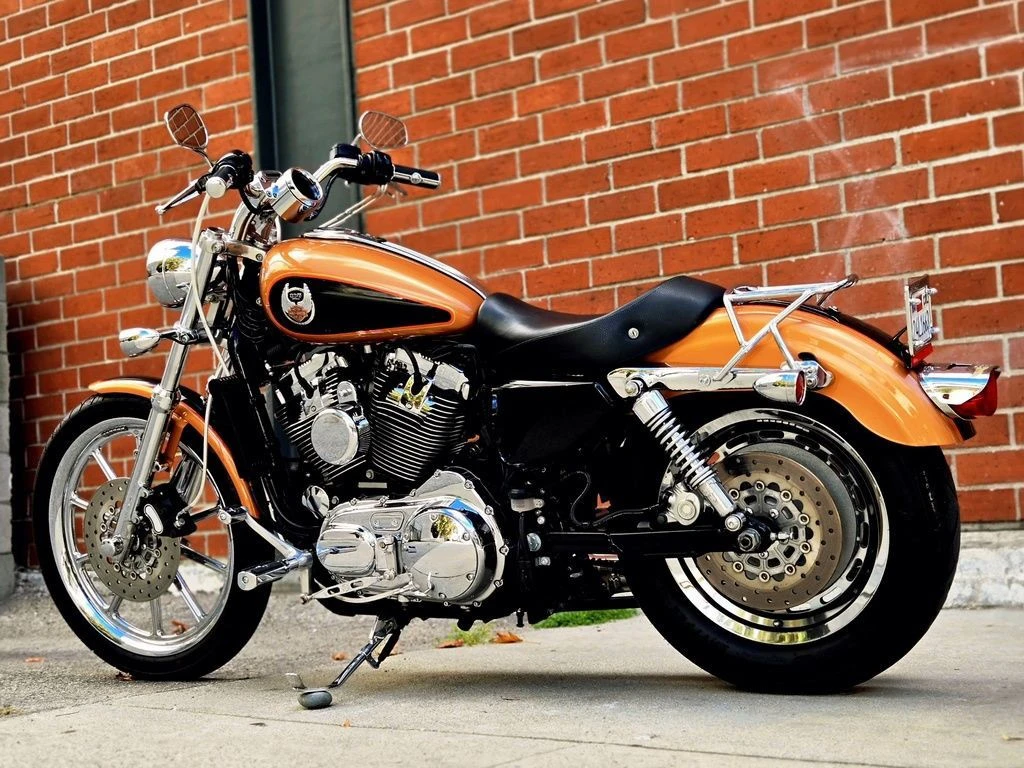

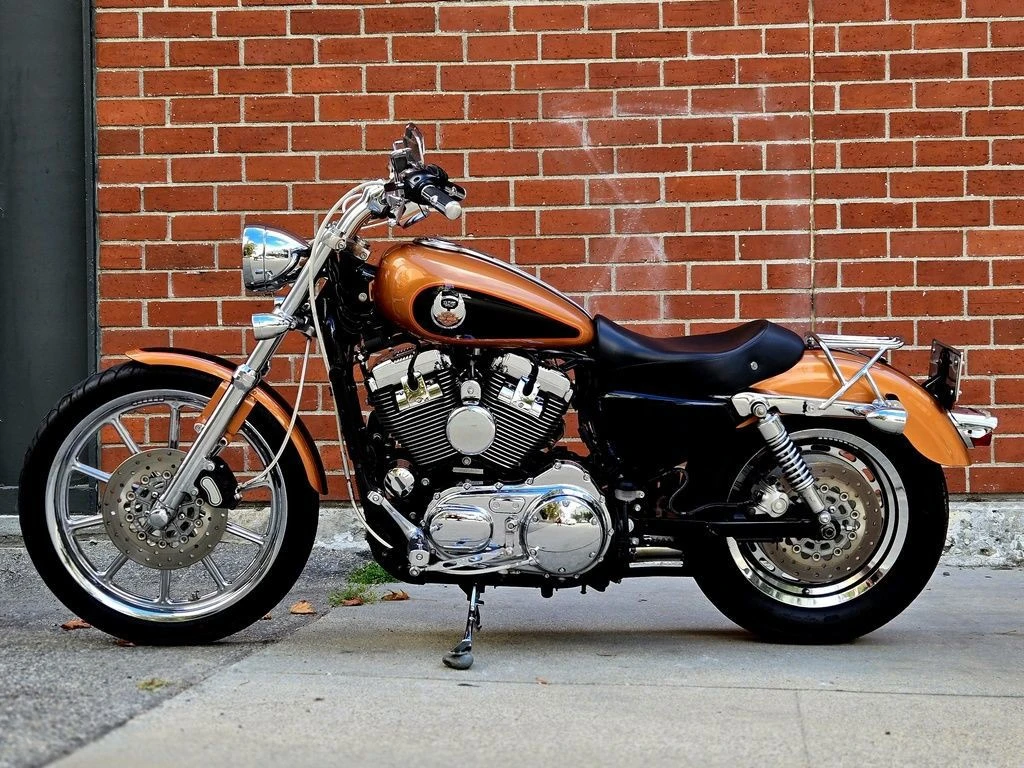

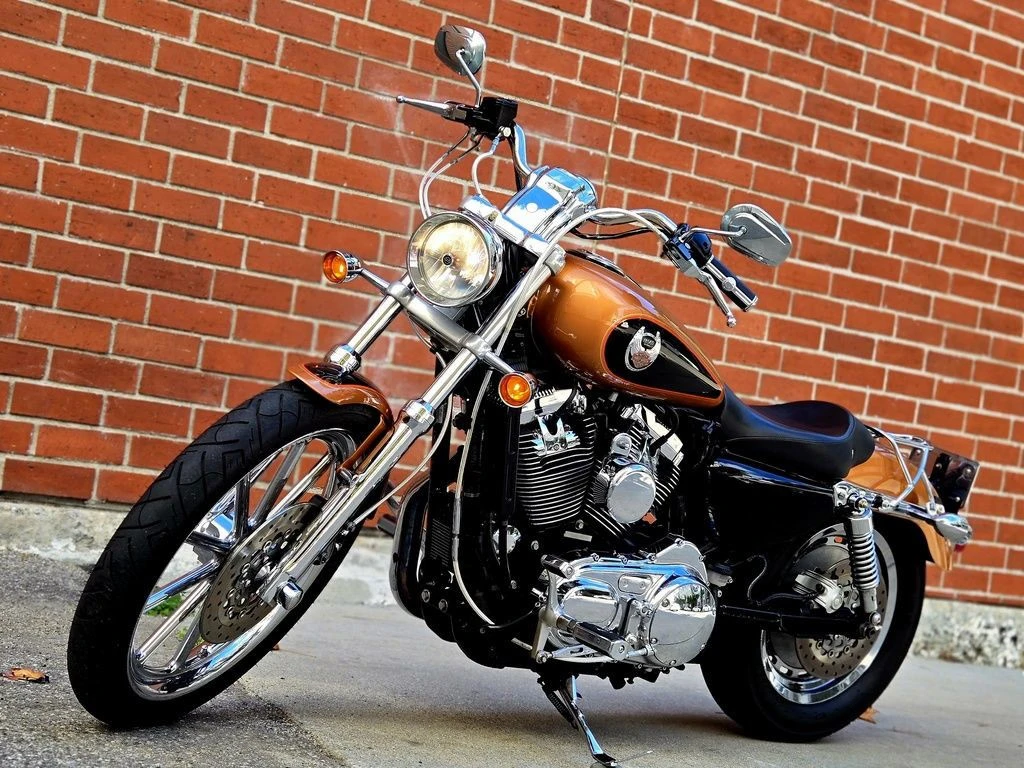

Harley Davidson XL 1200C Sportster Custom 105th Anniversary Edition (2008)

Harley Davidson XL 1200C Sportster Custom 105th Anniversary Edition (2008)

The Harley-Davidson XL 1200C Sportster Custom 105th Anniversary Edition is a stunning celebration of the brand’s heritage, boasting an array of premium chrome accents that set it apart from its siblings. The 21-inch front wheel and Slotted Disc Cast Aluminum rear wheel exude a sense of high-end sophistication, while the polished fuel tank console adds a touch of elegance.

At the heart of this bike lies the legendary XL Evolution 1200cc engine, renowned for its smooth, effortless power delivery that’s perfectly suited to long-distance cruising. With its rubber-mounted design and black powder-coated finish, this motor is both refined and rugged.

As you settle into the laid-back riding position courtesy of forward controls and a pull-back handlebar riser, you’ll feel the freedom to ride all day in comfort. Whether carving up twisties or cruising down the highway, the XL 1200C Sportster Custom 105th Anniversary Edition is an unforgettable experience that will leave you grinning from ear to ear with every mile.

Key Specifications

Engine TypeFour stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Engine Capacity1199 cc / 73.2 cub in.
Max Torque79 ft/lbs./ 107 Nm @ 3500 rpm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)582 lbs / 264 kg
Seat HeightLaden2 26.6 in / 675.64 mmUnladen 28.5 in / 723.9 mm
Harley Davidson XL 1200C Sportster Custom 105th Anniversary Edition (2008)

All Specifications

Make & Model

ModelHarley Davidson XL 1200C Sportster Custom 105th Anniversary Edition
Year2008

Engine

Engine TypeFour stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Displacement1199 cc / 73.2 cub in.
Bore x Stroke88.8 x 96.8 mm
Compression Ratio9.7:1
Max Torque79 ft/lbs./ 107 Nm @ 3500 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled,

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; circular sections; cast junctionsSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Suspension39mm Fork,
Front Suspension Travel5.6 inches / 144 mm
Rear SuspensionCoil-over; preload dual-adjustable,
Rear Suspension Travel2.1 inches / 54 mm
Rake30°
Trail107 mm / 4.2 in

Wheels & Brakes

Front Wheel/Rim SizeChrome, 5-Spoke Cast Aluminum
Front Tire SizeD402F MH90-21 54H
Rear Wheel/Rim SizeChrome, 5-Spoke Cast Aluminum
Rear Tire SizeD401 150/80B16 71H
Front BrakesSingle 300mm discs 2 38mm piston caliper
Rear BrakesSingle 300mm discs 2 38mm piston caliper

Dimension & Weights

Seat HeightLaden2 26.6 in / 675.64 mmUnladen 28.5 in / 723.9 mm
Wheelbase1520 / 59.8 in
Ground Clearance110 mm / 4.3 in
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight582 lbs / 264 kg

Features

  • Rubber-mounted XL Evolution 1200cc engine
  • Black powder-coated engine with chrome treatment
  • New tank decoration and cloisonné
  • Chrome Laced Steel 21-inch front wheel
  • Chrome Slotted Disc Cast Aluminum 16-inch rear wheel
  • Wide polished handlebar on chrome pull-back risers
  • One-piece, two-up Sportster Classic seat
  • Chrome Staggered Shorty Dual exhaust
  • Low-Profile rear shocks
  • Forward foot controls
  • Chrome bullet headlight
  • Polished fuel tank console
  • 4.5-gallon fuel tank
  • Optional Chrome Aluminum Profile Laced wheels
  • Optional Smart Security System
