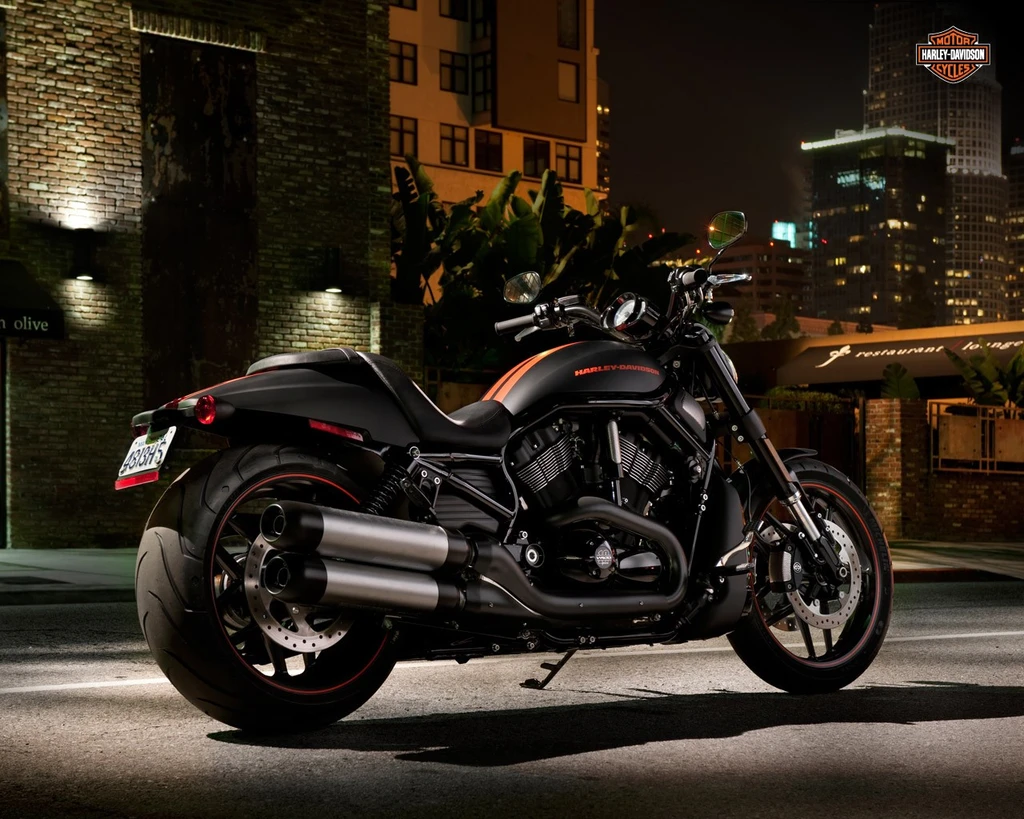

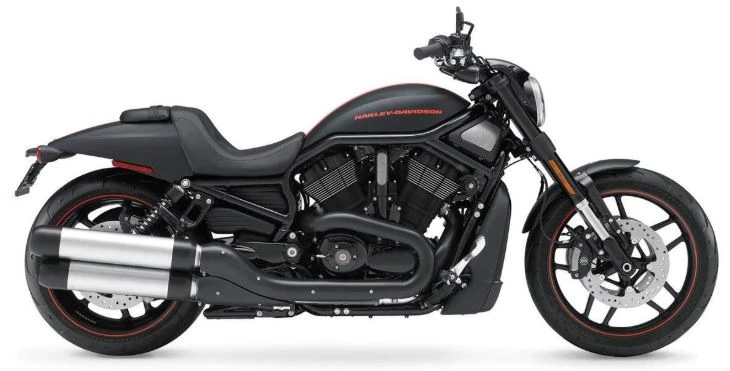

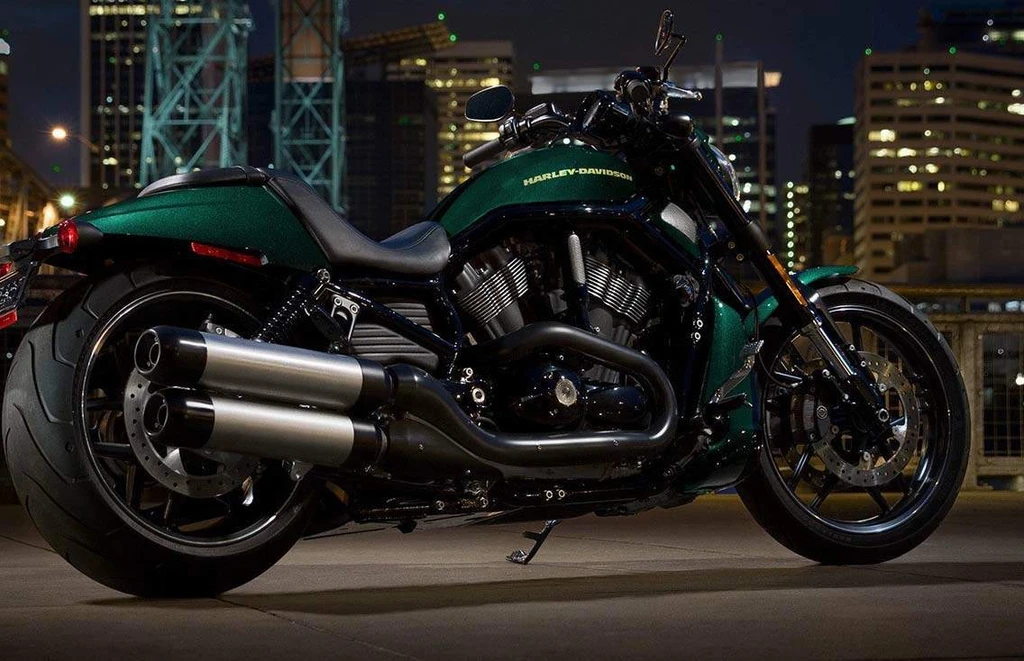

Harley Davidson VRSCDX Night Rod Special (2014 – 2015)

The Harley-Davidson VRSCDX Night Rod Special is a dark and sinister power cruiser that embodies the spirit of rebellion. Its four-stroke, 60-degree V-twin engine pulses with raw energy, delivering an intoxicating rush of torque to every rider.

The bike’s aggressive styling is evident in its blacked-out frame, handlebar, front fork, triple clamps, and covers – all designed to evoke a sense of uncompromising drag strip attitude. The inverted front forks and retuned rear suspension work in harmony to provide an exhilarating ride experience.

Whether carving up city streets or devouring open roads, the Night Rod Special is a force to be reckoned with – its ultra-fat 240mm rear tire gripping the pavement with sticky precision as it unleashes explosive power.

Key Specifications

Engine Type	Four stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Engine Capacity	1247 cc / 76.1 cu in
Max Power	123 hp / 90.5 kW @ 8000 rpm
Max Torque	116 Nm / 86 ft. lbs@ 7250 rpm
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Weight (Wet/Kerb)	670 lbs / 304.0 kg
Seat Height	25.6 inches / 650 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson VRSCDX Night Rod Special
Year	2014 – 2015

Engine

Engine Type	Four stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Displacement	1247 cc / 76.1 cu in
Bore x Stroke	105 x 72 mm
Compression Ratio	11.5;1
Max Horsepower	123 hp / 90.5 kW @ 8000 rpm
Max Torque	116 Nm / 86 ft. lbs@ 7250 rpm
Engine Management System	Electronic Sequential Port Fuel Injection
Cooling System	Liquid cooled
Exhaust	Straight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	5 Speed
Gear Ratios	1st 11.752 10.969 10.969 /2nd 7.898 7.371 7.371 / 3rd 6.322 5.900 5.900 4th 5.459 5.095 5.095 / 5th 4.889 4.563 4.563
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Steel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded
Front Suspension	Huge 49mm telescopic forks
Front Suspension Travel	3.9 inches / 100 mm
Rear Suspension	Dual coil over adjustable shock
Rear Suspension Travel	2.7 inches / 70 mm
Trail	142 mm / 5.6 in

Wheels & Brakes

Wheels	Optional Style Type Black, Split 5-Spoke Cast Aluminum w/ Machined Pinstripe Standard on Select Colors
Front Wheel/Rim Size	Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Front Tire Size	120/70ZR-19 60W
Rear Wheel/Rim Size	Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Rear Tire Size	240/40R-18 79V
Front Brakes	2x 300mm discs 4 piston calipers
Rear Brakes	Single 300mm disc 4 piston caliper

Dimension & Weights

Seat Height	25.6 inches / 650 mm
Wheelbase	67 inches / 1705 mm
Ground Clearance	114 mm / 4.5 in
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight	670 lbs / 304.0 kg

Features

Four stroke, 60 V-twin engine
DOHC, 4 valve per cylinder design
Tapered tail section
Lighter-weight wheels
Improved ergonomics
Inverted front forks
Retuned rear suspension
Black Split 5-spoke Cast Aluminum wheels
Pull-back handlebar with controls three inches closer to the rider
Reduced reach, forward-mounted rider footpegs
Two-up seat with custom stitching
Stylized black speed screen visor
Slim design, center-mount license plate
Straight-shot exhaust with brushed finish dual mufflers
Black powder-coated engine with black covers
Blacked-out frame, handlebar, front fork, triple clamps and covers
Double-Barrel Exhaust
