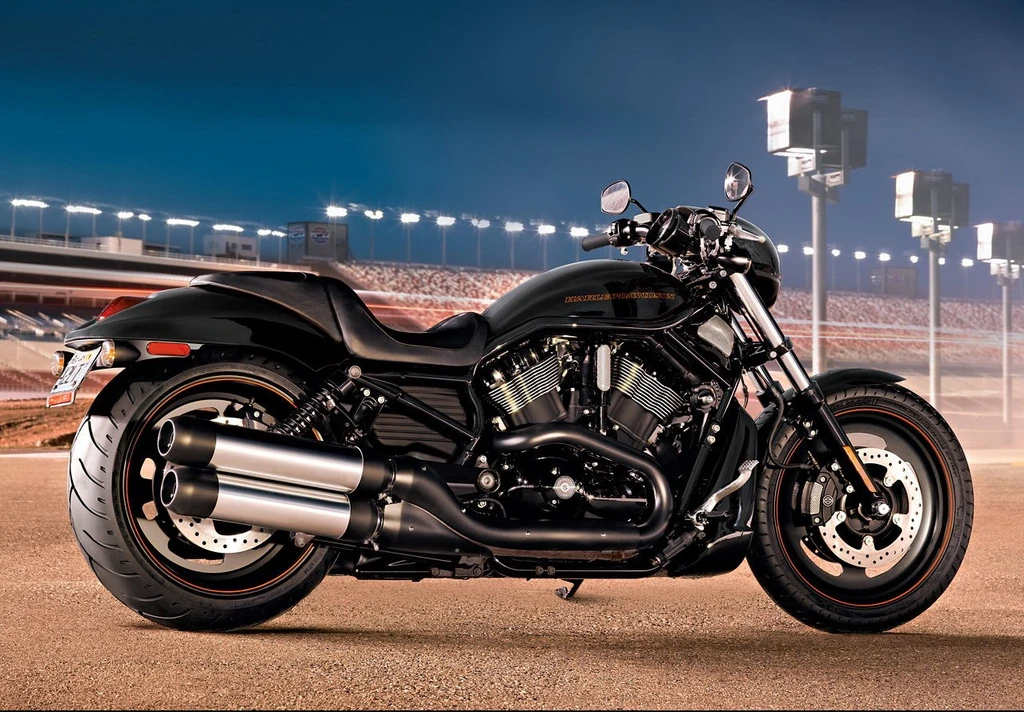

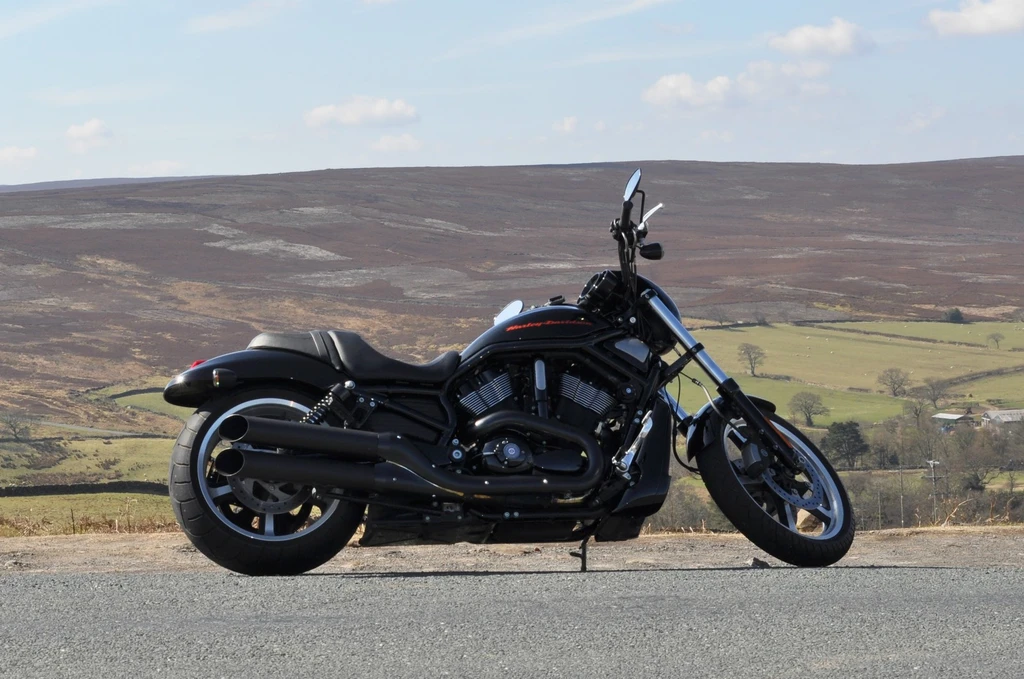

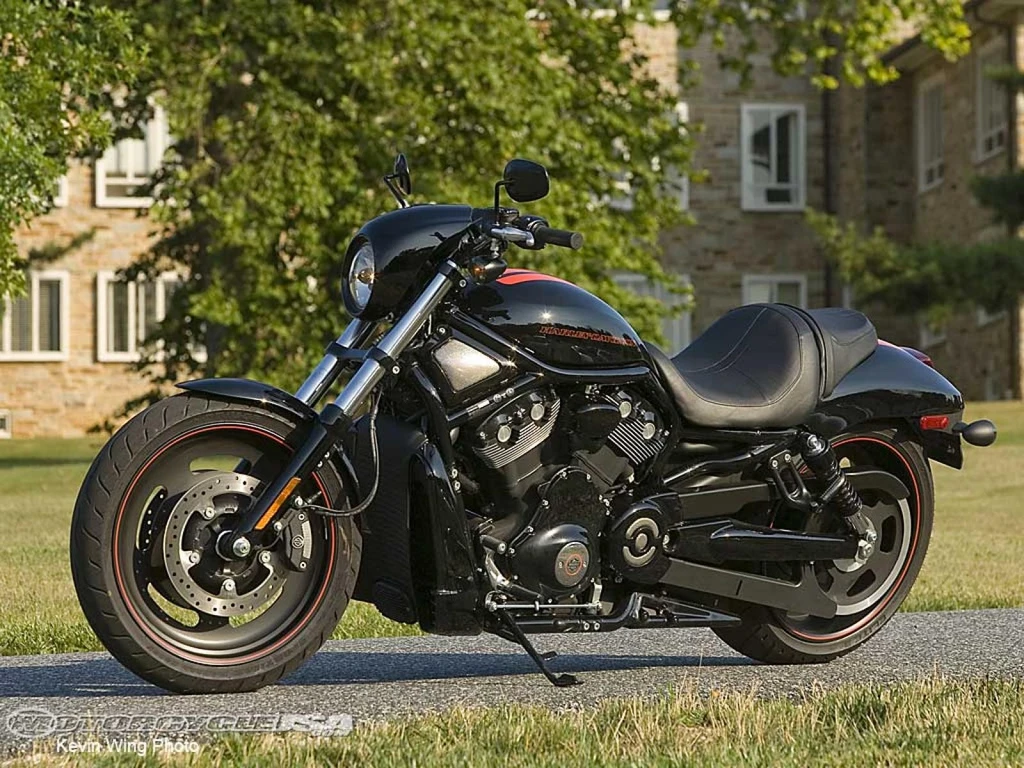

Harley Davidson VRSCDX Night Rod Special (2010)

Harley Davidson VRSCDX Night Rod Special (2010)

The Harley-Davidson VRSCDX Night Rod Special is a masterclass in raw power and unbridled style. Its liquid-cooled 1,250cc V-Twin Revolution engine unleashes 123 horsepower and 85 lb-ft of torque, delivering an exhilarating riding experience that’s sure to leave even the most seasoned riders grinning from ear to ear.

Underneath its sleek black bodywork lies a sophisticated four-stroke DOHC powerplant, boasting four valves per cylinder for maximum breathing efficiency. And with new Michelin Scorcher tires gripping the road beneath it, this bike is as capable as it is aggressive.

The result is an unapologetic, thrill-seeking machine that demands to be ridden hard and fast. Whether you’re carving through twisties or dominating the straightaway, the VRSCDX Night Rod Special embodies the very essence of what a high-performance motorcycle should be: a true adrenaline junkie’s dream come true – with a price tag of $14,699, it’s an investment that promises to deliver years of unforgettable riding thrills.

Key Specifications

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Engine Capacity1247 cc / 76.1 cu in
Max Power123 hp / 90.5 kW @ 8000 rpm
Max Torque116 Nm / 86 ft. lbs@ 7250 rpm
Fuel Tank Capacity5.0 US gallons / 18.9 L
Weight (Wet/Kerb)670 lbs / 304.0 kg
Seat Height25.6 inches / 650 mm
Harley Davidson VRSCDX Night Rod Special (2010)

All Specifications

Make & Model

ModelHarley Davidson VRSCDX Night Rod Special
Year2010

Engine

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Displacement1247 cc / 76.1 cu in
Bore x Stroke105 x 72 mm
Compression Ratio11.5;1
Max Horsepower123 hp / 90.5 kW @ 8000 rpm
Max Torque116 Nm / 86 ft. lbs@ 7250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection
Cooling SystemLiquid cooled
ExhaustStraight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 11.752 10.969 10.969 /2nd 7.898 7.371 7.371 / 3rd 6.322 5.900 5.900 4th 5.459 5.095 5.095 / 5th 4.889 4.563 4.563
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSteel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded
Front SuspensionHuge 49mm telescopic forks
Front Suspension Travel3.9 inches / 100 mm
Rear SuspensionDual coil over adjustable shock
Rear Suspension Travel2.7 inches / 70 mm
Trail142 mm / 5.6 in

Wheels & Brakes

WheelsOptional Style Type Black, Split 5-Spoke Cast Aluminum w/ Machined Pinstripe Standard on Select Colors
Front Wheel/Rim SizeBlack, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Front Tire Size120/70ZR-19 60W
Rear Wheel/Rim SizeBlack, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Rear Tire Size240/40R-18 79V
Front Brakes2x 300mm discs 4 piston calipers
Rear BrakesSingle 300mm disc 4 piston caliper

Dimension & Weights

Seat Height25.6 inches / 650 mm
Wheelbase67 inches / 1705 mm
Ground Clearance114 mm / 4.5 in
Fuel Tank Capacity5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight670 lbs / 304.0 kg

Features

  • 60 V-twin engine
  • DOHC design
  • 4 valves per cylinder
  • Liquid-cooled Revolution engine
  • 1,250cc displacement
  • 123 horsepower output
  • 85 lb.ft. (115 Nm) of torque
  • Michelin Scorcher tires
  • Black wheels
  • Black frame
  • Black fork lowers
  • Triple clamps
  • Swingarm
  • Racing stripes on airbox cover
  • Color-matched speed screen visor
