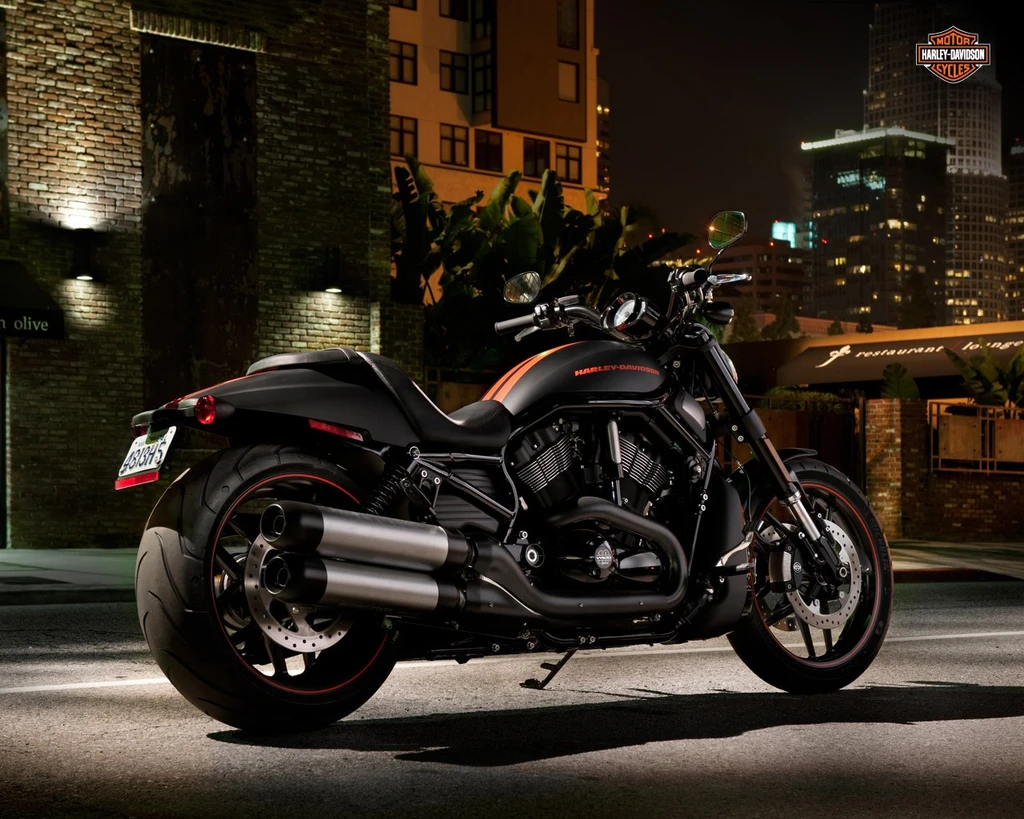

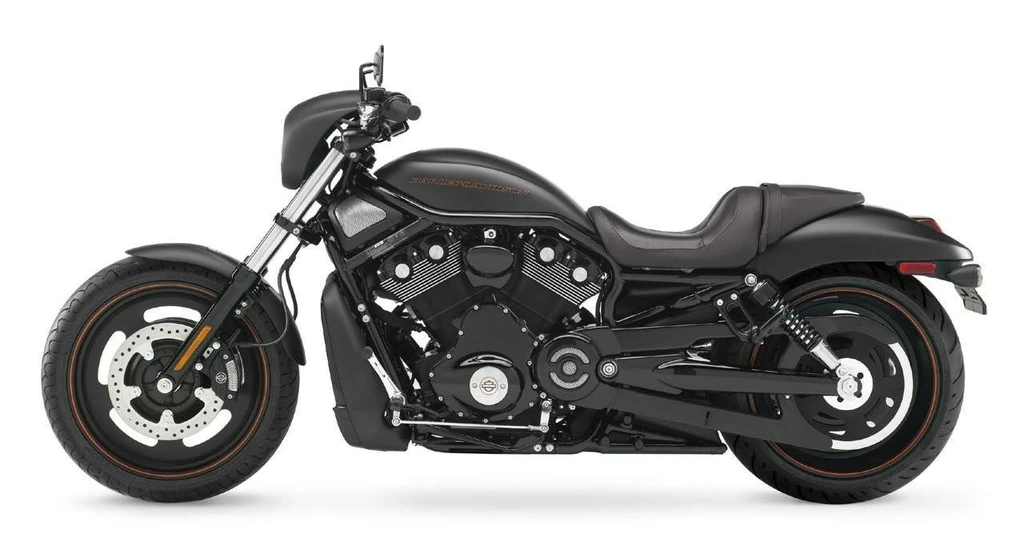

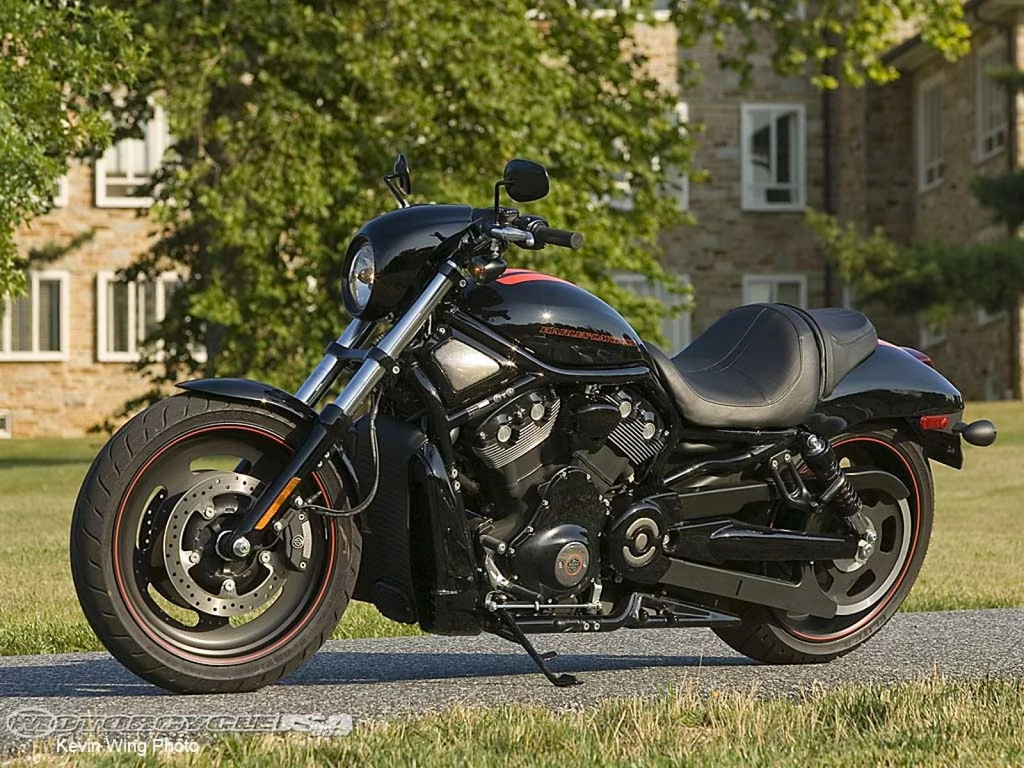

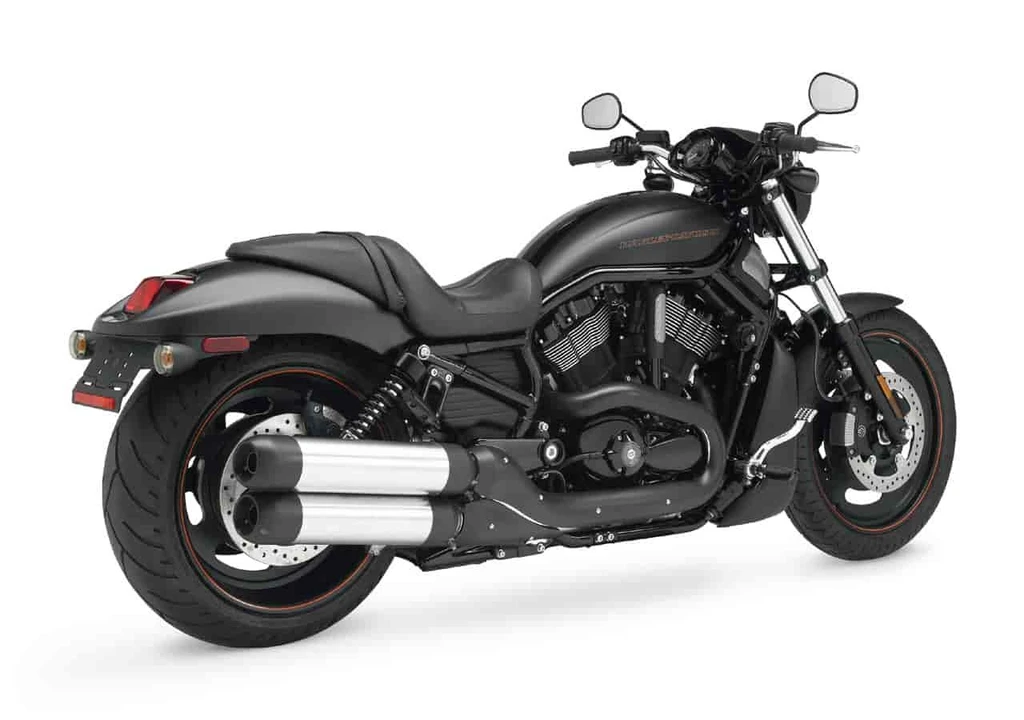

Harley Davidson VRSCDX Night Rod Special (2007 – 2008)

Harley Davidson VRSCDX Night Rod Special (2007 - 2008)

The Harley-Davidson VRSCDX Night Rod Special is a dark horse in the power cruiser segment, boasting an all-black finished 1130cc Revolution powertrain that pumps out 120 horsepower and 80 ft-lbs of torque.

This menacing machine features blacked-out components, including the frame, forks, triple clamps, swing arm, and wheels with orange pin-striping, setting it apart from its brethren. The liquid-cooled Revolution V-Twin engine is a beast, unleashing its fury at 8250 rpm to deliver an unforgettable riding experience.

Riding the Night Rod Special is like strapping yourself into a high-performance machine, with forward controls and drag-style handlebars providing a comfortable perch for aggressive maneuvering. Whether carving through twisties or cruising down the highway, this bike demands attention – and delivers it in spades. It’s a rebellious attitude on wheels, pure and simple.

Key Specifications

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Engine Capacity1247 cc / 76.1 cu in
Max Power123 hp / 90.5 kW @ 8000 rpm
Max Torque116 Nm / 86 ft. lbs@ 7250 rpm
Fuel Tank Capacity5.0 US gallons / 18.9 L
Weight (Wet/Kerb)670 lbs / 304.0 kg
Seat Height25.6 inches / 650 mm
Harley Davidson VRSCDX Night Rod Special (2007 - 2008)

All Specifications

Make & Model

ModelHarley Davidson VRSCDX Night Rod Special
Year2007 – 2008

Engine

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Displacement1247 cc / 76.1 cu in
Bore x Stroke105 x 72 mm
Compression Ratio11.5;1
Max Horsepower123 hp / 90.5 kW @ 8000 rpm
Max Torque116 Nm / 86 ft. lbs@ 7250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection
Cooling SystemLiquid cooled
ExhaustStraight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield

Performance

Top Speedn/a

Transmission

Gearbox5 Speed
Gear Ratios1st 11.752 10.969 10.969 /2nd 7.898 7.371 7.371 / 3rd 6.322 5.900 5.900 4th 5.459 5.095 5.095 / 5th 4.889 4.563 4.563
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeSteel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded
Front SuspensionHuge 49mm telescopic forks
Front Suspension Travel3.9 inches / 100 mm
Rear SuspensionDual coil over adjustable shock
Rear Suspension Travel2.7 inches / 70 mm
Trail142 mm / 5.6 in

Wheels & Brakes

WheelsOptional Style Type Black, Split 5-Spoke Cast Aluminum w/ Machined Pinstripe Standard on Select Colors
Front Wheel/Rim SizeBlack, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Front Tire Size120/70ZR-19 60W
Rear Wheel/Rim SizeBlack, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Rear Tire Size240/40R-18 79V
Front Brakes2x 300mm discs 4 piston calipers
Rear BrakesSingle 300mm disc 4 piston caliper

Dimension & Weights

Seat Height25.6 inches / 650 mm
Wheelbase67 inches / 1705 mm
Ground Clearance114 mm / 4.5 in
Fuel Tank Capacity5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight670 lbs / 304.0 kg

Features

  • Four stroke, 60 V-twin engine
  • 1130cc Revolution powertrain
  • DOHC, 4 valve per cylinder design
  • 120 horsepower at 8250 rpm
  • 80 ft. lbs. torque at 7000 rpm
  • Liquid-cooled engine
  • All-black finished engine with highlighted fins and gloss black covers
  • Five-gallon fuel tank
  • New low seat with forward controls and drag style handlebar
  • 36-degree fork angle
  • 49mm custom forks
  • Brembo triple-disc brakes
  • Black steel hydroformed frame
  • Machined Slotted Disc Cast Aluminum wheels
  • Orange pin striping on rear wheel
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Brushed Straight-shot Dual exhaust with black end caps and covers
