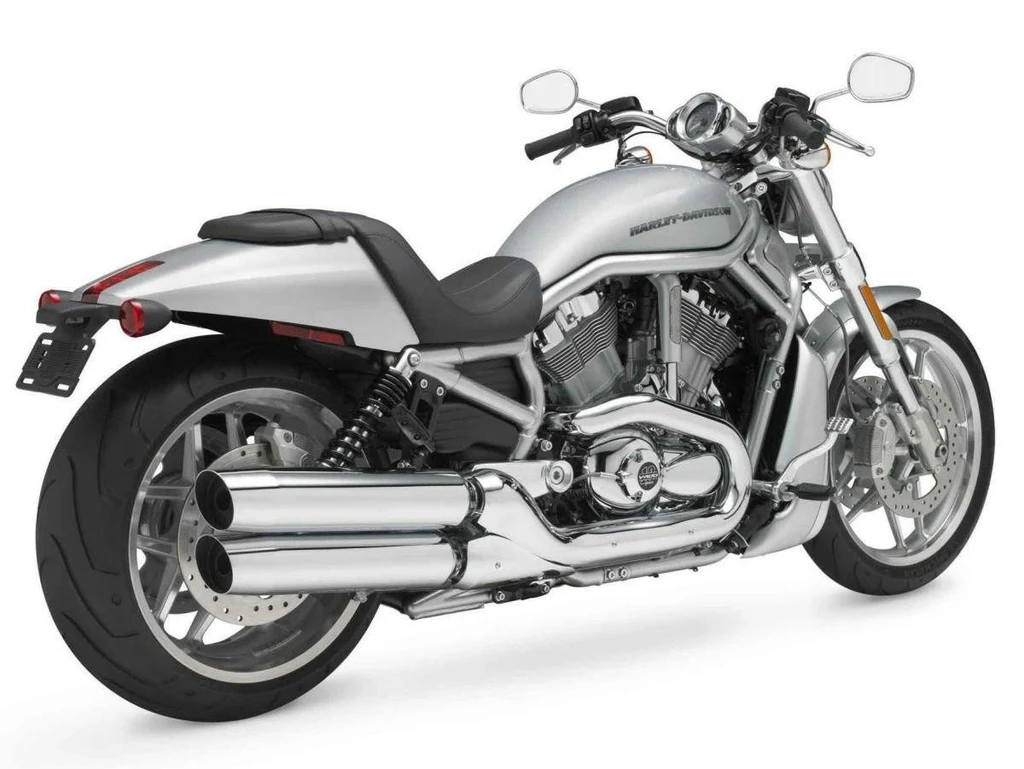

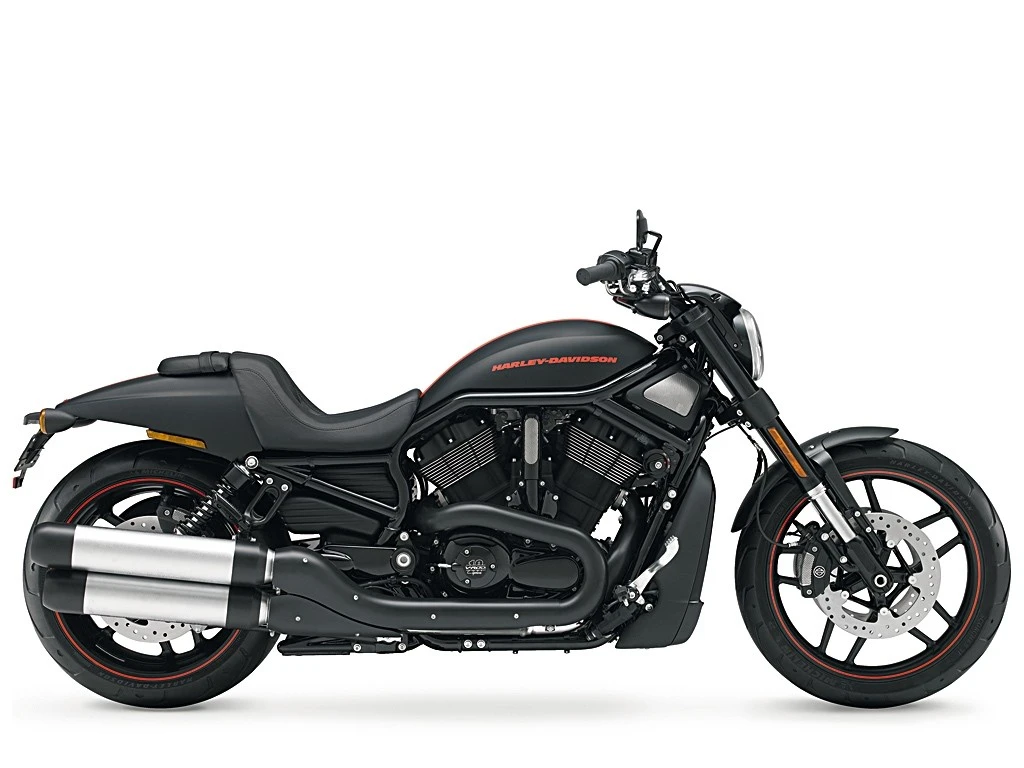

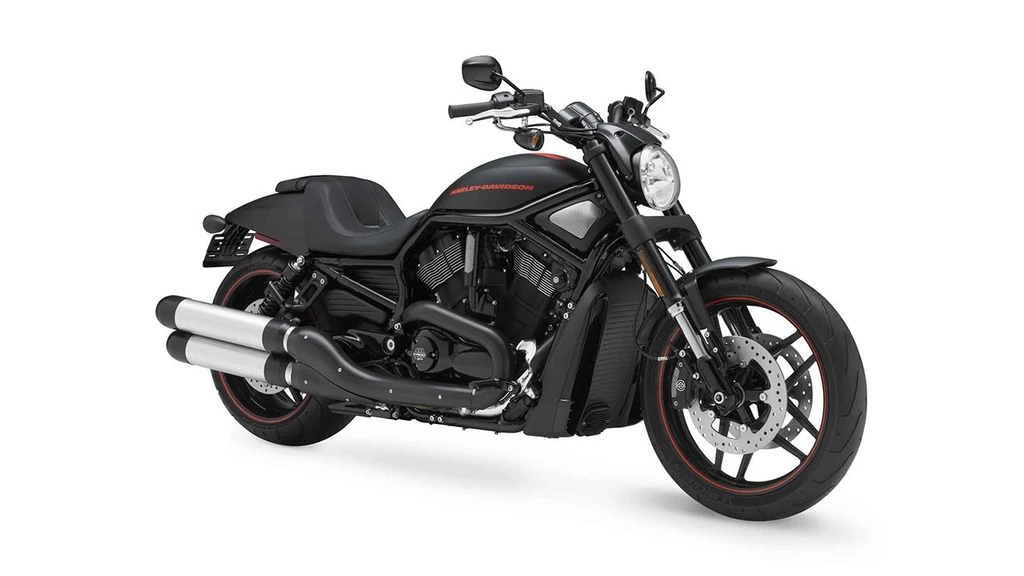

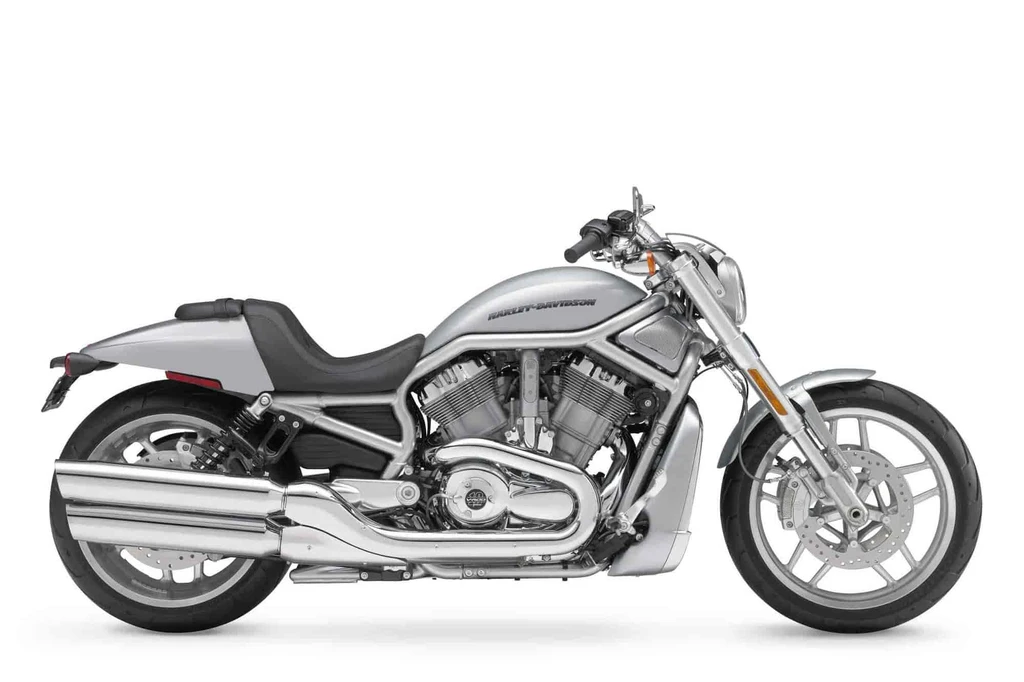

Harley Davidson VRSCDX Night Rod Special 10TH Anniversery Edtion (2012)

The Harley-Davidson VRSCDX Night Rod Special 10th Anniversary Edition is a limited-edition powerhouse that celebrates a decade of high-performance innovation.

Its liquid-cooled Revolution engine roars to life, unleashing a torrent of torque and acceleration that’s impossible to ignore. The 60-degree V-twin revs to an exhilarating 9000-RPM redline, its DOHC four-valve design providing exceptional power delivery.

Riding the Night Rod Special is akin to astride a beast unleashed from the very depths of Hell – raw, unbridled energy coursing through every fiber. Its raked-out chassis and sleek bodywork conspire to provide an unsettling sense of speed, even when cruising at low revs.

And yet, for all its ferocity, this V-Rod is also a masterclass in style and sophistication – its anodized aluminum bodywork glistening like polished chrome, the extra chrome accents on engine, exhaust, and speed screen adding a touch of understated elegance.

Key Specifications

Engine Type	Four stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Engine Capacity	1247 cc / 76.1 cu in
Max Power	123 hp / 90.5 kW @ 8000 rpm
Max Torque	116 Nm / 86 ft. lbs@ 7250 rpm
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Weight (Wet/Kerb)	670 lbs / 304.0 kg
Seat Height	25.6 inches / 650 mm

*n/a – information not provided by manufacturer

Harley Davidson VRSCDX Night Rod Special 10TH Anniversery Edtion (2012)

All Specifications

Make & Model

Model	Harley Davidson VRSCDX Night Rod Special 10TH Anniversery Edtion
Year	2012

Engine

Engine Type	Four stroke, 60 V-twin, DOHC, 4 valve per cylinder.
Displacement	1247 cc / 76.1 cu in
Bore x Stroke	105 x 72 mm
Compression Ratio	11.5;1
Max Horsepower	123 hp / 90.5 kW @ 8000 rpm
Max Torque	116 Nm / 86 ft. lbs@ 7250 rpm
Engine Management System	Electronic Sequential Port Fuel Injection
Cooling System	Liquid cooled
Exhaust	Straight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	5 Speed
Gear Ratios	1st 11.752 10.969 10.969 /2nd 7.898 7.371 7.371 / 3rd 6.322 5.900 5.900 4th 5.459 5.095 5.095 / 5th 4.889 4.563 4.563
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Steel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded
Front Suspension	Huge 49mm telescopic forks
Front Suspension Travel	3.9 inches / 100 mm
Rear Suspension	Dual coil over adjustable shock
Rear Suspension Travel	2.7 inches / 70 mm
Trail	142 mm / 5.6 in

Wheels & Brakes

Wheels	Optional Style Type Black, Split 5-Spoke Cast Aluminum w/ Machined Pinstripe Standard on Select Colors
Front Wheel/Rim Size	Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Front Tire Size	120/70ZR-19 60W
Rear Wheel/Rim Size	Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Rear Tire Size	240/40R-18 79V
Front Brakes	2x 300mm discs 4 piston calipers
Rear Brakes	Single 300mm disc 4 piston caliper

Dimension & Weights

Seat Height	25.6 inches / 650 mm
Wheelbase	67 inches / 1705 mm
Ground Clearance	114 mm / 4.5 in
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight	670 lbs / 304.0 kg

Features

60 degree V-twin engine
1130cc (also 1250cc in later models)
Liquid-cooled Revolution engine
DOHC (dual overhead camshafts)
Four-valve cylinder heads
Electronic Sequential Port Fuel Injection (ESPFI)
Assist and Slip clutch
Five-speed transmission
High-performance carbon-fiber drive belt
Michelin Scorcher radial tires
240mm rear tire
Brembo triple-disc performance brakes (optional with ABS)
ABS anti-lock braking system (optional)
Security Package includes Smart Security System and proximity-based hands-free security fob
Platinum crankcase and heads
Straight-shot exhaust with dual, chrome slash-cut mufflers
Chrome powertrain components
Brilliant Silver Pearl bodywork
