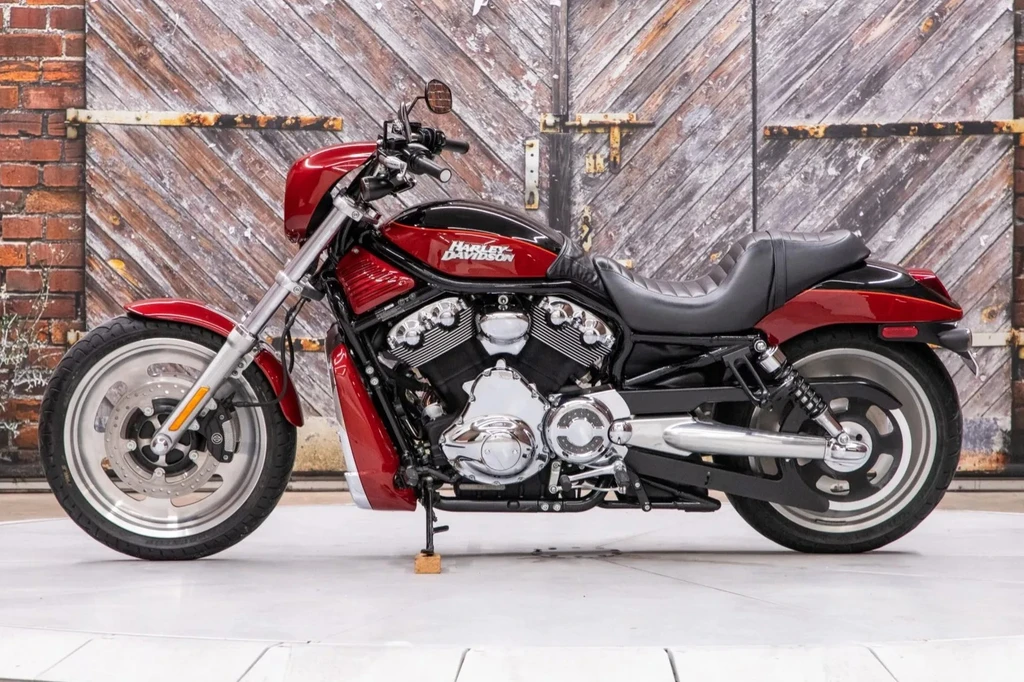

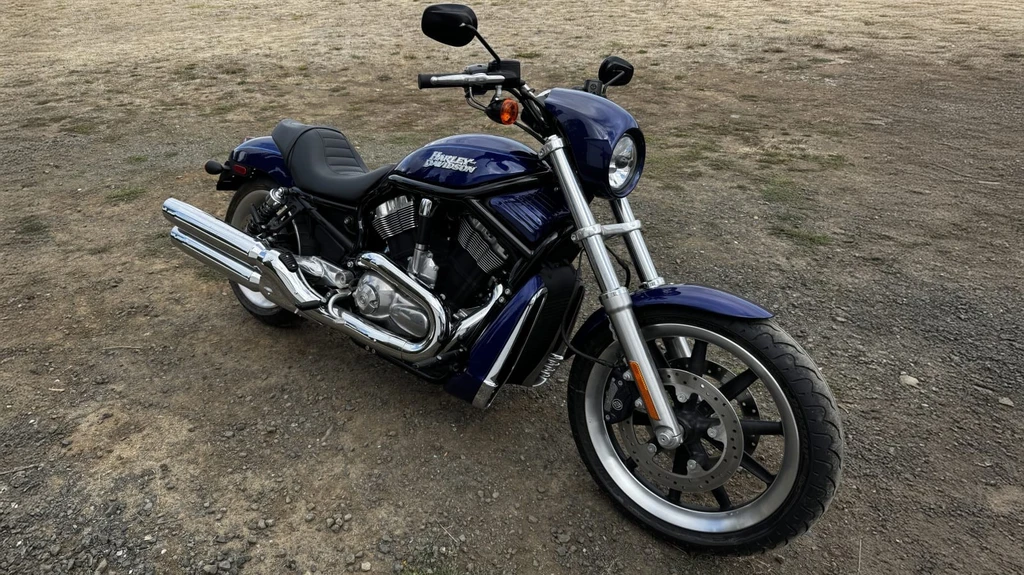

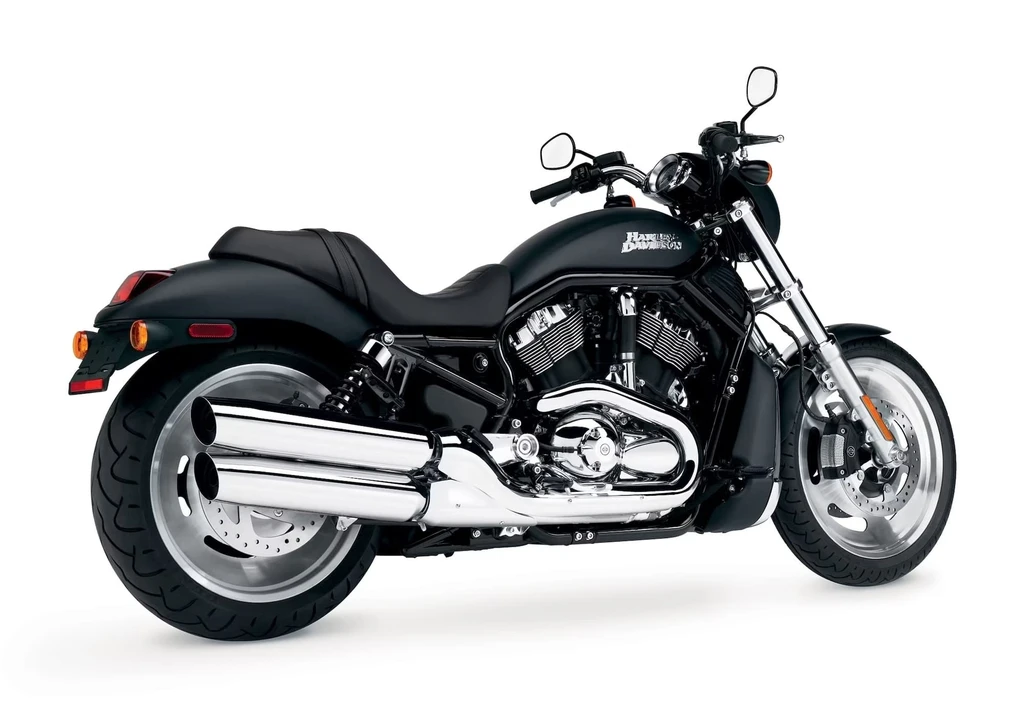

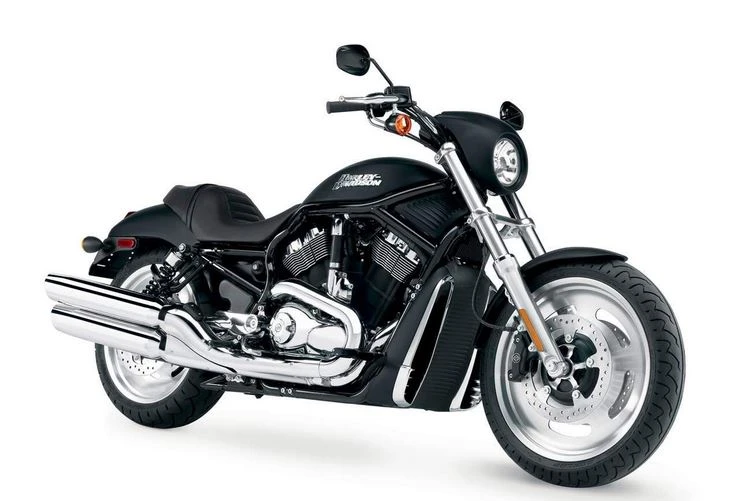

Harley Davidson VRSCD Night Rod (2006)

Harley Davidson VRSCD Night Rod (2006)

The Harley-Davidson VRSCD Night Rod is a raw, unbridled beast of a motorcycle that embodies the spirit of the drag strip. Its 60-degree Revolution V-twin engine pumps out 120 horsepower at 8250 rpm and an astonishing 80 ft-lbs of torque at 7000 rpm.

With its menacing presence and raked-out fork angle, this bike is built for aggressive cruising. The low seat height of just 26 inches and standard highway pegs make it a joy to ride long distances, while the mid-mount controls put you in complete command.

Whether you opt for the slotted machined cast aluminum wheels or the black staggered 10-spoke cast aluminum wheels, the VRSCD Night Rod is sure to turn heads on the boulevard. Its liquid-cooled Revolution V-twin engine features a stunning black powdercoated finish with highlighted fins and polished covers, while Brembo triple-disc brakes provide exceptional stopping power.

The result is an unparalleled riding experience that’s as raw and unbridled as it gets – a true hot rod-inspired motorcycle that’s not for the faint of heart. The Harley-Davidson VRSCD Night Rod is a machine that demands to be ridden hard, and will reward you with every twist of its throttle.

Key Specifications

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder
Engine Capacity59 cubic inches / 1130 cc
Max Power121 hp / 89 Kw @ 7000 rpm
Max Torque80 ft-lb / 108.3 nm
Fuel Tank Capacity3.7 US gallons / 14.0 L
Seat Height26.0 inches / 660 mm
Harley Davidson VRSCD Night Rod (2006)

All Specifications

Make & Model

ModelHarley Davidson VRSCD Night Rod
Year2006

Engine

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder
Displacement59 cubic inches / 1130 cc
Bore x Stroke100 x 72 mm
Compression Ratio11.3:1
Max Horsepower121 hp / 89 Kw @ 7000 rpm
Max Torque80 ft-lb / 108.3 nm
Engine Management SystemSequential Port Electronic fuel injectionwith 53mm throttle bodies
Lubrication SystemGerotor, wet sump
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchNine plate wet pressure fed with integral compensation
Gearbox5 Speed
Gear Ratios1st 11.752 (10.969)2nd 7.898 (7.371)3rd 6.322 (5.900)4th 5.459 (5.095)5th 4.899 (4.563)
Final DriveBelt

Electrical & Electronics System

BatterySealed,maintenance-free, 12-volt, 12 amp-hour, 200 cca (per Battery Council International rating)
StarterElectric

Chassis & Suspension

Frame TypeSteel perimeter upper frame w/hydro formed main rails and bolt-on lower frame rails, MIG welded
Front SuspensionHuge 49mm telescopic forks
Front Suspension Travel3.9 inches / 100 mm
Rear SuspensionDual coil over adjustable shock
Rear Suspension Travel2.7 inches / 70 mm
Rake34
Trail100 mm / 3.9 in

Wheels & Brakes

Front Tire SizeD207 120/70ZR-19
Rear Tire SizeD207 180/55ZR-18
Front Brakes2x 292mm discs 4 piston calipers
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.0 inches / 660 mm
Wheelbase67.5 inches / 1713 mm
Ground Clearance142 mm / 5.6 in
Fuel Tank Capacity3.7 US gallons / 14.0 L
Dry Weight275.0 kg / 606.3 lbs

Features

  • 60 V-twin engine
  • DOHC, 4 valve per cylinder
  • Mid-mount controls
  • Straight-shot mufflers
  • Low-rise bars
  • Highway pegs
  • Black Denim paint option
  • Color-matched speed screen visor
  • Blacked-out engine
  • Brembo brakes
  • Slotted Aluminum Disc wheels or Black Staggered 10-Spoke wheel option
  • 180mm rear tire
  • Raked-out, 36 degree fork angle
  • Seat height of 26 inches
  • Chrome straight-shot dual exhaust pipes
  • Slotted Machined Cast Aluminum disc wheels (standard)
  • Optional black Staggered 10-spoke Cast Aluminum wheels
  • Liquid-cooled, 1130cc Revolution V-Twin engine
  • 120 hp at 8250 rpm
  • 80.0 ft. lbs. torque @ 7000 rpm
