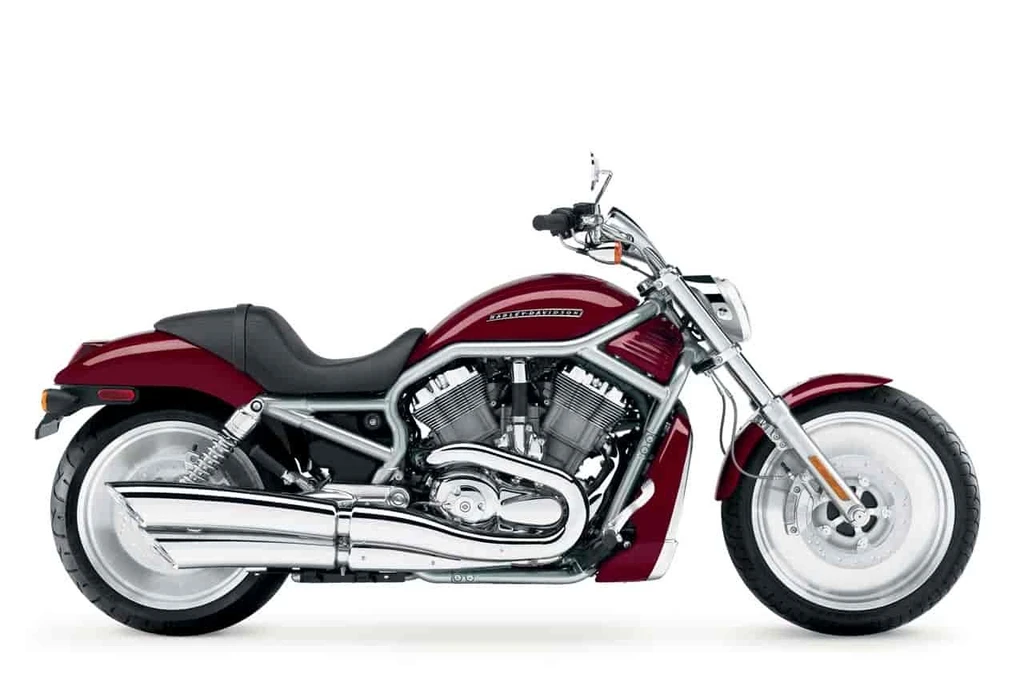

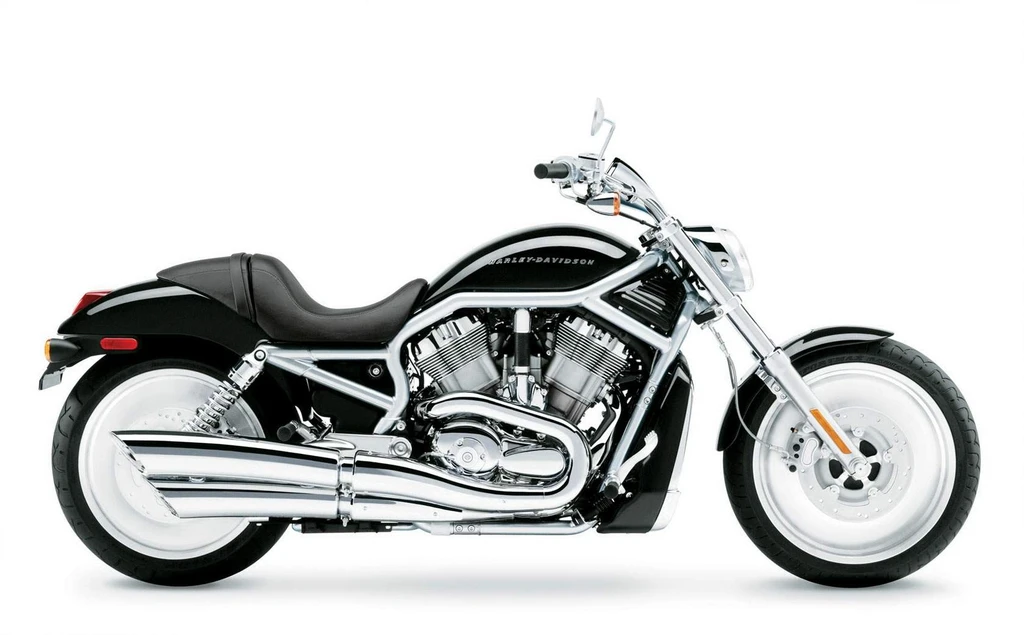

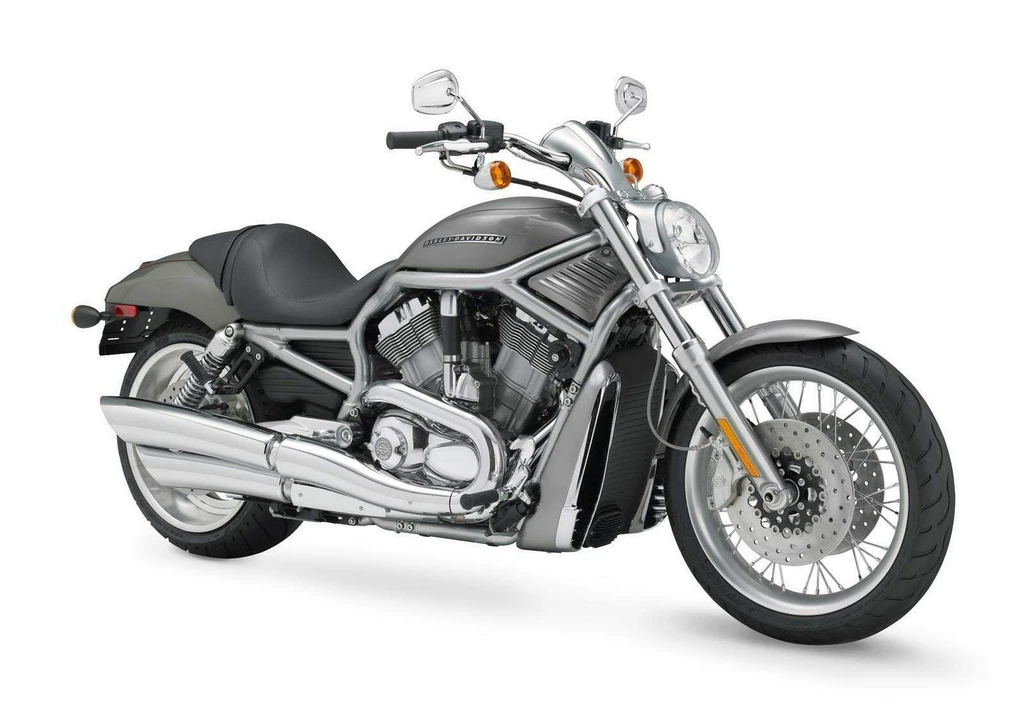

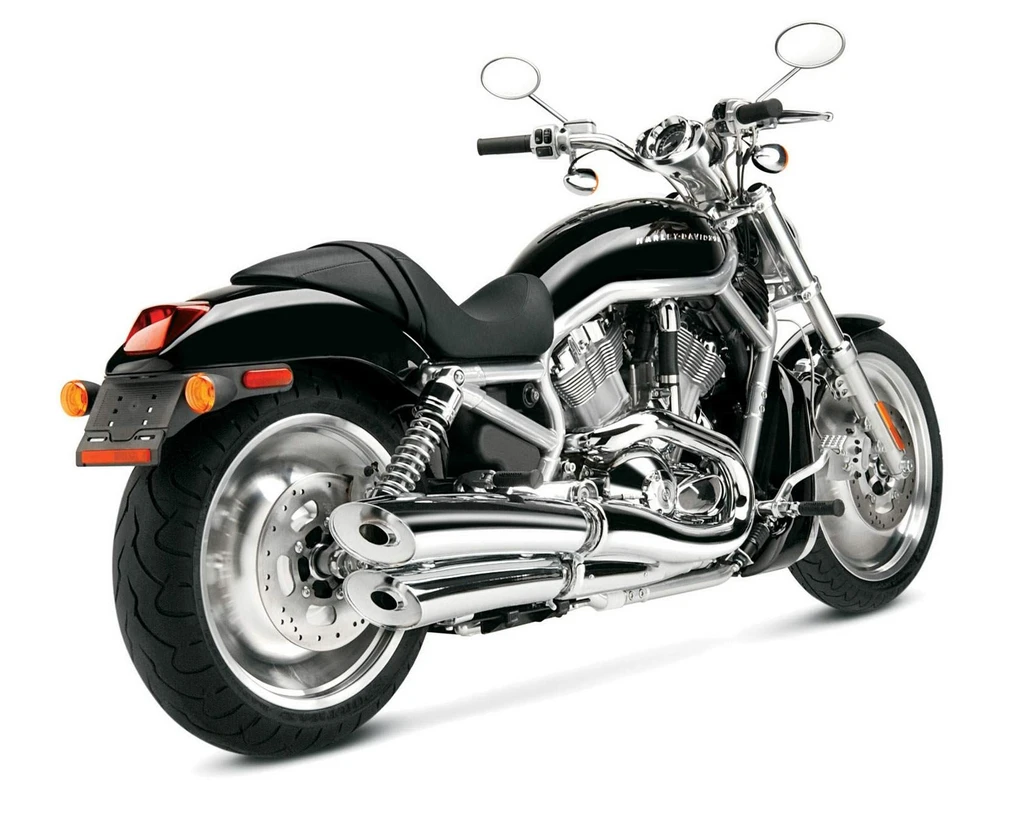

Harley Davidson VRSCA V-Rod (2006 – 2007)

Harley Davidson VRSCA V-Rod (2006 - 2007)

The Harley-Davidson VRSCA V-Rod is a stunning powerhouse that redefined the power-cruiser category with its award-winning blend of custom styling and liquid-cooled performance.

Its 60-degree, four-stroke V-twin engine unleashes an astonishing 115 horsepower at 8,500 rpm, accompanied by a gut-wrenching 74 foot-pounds of torque from just 7,000 rpm.

The riding experience is nothing short of thrilling, with the scooped-out seat mere 26 inches off the ground, inviting you to take control of this beast. The forward controls and pull-back handlebars provide an aggressive stance, while the drag-style aluminum disc wheels and chrome slash-cut exhaust deliver a visual punch that’s impossible to ignore.

But it’s not just about looks – the V-Rod is equipped with top-notch technology, including new Brembo triple-disc brakes, braided brake lines, and a low 26-inch seat height for unparalleled agility. Whether you’re cruising or carving up twisties, this machine is sure to leave a lasting impression. The VRSCA V-Rod is an unforgettable ride that will leave you breathless.

Key Specifications

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder
Engine Capacity59 cubic inches / 1130 cc
Max Power115 hp / 84 kW @ 8250 rpm
Max Torque74 ft-lb / 100.3 nm
Fuel Tank Capacity4.0 US gallons / 15.0 L
Weight (Wet/Kerb)622 lbs / 282 kg
Seat Height26.0 inches / 660.4 mm
Harley Davidson VRSCA V-Rod (2006 - 2007)

All Specifications

Make & Model

ModelHarley Davidson VRSCA V-Rod
Year2006 – 2007

Engine

Engine TypeFour stroke, 60 V-twin, DOHC, 4 valve per cylinder
Displacement59 cubic inches / 1130 cc
Bore x Stroke100 x 72 mm
Compression Ratio11.3:1
Max Horsepower115 hp / 84 kW @ 8250 rpm
Max Torque74 ft-lb / 100.3 nm
Engine Management SystemSequential Port Electronic fuel injectionwith 53mm throttle bodies
Lubrication SystemGerotor, wet sump
Cooling SystemLiquid cooled

Performance

Top Speed218.6 km/h

Transmission

ClutchNine plate wet pressure fed with integral compensation
Gearbox5 Speed
Gear Ratios1st 2.5:1 (45/18)2nd 1.68:1 (42/25)3rd 1.345:1 (39/29)4th 1.161:1 (36/31)5th 1.04:1 (26/25)
Final DriveBelt

Electrical & Electronics System

BatterySealed,maintenance-free, 12-volt, 12 amp-hour, 200 cca (per Battery Council International rating)
StarterElectric

Chassis & Suspension

Frame TypeSteel perimeter upper frame w/ hydroformed main rails and bolt-on lower frame rails Swing Arm One piece cast aluminum polished
Front SuspensionHuge 49mm telescopic forks
Front Suspension Travel3.9 inches / 100 mm
Rear SuspensionDual coil over adjustable shock
Rear Suspension Travel2.7 inches / 70 mm
Rake34
Trail100 mm / 3.9 in

Wheels & Brakes

Front Tire SizeD207 120/70ZR-19
Rear Tire SizeD207F 180/55ZR-18 74W
Front Brakes2x 292mm discs 4 piston calipers
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.0 inches / 660.4 mm
Wheelbase67.5 inches / 1713 mm
Ground Clearance127 mm / 5.0 in
Fuel Tank Capacity4.0 US gallons / 15.0 L
Wet (kerb/curb) Weight622 lbs / 282 kg
Dry Weight272.4 kg / 600 lbs

Features

  • 60 V-twin, DOHC, 4 valve per cylinder engine
  • Liquid-cooled, fuel-injected Revolution engine
  • 115 horsepower at 8500 rpm
  • 74 ft lbs torque at 7000 rpm
  • 1130cc displacement
  • Two-tone silver and charcoal powder-coated cylinders with chrome covers
  • Dual slash-cut chrome exhaust pipes
  • 38-degree fork angle
  • 49 mm forks
  • New Brembo triple-disc brakes
  • Braided brake lines
  • Low 26-inch seat height
  • Forward controls
  • New black hand controls
  • Silver-leafed aluminum powdercoat on hydroformed frame
  • Welded pull back handlebars
  • Clamshell instrument pod
  • Teardrop reflector-optic headlight
