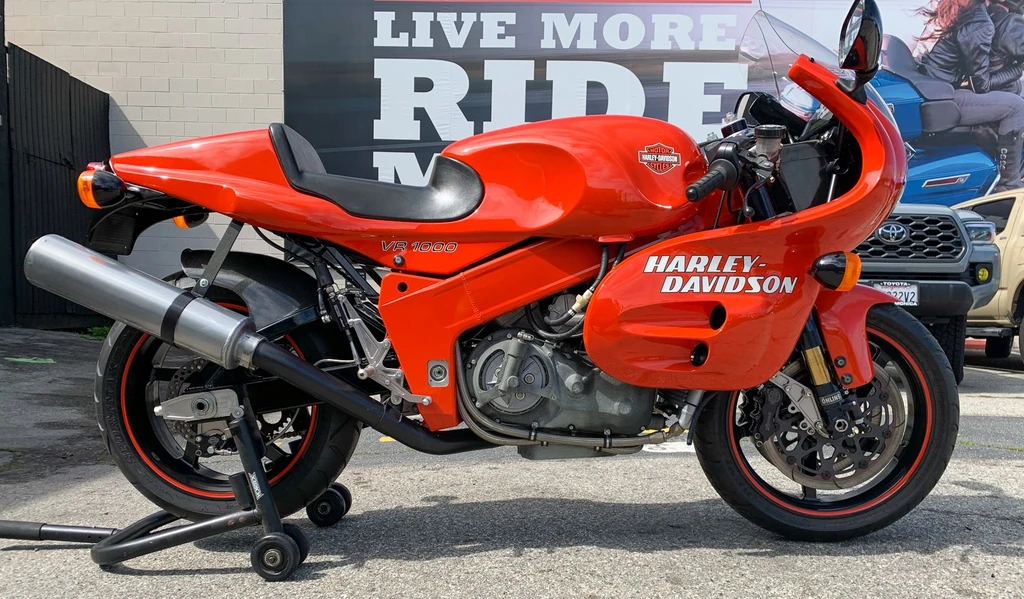

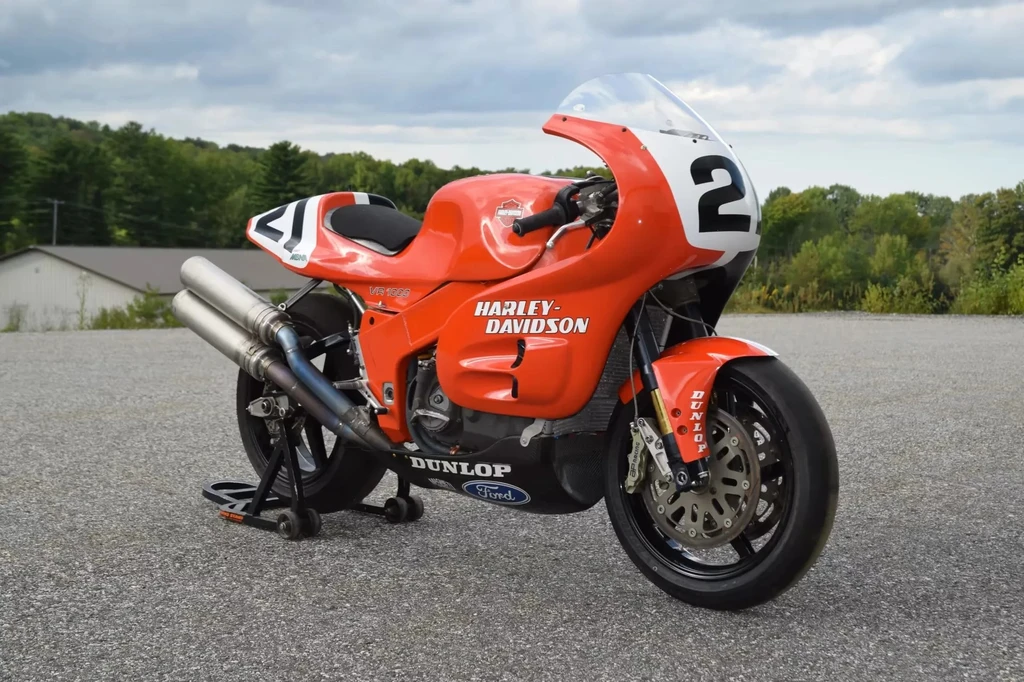

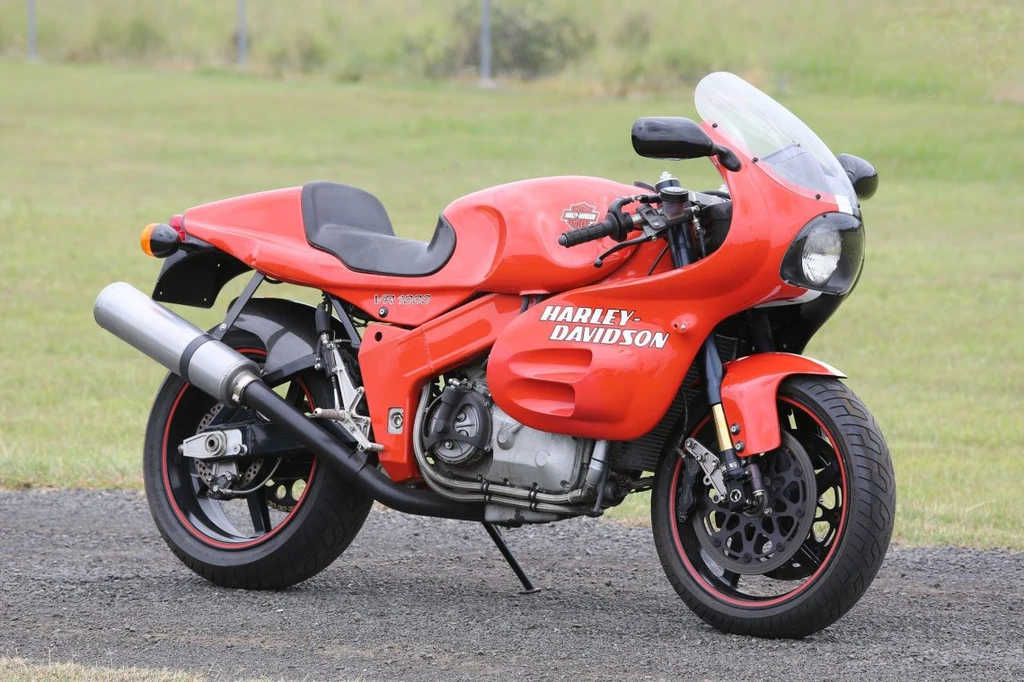

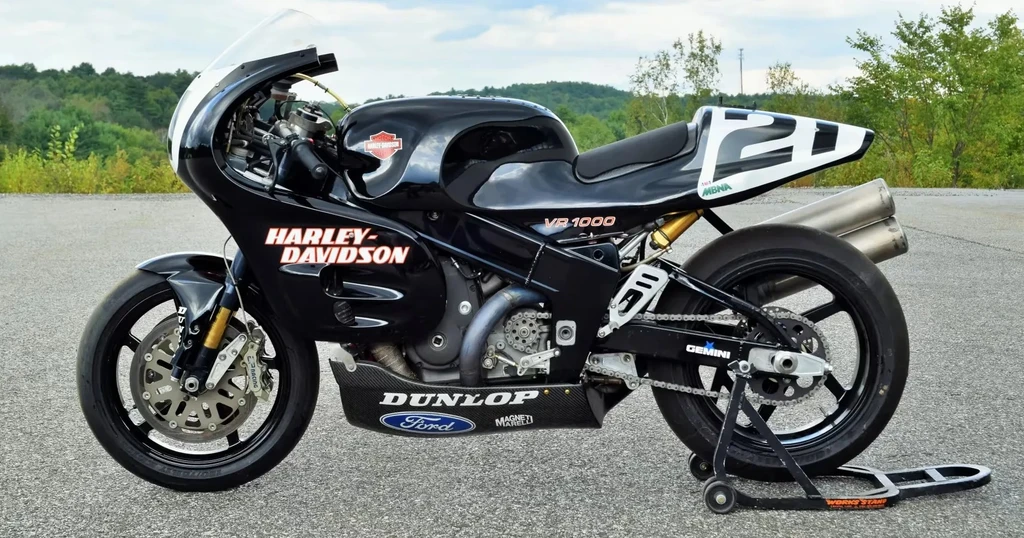

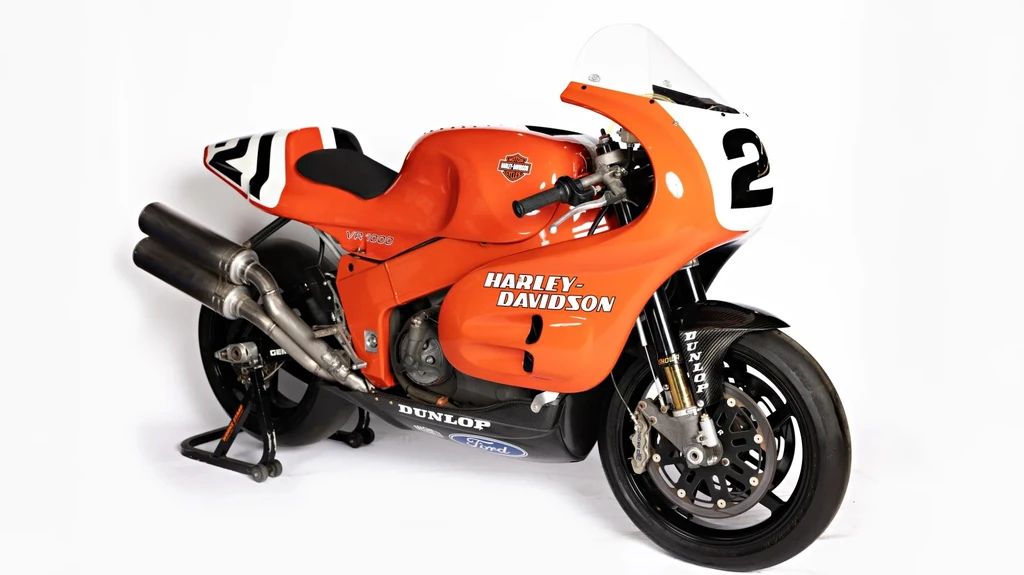

The Harley-Davidson VR1000 – a machine born from the unyielding spirit of competition and innovation. Purpose-built for the unforgiving world of Superbike racing, this 1993 behemoth was crafted to dominate the upper echelons of street bike competition.
At its heart lies a revolutionary 60-degree V-twin engine, boasting 4-valve heads, Weber-USA electronic fuel injection, and liquid cooling. This potent combination unleashes a torrent of power, expertly managed by a multi-disc dry clutch and 5-speed transmission.
Riding the VR1000 is an immersive experience, with razor-sharp handling and braking response that rewards the skilled rider. The chassis, featuring a high-performance fork and six-piston brake calipers, provides an unwavering connection to the road.
This remarkable machine represents Harley-Davidson’s bold foray into purebred competition, and it’s a testament to their unwavering commitment to excellence – one that will forever leave its mark on the world of motorcycle racing.
Key Specifications
Engine Type
Four stroke, 60 V-Twin, DOHC, 4 valves per cylinder.
Engine Capacity
61.0 cubic inches / 1000 cc
Max Power
135 hp / 100 kW @ 10000 rpm
Fuel Tank Capacity
4.5 US gallons / 17.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson VR1000
Year
1993
Engine
Engine Type
Four stroke, 60 V-Twin, DOHC, 4 valves per cylinder.
Displacement
61.0 cubic inches / 1000 cc
Bore x Stroke
98 x 66 mm
Compression Ratio
11.6;1
Max Horsepower
135 hp / 100 kW @ 10000 rpm
Engine Management System
Weber EFI
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry Multi-disc
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Chassis & Suspension
Frame Type
Aluminium 2 Spar parameter
Front Suspension
Inverted forks
Rear Suspension
Single Shock
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
170/70 ZR17
Front Brakes
2X discs
Rear Brakes
Single disc
Dimension & Weights
Fuel Tank Capacity
4.5 US gallons / 17.0 L
Features
Purpose-built racing motorcycle from Harley-Davidson
Double-overhead-cam, 60-degree V-twin engine
4-valve heads
Weber-USA electronic fuel injection
Liquid cooling
Multi-disc dry clutch
5-speed transmission
Penske inverted fork (on early models)
Hlins fork with titanium-coated stanchions (on road model)
Wilwood six-piston brake calipers (on early models)
Carbon fiber body work
Dry weight of 390lb (176.9kg)
Price listed at $49,490
