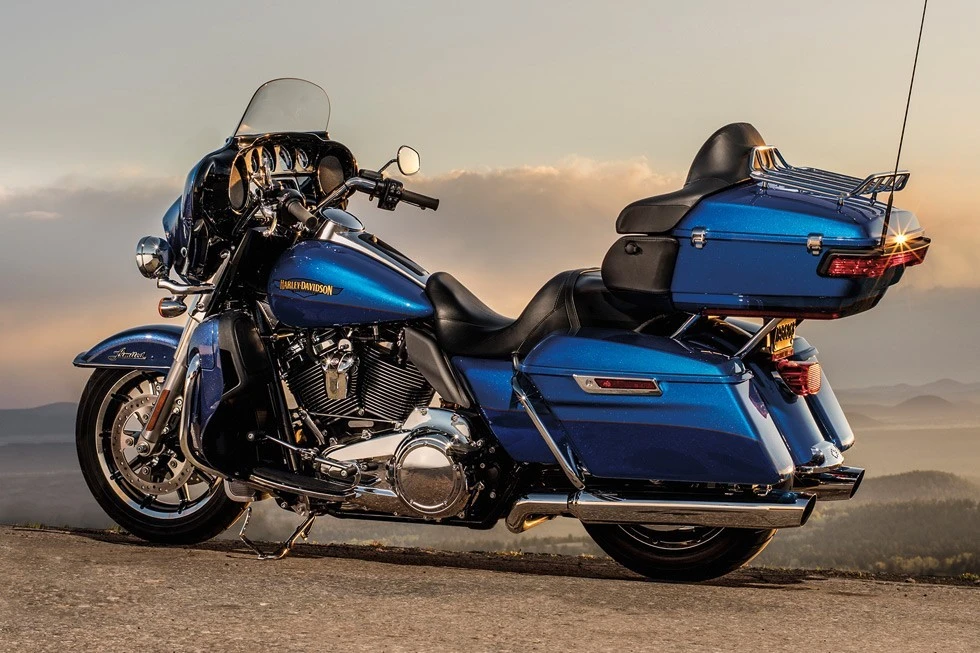

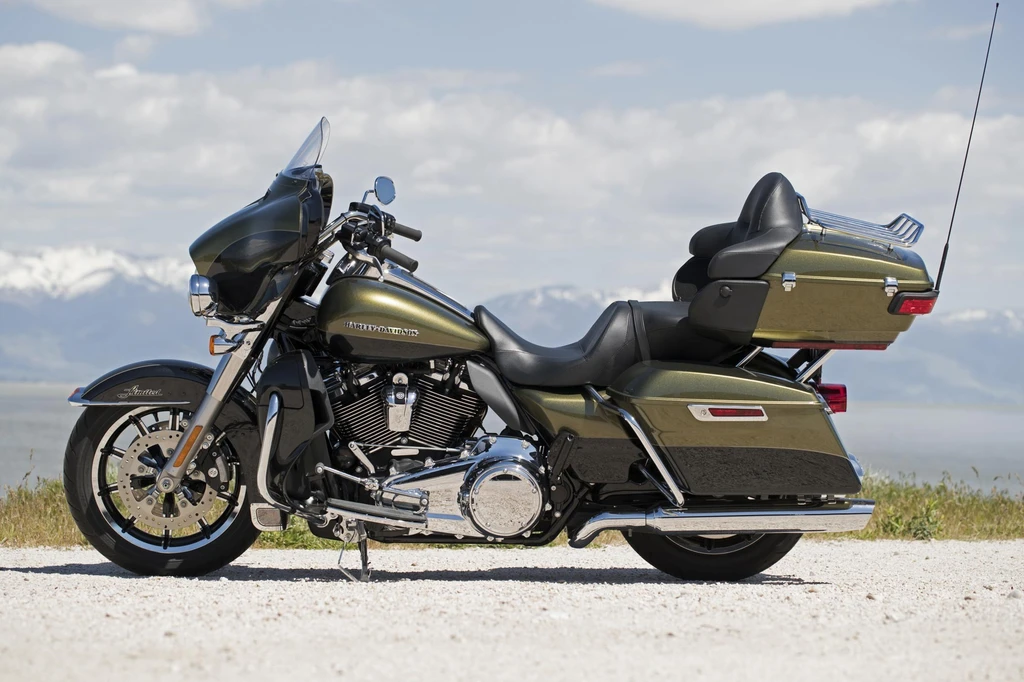

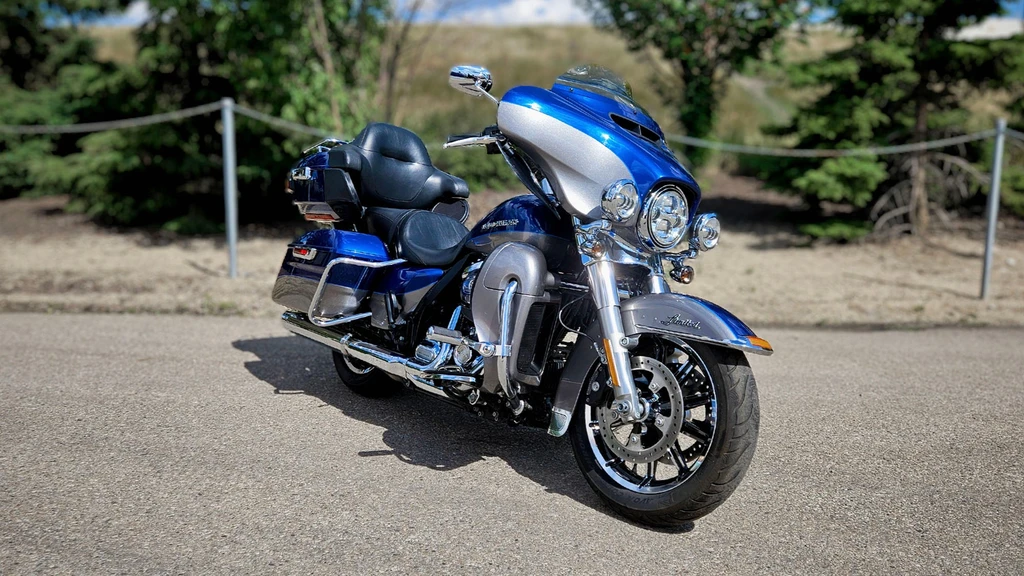

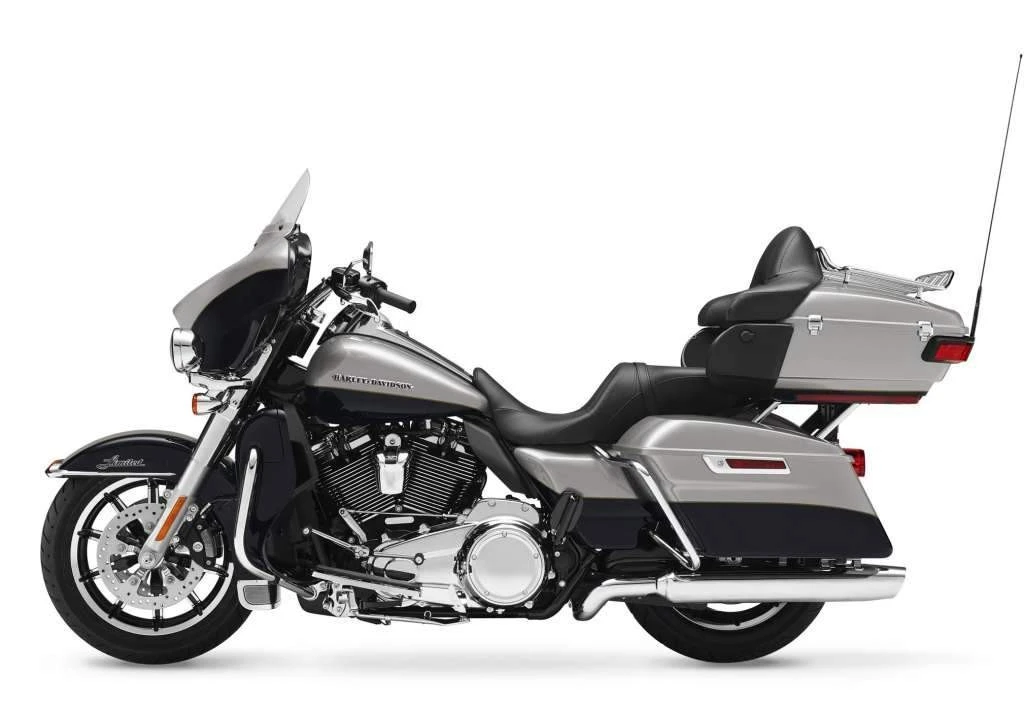

Harley Davidson Ultra Limited Low (2017 – 2018)

The Harley-Davidson Ultra Limited Low is a game-changer in touring motorcycles, engineered to deliver unparalleled comfort and control for riders of all sizes.

A lowered front and rear suspension drops the seat height to just 26.5 inches, making it the lowest in its class, while an extended reach side stand and smaller diameter grips provide a more accessible riding experience.

The Ultra Limited Low’s fit is tailored to perfection, offering a dynamic handlebar reach with less effort, allowing riders as short as 165 cm to easily plant their boots flat on the ground and access the foot controls.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1746 cc / 107 cub in.
Max Torque	113.6 ft-lb / 154 nm
Fuel Tank Capacity	6 US gallons / 22.7 L
Weight (Wet/Kerb)	408 kg /909 lb
Seat Height	25.6 inches / 650.2 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson Ultra Limited Low
Year	2017 – 2018

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1746 cc / 107 cub in.
Bore x Stroke	100 x 111 mm / 3.937 x 4.374 in
Compression Ratio	10.0:1
Max Torque	113.6 ft-lb / 154 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 9.5932nd 6.653rd 4.9384th 4.05th 3.4076th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable
Rake	26
Trail	170 mm / 6.7 in.

Wheels & Brakes

Front Tire Size	130/80B17 65H
Rear Tire Size	180/65B16 81H
Front Brakes	2 x 300mm discs, 4 piston caliper ABS
Rear Brakes	Single 300 mm disc, 4 piston caliper ABS

Dimension & Weights

Seat Height	25.6 inches / 650.2 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	116.8 mm / 4.6 in
Fuel Tank Capacity	6 US gallons / 22.7 L
Wet (kerb/curb) Weight	408 kg /909 lb
Dry Weight	395.5 kg / 872 lbs

Features

Swingarm made of mild steel with two-piece drawn and welded section
Forged junctions
MIG welded swingarm
Air-adjustable rear shocks
Lowered front and rear suspension for lower seat height
Extended reach side stand
Smaller diameter grips
Dynamic handlebar reach with less effort
Electronic throttle control system
Cruise control standard on all models
6-Speed Cruise drive transmission
Linked brakes with ABS available on all models
LED Daymaker headlights (on select models)
BOOM! Box Audio Infotainment system (on select models)
Twin-Cooled Milwaukee-Eight 107 engine
Most powerful and coolest-running motor ever built
Improved fuel economy
Front suspension uses Showa Dual Bending Valve technology
Hand-adjustable emulsion rear shocks with 15-30% more preload adjustment
