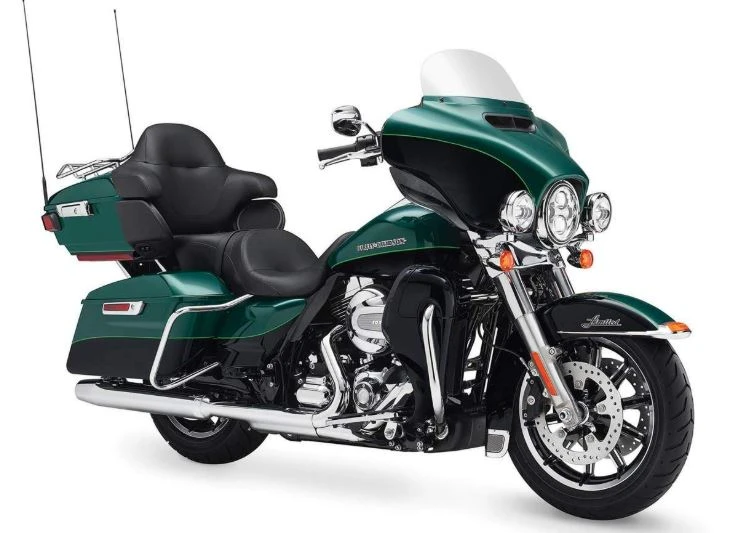

Harley Davidson Ultra Limited Low (2016)

The 2016 Harley-Davidson Ultra Limited Low embodies the perfect blend of power, comfort, and style.

Its Electronic Sequential Port Fuel Injection (ESPFI) system provides seamless fuel delivery, while the mild steel swingarm and forged junctions ensure exceptional durability.

At the heart of this touring machine lies a potent V-twin engine that purrs with a deep, throaty growl as it devours the open road. Whether cruising down the highway or carving through twisties, the Ultra Limited Low’s responsive handling and plush suspension make every ride an exhilarating experience.

And yet, despite its impressive capabilities, this bike remains remarkably accessible, thanks to its low seat height and carefully tailored ergonomics that put the rider in perfect harmony with the machine. In short, the 2016 Harley-Davidson Ultra Limited Low is the ultimate touring companion for riders of all kinds, offering a truly unforgettable riding experience.

Key Specifications

Engine Type	Twin Cam 103 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	143 Nm / 14.6 kgf-m / 105.4 ft/lb @ 3750 rpm
Fuel Tank Capacity	6 US gallons / 22.7 L
Weight (Wet/Kerb)	896 lbs / 406 kg
Seat Height	25.6 inches / 650.2 mm

*n/a – information not provided by manufacturer

Harley Davidson Ultra Limited Low (2016)

All Specifications

Make & Model

Model	Harley Davidson Ultra Limited Low
Year	2016

Engine

Engine Type	Twin Cam 103 with integrated oil cooler Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.25 mm
Compression Ratio	10.0:1
Max Torque	143 Nm / 14.6 kgf-m / 105.4 ft/lb @ 3750 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air/Liquid cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tappered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 9.593 / 2nd 6.650 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875:1
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable
Rake	26
Trail	170 mm / 6.7 in.

Wheels & Brakes

Front Tire Size	BW 130/80B17 65H
Rear Tire Size	BW 180/65B16 81H
Front Brakes	2 x 300mm discs, 4 piston caliper ABS
Rear Brakes	Single 300 mm disc, 4 piston caliper ABS

Dimension & Weights

Seat Height	25.6 inches / 650.2 mm
Wheelbase	64 inches / 1625 mm
Fuel Tank Capacity	6 US gallons / 22.7 L
Wet (kerb/curb) Weight	896 lbs / 406 kg

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Swingarm with mild steel construction
Forged junctions in swingarm
MIG welded swingarm
Air-adjustable rear shocks
Low seat height of 25.6 inches
New low-profile seat for reduced reach to foot controls
Premium lowered front and rear suspension
Reduced primary drive housing width
Pull-back handlebar with hand controls two inches closer
Smaller-diameter hand grips
Assist and Slip (A&S) hydraulic clutch
Passenger footboard mount that folds up when not in use
Toe tab extension for easier jiffy stand retraction
Batwing fairing with Splitstream vent for reduced head buffeting
Boom! Box 4.3 audio system with Bluetooth capability
25-watt per channel amplifier driving four speakers
King Tour-Pak and hard saddlebags with One touch latches
Reflex Linked Brakes with ABS
Daymaker LED lighting
Electronic cruise control
H-D Smart Security System
