Harley Davidson Ultra Limited (2021)

Harley Davidson Ultra Limited (2021)

Experience the ultimate in touring luxury with the 2021 Harley-Davidson Ultra Limited. This premium model boasts bold styling and comfort, featuring a vented batwing fairing and heated grips to keep you warm on long rides.

At its heart is the mighty Twin-Cooled Milwaukee-Eight 114 engine, delivering inspiring performance and classic Harley-Davidson sound and feel. With 118 ft-lb of torque at 3250 RPM and a displacement of 114 cu in (1,868 cc), this V-Twin powerhouse commands attention on the road.

The Ultra Limited’s upright riding position and floorboards provide all-day comfort, while the passenger seat with backrest ensures your companion is just as happy. With its robust Touring chassis, ample storage, and advanced infotainment system, this Harley-Davidson is the ultimate touring machine for riders seeking an unparalleled experience on two wheels. The 2021 Ultra Limited is the perfect choice for anyone craving adventure and style – it’s ready to take you wherever the open road calls.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1868 cc / 114 cu in
Max Torque122 ft-lb / 167 nm
Fuel Tank Capacity6 US gallons / 22.7 L
Weight (Wet/Kerb)413 kg /910 lb
Seat Height27.5 inches / 698.5 mm
Harley Davidson Ultra Limited (2021)

All Specifications

Make & Model

ModelHarley Davidson Ultra Limited
Year2021

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1868 cc / 114 cu in
Bore x Stroke102 x 114 mm
Compression Ratio10.5:1
Max Torque122 ft-lb / 167 nm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension41.3 mm telescopic, cartridge-style damping
Rear SuspensionSwingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded, Rear Shocks Air-adjustable
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

Front Tire SizeBW 130/80B17 65H
Rear Tire SizeBW 180/65B16 81H
Front Brakes2 x 300mm discs, 4 piston fixed
Rear BrakesSingle 300 mm disc, 4 piston fixed

Dimension & Weights

Seat Height27.5 inches / 698.5 mm
Wheelbase64 inches / 1625 mm
Ground Clearance135 mm / 5.3 in
Fuel Tank Capacity6 US gallons / 22.7 L
Wet (kerb/curb) Weight413 kg /910 lb
Dry Weight398 kg / 877 lbs

Features

  • Swingarm: mild steel, two-piece drawn and welded section, forged junctions, MIG welded
  • Rear Shocks: air-adjustable
  • Milwaukee-Eight 114 engine
  • Heated grips
  • Upright riding position
  • Floorboards
  • Passenger seat with backrest
  • Twin-Cooled V-Twin design
  • Four valve cylinder heads (2 exhaust and 2 intake valves per head)
  • Dual spark plugs
  • Single camshaft
  • Advanced cylinder head design
  • Dual knock sensors
  • Precision cooling system
  • Ventilator high-performance air cleaner
  • Washable filter element
  • Harley-Davidson Touring frame with rigid backbone design
  • Front suspension: dual bending valve internal technology
  • Emulsion technology rear shocks with single-knob pre-load adjustment
  • Lowered rear suspension
  • Prodigy cast-aluminum wheels (19-inch front, 18-inch rear)
  • Reflex Linked Brembo Brakes with ABS
  • Optional RDRS Safety Enhancements

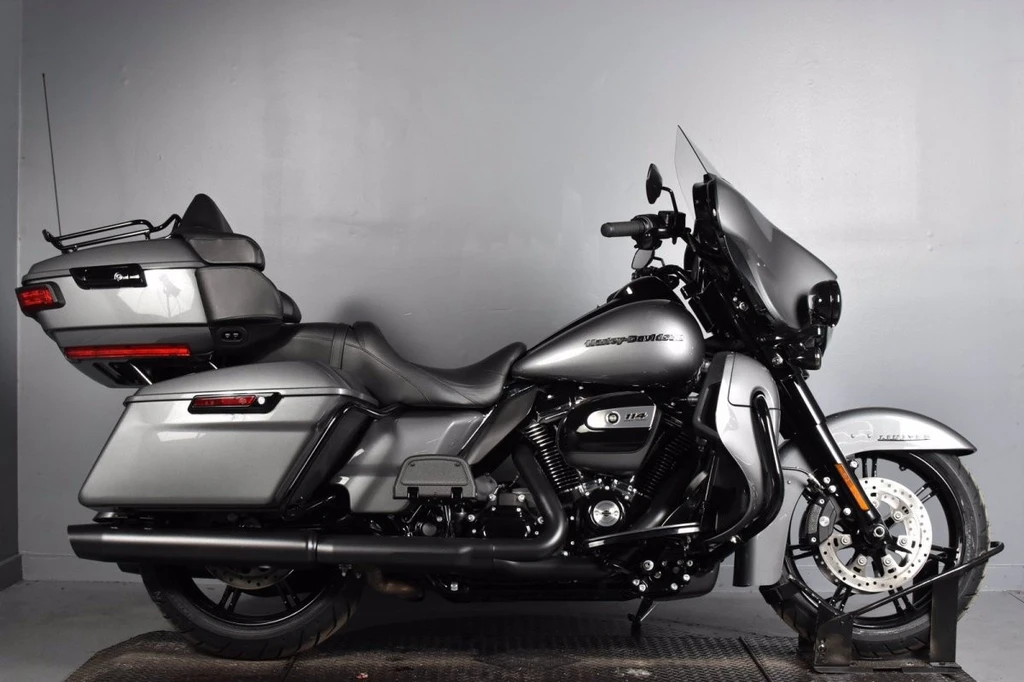

Harley Davidson Ultra Limited (2021)

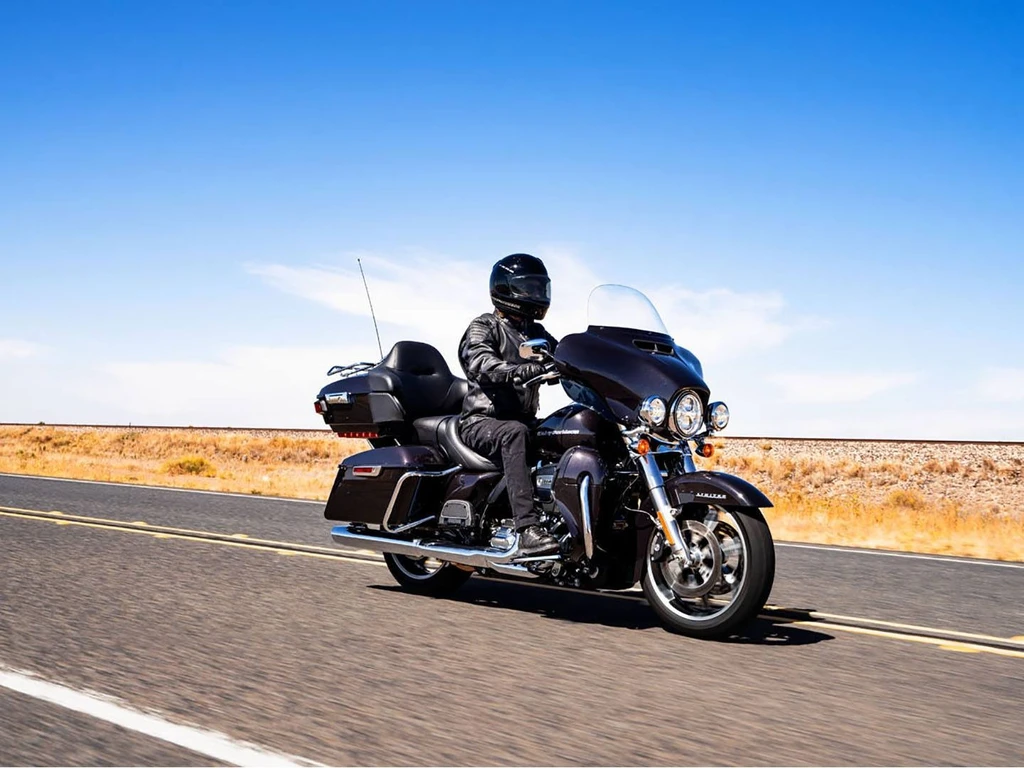

Harley Davidson Ultra Limited (2021)

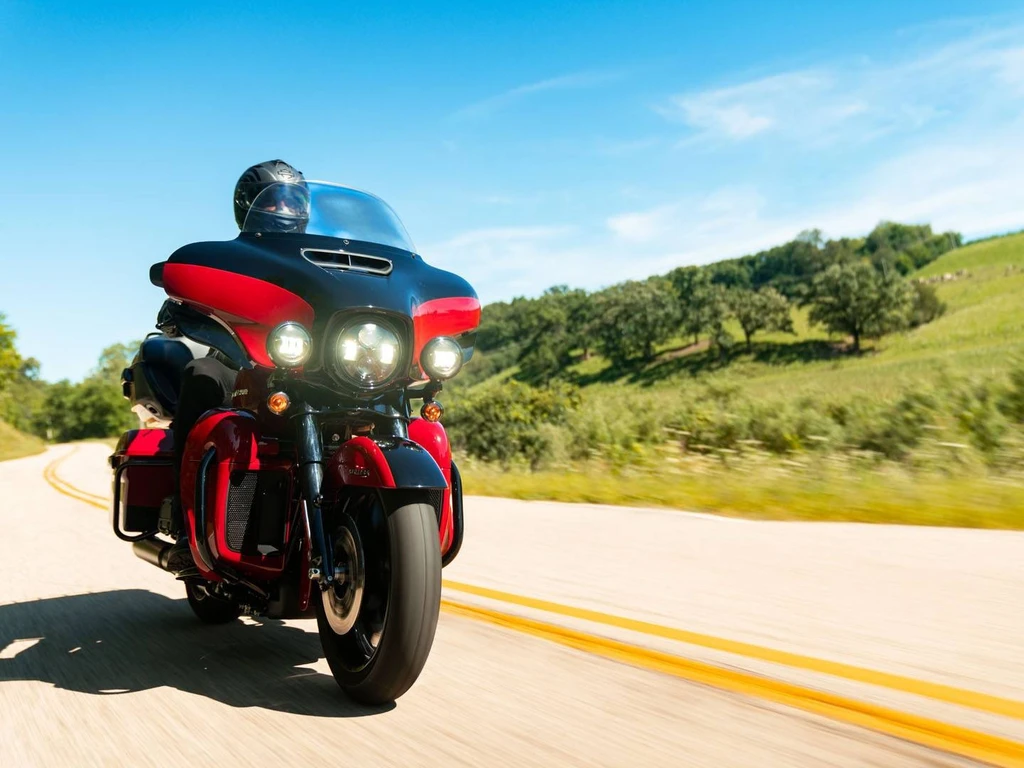

Harley Davidson Ultra Limited (2021)

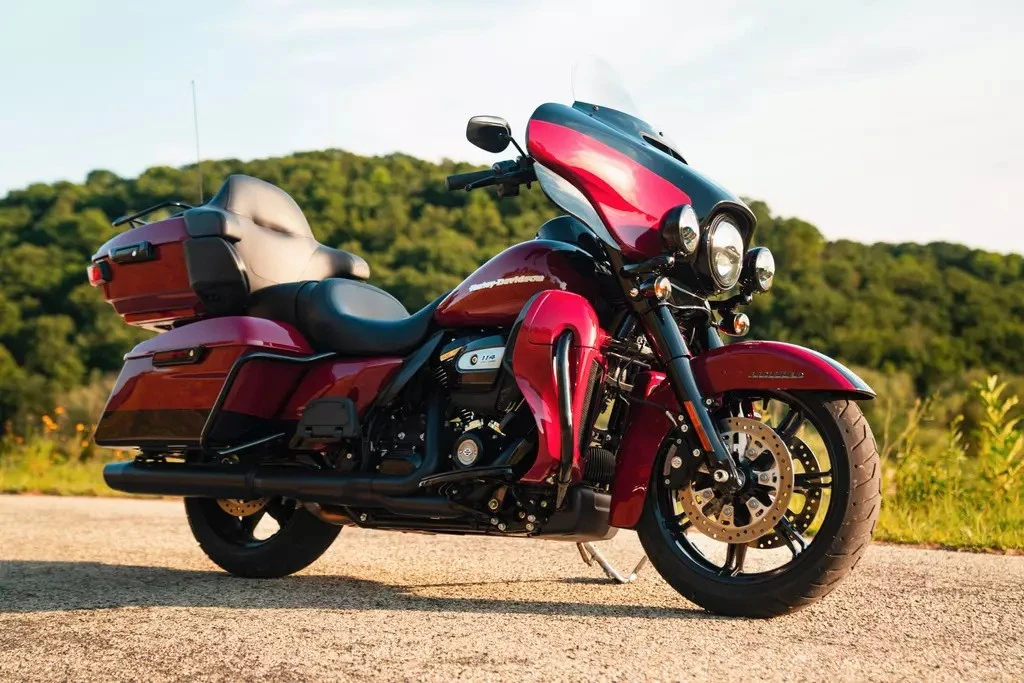

Harley Davidson Ultra Limited (2021)

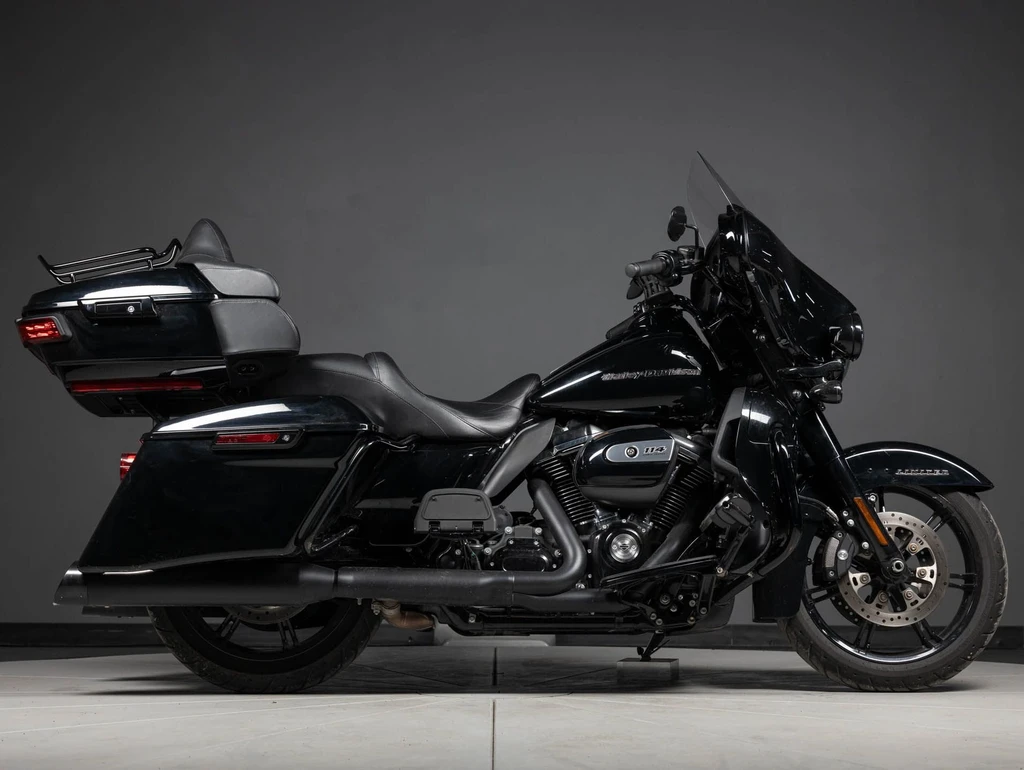

Harley Davidson Ultra Limited (2021)
