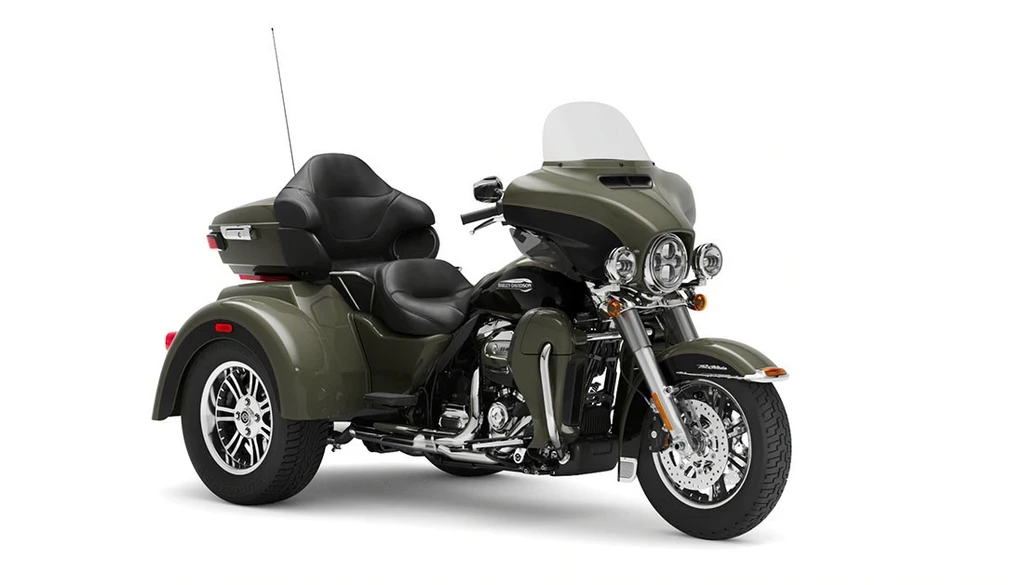

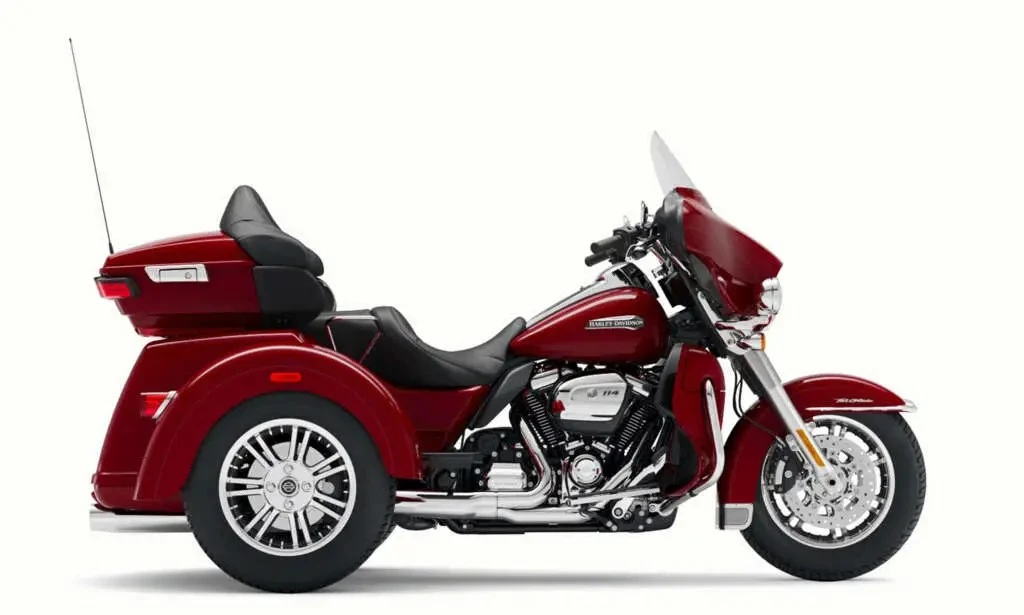

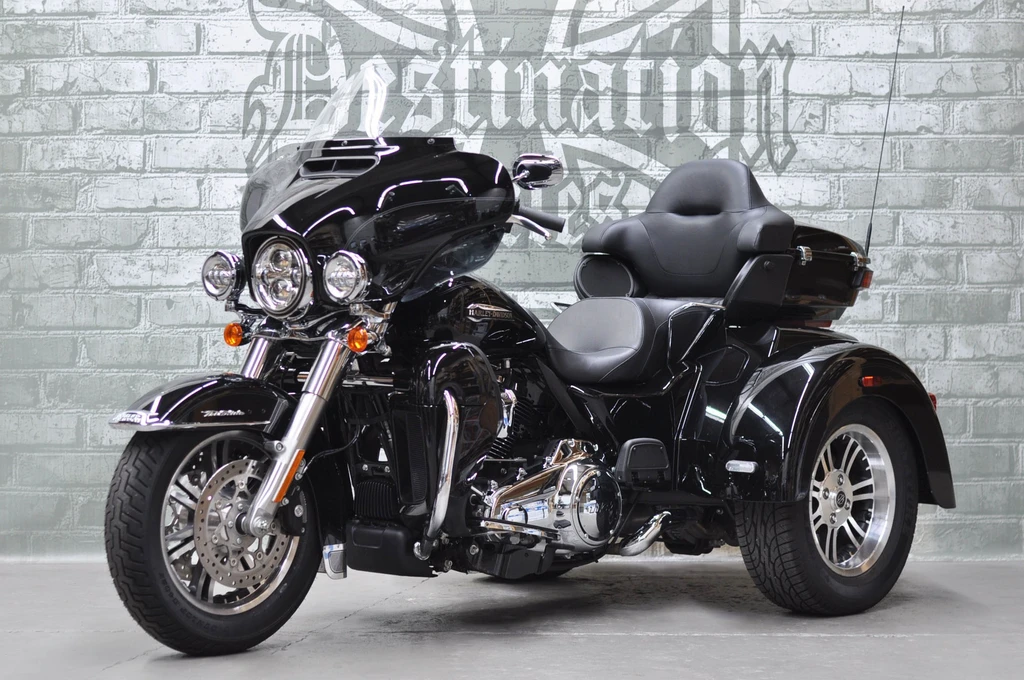

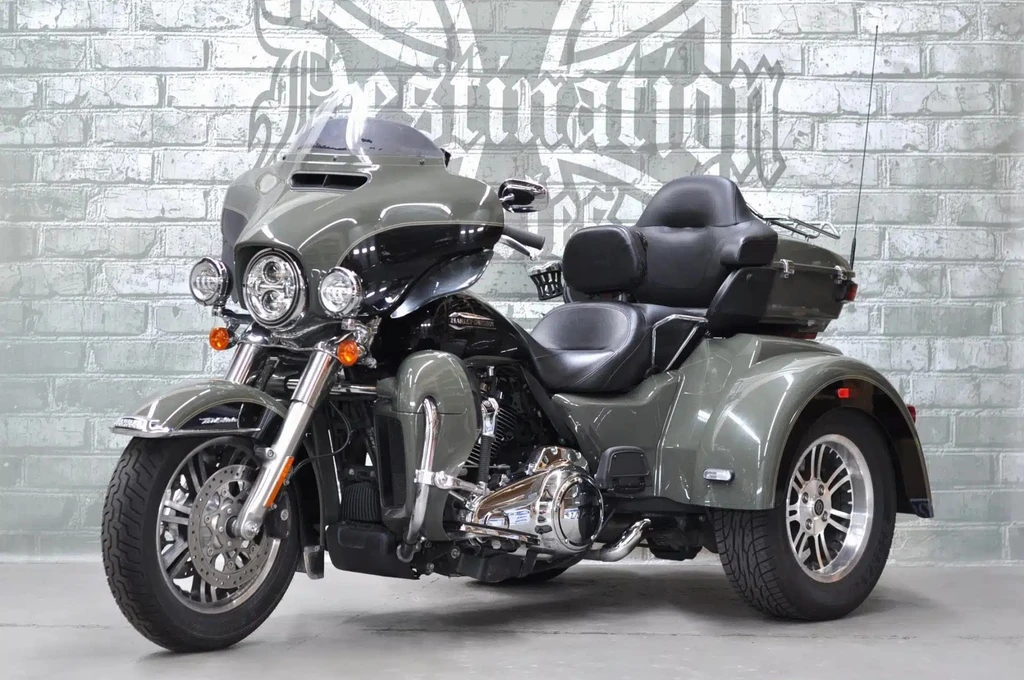

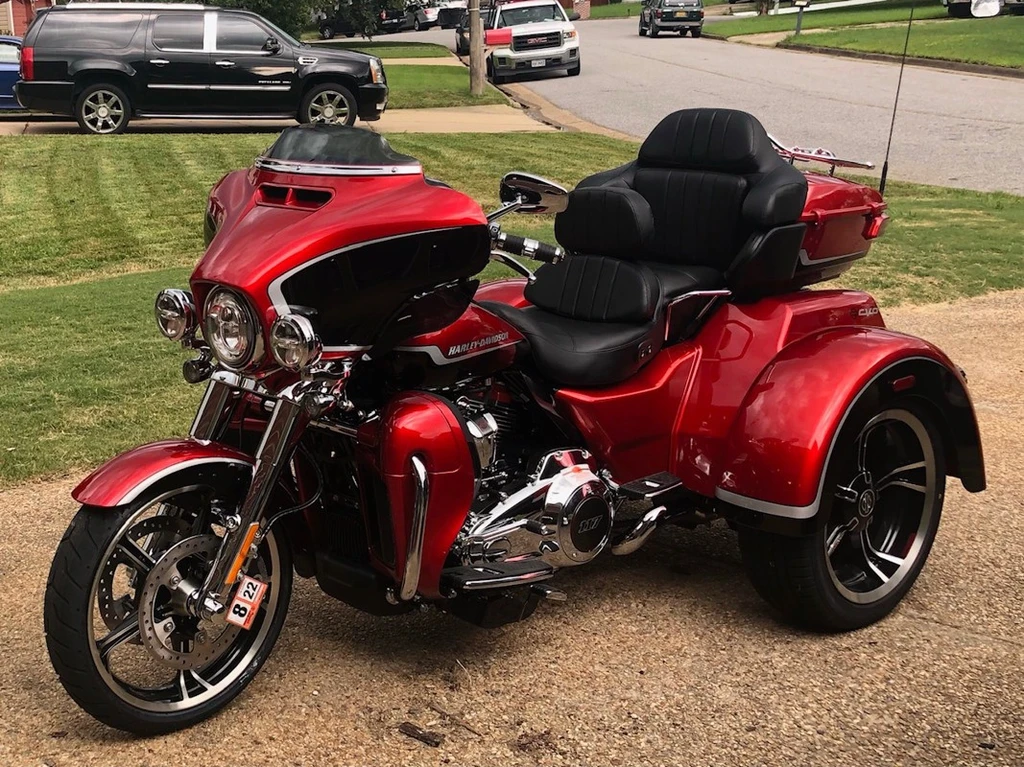

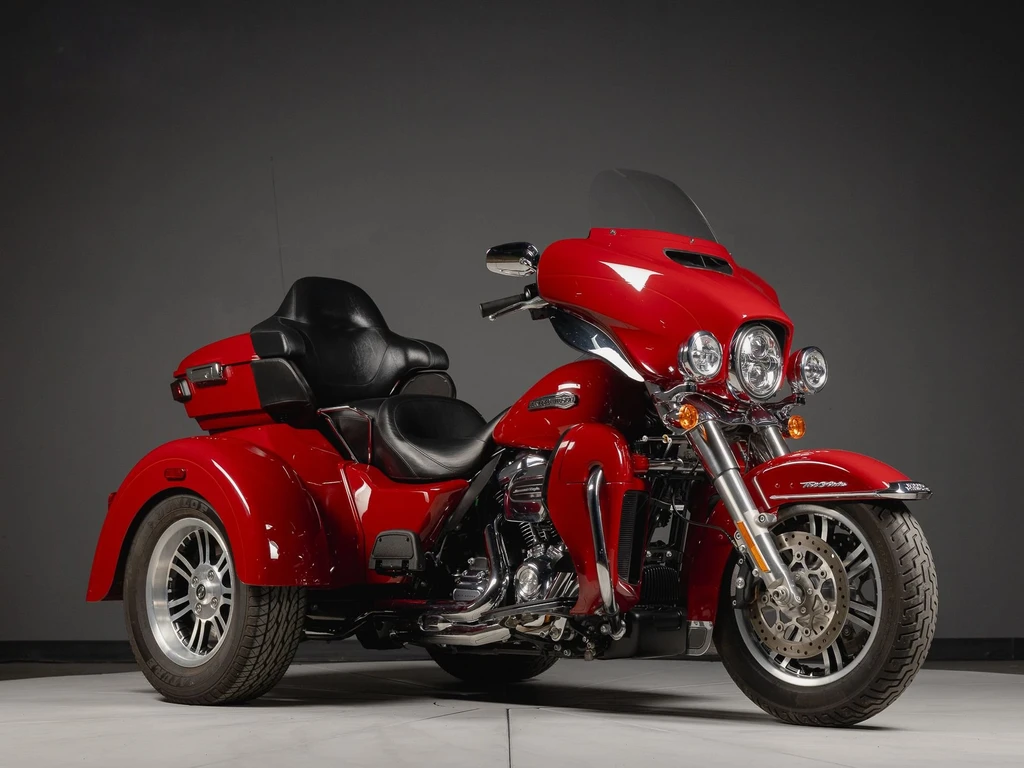

Harley Davidson Tri Glide Ultra 114 (2021)

Harley Davidson Tri Glide Ultra 114 (2021)

The Harley-Davidson Tri Glide Ultra 114 is the ultimate touring experience, designed for riders who crave freedom and adventure. At its heart lies the powerful TWIN-COOLED MILWAUKEE-EIGHT 114 ENGINE, delivering a massive 114 cubic inches of passing and horizon-chasing power.

But it’s not just about raw power – this trike also boasts an array of sophisticated technologies to enhance your ride. Reflex linked brakes with ABS provide unparalleled control and stability, while the all-new BOOM! GTS infotainment system offers an immersive experience that’s tailored specifically for motorcycling.

From its premium suspension to its sleek Batwing fairing, every detail on this trike has been carefully calibrated to deliver a smooth and responsive ride. And with 6.8 cubic feet of storage space, you’ll have room for all your gear – plus some. Whether you’re cruising down the highway or exploring new horizons, the Harley-Davidson Tri Glide Ultra 114 is the ultimate touring experience that will leave you breathless every time you ride.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1868 cc / 114 cu in
Max Torque121 ft-lb / 164 nm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)1243 lbs / 564 kg
Seat Height28.9 inches / 735 mm
Harley Davidson Tri Glide Ultra 114 (2021)

All Specifications

Make & Model

ModelHarley Davidson Tri Glide Ultra 114
Year2021

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1868 cc / 114 cu in
Bore x Stroke102 x 114 mm
Compression Ratio10.5:1
Max Torque121 ft-lb / 164 nm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

ClutchMechanically actuated 10 plate, wet Assist & Slip
Gearbox6 Speed
Gear Ratios1st 10.534 2nd 7.302 3rd 5.423 4th 4.392 5th 3.741 6th 3.157
Final DriveBelt

Electrical & Electronics System

StarterElectric
ABSStandard

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension49mm dual bending valve
Front Suspension Travel4.6 inches / 117 mm
Rear SuspensionHand-adjustable emulsion rear suspension
Rear Suspension Travel2.9 inches / 76 mm
Rake26
Trail100 mm / 3.8 in
SwingarmMild steel, rectangular tube sections with plate junctions; MIG welded

Wheels & Brakes

WheelsBlack, 7-spoke Cast Aluminum
Front Tire SizeMT90B16 72H
Rear Tire Size2xP205/65R15 92T
Front Brakes2x 300mm disc, 4 piston fixed caliper
Rear Brakes2x 270mm disc, 1 piston floating caliper with integrated park brake
ABSStandard

Dimension & Weights

Overall Length2670 mm / 105.1 in
Overall Width1390 mm / 54.7 in
Overall Height1430 mm / 56.3 in
Seat Height28.9 inches / 735 mm
Wheelbase65.7 inches / 1670 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight1243 lbs / 564 kg
Dry Weight546 kg/ 1204 lbs

Features

  • All-new traction control system
  • Milwaukee-Eight 114 engine
  • Reflex linked brakes with ABS
  • 4-speaker BOOM! GTS infotainment system
  • Electronic cruise control
  • 6.8 cubic feet of storage space
  • TWIN-COOLED MILWAUKEE-EIGHT 114 ENGINE
  • REFLEX LINKED BREMBO BRAKES WITH STANDARD ABS
  • BOOM! BOX GTS INFOTAINMENT SYSTEM
  • High-performance suspension
  • 6-SPEED CRUISE DRIVE TRANSMISSION
  • Trunk and King Tour-Pak storage
  • Daymaker LED headlamp and LED foglamps
  • Batwing fairing & splitstream air vent
  • Vivid Black, Billiard Red, Gauntlet Grey Metallic/Vivid Black, Deadwood Green/Vivid Black, Snake Venom color options
