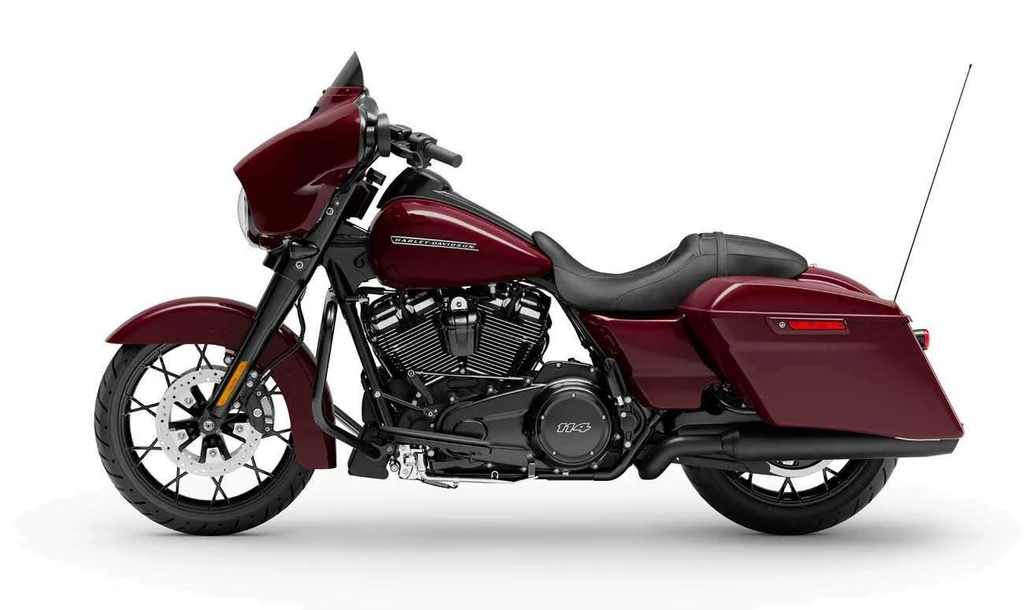

Harley Davidson Street GlideSpecial 114 (2019 - 2020)

The Harley-Davidson Street Glide Special 114 is a masterclass in high-octane style and substance, boasting an impressive powertrain and sleek design cues.

Its Milwaukee-Eight 114 engine is the largest displacement in standard H-D Touring models, delivering a whopping 114 cubic inches of raw, unbridled power that’s perfect for devouring twisties and sweeping highways alike.

Ride this beast with confidence, thanks to its stretched saddlebags, blacked-out details, and high-performing front and rear suspension. The new BOOM! Box GTS infotainment system is the icing on the cake, offering a seamless blend of style, functionality, and connectivity that’s sure to revolutionize your riding experience.

As you throttle up and take the reins, the Street Glide Special 114 reveals its true character: an unwavering fusion of power, finesse, and rebellious spirit that’s uniquely Harley-Davidson.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1868 cc / 114 cu in
Max Torque	122 ft-lb / 167 nm
Fuel Tank Capacity	22.7 Litres / US 6.0 gal
Weight (Wet/Kerb)	836 lbs / 379 kg
Seat Height	26.1 inches / 663 mm

*n/a – information not provided by manufacturer

Harley Davidson Street GlideSpecial 114 (2019 - 2020)

All Specifications

Make & Model

Model	Harley Davidson Street GlideSpecial 114
Year	2019 – 2020

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1868 cc / 114 cu in
Bore x Stroke	102 x 114 mm
Compression Ratio	10.5:1
Max Torque	122 ft-lb / 167 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Black, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Hydraulically actuated 9 plate wet, Assist & Slip
Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes
Front Suspension	41.3 mm telescopic, cartridge-style damping,
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Short, air-adjustable shock,
Rear Suspension Travel	2.0 inches / 51 mm
Rake	26
Trail	173mm / 6.8 in

Wheels & Brakes

Front Tire Size	130/60B19 61H
Rear Wheel/Rim Size	Black, Talon Cast Aluminum
Rear Tire Size	1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Front Brakes	2x 300mm discs 4-piston fixed caliper
Rear Brakes	Single 300mm discs 2-piston caliper
ABS	Standard

Dimension & Weights

Seat Height	26.1 inches / 663 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	125 mm / 4.9 in
Fuel Tank Capacity	22.7 Litres / US 6.0 gal
Wet (kerb/curb) Weight	836 lbs / 379 kg
Dry Weight	362 kg / 798 lbs

Features

Milwaukee-Eight 114 engine
Standard on the 2019 Street Glide Special model
Most displacement in standard H-D Touring models
114 cubic inches of passing and horizon-chasing power
Big, bold black wheels with spokes that extend to the edge of the rim
Stretched Saddlebags for an iconic, custom look
Blacked-out details including front forks, handlebars, tank console, and exhaust
New BOOM! Box GTS Infotainment System with a contemporary interface experience
Optimized for motorcycling with durability and features specifically designed for riders
Apple CarPlay compatibility and hands-free voice recognition
High-performing front and rear suspension
Hand-adjustable rear shocks for control of the ride
Plush ride with high-performance front and rear suspension
