The 2022 Harley-Davidson Street Glide ST embodies the essence of high-performance touring, boasting the most powerful production V-Twin engine ever produced by the legendary American brand. The Milwaukee-Eight 117 V-Twin engine unleashes a torrent of torque, producing up to 127 lb-ft at 3750 RPM, making every twist of the throttle an exhilarating experience.

The Street Glide ST’s muscular powertrain is perfectly complemented by its sleek and aggressive styling, featuring dark-and-bronze finishes that exude a sense of sophistication and refinement. The iconic Harley-Davidson batwing fairing has been revised to minimize head buffeting, while the low-profile tank console and side fuel fill add a touch of custom flair.

As the ultimate expression of the Harley-Davidson touring experience, the Street Glide ST is designed to take riders beyond the horizon with comfort, convenience, and style. With its powerful engine, aggressive styling, and premium features, this exceptional machine is poised to redefine the boundaries of speed and adventure on the open road.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity117 cubic inches / 1923 cc
Max Power106 hp / 77.9 kW @ 4750 rpm
Max Torque127 ft-lb / 172 nm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)814 lbs / 369 kg
Seat Height28 inches / 710 mm
Harley Davidson Street Glide ST (2022)

All Specifications

Make & Model

ModelHarley Davidson Street Glide ST
Year2022

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement117 cubic inches / 1923 cc
Bore x Stroke103.5 x 114.3 mm
Compression Ratio10.2:1
Max Horsepower106 hp / 77.9 kW @ 4750 rpm
Max Torque127 ft-lb / 172 nm
Engine Management SystemElectronic sequential port fuel injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustDual, with crossover

Performance

Top Speedn/a

Transmission

ClutchPressurized, dry-sump with oil cooler
Gearbox6-Speed, cruise drive
Gear Ratios1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final DriveBelt, 32/68 ratio

Electrical & Electronics System

StarterElectric
ABSStandard

Chassis & Suspension

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension49mm Dual bending valve
Front Suspension Travel4.6 inches / 117 mm
Rear SuspensionPremium standard height hand-adjustable rear suspension
Rear Suspension Travel3 inches / 76 mm
Rake26
Trail170 mm / 6.7 in
SwingarmMild steel; two-piece drawn and welded section; forged junctions; MIG welded

Wheels & Brakes

WheelsBronze Prodigy
Front Tire Size130/60B19 61H
Rear Tire SizeBW 180/55B18 80H
Front Brakes2x 300mm discs, 4 piston fixed calipers
Rear BrakesSingle 300mm disc, 4 piston fixed caliper
ABSStandard

Dimension & Weights

Seat Height28 inches / 710 mm
Wheelbase64 inches / 1625 mm
Ground Clearance135 mm / 5.3 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight814 lbs / 369 kg

Features

  • Four stroke engine
  • V-Twin design
  • Milwaukee-Eight 117 engine
  • Pushrod-operated overhead valves
  • Hydraulic, self-adjusting lifters
  • 4 valves per cylinder
  • Single-fire, non-wasted, map-controlled spark ignition
  • 6-speed transmission
  • Gear ratios: 1st – 9.311, 2nd – 6.454, 3rd – 4.793, 4th – 3.882, 5th – 3.307, 6th – 2.79
  • Up to 127 lb-ft of torque at 3750 RPM
  • Precision oil/air cooling
  • High-performance camshaft
  • High-flow intake
  • High-performance exhaust
  • Dealer-installed Screamin Eagle Performance Parts Stage Upgrades available
  • Dark-and-bronze finishes
  • Iconic Harley-Davidson batwing fairing with splitstream vent
  • Low-profile dark windshield
  • Low-profile tank console with side fuel fill and low-profile engine guard
  • Matte Dark Bronze finish on Prodigy cast aluminum wheels

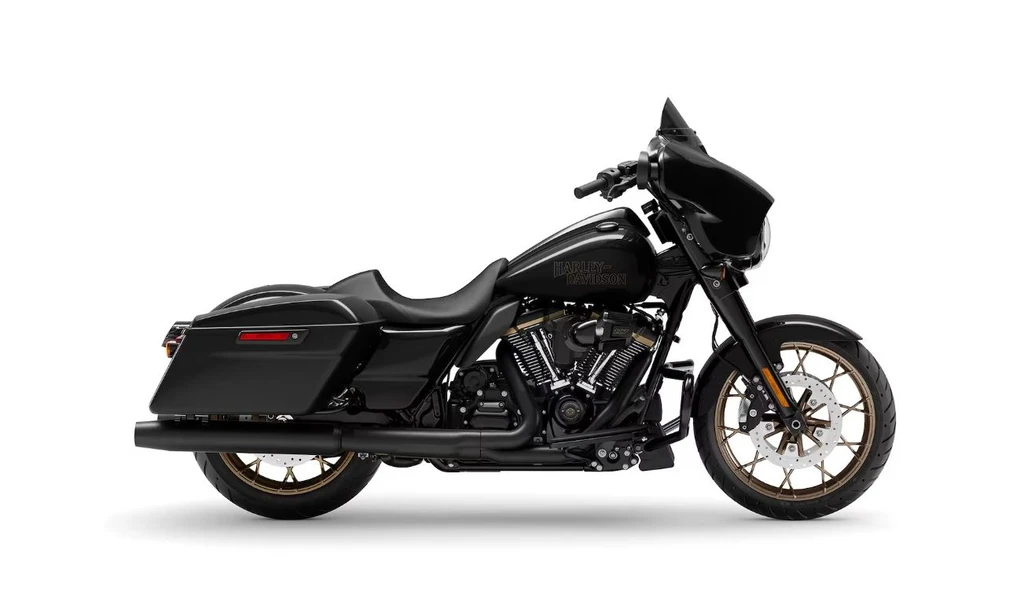

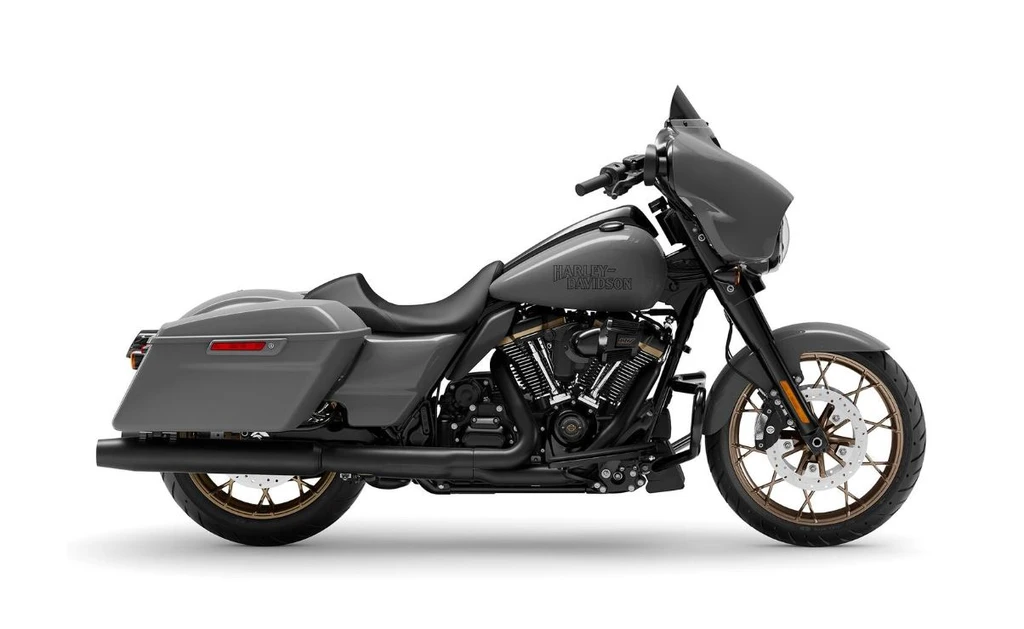

  • Two paint options: Vivid Black or Gunship Gray
  • Heavy Breather intake with forward-facing exposed air cleaner element
  • Emulsion-technology rear shock absorbers with hydraulic pre-load adjustment
