Harley Davidson Street Glide 3 Limited (2026)

2026-harley-davidson-street-glide-3-limited-1-throttlecraze.com

The new 2026 Street Glide 3 Limited doesn’t echo the past. Instead, it creates its own language of long-haul touring. With the newly redesigned Batwing fairing, completely re-engineered suspension, and Milwaukee-Eight® VVT 117 power, every mile feels sharper, more comfortable, and more your own. Add in heated rider and passenger seating, the all-new Grand Tour-Pak® with all the storage you could need, and the Skyline OS keeping you connected, and this trike makes the longest rides feel like a rip around the block. Three wheels don’t just change the ride. They change what’s possible.

Key Specifications

Engine TypeMilwaukee-Eight® VVT 117
Engine Capacity117 cubic inches / 1917 cc
Max Power105 HP / 78 kW @ 4600 rpm
Max Torque129 ft-lb / 174.9 Nm @ 3250 rpm
Fuel Tank Capacity6 US gallons / 22.7 L
Weight (Wet/Kerb)1250 lbs / 567 kg
Seat Height27.3 inches / 693.4 mm (laden)
2026-harley-davidson-street-glide-3-limited-2-throttlecraze.com

All Specifications

Make & Model

ModelHarley Davidson Street Glide 3 Limited
Year2026

Engine

Engine TypeMilwaukee-Eight® VVT 117
Displacement117 cubic inches / 1917 cc
Bore x Stroke4.1 inches x 4.5 inches
103.5 mm x 114.3 mm
Compression Ratio10.3:1
Max Horsepower105 HP / 78 kW @ 4600 rpm
Max Torque129 ft-lb / 174.9 Nm @ 3250 rpm
Fuel-mixture SystemElectronic Sequential Port Fuel Injection (ESPFI)
Exhaust System2-1-2 dual exhaust

Performance

Acceleration (0-100 km/h, 0-60 mph)n/a
Fuel Consumption39 mpg / 16.6 kmpl
Range~ 234 miles / 376.6 kms

Transmission

Gearbox6-Speed with re-designed reverse gear
Primary Drive Ratio34:46
Gear Ratios1st gear – 10.534
2nd gear – 7.302
3rd gear – 5.423
4th gear – 4.392
5th gear – 3.742
6th gear – 3.157
Traction Control SystemC-TCS

Electrical & Electronics System

Headlight TypeLED
Taillight TypeLED
InstrumentationSkyline™ OS 12.3 inch Full Color TFT screen
ConnectivityApple CarPlay (wireless or wired); Bluetooth: Phone/Media Player, Headset
Riding ModesRoad, Rain, Sport, Custom
Traction Control SystemC-TCS
ABSC-ABS

Chassis & Suspension

Front Suspension1.9 in. Dual Bending Valve
Rear SuspensionHand-adjustable emulsion rear suspension
Rake26
Trail3.8 inches / 96.5 mm

Wheels & Brakes

WheelsGloss Black/Machined 10-spoke, Cast Aluminum
Front Wheel/Rim Size19 in.
Front Tire Size130/60B19 M/C 61H
Rear Wheel/Rim Size18 in.
Rear Tire SizeP215/45R18 83T
Front BrakesDual floating rotors (front), fixed rotor (rear), Front: 1.3 in. 4-piston fixed, Rear: floating 1.4 in. piston integrated park brake
ABSC-ABS

Dimension & Weights

Overall Length105.7 inches / 2684.8 mm
Overall Width57.3 inches / 1455.4 mm
Seat Height27.3 inches / 693.4 mm (laden)
Wheelbase67.7 inches / 1719.6 mm
Ground Clearance5.1 inches / 129.5 mm
Fuel Tank Capacity6 US gallons / 22.7 L
Wet (kerb/curb) Weight1250 lbs / 567 kg

Infotainment

Infotainment systemSkyline™ OS
Screen Size12.3 in.
TypeFull Color TFT
Watts Per Channel50
Speakers4
Speaker SizeTwo 6.5 in. fairing speakers plus two 6.5 in. Tour-pak speakers
AMStandard
FMStandard
SD Card, Flash Drive and MP3 – via USB ConnectionSupported
LanguagesArabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
Hands-free Mobile Phone – via BluetoothStandard
Voice Recognition Languages: Phone functions onlyPhone dependent
Voice Recognition Languages: Tuner/Media/NavigationDanish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain), Swedish
Rider/Passenger IntercomRider and passenger headsets sold separately; VOX is available for H-D headsets
Vehicle Information Screen (Air temperature, oil pressure and EITMS)Standard
Text-to-Speech (TTS) LanguagesSame as Languages list
USBUSB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
Phone ConnectivityApple CarPlay (wireless or wired)
BluetoothPhone/Media Player, Headset
NavigationEmbedded Navigation standard

Rider Safety Enhancements

  • Anti-lock Brake System (ABS)
    • ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
  • Electronic Linked Braking (ELB)
    • This feature electronically applies braking effort to both wheels when the rider applies the front brake lever and, on some models when the rider applies the rear brake pedal. ELB can help many riders achieve better braking performance. It boosts braking power when needed while minimizing or stopping the linking for lighter braking or at lower speeds.
  • Traction Control System (TCS)
    • The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
  • Drag-Torque Slip Control System (DSCS)
    • DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
  • Tire Pressure Monitoring System (TPMS)
    • TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
  • Cornering Enhanced Anti-lock Brake System (C-ABS)
    • C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
  • Cornering Enhanced Electronic Linked Braking (C-ELB)
    • C-ELB takes into account the motorcycle lean angle or Trike lateral acceleration. C-ELB will alter the proportioning of brake pressure between the front and rear brakes when braking while cornering in an attempt to improve the ability of the Motorcycle to maintain the rider’s intended path.
  • Cornering Enhanced Traction Control System (C-TCS)
    • C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
  • Cornering Drag-Torque Slip Control System (C-DSCS)
    • On motorcycles equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel Motorcycle is leaning or the side-to-side motion on a Trike.

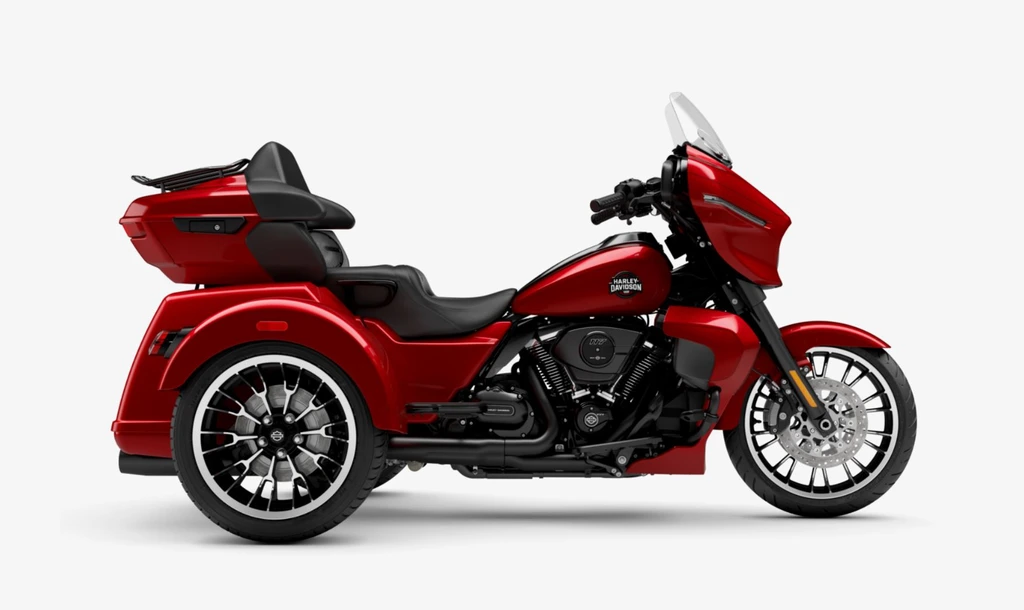

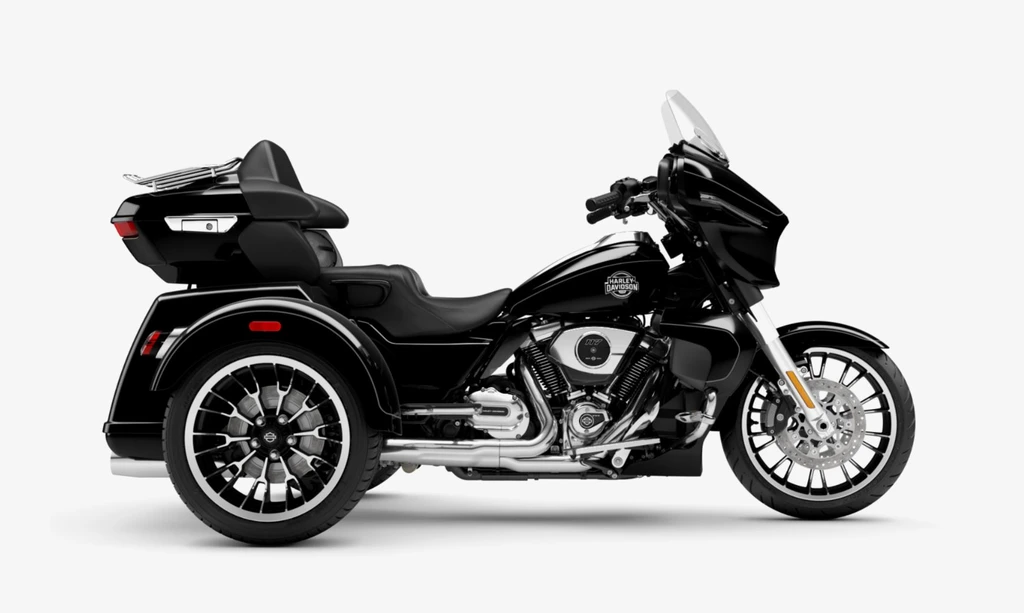

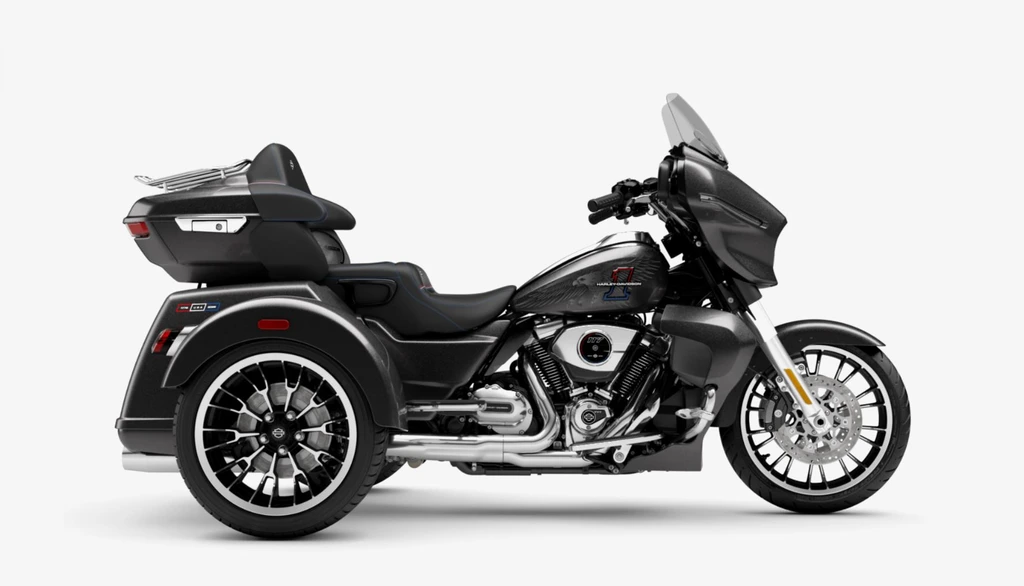

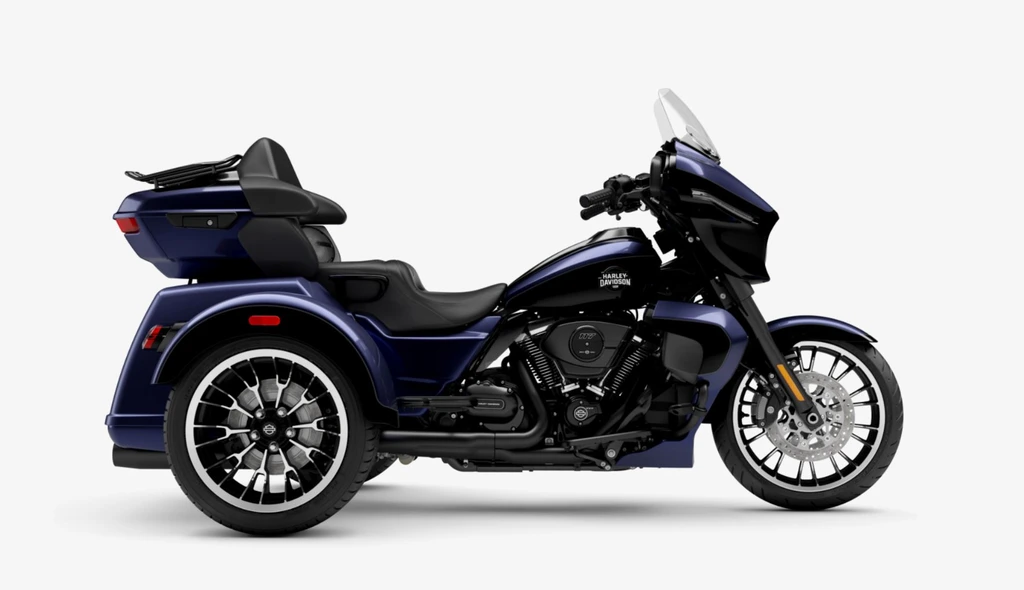

Harley Davidson Street Glide 3 Limited (2026) Color Options

  • Chrome
    • Dark Billiard Gray
    • Vivid Black
    • Iron Horse Metallic
    • Brilliant Red
    • Olive Steel Metallic/Vivid Black
    • Purple Abyss/Vivid Black
    • Midnight Ember
  • Black
    • Dark Billiard Gray
    • Vivid Black
    • Iron Horse Metallic
    • Brilliant Red
    • Olive Steel Metallic/Vivid Black
    • Purple Abyss/Vivid Black
