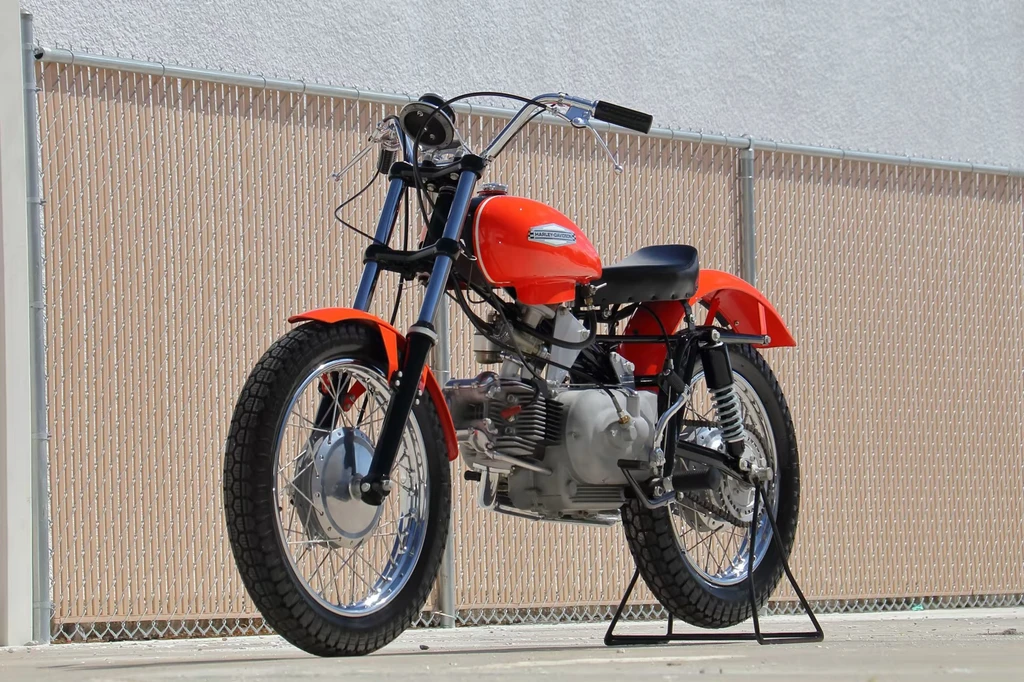

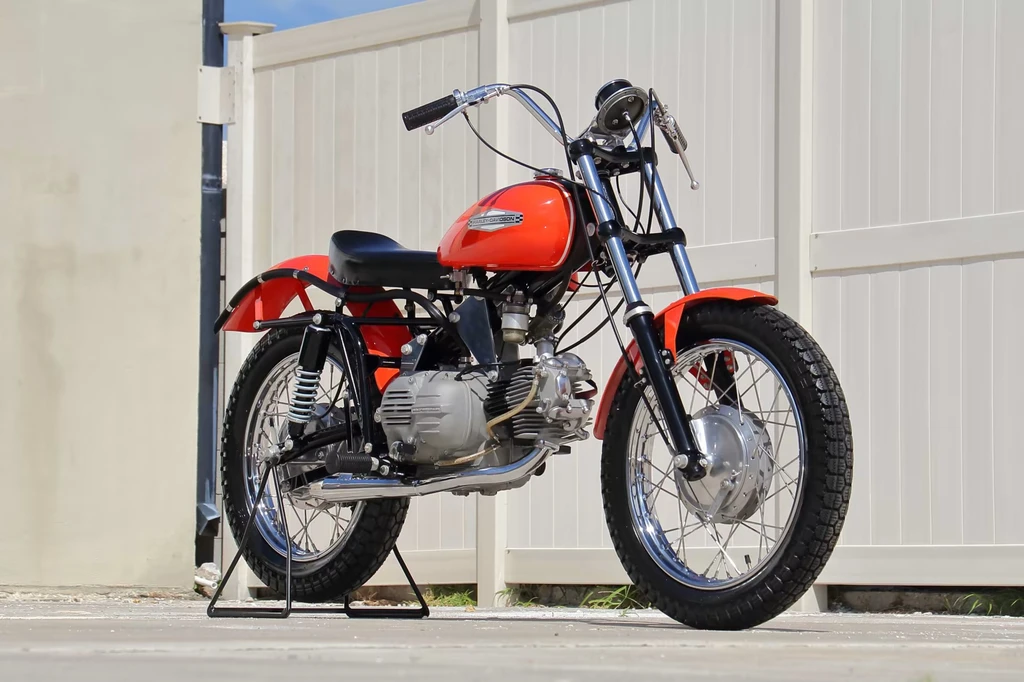

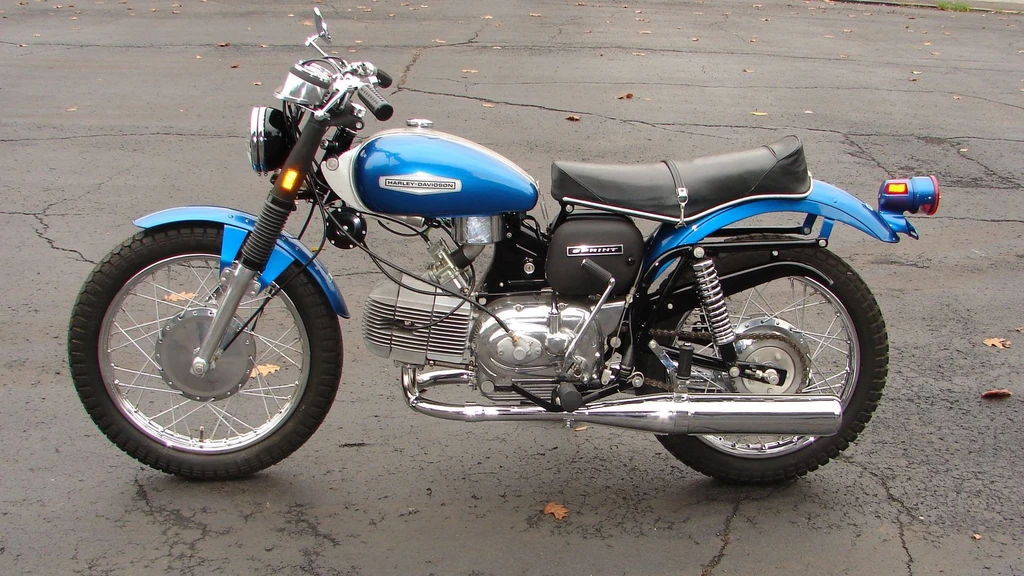

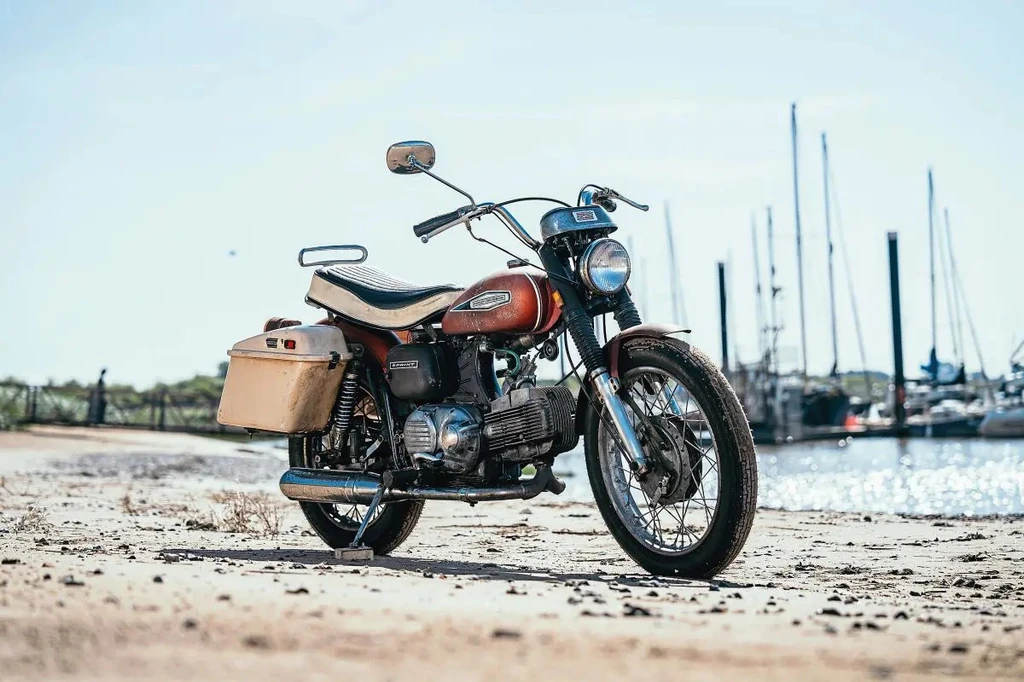

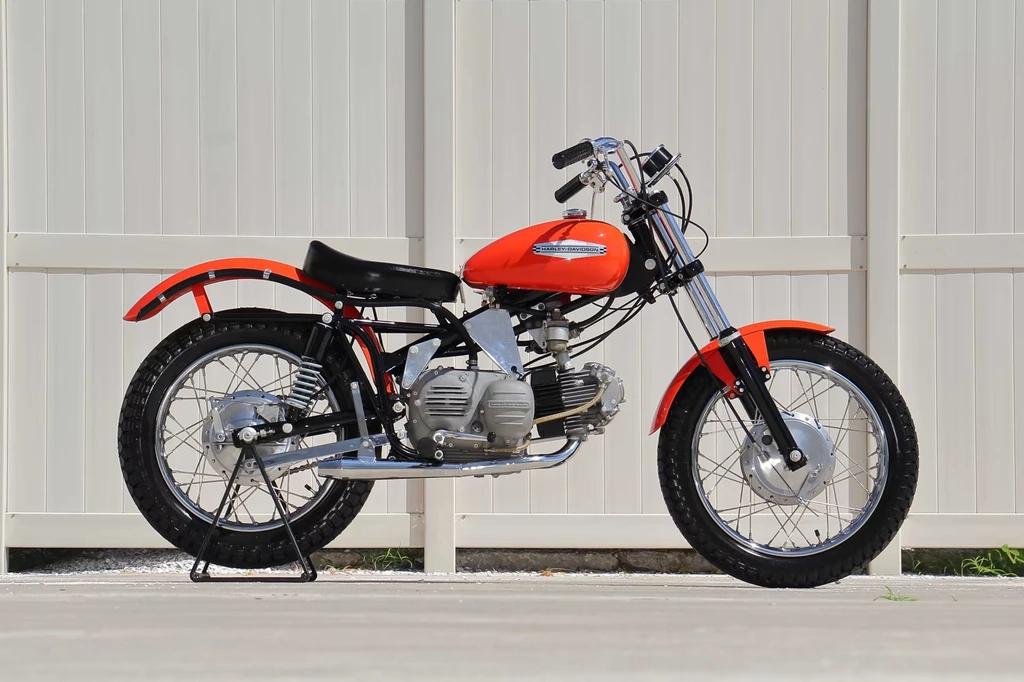

The Harley-Davidson SS 350 Sprint was a high-performance variant of the popular SS model, introduced in 1968. It featured a more aggressive design and styling cues compared to its standard counterpart.
At the heart of this sleek machine lay a 349cc air-cooled flat-twin engine, producing a respectable 25 horsepower. This powerplant provided a unique blend of low-end torque and high-rpm punch, making it well-suited for spirited riding.
The SS 350 Sprint’s engine character was distinctively raw and unrefined, with a slightly rougher demeanor than its brethren. However, this inherent coarseness only added to the bike’s charm, as riders reveled in its untamed power delivery.
The result was an exhilarating experience that was equal parts accessible and intimidating.
Key Specifications
Engine Type
Four stroke, single cylinder, OHV
Engine Capacity
21 cubic inches / 350 cc
Max Power
25 hp / 18.3 kW @ 7000 rpm
Fuel Tank Capacity
2.65 US gallons / 10.0 L
Weight (Wet/Kerb)
323 lbs / 146.5 kg
Seat Height
30.8 inches / 782.3 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson SS 350 Sprint
Year
1968 –
Engine
Engine Type
Four stroke, single cylinder, OHV
Displacement
21 cubic inches / 350 cc
Bore x Stroke
74 x 80 mm
Compression Ratio
9.0:1
Max Horsepower
25 hp / 18.3 kW @ 7000 rpm
Engine Management System
27mmDell’OrtoVHB
Lubrication System
Wet sump
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry multi-plate
Gearbox
4 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
Telescopic fork
Rear Suspension
Swinging arm
Wheels & Brakes
Front Tire Size
3.25-19
Rear Tire Size
3.50-18
Front Brakes
Drum
Rear Brakes
Drum
Dimension & Weights
Seat Height
30.8 inches / 782.3 mm
Wheelbase
53.3 inches / 1353.8 mm
Ground Clearance
203.2 mm / 8.0 in
Fuel Tank Capacity
2.65 US gallons / 10.0 L
Wet (kerb/curb) Weight
323 lbs / 146.5 kg
